1-1/4 barrel sealing piston gb gun

Built a pneumatic cannon? Then post it here! This section is for completed, finished cannons that you have built. Please include pictures and information.
Sponsored
  • Author
    Message

1-1/4 barrel sealing piston gb gun

Unread postAuthor: homedepotpro » Wed Sep 05, 2007 10:43 pm

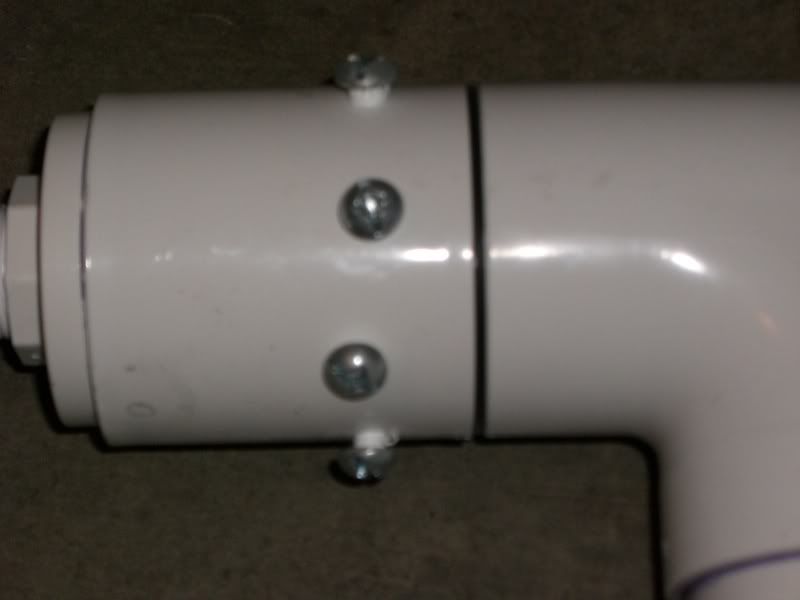

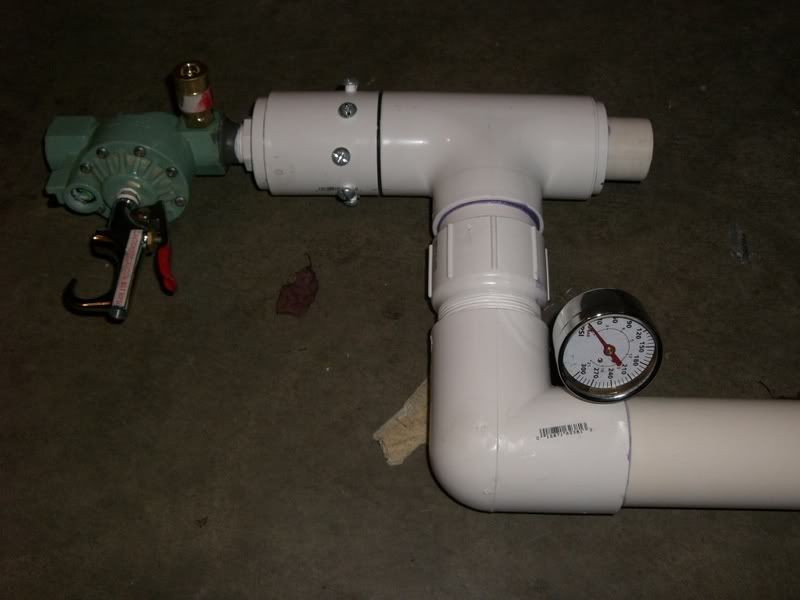

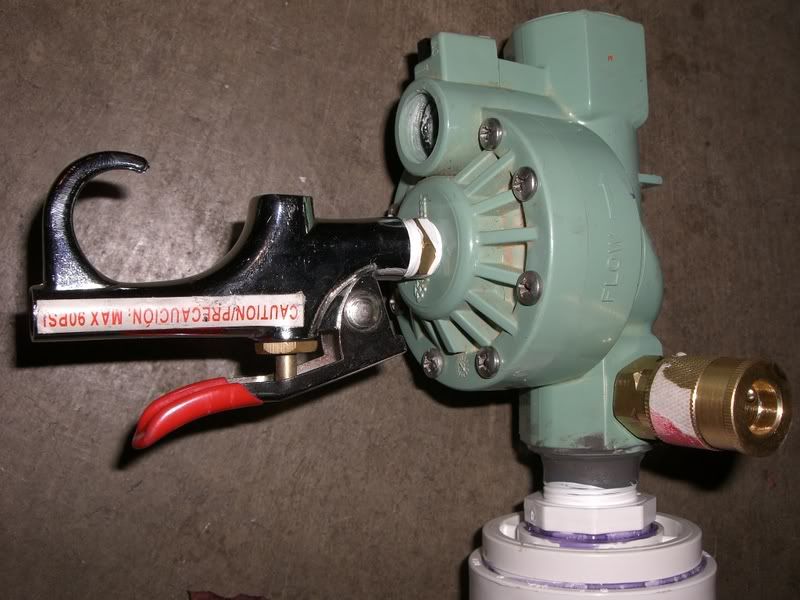

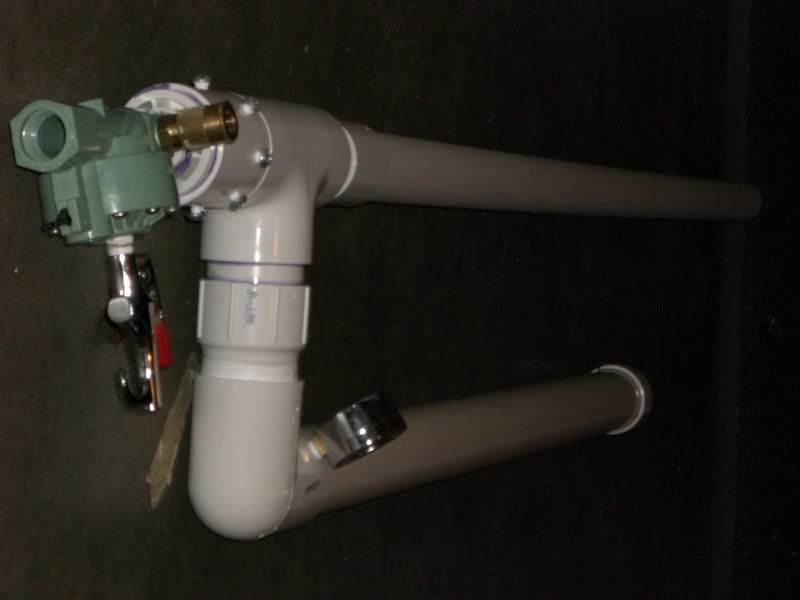

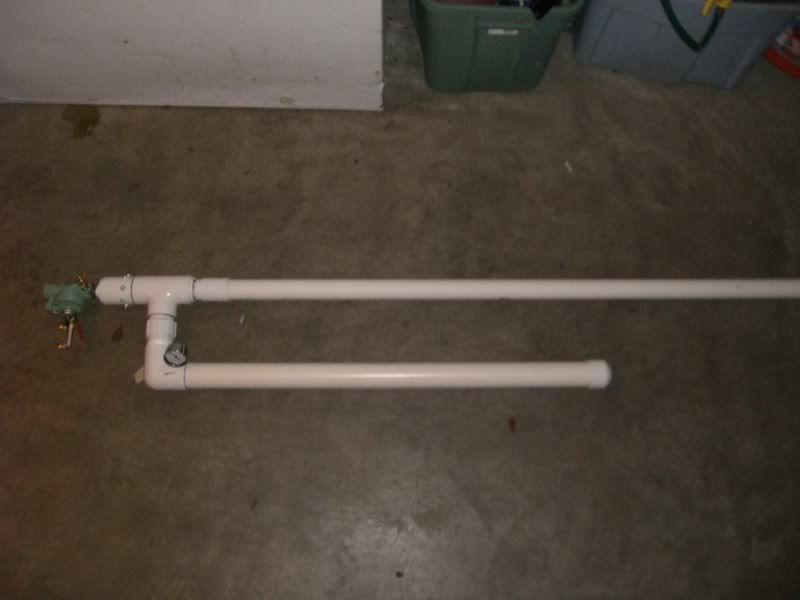

this was my first attempt at a piston in a tee, and it wasn't as hard as i thought it would be. the piston is 2'' dia. washers with an o-ring all on a 1/4'' thredded rod. My pilot valve is a 3/4'' sprinkler valve, recycled from an old sprinkler system, can you say "free-bie" At 80psi it will launch a gb 400 yards, in other words, it pwns sprinkler valves. it is 1-1/4'' port because it was nervous that if i went 1-1/2'' i wouldn't be able to get my piston to actuate. well here are some pics.
suggestion are welcome and wanted, im going to put barrel supports in soon.
  • 0

User avatar
homedepotpro
Lieutenant Colonel
Lieutenant Colonel

Posts: 443
Joined: Sun Nov 26, 2006 1:00 am
Reputation: 0

Unread postAuthor: jackssmirkingrevenge » Wed Sep 05, 2007 10:52 pm

Very good, looking forward to higher pressure testing and damage pics
  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Unread postAuthor: spud yeti » Wed Sep 05, 2007 11:38 pm

Looks good. Thats some pretty impressive results too :D
Only suggestion: Perhaps paint it if you want to, but it still looks cool enough :wink:
  • 0

really good quote/phrase here
User avatar
spud yeti
Brigadier General
Brigadier General

Posts: 1030
Joined: Tue May 08, 2007 1:41 pm
Location: Cape town south africa
Reputation: 0

Unread postAuthor: MrCrowley » Wed Sep 05, 2007 11:57 pm

Looks great, Nice and simple, very clean., makes me want to go up to my garage and shoot my 2" barrel sealer :P

Why have a nice, clean, o-ringed piston when you can use a <A HREF="http://www.spudfiles.com/forums/how-to-make-a-pneumatic-cannon-with-a-2-piston-valve-t10381.html">Deodorant can</a> :wink:
  • 0

User avatar
MrCrowley
Moderator
Moderator

Posts: 10207
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand
Country: New Zealand (nz)
Reputation: 4
