spring loaded ball valve cannon UPDATE: NEW VIDEO

Unread postAuthor: trollhameran » Thu Jan 03, 2008 3:17 pm

this is my first/second cannon as it was originally my first but it went threw alot of changes so now its pretty much a new cannon.

it uses a spring loaded ball valve which is actually surprisingly effective, itll make a clean hole threw both sides of a box at 30psi using a wall plug as ammo, but mostly i have it at 110psi.

I only have 1 video at the moment but ill get more up as soon as my dad brings the compressor home from work.

[/img][youtube]http://youtube.com/watch?v=jh6IY0tzIdg[/youtube]
  • 0

Last edited by trollhameran on Mon Jan 07, 2008 3:23 am, edited 1 time in total.
User avatar
trollhameran
Colonel
Colonel

Posts: 515
Joined: Tue Dec 04, 2007 5:41 pm
Reputation: 0

Unread postAuthor: blind909 » Thu Jan 03, 2008 3:24 pm

nice cannon man, btw, how do you fire it
  • 0

<a href="http://www.danasoft.com"><img src="http://www.danasoft.com/citysign.jpg" border="0"></a><div>
THIS STATES WHERE YOU LIVE, NOT ME, IT SAYS WHERE YOU LIVE BASED ON YOUR IP ADRESS.
User avatar
blind909
Brigadier General
Brigadier General

Posts: 828
Joined: Thu Aug 02, 2007 6:06 pm
Location: Las Vegas, NV
Reputation: 1

Unread postAuthor: Mr. Beaver » Thu Jan 03, 2008 3:25 pm

looking nice but isn't that a bit hard to aim with???
  • 0

User avatar
Mr. Beaver
Corporal
Corporal

Posts: 66
Joined: Fri Nov 30, 2007 5:22 pm
Location: Israel
Reputation: 0

Unread postAuthor: trollhameran » Thu Jan 03, 2008 3:34 pm

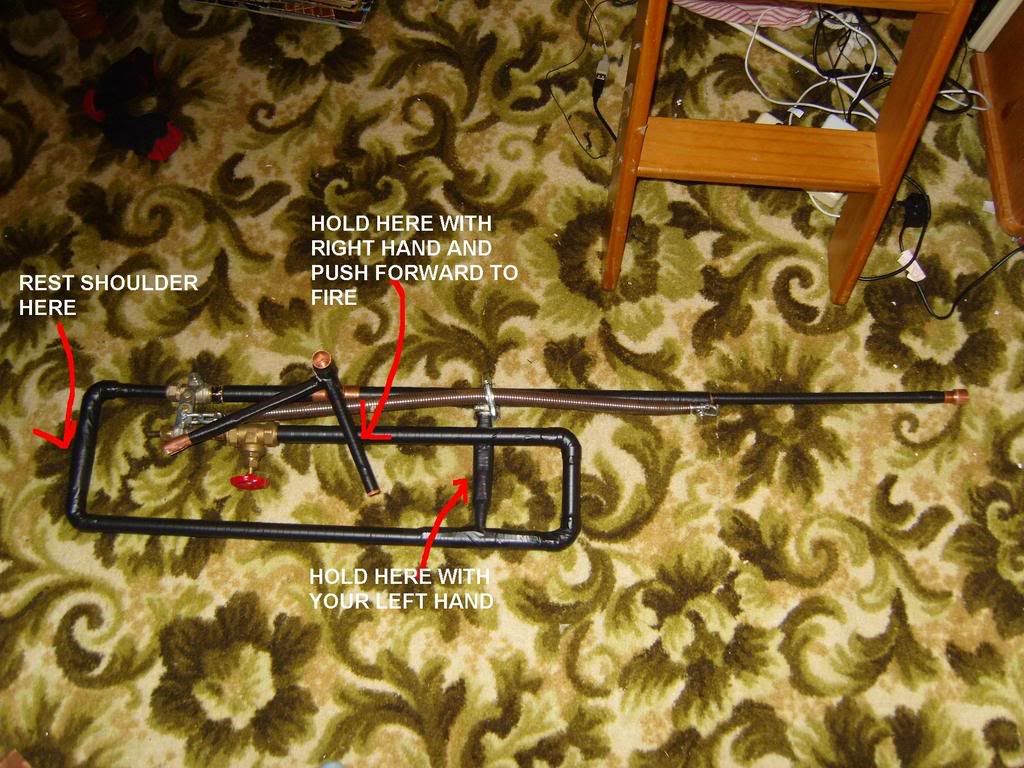

ive labeled this pic to answer both your questions
Image[/img]

@Mr. Beaver, no it isnt hard to aim because you can hold it like a rifle and then look down the barrel
  • 0

User avatar
trollhameran
Colonel
Colonel

Posts: 515
Joined: Tue Dec 04, 2007 5:41 pm
Reputation: 0

Unread postAuthor: Hotwired » Thu Jan 03, 2008 3:41 pm

That must be the longest spring I've ever seen on a spudgun.

Also the first time I've heard the sounds of mooing in a spudgun video :lol:

Still, that spring seems to do the job.

Good stuff :)
  • 0

User avatar
Hotwired
Lieutenant General
Lieutenant General

Posts: 2599
Joined: Fri Oct 13, 2006 5:51 am
Location: UK
Reputation: 0

Unread postAuthor: trollhameran » Thu Jan 03, 2008 3:55 pm

lol yeah its the only decent spring i could find anywhere, according to my dad its a pipe bending spring (he's a plumber). Its a really strong spring though and it works how i wanted it to when i as designing it so its all good.

haha yh the cows dont like spud guns lol.

ill try get some more videos at the weekend and find out what it can do with some different ammo, because havnt tested it much yet because my dad had to take the compressor to work.

Thanks for the possitive replies.
  • 0

User avatar
trollhameran
Colonel
Colonel

Posts: 515
Joined: Tue Dec 04, 2007 5:41 pm
Reputation: 0

Unread postAuthor: Maniac » Thu Jan 03, 2008 3:57 pm

nice cannon you got there what pressures are you using it at it looks like you can do better.
  • 0

Coodude26 wrote:
People who laugh really hard at stuff that pisses you off/you getting hurt, who then say "I'm sorry, I can't stop" but you know they easily could.

Mr.C: That's not as easy as you think. It's like me kicking you in the balls and telling you to stop crying.
User avatar
Maniac
Lieutenant Colonel
Lieutenant Colonel

Posts: 496
Joined: Tue Oct 23, 2007 5:55 pm
Location: Right behind you
Reputation: 0

Sponsored

Sponsor



Unread postAuthor: trollhameran » Thu Jan 03, 2008 4:06 pm

that shot was about 70-80psi, but ill be using it at about 110psi most of the time unless i find a cheap pump or compressor that will go above that.
  • 0

User avatar
trollhameran
Colonel
Colonel

Posts: 515
Joined: Tue Dec 04, 2007 5:41 pm
Reputation: 0

Unread postAuthor: Ragnarok » Thu Jan 03, 2008 4:51 pm

trollhameran wrote:lol yeah its the only decent spring i could find anywhere, according to my dad its a pipe bending spring (he's a plumber).

It is indeed a pipe bending spring, it was the first thing I spotted. Interesting use of it. Watch your fingers, they're very stiff - if you're just slightly careless, you could be nursing a nasty injury for some weeks.

More pressure is pretty easy, if you look around your local bike stores, you should be able to find some that go up to about 160 psi, which will make a difference.
  • 0

Does that thing kinda look like a big cat to you?
User avatar
Ragnarok
Chief of Staff
Chief of Staff

Posts: 5339
Joined: Tue Dec 19, 2006 8:23 am
Location: The UK
Reputation: 8

Unread postAuthor: trollhameran » Thu Jan 03, 2008 5:00 pm

yh they are incredibly stiff, i was thinking of cutting it down to start with but then i realised how stiff it is and decided i wouldnt be able to use it at a shorter length, ill try to watch my fingers cause i imagine it would break them quite easily if i got them caught.

Would i be able to get a decent pressure using a shock pump? my chamber is about 1.5m of 22mm pipe
  • 0

User avatar
trollhameran
Colonel
Colonel

Posts: 515
Joined: Tue Dec 04, 2007 5:41 pm
Reputation: 0

Unread postAuthor: Ragnarok » Thu Jan 03, 2008 5:05 pm

trollhameran wrote:Would i be able to get a decent pressure using a shock pump? my chamber is about 1.5m of 22mm pipe

Yes, but that's a very large chamber for a shock pump, so it would take a very long time to get to such a pressure.

A good track pump is the wisest choice in that chamber size range.
  • 0

Does that thing kinda look like a big cat to you?
User avatar
Ragnarok
Chief of Staff
Chief of Staff

Posts: 5339
Joined: Tue Dec 19, 2006 8:23 am
Location: The UK
Reputation: 8

Unread postAuthor: trollhameran » Thu Jan 03, 2008 5:08 pm

Ok thanks, ill go into some bike shops tomorrow and see if i can get one.

Im also looking for any ideas on how to make a sight because i dont really want to buy a scope but i would like some sort of sight on it.
  • 0

User avatar
trollhameran
Colonel
Colonel

Posts: 515
Joined: Tue Dec 04, 2007 5:41 pm
Reputation: 0

Unread postAuthor: trollhameran » Mon Jan 07, 2008 3:24 am

did a bit of shooting yesterday, not a very good shot yet though, but had a few good shots
[youtube]http://youtube.com/watch?v=M7P9QLo08Zo[/youtube]
  • 0

User avatar
trollhameran
Colonel
Colonel

Posts: 515
Joined: Tue Dec 04, 2007 5:41 pm
Reputation: 0

Unread postAuthor: jackssmirkingrevenge » Mon Jan 07, 2008 4:05 am

trollhameran wrote:Im also looking for any ideas on how to make a sight because i dont really want to buy a scope but i would like some sort of sight on it.


You can get red dot scopes (ideal for spudguns) really cheaply, if you want to make your own I had made a simple adjustable sight for this launcher.

  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Unread postAuthor: trollhameran » Tue Jan 08, 2008 1:29 pm

@ jackssmirkingrevenge: thanks for the info, i think ill try and get a cheap red dot site and i might also try out your adjustable sight as well because it looks effective and considering ive made everything else on the gun it would be cooler to make the sight as well.
