UPDATED TODAY: Schmanman's steel piston rifle

Unread postAuthor: schmanman » Sun Jan 06, 2008 7:51 pm

this thing works so good now! this piston has lasted for over 100 shots, and is still going strong! this sucker is so accurate that I shot a stray paint can out of a tree from 50 feet away, just sighting by eye, no scope or anything. I shot a nail into a pre-drilled hole from 20 feet awa, the hole was about an eighth inch diameter...

at about 120 psi, it shot an unsharpened nail through a fileing cabinent door, from 15 feet away, no problem. those are not thin, beleve me.

it also shot nail after nail through a fireproof cabinent made of 16th inch steel, no problem.
I put a sharpened pencil through a piece of 1/2 inch plywood.
it make my hand bleed from a dry fire (metal shavings from a recent modification)

I'll post some vids..... eventually.....

and I'll paint it flat black or olive drab

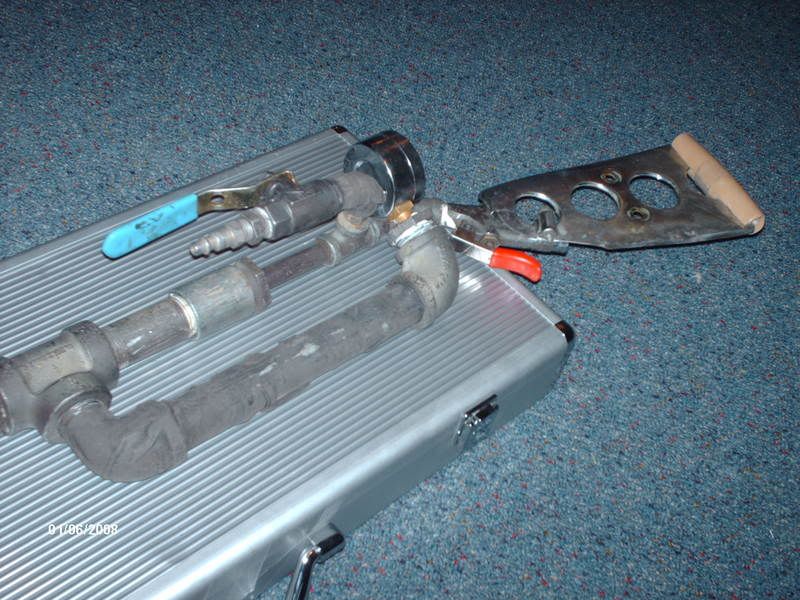

the stock looks much more shiny in person, it's chrome.

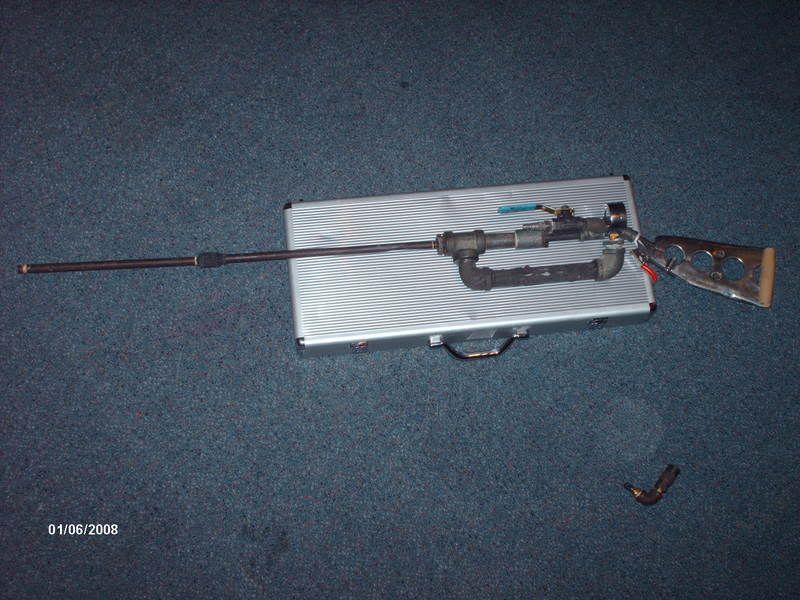

the double length "sniper barrel" (I like the short one better)


the piston...



the sharpened nails I shoot every once and a while.....


the adaptor I made so I could fill it up with a bike pump, or a compressor



without the adaptor

  • 0

Last edited by schmanman on Sat Jan 12, 2008 9:36 pm, edited 6 times in total.
Persistence is a measure of faith in yourself
User avatar
schmanman
Major General
Major General

Posts: 1685
Joined: Sat Mar 25, 2006 12:28 pm
Location: Michigan,U.S.A
Country: United States (us)
Reputation: 0

Unread postAuthor: Velocity » Sun Jan 06, 2008 7:53 pm

Haha I think its the same picture every time... but that stock looks beautiful.
  • 0

User avatar
Velocity
Brigadier General
Brigadier General

Posts: 1039
Joined: Tue Feb 07, 2006 5:42 pm
Reputation: 0

Unread postAuthor: schmanman » Sun Jan 06, 2008 7:57 pm

thanks!

ok, it's fixed.

the stock is part of a exaust heat guard from a 70's 125cc suzuki enduro, slightly flattened, and cut in half, with part ground off.

the part on the very back of the stock is a peice of plastic from the inside of a handdgrip from a clutch (the plastic part the foam's on) with a slot cut in it.
  • 0

Persistence is a measure of faith in yourself
User avatar
schmanman
Major General
Major General

Posts: 1685
Joined: Sat Mar 25, 2006 12:28 pm
Location: Michigan,U.S.A
Country: United States (us)
Reputation: 0

Unread postAuthor: cwazy1 » Sun Jan 06, 2008 8:08 pm

lol why are all yours fittings rusty and nasty?!?
  • 0

I bought a signature twice because I was an idiot. 600 bux =(

cwazy1
Captain
Captain

Posts: 305
Joined: Mon Sep 10, 2007 8:31 pm
Reputation: 0

Unread postAuthor: schmanman » Sun Jan 06, 2008 8:11 pm

because it actually gets used, and most of the time is stored out in the barn. It'll look better painted.


none of them have dirt or rust on them, it's the combination of pipe wrench marks, old paint on some fittings and not on others, and the combination of black steel pipe and fittings and galvanised steel pipe and fittings
  • 0

Last edited by schmanman on Sun Jan 06, 2008 8:13 pm, edited 1 time in total.
Persistence is a measure of faith in yourself
User avatar
schmanman
Major General
Major General

Posts: 1685
Joined: Sat Mar 25, 2006 12:28 pm
Location: Michigan,U.S.A
Country: United States (us)
Reputation: 0

Unread postAuthor: DYI » Sun Jan 06, 2008 8:12 pm

Schmanman, that "sniper" barrel looks a bit bent :lol:

cwazy, schmanman's piston rifle has never looked new, not even when it was new. I suspect that it's built out of mostly old parts that were lying around.

I'm glad that you finally got a decent looking stock on that thing, and look forward to seeing the SWATv4.0, whenever that happens.
  • 0

Spudfiles' resident expert on all things that sail through the air at improbable speeds, trailing an incandescent wake of ionized air, dissociated polymers and metal oxides.
User avatar
DYI
Lieutenant General
Lieutenant General

Posts: 2861
Joined: Sat Jul 07, 2007 8:18 pm
Location: The People's Republic of Canuckistan
Country: Turks and Caicos Islands (tc)
Reputation: 9

Unread postAuthor: Novacastrian » Sun Jan 06, 2008 8:14 pm

I like you cannon very much, it looks like it could handle some serious pressure and should look even better after you paint it olive drab.
Maybe even a simple camouflage.
Nice work with the adaptor too.

Edit: DYI, that barrel is for long distance shots i suspect :D
  • 0

Last edited by Novacastrian on Sun Jan 06, 2008 8:15 pm, edited 1 time in total.
America, the greatest gangster of all time. With 200 million odd foot soldiers at it's whim and call.
When you fill your car with refined oil remember that it has been paid for with blood and guts, some from your own countrymen, most not.

Novacastrian
Major General
Major General

Posts: 1604
Joined: Sat Aug 11, 2007 6:59 pm
Reputation: 0

Sponsored

Sponsor



Unread postAuthor: Mitchza89 » Sun Jan 06, 2008 8:15 pm

That gun looks absolutely tops mate. Job well done. Question though....What the hell is the piston made out of? :?
  • 0

User avatar
Mitchza89
Brigadier General
Brigadier General

Posts: 1056
Joined: Tue Jan 09, 2007 12:05 am
Reputation: 0

Unread postAuthor: schmanman » Sun Jan 06, 2008 8:16 pm

thanks...

my grandpa has a bucket of pipe parts he god from scrap cars on the rail road. the fittings, like the tee the valve is in, are off high pressure lines from the general motors plants and facotries in pontiac and detroit about 50-60 miles away. they are very thick, and rated to extremely high pressures. and there are some new ones on there too. :wink:


EDIT:

thanks guys!....

the long barrel is really nowhere near as bent as it looks in the pictures, it was the angle I took the picture from, and that barrel is mostly used for distance shots. nice guess..... 8)

the piston is made from a rubber cap they put on high qualty steel dowel rods at some specialty places, which is a extremely hard rubber/medium hard plastic, wih a 9 mm diameter spent rifle shell inside for ridigity, wrapped in hockey grip tape untill I find time to cast epoxy around it to replace the tape, although the thap has worked awesome so far.



Jack! notice, no feet in the pictures!!! :lol:
  • 0

Persistence is a measure of faith in yourself
User avatar
schmanman
Major General
Major General

Posts: 1685
Joined: Sat Mar 25, 2006 12:28 pm
Location: Michigan,U.S.A
Country: United States (us)
Reputation: 0

Unread postAuthor: elitesniper » Sun Jan 06, 2008 8:29 pm

thats really nice, does that piston leak through the barrel a little?
  • 0

Last edited by elitesniper on Sun Jan 06, 2008 8:45 pm, edited 1 time in total.
User avatar
elitesniper
Brigadier General
Brigadier General

Posts: 1090
Joined: Sat Oct 13, 2007 8:40 pm
Reputation: 0

Unread postAuthor: Skywalker » Sun Jan 06, 2008 8:41 pm

Nice! I've liked all the re-incarnations of this gun so far. :D How do you get the barrel to pass inside the T for the piston to seat against? (I'm thinking about working in steel for the first time, so I'm looking for pointers.)
  • 0

User avatar
Skywalker
Sergeant Major
Sergeant Major

Posts: 177
Joined: Sun Aug 05, 2007 7:22 pm
Reputation: 0

Unread postAuthor: mopherman » Sun Jan 06, 2008 9:15 pm

Skywalker wrote:Nice! I've liked all the re-incarnations of this gun so far. :D How do you get the barrel to pass inside the T for the piston to seat against? (I'm thinking about working in steel for the first time, so I'm looking for pointers.)

Usually when working with threaded pipe, you screw a small nipple into the "wrong" end of the reducer for the piston to seal against. Some people also use dilled out compression fittings. You could also make a short, "toolies style" pisto that seals against the back of a reduce bushing.
  • 0

searching for a modern day savior from another place,inclined toward charity,everyone's begging for an answer,without regard to validity,the searching never ends,it goes on and on for eternity
-Bad religion
User avatar
mopherman
Brigadier General
Brigadier General

Posts: 788
Joined: Sat Feb 03, 2007 8:20 pm
Reputation: 0

Unread postAuthor: Carlman » Sun Jan 06, 2008 11:28 pm

noice one mate! I was thinking of making a steel gun soonish so this gave me some ideas...

I love the stock also :D
  • 0

Aussie spudders unite!!
User avatar
Carlman
Major General
Major General

Posts: 1618
Joined: Sat Nov 24, 2007 1:18 am
Location: Western Australia
Reputation: 0

Unread postAuthor: TwitchTheAussie » Sun Jan 06, 2008 11:33 pm

All I can say Holy F*cking Sh1t thats nice :P
  • 0

Raise your horns if you love metal.
spudgunning is like sex, once you've tasted, you can't wait til next time.
-
CpTn_lAw
User avatar
TwitchTheAussie
Brigadier General
Brigadier General

Posts: 980
Joined: Tue Feb 06, 2007 3:23 am
Reputation: 0

Unread postAuthor: Pyro Ninja » Mon Jan 07, 2008 12:29 am

Nice..
The piston looks like its made out of a small tap washer.
Pretty good quality for a mobile pic :)
  • 0

User avatar
Pyro Ninja
Major
Major

Posts: 351
Joined: Mon Oct 09, 2006 7:11 am
Location: Australia
Reputation: 0
