I present to you the.....

Built a pneumatic cannon? Then post it here! This section is for completed, finished cannons that you have built. Please include pictures and information.
Sponsored
  • Author
    Message

I present to you the.....

Unread postAuthor: Mateo » Mon Dec 29, 2008 10:41 pm

Oh Shiz!

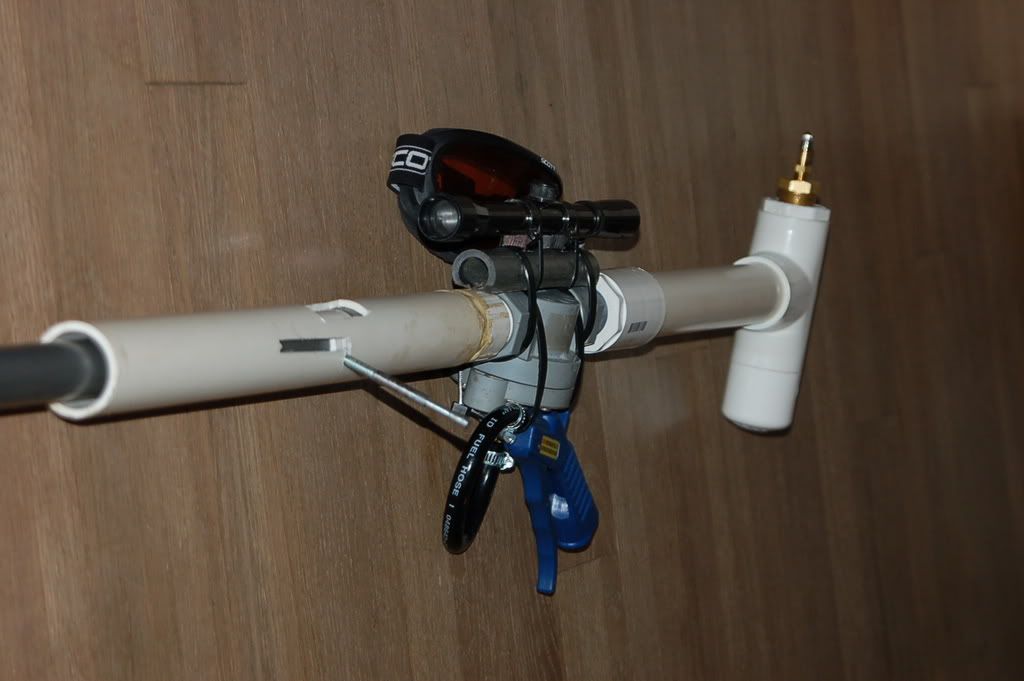

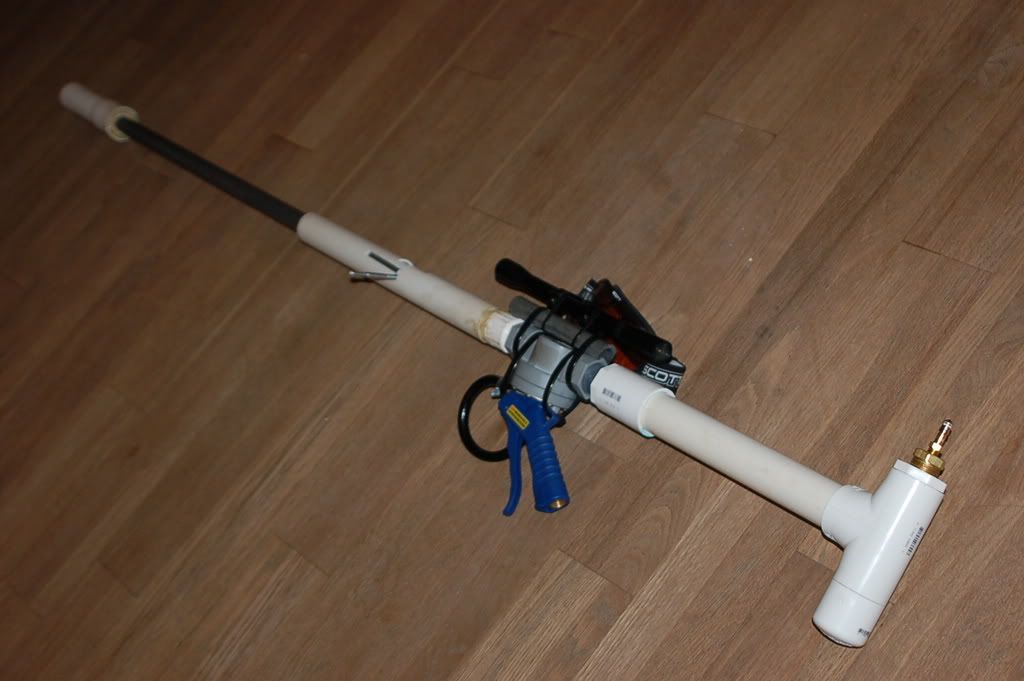

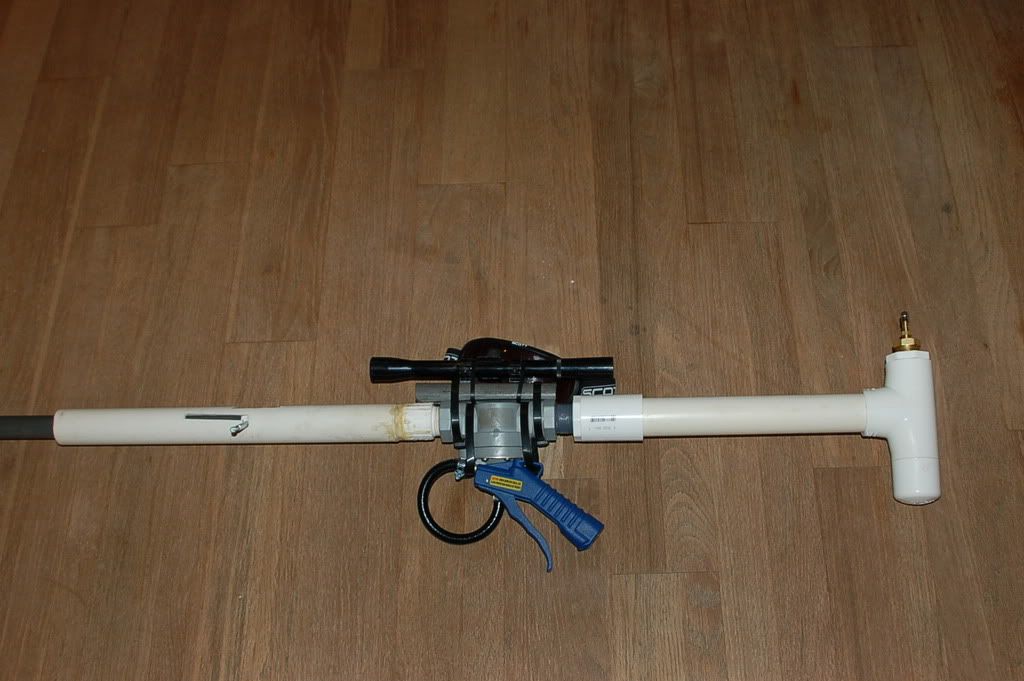

this is my first modded sprinkler valve cannon. its primarily used as a smooth bore long range "rifle". it was made as a paintball sniper to be used in skirmishes from long distances on my friends property. this cannon can be broken down into 3 pieces. barrel, valve, chamber. right now im filling it up with a bike pump until i can buy a co2 regulator. then i just unscrew this chamber and put a diff one on :D

barrel: 3/4 in
chamber: 1 1/4 in
sprinkler: 1 in
silencer: iron wool filled
hosing: 200psi fuel line

any questions just ask.

and i found a tiny leak in the chamber. is there any way to patch it?






  • 0

User avatar
Mateo
Sergeant
Sergeant

Posts: 80
Joined: Sun Oct 21, 2007 8:42 pm
Reputation: 0

Unread postAuthor: JDP12 » Mon Dec 29, 2008 10:45 pm

well where is the leak?
  • 0

User avatar
JDP12
Major General
Major General

Posts: 1943
Joined: Fri Mar 30, 2007 8:34 pm
Reputation: 0

Unread postAuthor: john bunsenburner » Mon Dec 29, 2008 10:46 pm

Nice cannon, next time use teflon on your threads, show vids and dammage pics, oh and i have the same skiing glasses. To stop leaks i like using bondo, or teflon tape as well.
  • 0

Last edited by john bunsenburner on Mon Dec 29, 2008 10:49 pm, edited 1 time in total.
"Did you ever stop to think that out of the seven deadly sins envy is the only one which doesn't give the sinner even momentary pleasure"-George Will
User avatar
john bunsenburner
Major General
Major General

Posts: 1446
Joined: Sun Oct 19, 2008 5:13 am
Reputation: 0

Unread postAuthor: Mateo » Mon Dec 29, 2008 10:46 pm

in the shoulder section between the tee and cap. there is teflon on the threads. there is no leaking from there
  • 0

User avatar
Mateo
Sergeant
Sergeant

Posts: 80
Joined: Sun Oct 21, 2007 8:42 pm
Reputation: 0

Unread postAuthor: john bunsenburner » Mon Dec 29, 2008 10:49 pm

it looks more like snot, thats not teflon...
  • 0

Last edited by john bunsenburner on Tue Dec 30, 2008 7:32 am, edited 1 time in total.
"Did you ever stop to think that out of the seven deadly sins envy is the only one which doesn't give the sinner even momentary pleasure"-George Will
User avatar
john bunsenburner
Major General
Major General

Posts: 1446
Joined: Sun Oct 19, 2008 5:13 am
Reputation: 0

Unread postAuthor: Mateo » Mon Dec 29, 2008 10:53 pm

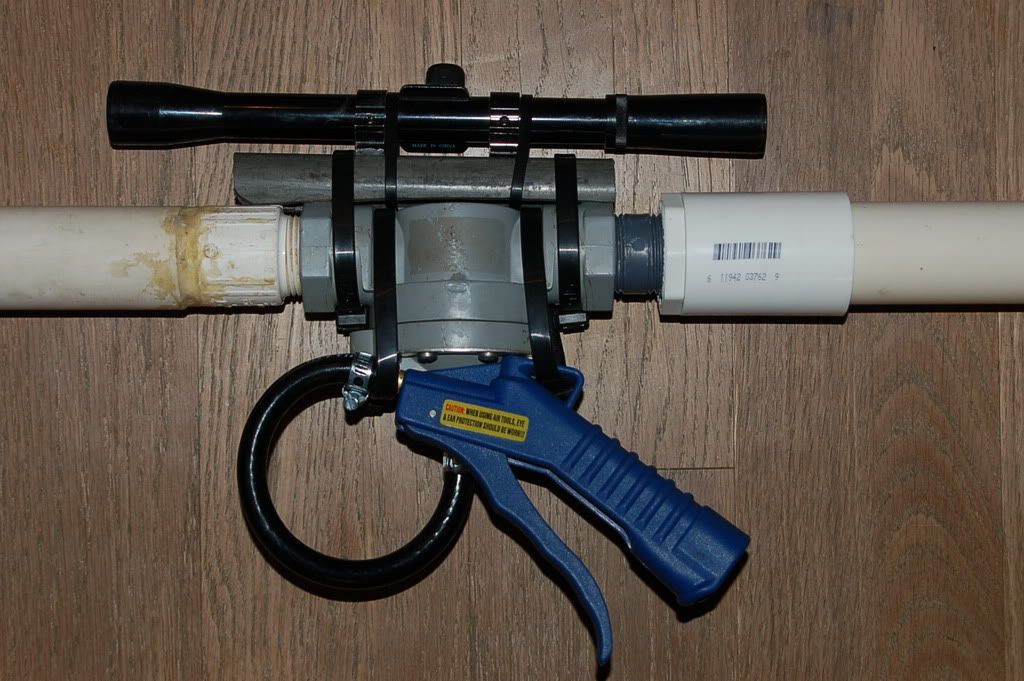

you cant see the teflon in any of the pics. the yellow is epoxy to hold the sleeve to the fitting. there is 3/4 in pvc inside it that the barrel gets locked onto
  • 0

User avatar
Mateo
Sergeant
Sergeant

Posts: 80
Joined: Sun Oct 21, 2007 8:42 pm
Reputation: 0

Unread postAuthor: grock » Mon Dec 29, 2008 10:53 pm

well, if you already glued it you could do one of 2 things. you could put superglue over the leak, that will pretty much melt it closed, however, that will also make a failure-prone weak spot in the chamber. the other option is to cut off the chamber pipe and put a new T assembly on it. other quick-fix options include putting more primer/glue over the leak, and just using good old duct tape, but neither will be permanent i'm sure
  • 0

User avatar
grock
2nd Lieutenant
2nd Lieutenant

Posts: 231
Joined: Mon Dec 29, 2008 2:59 pm
Reputation: 0

Sponsored

Sponsor



Unread postAuthor: STHORNE » Mon Dec 29, 2008 11:32 pm

looks fantabulouse mate!

good work, can't wait to see a paint job on it :wink: (hint hint)

and as far as the leak.... JB WELD!!!! lol
  • 0

Forum Rules - follow them or else!
“Happiness is the meaning and the purpose of life, the whole aim and end of human existence”
User avatar
STHORNE
Donating Member
Donating Member

Posts: 1208
Joined: Wed Feb 14, 2007 7:50 pm
Location: Kewaunee, Wisconsin
Reputation: 0

Unread postAuthor: cheeseboy » Tue Dec 30, 2008 12:42 am

DO NOT ever use CO2 in PVC I tried against advice of friends, the co2 when turning from liquid to gas lowers the temperature heaps (someone else probably knows a number) and this in turn turns the PVC brittle which is like shooting it in Antarctica the brittle PVC shatters easily when pressurized and KABOOM you have yourselves an explosion and possible lack of hearing (I was lucky because I only filled it to 30 PSI trying to prove my friends wrong) only use CO2 adapters on metal cannons (if you have a large lower pressure tank at which the CO2 hasn't liquefied yet disregard what I just said)
  • 0

User avatar
cheeseboy
Sergeant
Sergeant

Posts: 84
Joined: Tue Nov 25, 2008 3:06 am
Reputation: 0

Unread postAuthor: SP00K » Tue Dec 30, 2008 10:11 am

Not too shabby :D I like it.
  • 0

We are all worms, but I do believe I am a glow worm.

~Winston Churchill~
User avatar
SP00K
2nd Lieutenant
2nd Lieutenant

Posts: 212
Joined: Wed Dec 03, 2008 4:20 pm
Location: Ohiya
Reputation: 0
