The Gutmenduff Mk1.3

Built a pneumatic cannon? Then post it here! This section is for completed, finished cannons that you have built. Please include pictures and information.
Sponsored
  • Author
    Message

The Gutmenduff Mk1.3

Unread postAuthor: VH_man » Mon Jan 05, 2009 6:23 pm

First of all the name. Gutmenduff is what it sounds like when you say the abbreviation "G.T.M.N.D.F.F" or Gun That Makes Nerf Darts Fly Fast.

Of course, I wouldn't Post just ANY Nerf gun on Spudfiles.... So Now I give you a story:
Last year, At our swim team end-of-year party, we went to my friend Kendall's house and had a GIGANTIC Nerf war. I always got stuck with crappy guns, and got owned by the gun that I had made my friend Kendall that shot 100' plus.... I couldn't even touch him. So this year, I decided I needed to step up to the plate and make something so hardcore, that it would put fear in the hearts of my contenders by the sheer loading of it. And through various guns posted on this site, and a special 2 dollar sale for single acting cylinders at my local surplus store, I created the Gutmenduff:

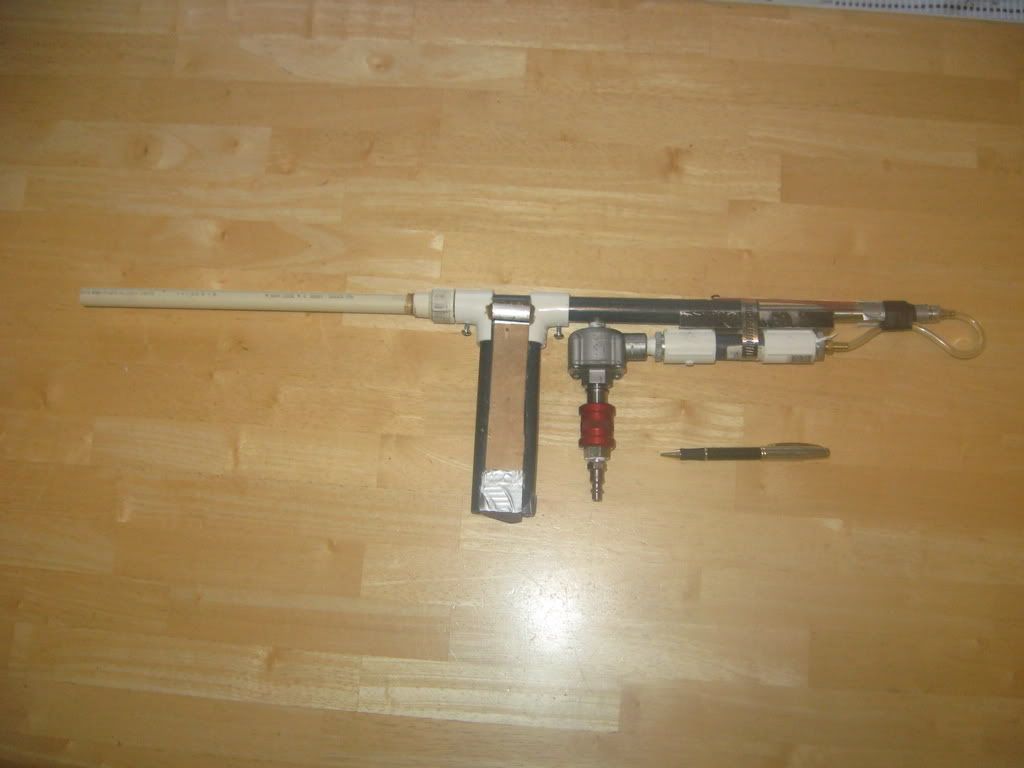

TADAAA

Specs:
Action: semi-automatic Spring-Magazine fed
Magazine Size:8+1 rounds
Propellant: Paintball HPA or CO2 tanks, Regged down to 60-120 PSI
Velocity: Enough to get a Good stefan 100' +, Or to puncture cardboard at the Highest velocity setting
Barrel: Removable 1/2in CPVC, 14in Long
Ammo: 1/2 FBR Nerf Stefans w/ one BB weight (see pics below)

Anyway, As you can see, Its FAR from a finished product. The epic battle is in a few months, so I have some time to make it Battleworthy, but as of now you can see it actually works! Some closeups:

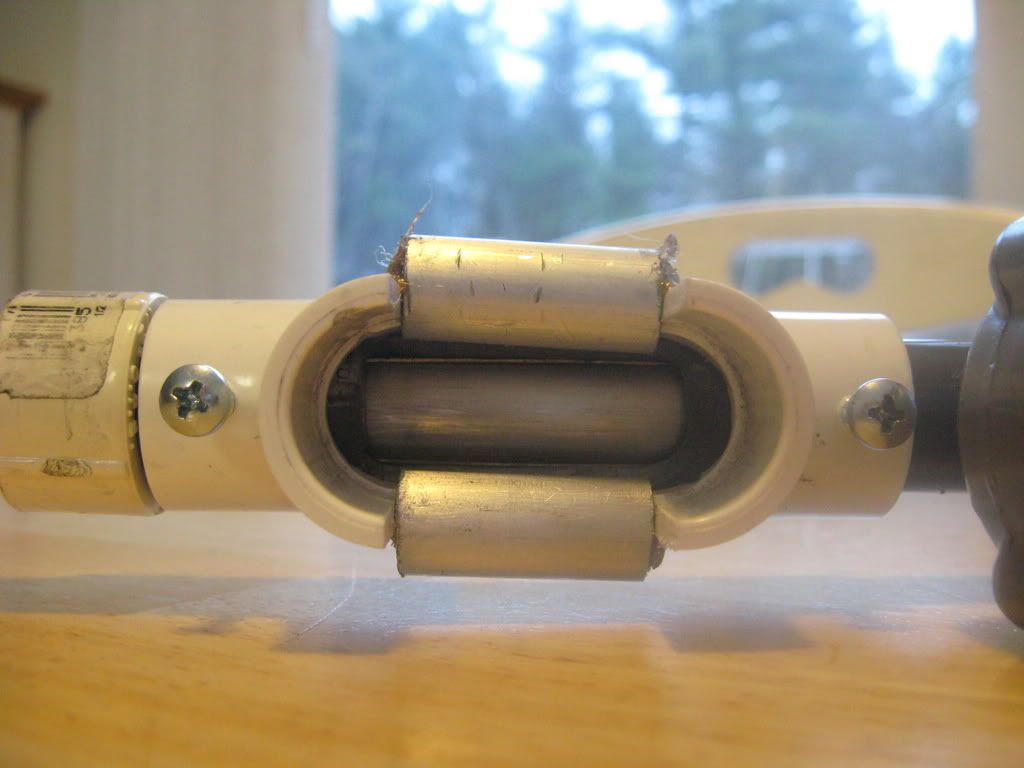

Magwell Open

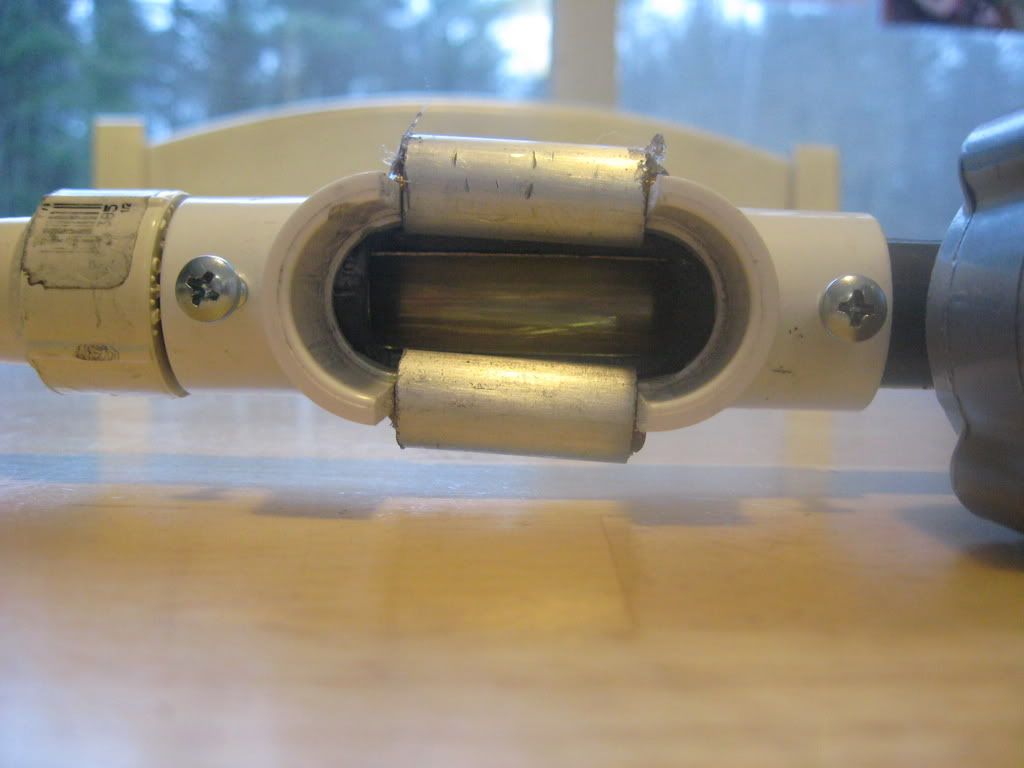

Magwell Closed

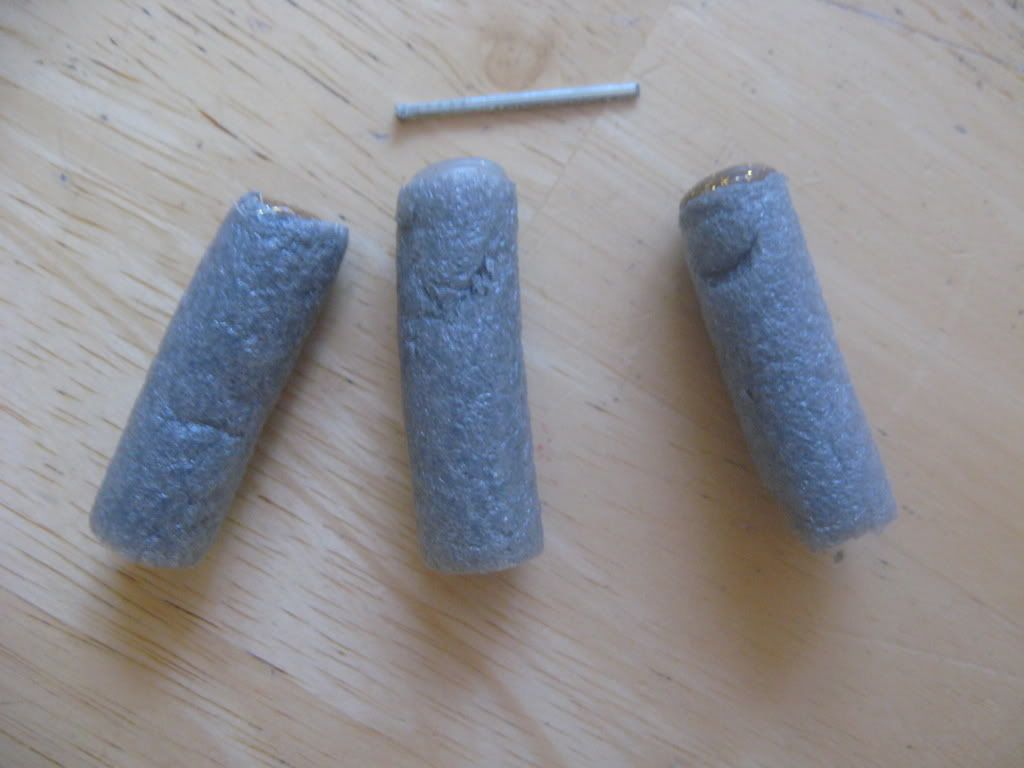

Ammo

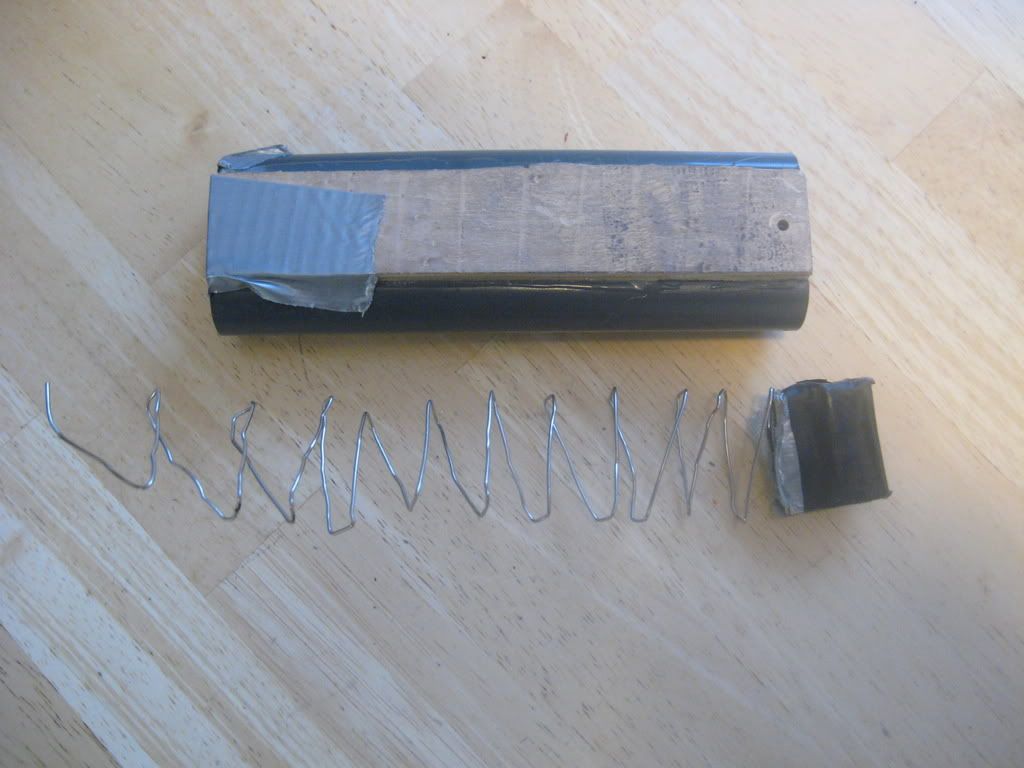

Magazine + Follower and custom Spring

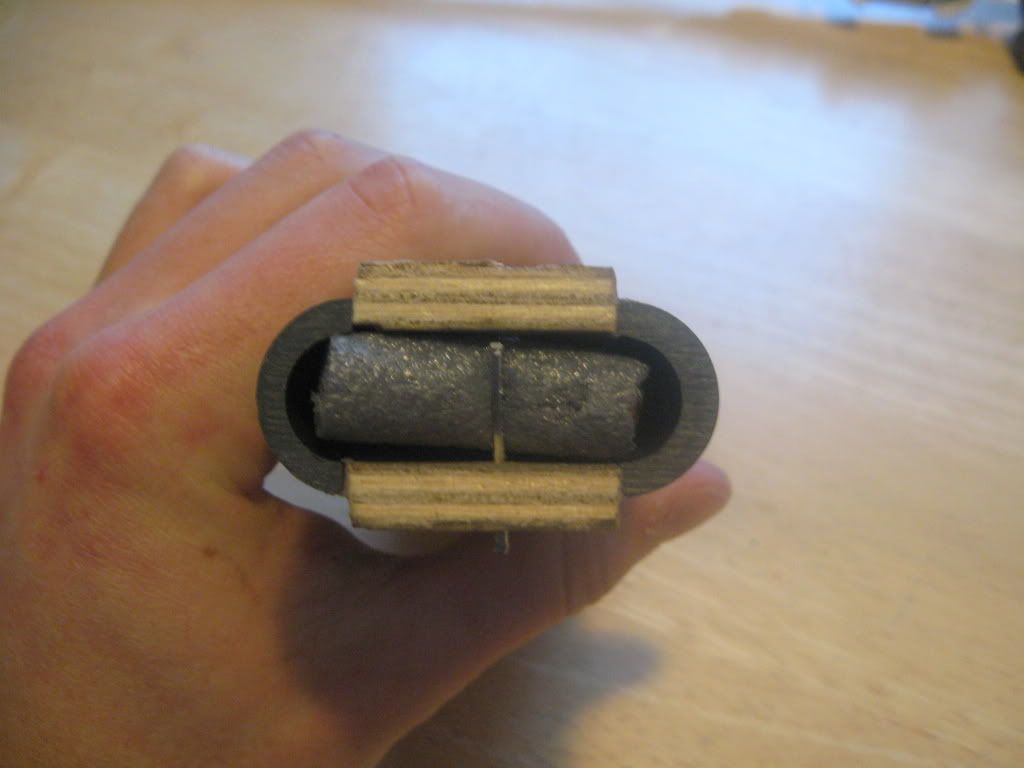

Loaded Magazine with Dart Retaining Pin

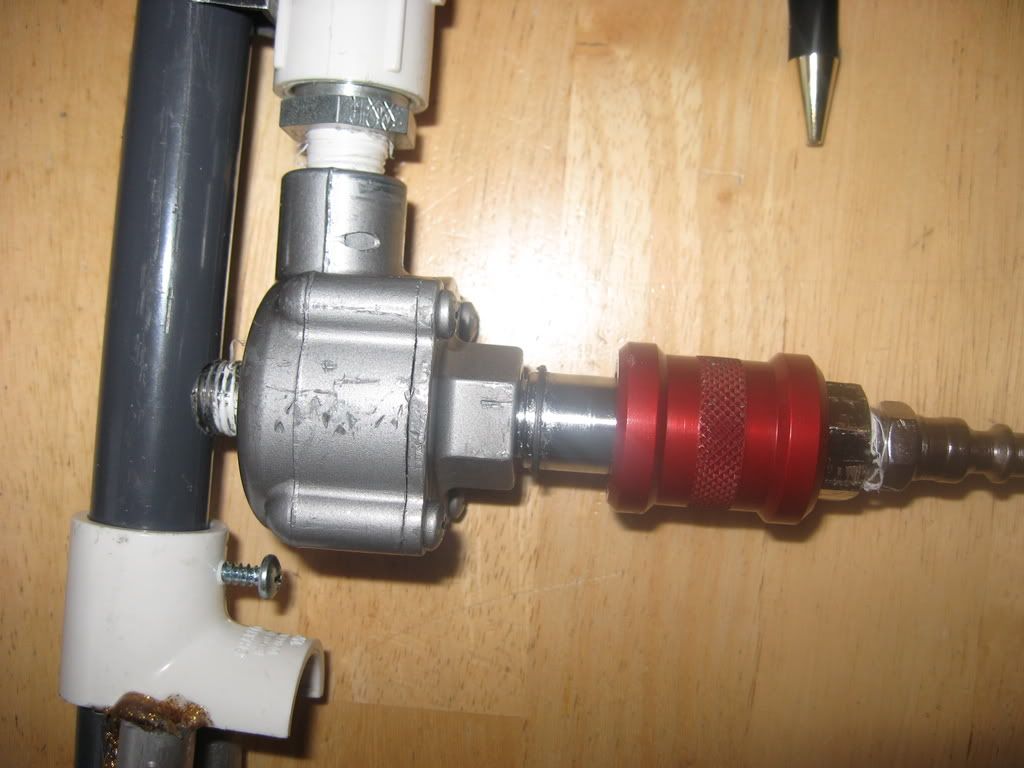

Valve Area

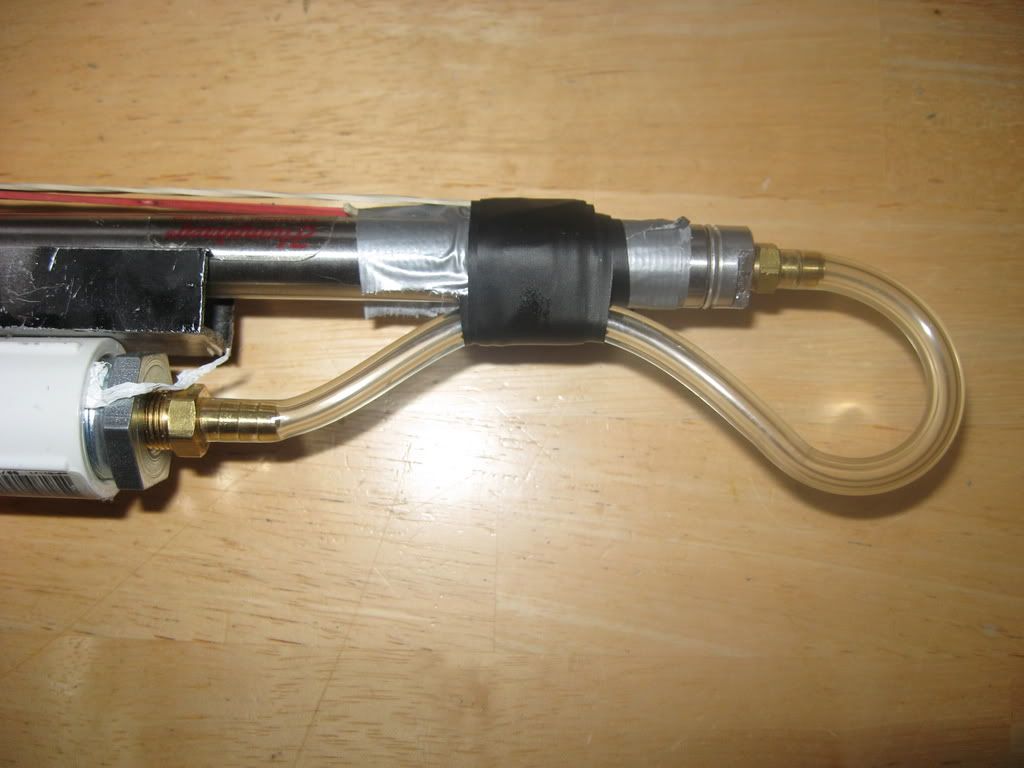

Cylinder Area

And of Course, I must prove the semi-automatic Action with a Poorly made video! (notice how its denting the cardboard... This is at 60 PSI)


And a Qestion to Mods: When I finally finish this gun up, Is it OK for me to make a completely new post?[/b]

EDIT: I forgot to add future plans. Future plans:

-New trigger system
-at least a 15 round magazine (and multiple magazines)
-get rid of hunks of aluminum hot glued to the side of the magwell
-get rid of tape holding extra force return rubber bands and replace with an extention spring
-A Vaccum Molded and Epoxy-reinforced outer shell (yes I have the stuff to do this)
  • 0

Last edited by VH_man on Mon Jan 05, 2009 8:13 pm, edited 1 time in total.
User avatar
VH_man
Major General
Major General

Posts: 1827
Joined: Sat Dec 09, 2006 6:00 pm
Location: New Hampshire
Reputation: 1

Unread postAuthor: skyjive » Mon Jan 05, 2009 6:36 pm

Looks great, I like the mag hookup arrangement, and it seems very reliable, which is hard to do with semis. Its too bad you can't have a less awkward trigger setup, so you could use a blowgun or something instead of pushing that thing up and down. Might be kinda hard to keep on target.
  • 0

User avatar
skyjive
Master Sergeant
Master Sergeant

Posts: 163
Joined: Mon May 26, 2008 3:52 pm
Reputation: 0

Unread postAuthor: VH_man » Mon Jan 05, 2009 6:40 pm

thanks for the quick reply.

Theres a reason this is Mark 1.3.... I have a 3 Way valve and a super-special QEV to make my trigger system VERY sexy... All of these parts coming in in a few days.
  • 0

User avatar
VH_man
Major General
Major General

Posts: 1827
Joined: Sat Dec 09, 2006 6:00 pm
Location: New Hampshire
Reputation: 1

Unread postAuthor: Sticky_Tape » Mon Jan 05, 2009 6:43 pm

Very nicely made gun and not such a bad video (mine suck).
  • 0

You can tell how awesome a cannon is by the pressure used.
http://www.spudfiles.com/forums/high-pr ... 12803.html
xnt rnm ne z ahtbg
User avatar
Sticky_Tape
Brigadier General
Brigadier General

Posts: 1175
Joined: Thu Jan 31, 2008 6:35 pm
Location: Sydney, Nova Scotia, Canada.
Reputation: 0

Unread postAuthor: Hotwired » Mon Jan 05, 2009 7:37 pm

2 dollar sale for single acting cylinders


!!!!


On another less jealous note I see using the chamber pressure to operate a cylinder which closes the bolt is catching on.

There's a nice action on that one, good stuff.
  • 0

User avatar
Hotwired
Lieutenant General
Lieutenant General

Posts: 2599
Joined: Fri Oct 13, 2006 5:51 am
Location: UK
Reputation: 0

Unread postAuthor: PVC Arsenal 17 » Mon Jan 05, 2009 7:43 pm

Very nice! Reminds me of my recent work and Btrettel's FANG.

Edit: Looks likes your darts have already suffered a few pinches. Welcome to the wonderful world of using bolts to feed soft projectiles! Is the feeding reliable?
  • 0


PVC Arsenal 17
Major General
Major General

Posts: 1762
Joined: Mon Mar 27, 2006 4:18 pm
Location: United States
Reputation: 1

Unread postAuthor: VH_man » Mon Jan 05, 2009 7:59 pm

PVC Arsenal 17 wrote:Very nice! Reminds me of my recent work and Btrettel's FANG.


It was your guns with the cylinders that sparked my ideas! Truly awsome.

It pained me how you all attached your magazines though, which is actually the secondary reason I made this gun. I guess my weeks and weeks of working on homemade nerf guns pays off :-D

Now to post this on Nerf HQ and have people be like OMG I WANT YOUR BABIES BDIGIkdghdjnajdiaejadk1358e9789&*^&*^*

:D
  • 0

User avatar
VH_man
Major General
Major General

Posts: 1827
Joined: Sat Dec 09, 2006 6:00 pm
Location: New Hampshire
Reputation: 1

Sponsored

Sponsor



Unread postAuthor: PVC Arsenal 17 » Mon Jan 05, 2009 8:08 pm

NerfHQ/Haven aren't the smartest bunch. Mostly 12 year olds with no understanding of, well, anything. All they care about are looks. They drool over guns like the FAR but fail to realize how impractical they are.

And yes, my mag attachment was very awkward. It was going to be changed, though. It doesn't really matter anymore since I've put the project aside in favor a semi-auto shell system.
  • 0

Last edited by PVC Arsenal 17 on Wed Jul 08, 2009 2:35 pm, edited 1 time in total.

PVC Arsenal 17
Major General
Major General

Posts: 1762
Joined: Mon Mar 27, 2006 4:18 pm
Location: United States
Reputation: 1

Unread postAuthor: Hotwired » Mon Jan 05, 2009 8:09 pm

A rotating bolt for a nerf gun is impractical? :D
  • 0

User avatar
Hotwired
Lieutenant General
Lieutenant General

Posts: 2599
Joined: Fri Oct 13, 2006 5:51 am
Location: UK
Reputation: 0

Unread postAuthor: VH_man » Mon Jan 05, 2009 8:15 pm

when you can get twice the ROF and the same range with a system as such without shells, I see no need for shells other than the cool factor. And when it comes down to a Nerf battle, Its about how many darts you can lob downrange before you run out more than anything.....
  • 0

User avatar
VH_man
Major General
Major General

Posts: 1827
Joined: Sat Dec 09, 2006 6:00 pm
Location: New Hampshire
Reputation: 1

Unread postAuthor: PVC Arsenal 17 » Mon Jan 05, 2009 8:20 pm

VH_man wrote:when you can get twice the ROF and the same range with a system as such without shells, I see no need for shells other than the cool factor. And when it comes down to a Nerf battle, Its about how many darts you can lob downrange before you run out more than anything.....


Or you can get no RoF at all when chunks of sliced up foam are clogging your breech. :P

Who says shells have to slow things down? If you get too high a RoF using only foam ammo, you get chops like in a paintball gun. With shells, you can eliminate the bolt altogether. So if anything, shells provide a higher RoF.

Besides shells, there are other other approaches. I can't wait to see Btrettel's revolving barrel design.

Hotwired wrote:A rotating bolt for a nerf gun is impractical? :D

I'm not sure if you were being sarcastic, but why put all the time and effort into something that could be done easier? Waste is silly.
  • 0

Attachments
No bolt. Just a cylinder that pops the shell out.
Last edited by PVC Arsenal 17 on Mon Jan 05, 2009 8:29 pm, edited 1 time in total.

PVC Arsenal 17
Major General
Major General

Posts: 1762
Joined: Mon Mar 27, 2006 4:18 pm
Location: United States
Reputation: 1

Unread postAuthor: btrettel » Mon Jan 05, 2009 8:23 pm

Looks nice. Maybe you can work out some of the kinks with this approach before I do so I don't have to work as hard. :wink:

My magazine was designed to be internal for simplicity. I understand most people might not like that, but it's fine for me. I'd suggest trying it.

As for the shells vs. no shells debate, I think shells make it more complicated, but I'd use them if they were the most reliable. My main problem is that they're annoying, but with some sort of chain they'd be manageable.

This might sound odd, but I recommend NOT posting at any of the major Nerf forums. To be honest, I'm embarrassed to have participated at either given their current state. PVC Arsenal is completely correct. One additional thing worth noting is that most people only care about spring Nerf guns, so your gas designs will be glossed over unless you are one of the big name people. If you do become one of the big name people though, expect 300+ replies to your concept threads, worship from the masses, and the full wrath of the ignorant who'll never cease to ask questions with obvious answers.
  • 0

Last edited by btrettel on Mon Jan 05, 2009 8:30 pm, edited 1 time in total.
All spud gun related projects are currently on hold.

btrettel
Major
Major

Posts: 380
Joined: Sun Feb 03, 2008 4:40 pm
Location: Maryland
Reputation: 0

Unread postAuthor: VH_man » Mon Jan 05, 2009 8:30 pm

PVC Arsenal 17 wrote:
VH_man wrote:when you can get twice the ROF and the same range with a system as such without shells, I see no need for shells other than the cool factor. And when it comes down to a Nerf battle, Its about how many darts you can lob downrange before you run out more than anything.....


Or you can get no RoF at all when chunks of sliced up foam are clogging your breech. :P

Who says shells have to slow things down? If you get too high a RoF using only foam ammo, you get chops like in a paintball gun. With shells, you can eliminate the bolt altogether. So if anything, shells provide a higher RoF.


funny.... I had to do ALOT of work to not slice my darts. As you can see, I have some that got it a little bit.

I like the design. only thing I see wrong with it is that your probably going to want a small groove or something in the top of the "mag well" so that your shells don't simply shoot out the sides when the magazine pops in.

I might have to try this.... I have a single acting cylinder with a 1/2in stroke....... (VERY TINY)
  • 0

User avatar
VH_man
Major General
Major General

Posts: 1827
Joined: Sat Dec 09, 2006 6:00 pm
Location: New Hampshire
Reputation: 1

Unread postAuthor: PVC Arsenal 17 » Mon Jan 05, 2009 8:32 pm

A detent is a must. However if you make the breech slightly offset, the stack below the current shell will act as a detent.

Edit: I forgot to comment on your QEV. Your inlet to the barrel is located behind the breech. Is the bolt flow through? Or are you simply using the cylinder's rod (no close fit) and ignoring air lost out of the breech opening?
  • 0


PVC Arsenal 17
Major General
Major General

Posts: 1762
Joined: Mon Mar 27, 2006 4:18 pm
Location: United States
Reputation: 1

Unread postAuthor: MrCrowley » Mon Jan 05, 2009 8:34 pm

And a Qestion to Mods: When I finally finish this gun up, Is it OK for me to make a completely new post

How much are you going to pay me? :P

Yeah it'll be fine, cool stuff with the cannon by the way :)
  • 0

User avatar
MrCrowley
Moderator
Moderator

Posts: 10207
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand
Country: New Zealand (nz)
Reputation: 4
