my second shock pump (full diatelas)

Unread postAuthor: far_cry » Tue Jul 07, 2009 6:06 pm

i finished building my new hand pump .and she work nice

the highest pressure i get from this pump is 700 psi
the cylinder is 2.7mm in diameter
the shaft rod is 8mm

any questions ? fell free to ask

and here the pictures of the lady shocky

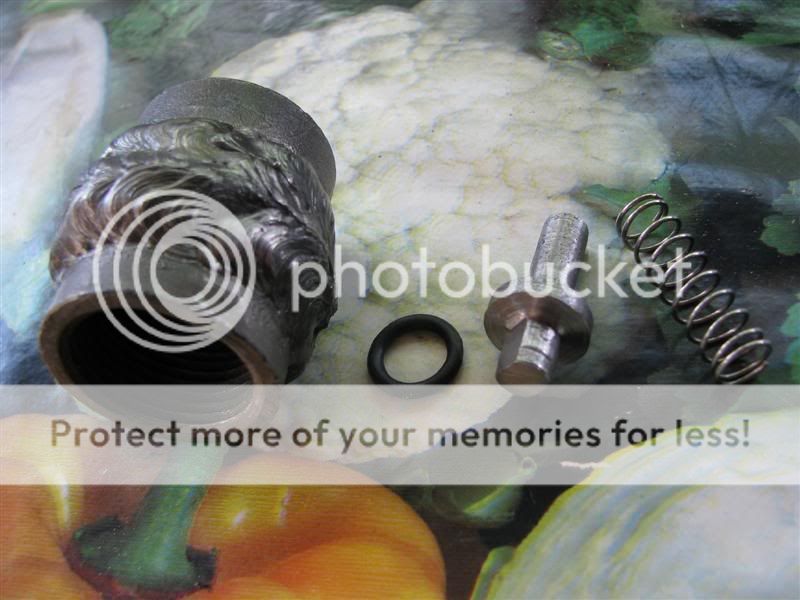

the chick valve parts


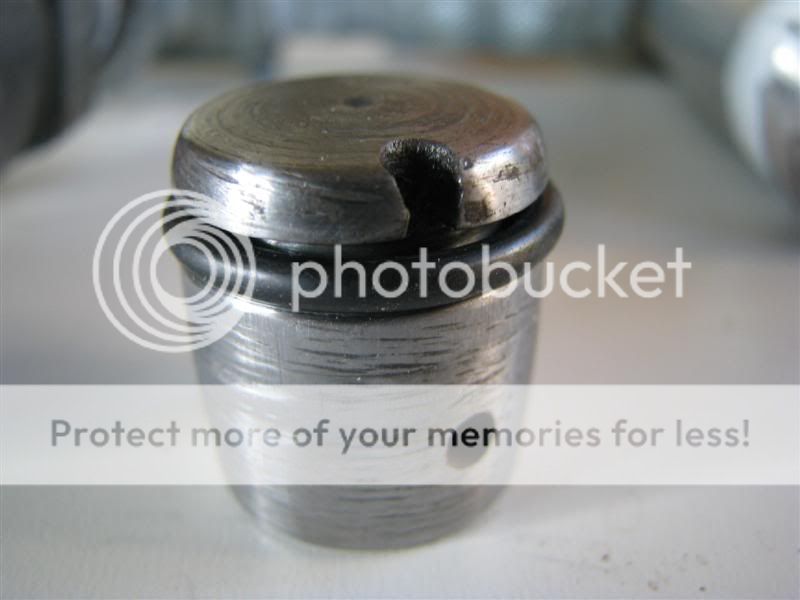

the piston


the cylinder+shaft+chick valve


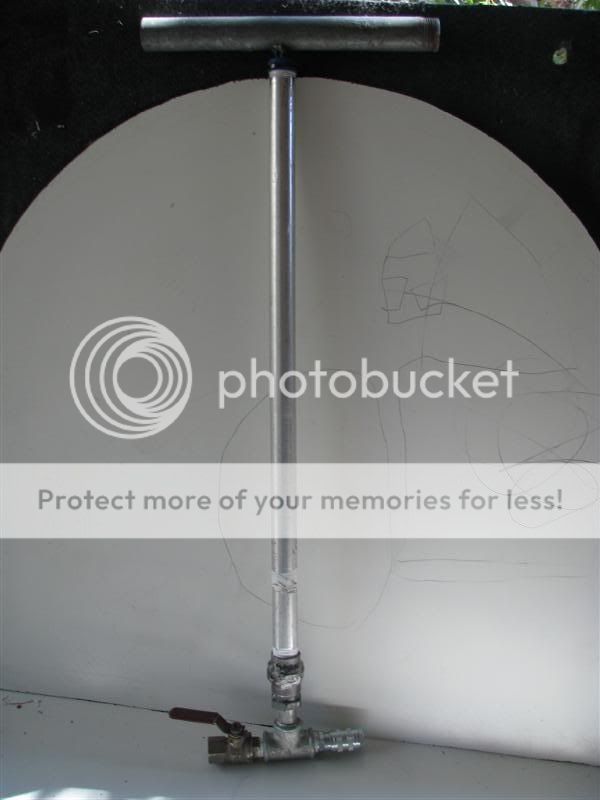

the pump stand waiting for work

  • 0

Last edited by far_cry on Sat Jul 16, 2011 3:27 pm, edited 3 times in total.
User avatar
far_cry
Donating Member
Donating Member

Posts: 317
Joined: Wed Aug 20, 2008 3:59 pm
Reputation: 0

Unread postAuthor: THUNDERLORD » Tue Jul 07, 2009 6:13 pm

"She" looks soo sexy,
Hope she don't shoot another hole in you hand. :P

Wish there were some more diagrams...700psi(really???), Awesome pump there!!! 8)
Thanks
  • 0

-----SPEED,STRENGTH, AND ACCURACY.-----
"Procrastination" is five syllables for "Sloth".
Theopia 8)
Born To Be Alive!

THUNDERLORD
Major General
Major General

Posts: 1264
Joined: Fri Mar 28, 2008 1:42 pm
Reputation: 0

Unread postAuthor: Gippeto » Tue Jul 07, 2009 7:23 pm

Nicely done Far Cry. 8)

Nice sturdy handle on it too. :wink:
  • 0

"It could be that the purpose of your life is to serve as a warning to others" – unknown

Liberalism is a mental disorder, reality is it's cure.
User avatar
Gippeto
Donating Member
Donating Member

Posts: 2394
Joined: Sat Jan 19, 2008 10:14 am
Location: The Great White North...Canada eh!
Reputation: 11

Unread postAuthor: jonnyboy » Tue Jul 07, 2009 8:05 pm

Nice build, I thought about building a shock pump but I really don't have the need for one. :cry: I do have a high pressure project in the works but co2 sounds better anyway.

On your chick valve what 2 pieces did you weld together?

BTW nice welding job :lol:
  • 0

mobile chernobyl wrote:I can shoot a Canuter Valve off my '82 Chevy Ram F150 AT LEAST 3/4 Mile with 'ma cannon made of soup cans duct taped together, then I just squirt some bacardi 151 in the chamber and hold up my cigarrete lighta and WHOOSH! That thing flies at least 3/4 mile
User avatar
jonnyboy
Colonel
Colonel

Posts: 591
Joined: Mon May 26, 2008 1:20 pm
Location: Williamston MI USA
Reputation: 0

Unread postAuthor: twizi » Tue Jul 07, 2009 9:19 pm

jonnyboy wrote: I thought about building a shock pump but I really don't have the need for one.:


if u build one im sure youll find somthin to do with it :shock:

btw whats the cylinder
  • 0

dont play with airsofter with 1000$ gun and play with a 5 dollar pair of glasses
User avatar
twizi
Colonel
Colonel

Posts: 511
Joined: Thu Nov 27, 2008 9:04 pm
Location: up yours
Reputation: 0

Unread postAuthor: THUNDERLORD » Wed Jul 08, 2009 12:16 am

Forgot to mention, You could always get a good injury attorney and sue the company that made the other pump that broke (and injured your hand).
Maybe you're still having nightmares about the whole incident...
Even became obsessed to build a metal pump(???)... :P 8)
  • 0

-----SPEED,STRENGTH, AND ACCURACY.-----
"Procrastination" is five syllables for "Sloth".
Theopia 8)
Born To Be Alive!

THUNDERLORD
Major General
Major General

Posts: 1264
Joined: Fri Mar 28, 2008 1:42 pm
Reputation: 0

Unread postAuthor: Technician1002 » Wed Jul 08, 2009 12:32 am

THUNDERLORD wrote:Forgot to mention, You could always get a good injury attorney and sue the company that made the other pump that broke (and injured your hand).
Maybe you're still having nightmares about the whole incident...
Even became obsessed to build a metal pump(???)... :P 8)


Abuse of the product on the part of the end user might be proved and not be a manufacturing defect. May need to read the owners manual. Proper hand placement and pressure may have avoided this accident. This would not be an open and shut case against a company for a defective product.

But then again, getting hot coffee and it actually being hot.. May have a chance.

These lawsuits are why manufacturing is leaving the USA. The Flu vaccine is produced overseas simply due to the high cost and risk of lawsuits. It is why I don't manufacture and sell t shirt launchers.
  • 0

User avatar
Technician1002
Chief of Staff
Chief of Staff

Posts: 5190
Joined: Sat Apr 04, 2009 11:10 am
Reputation: 14

Sponsored

Sponsor



Unread postAuthor: THUNDERLORD » Wed Jul 08, 2009 12:39 am

Technician1002 wrote:.. May have a chance...


So what's your point then???
  • 0

-----SPEED,STRENGTH, AND ACCURACY.-----
"Procrastination" is five syllables for "Sloth".
Theopia 8)
Born To Be Alive!

THUNDERLORD
Major General
Major General

Posts: 1264
Joined: Fri Mar 28, 2008 1:42 pm
Reputation: 0

Unread postAuthor: inonickname » Wed Jul 08, 2009 2:58 am

Yep- America is extremely sue happy.

As technician said, people suing McDonald's for her coffee being too hot- they now have to serve it under a certain temperature.

And the woman who was driving her Winnebago, got up, made a coffee and crashed. She sued Winnebago (and won) because the ad said she could do that..

On topic: Very nice pump! How do you get such high pressure with that sized cylinder?

Very noice!
  • 0

PimpAssasinG wrote:no im strong but you are a fat gay mother sucker that gets raped by black man for fun
User avatar
inonickname
Lieutenant General
Lieutenant General

Posts: 2606
Joined: Sun Dec 07, 2008 3:27 am
Reputation: 0

Unread postAuthor: far_cry » Wed Jul 08, 2009 5:09 am

Gippeto wrote:Nicely done Far Cry. 8)

Nice sturdy handle on it too. :wink:


thank you. this handle will not break into my hand


jonnyboy wrote:Nice build, I thought about building a shock pump but I really don't have the need for one. :cry: I do have a high pressure project in the works but co2 sounds better anyway.

On your chick valve what 2 pieces did you weld together?

BTW nice welding job :lol:


thank you.i have been welding a lot in my life.and the chick valve is galvanized 3\4" nipple with inner threads (i did not know what they call it)

twizi wrote:btw whats the cylinder

he is 3\4" aluminium pipe
  • 0

User avatar
far_cry
Donating Member
Donating Member

Posts: 317
Joined: Wed Aug 20, 2008 3:59 pm
Reputation: 0

Unread postAuthor: twizi » Wed Jul 08, 2009 4:35 pm

oh so the pump is a hey
ps thats weird man
  • 0

dont play with airsofter with 1000$ gun and play with a 5 dollar pair of glasses
User avatar
twizi
Colonel
Colonel

Posts: 511
Joined: Thu Nov 27, 2008 9:04 pm
Location: up yours
Reputation: 0

Unread postAuthor: mark.f » Wed Jul 08, 2009 4:38 pm

I think that's just a result of the translation to english. He and it can be confused quite easily, if you read far_cry's other posts.

PS, good job man!
  • 0

User avatar
mark.f
Donating Member
Donating Member

Posts: 3465
Joined: Sat May 06, 2006 11:18 am
Country: United States (us)
Reputation: 21

Unread postAuthor: twizi » Wed Jul 08, 2009 4:50 pm

oh so he mean it gotcha
  • 0

dont play with airsofter with 1000$ gun and play with a 5 dollar pair of glasses
User avatar
twizi
Colonel
Colonel

Posts: 511
Joined: Thu Nov 27, 2008 9:04 pm
Location: up yours
Reputation: 0

Unread postAuthor: spudamine » Wed Jul 08, 2009 5:11 pm

Looks nice. Good work on the checkvalve, just watch that sucker for rust. mine needed rebuilding after a month, the steel bolt was severly corroded from water condensing inside the valve. used stainless the second time around.
  • 0

User avatar
spudamine
Sergeant Major
Sergeant Major

Posts: 184
Joined: Sun Nov 23, 2008 2:47 pm
Reputation: 0

Re: my second shock pump (full diatelas)

Unread postAuthor: boyntonstu » Wed Jul 08, 2009 6:47 pm

I finished building my new hand pump .and she work nice

the highest pressure i get from this pump is 700 psi
the cylinder is 20.7mm in diameter


Nice work.

A question about 20.7 mm and 700 psi.

20.7 mm is about 0.8" and that works out to about 0.5 sq in.

To get 700 psi out of 0.5 sq in you need to apply 350 pounds of force.

How do you apply 350 pounds of force?

How many cu in are in your chamber and how many pumps does it take to fill it?

I am following in your footsteps and I want to get it right.

BoyntonStu
  • 0
