Dual Shot Sprinkler Valve Cannon

Built a pneumatic cannon? Then post it here! This section is for completed, finished cannons that you have built. Please include pictures and information.
Sponsored
  • Author
    Message

Dual Shot Sprinkler Valve Cannon

Unread postAuthor: Gun Freak » Wed Nov 24, 2010 11:41 am

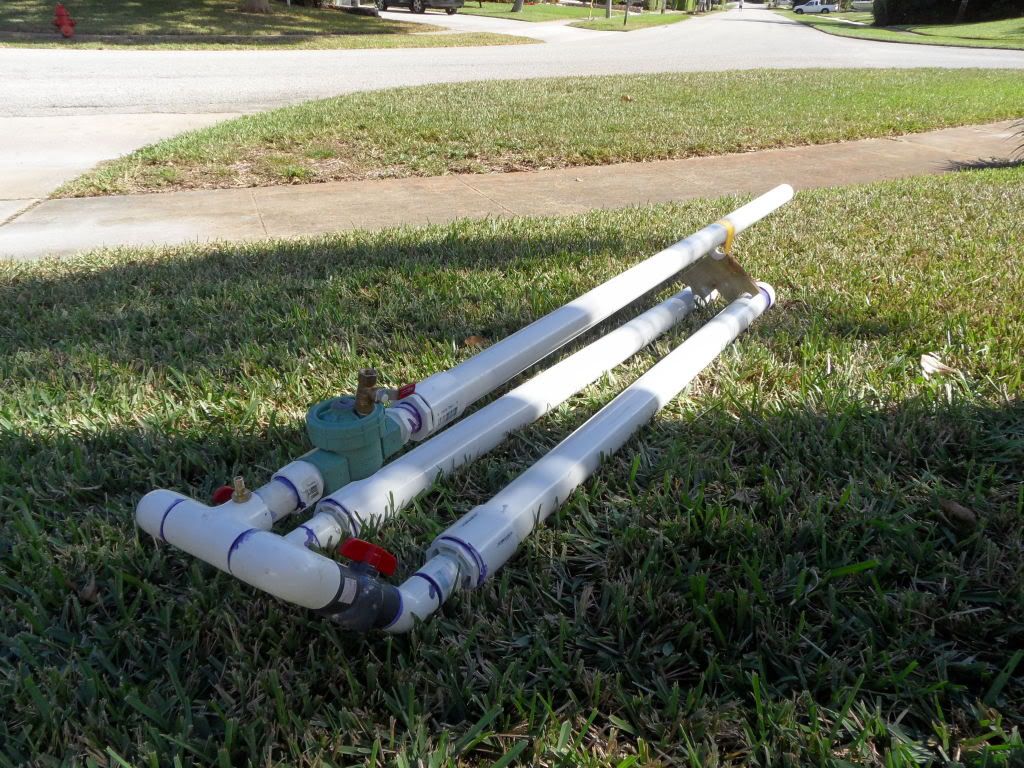

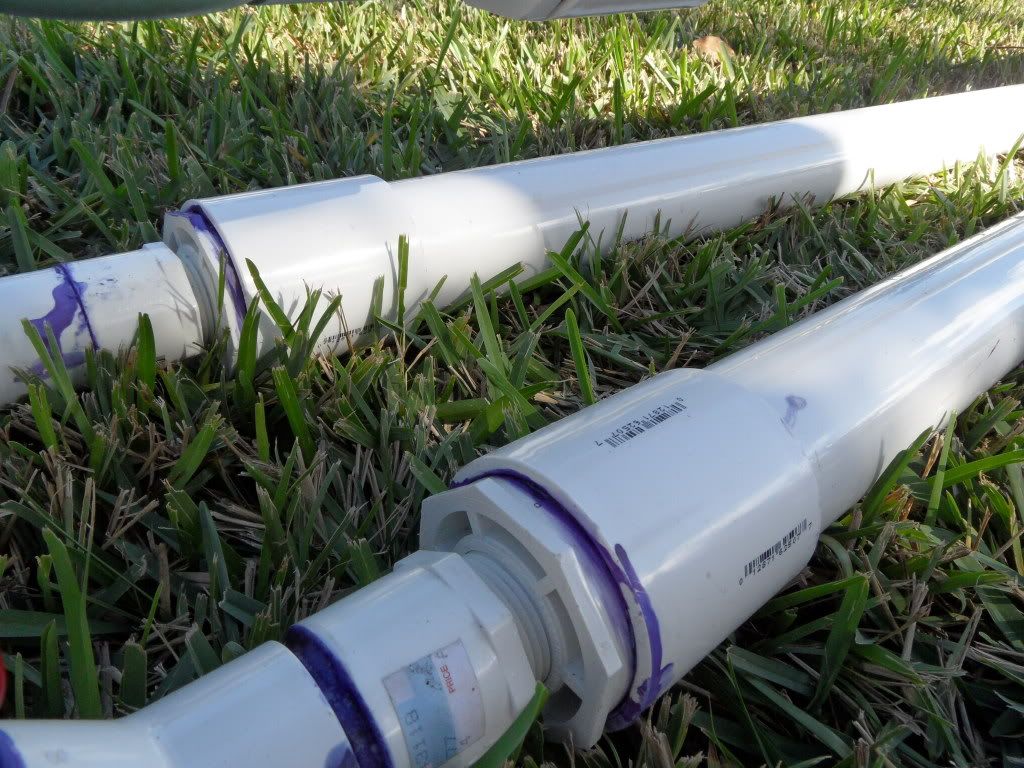

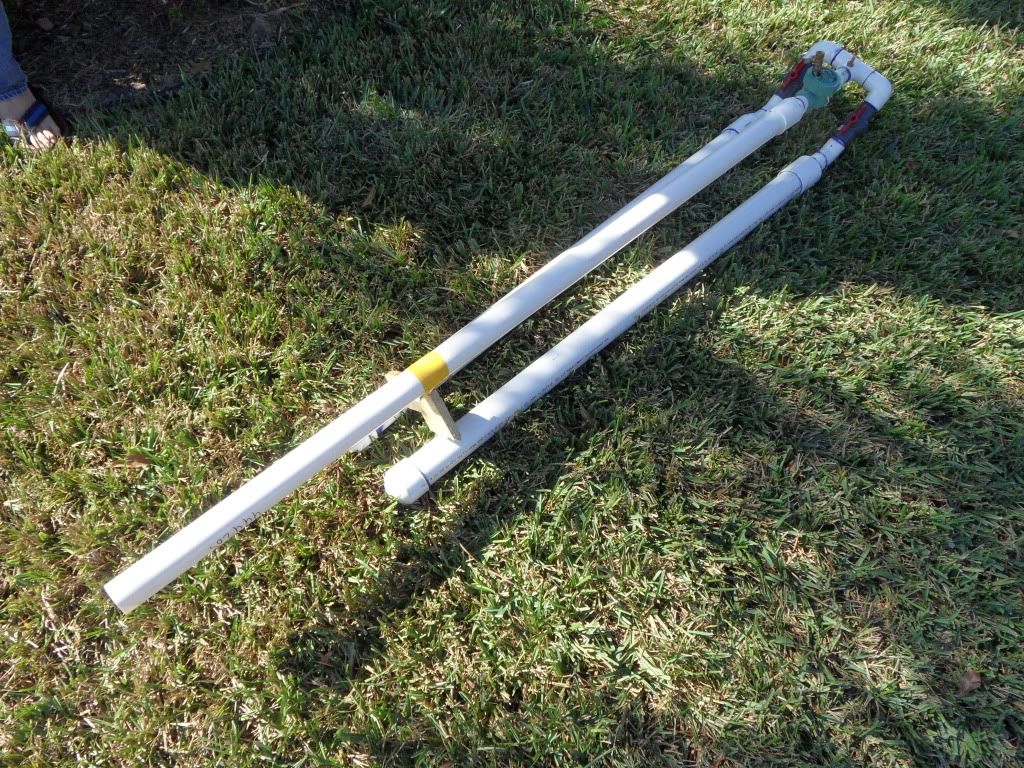

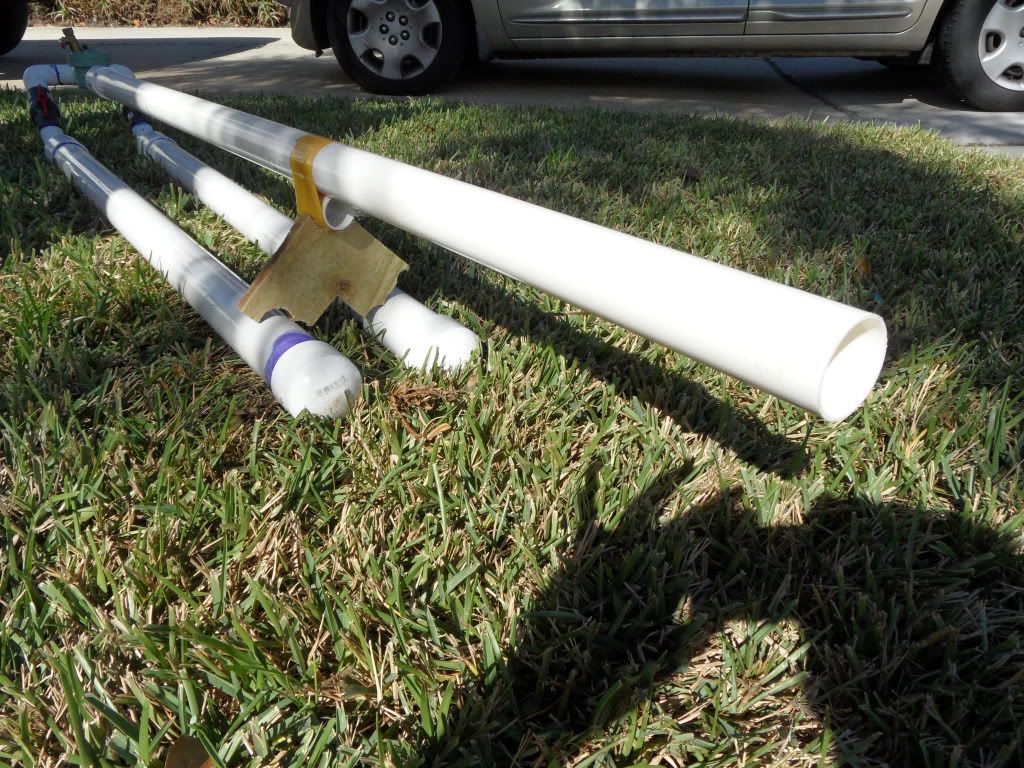

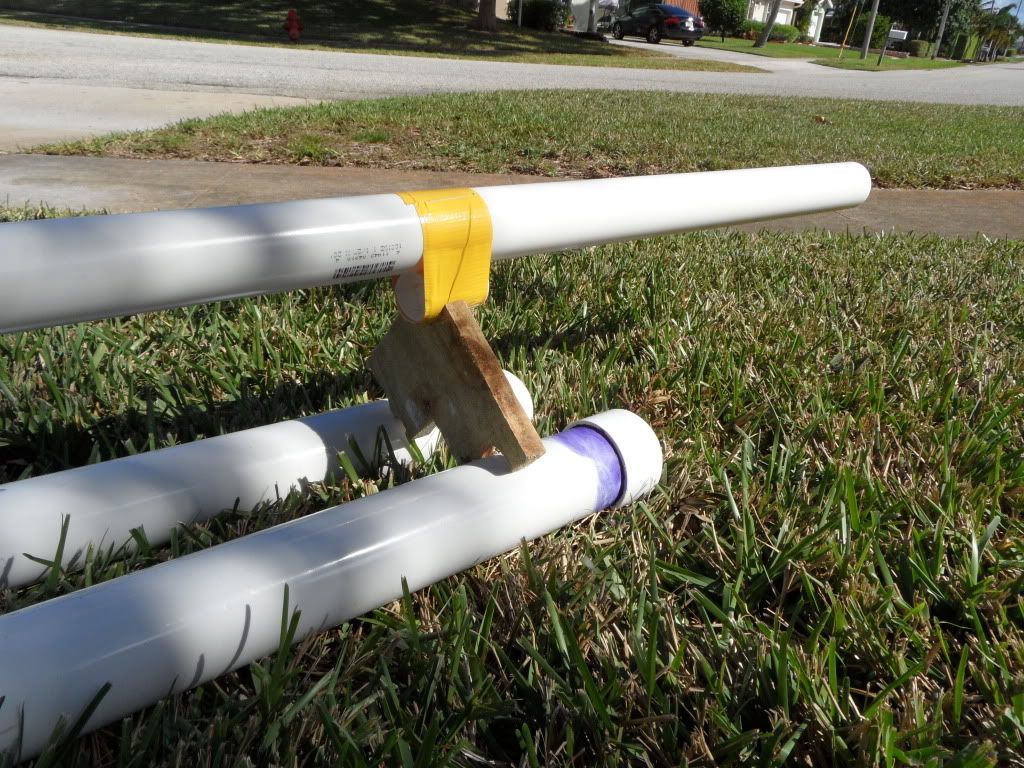

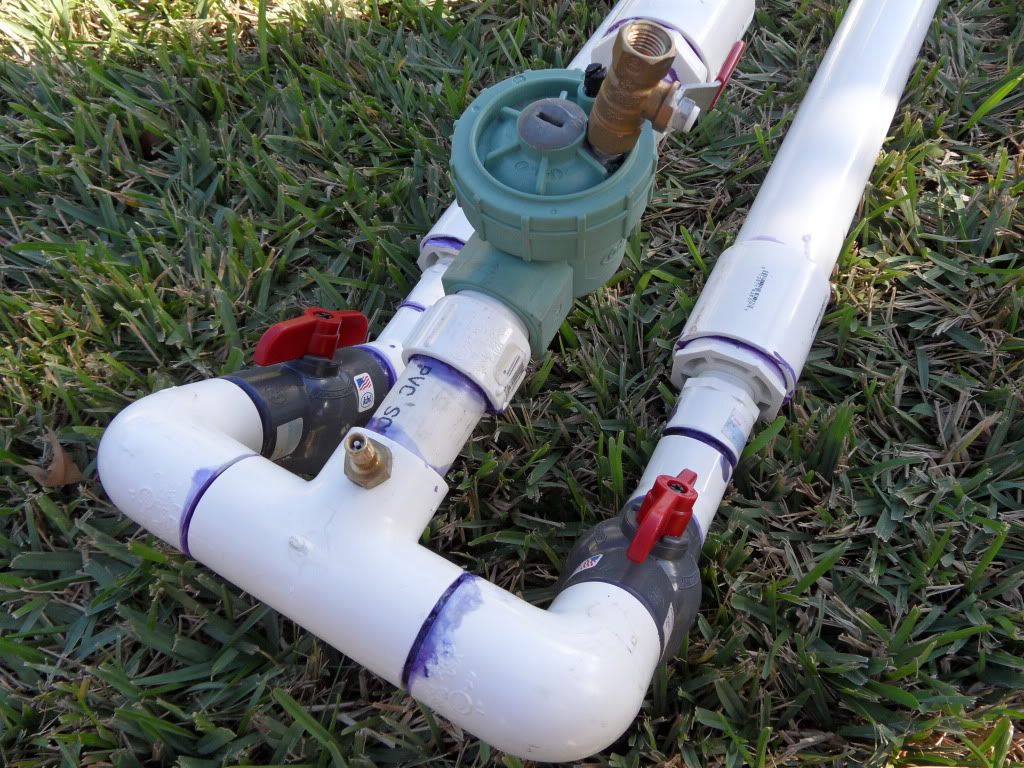

Here is a cannon I made for my friend a while back. It uses two big 2" chambers that can be closed off with ball valves. The valve is a modded 1" jar top orbit with 1/4" BV pilot. Barrels are golf ball and 3/4". The valve isn't the greatest but it works and has a little power to it. Anyway here are some pics.
Hope you like it :wink:
  • 0

OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
Gun Freak
Lieutenant General
Lieutenant General

Posts: 4969
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Country: United States (us)
Reputation: 11

Unread postAuthor: Technician1002 » Wed Nov 24, 2010 11:54 am

Why not eliminate the two ball valves and use an additional sprinkler valve on the second chamber?
  • 0

User avatar
Technician1002
Chief of Staff
Chief of Staff

Posts: 5190
Joined: Sat Apr 04, 2009 11:10 am
Reputation: 14

Unread postAuthor: Gun Freak » Wed Nov 24, 2010 11:55 am

Cause that would be another 20 bucks now wouldn't it :wink:
This is my friends gun. He bought the parts and I put it together for him. Another sprinkler is not needed.
  • 0

OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
Gun Freak
Lieutenant General
Lieutenant General

Posts: 4969
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Country: United States (us)
Reputation: 11

Unread postAuthor: jackssmirkingrevenge » Wed Nov 24, 2010 11:56 am

Or stiffen the spring for a faster resetting sprinkler valve that can get multiple shots using a momentary pilot ;)

But really, nice and simple, good job for what it is.
  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Unread postAuthor: mattyzip77 » Mon Jul 18, 2011 10:33 pm

i know this post is old, but how far do you get outta this bad boy shooting a golf ball??? :glasses5: :glasses5: :glasses5: :coffee:
  • 0

User avatar
mattyzip77
Donating Member
Donating Member

Posts: 1249
Joined: Tue Jun 28, 2011 12:22 pm
Location: Taxachusetts
Reputation: 0

Unread postAuthor: Gun Freak » Mon Jul 18, 2011 11:03 pm

Far enough :D
I dunno, never range tested the hunk of junk. :wink:
  • 0

OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
Gun Freak
Lieutenant General
Lieutenant General

Posts: 4969
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Country: United States (us)
Reputation: 11

Unread postAuthor: mattyzip77 » Tue Jul 19, 2011 2:00 pm

ok, seeings how you said hunkojunk, sorry I asked, lol!!! :cry:
  • 0

User avatar
mattyzip77
Donating Member
Donating Member

Posts: 1249
Joined: Tue Jun 28, 2011 12:22 pm
Location: Taxachusetts
Reputation: 0

Sponsored

Sponsor



Unread postAuthor: Gun Freak » Tue Jul 19, 2011 5:52 pm

:lol: it is ok, but it ain't the best I've done :wink:
