.50 cal Bullpup selective fire rifle

Built a pneumatic cannon? Then post it here! This section is for completed, finished cannons that you have built. Please include pictures and information.
Sponsored
  • Author
    Message

Unread postAuthor: irisher » Tue Mar 08, 2011 6:53 pm

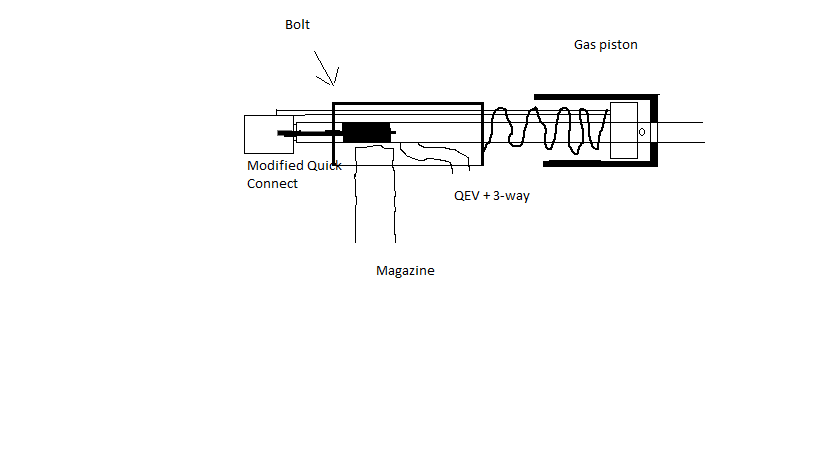

Image[/img]
I know this is a bit of a thread kick but there was a request for diagram and I just got around to doing it. You can see that sort of recycled BTB's idea about the quick connect breach lock.
  • 0

User avatar
irisher
Lieutenant Colonel
Lieutenant Colonel

Posts: 420
Joined: Mon Dec 29, 2008 2:53 am
Reputation: 0

Unread postAuthor: jackssmirkingrevenge » Wed Mar 09, 2011 1:26 am

So you got the gas piston to work :D excellent! Has it had a negative effect on power?
  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Unread postAuthor: irisher » Wed Mar 09, 2011 4:36 pm

I cant tell power wise as I only did dry fires before holes were made. I found an interesting effect of the gas piston system. I have yet to make a charging handle so I just get a few psi in the system, block the barrel and dry fire and it will load a new round. :)
  • 0

User avatar
irisher
Lieutenant Colonel
Lieutenant Colonel

Posts: 420
Joined: Mon Dec 29, 2008 2:53 am
Reputation: 0

Unread postAuthor: JDP12 » Wed Mar 09, 2011 4:50 pm

irisher, could you perhaps go into a little more detail about how the gas piston idea works with the semiautomatic? Im a little fuzzy
  • 0

"Some say his pet elephant is pink, and that he has no understanding of "PG rated forum". All we know is, he's called JSR. "
User avatar
JDP12
Major General
Major General

Posts: 1943
Joined: Fri Mar 30, 2007 8:34 pm
Reputation: 0

Unread postAuthor: Gaderelguitarist » Wed Mar 09, 2011 10:23 pm

JDP12, basically excess air in the barrel behind the projectile ports out of holes in the sides of the barrel to the air ram positioned outside of the barrel, forcing it backwards, and by extension opening the bolt. Brian did the same thing a while back with the intent of achieving full automatic firing.
  • 0

so many muchness
User avatar
Gaderelguitarist
Colonel
Colonel

Posts: 580
Joined: Sat Aug 16, 2008 9:56 pm
Location: Columbia, MD
Reputation: 0

Unread postAuthor: Crna Legija » Wed Mar 09, 2011 10:37 pm

its how the ak47 works, in this you can see every thing thats green its all connected and moves together when the pressure is taken out of the barrel
  • 0

'' To alcohol... The cause of, and solution to, all of life's problems.”
--Homer Simpson

Add me on ps3: wannafuk, 8/11/11 cant wait
User avatar
Crna Legija
Major General
Major General

Posts: 2333
Joined: Sun Jul 20, 2008 5:14 am
Location: australia
Reputation: 0

Unread postAuthor: Brian the brain » Thu Mar 10, 2011 3:34 pm

Brian did the same thing a while back with the intent of achieving full automatic firing.


But not this beautiful!


Makes me wanne go out and finish a new version!
  • 0

Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
