Remote Controlled Airsoft "Mine"

Built a pneumatic cannon? Then post it here! This section is for completed, finished cannons that you have built. Please include pictures and information.
Sponsored
  • Author
    Message

Remote Controlled Airsoft "Mine"

Unread postAuthor: potatoflinger » Sun Mar 06, 2011 4:38 pm

This is a project that I completed a few months ago, I just never got around to posting it. This is really just a trial version, so there are many changes that need to be made before I would call it finished, but I don't think I will do anything with it until after I finish building an airsoft sentry.

The remote control system is actually something that I made that could be used with a lot of different cannons. I made it out of the electronic parts from a remote controlled airplane. I disconnected the motors and soldered a relay in place of them. The other part of the relay is then connected to the solenoid valve circuit. Then I changed around the controller by soldering a momentary switch in place of the joystick (one switch for the forward/backward stick, and one switch for the left/right stick, which gives me two separate channels). I added a molex connector to the receiver housing to make it easy to connect the receiver to different launchers

This system works incredibly well. I can have it connected to two cannons at once and fire them individually (from up to 500 feet away :D ).

The rest of the launcher is very simple. It uses a QEV with a solenoid valve to pilot it. I normally load five to 10 bbs into each barrel to increase the coverage area of the launcher.

This launcher was designed to be skirmish-able, so the pressure is limited to 100 PSI when it is used in a battle to prevent injury.


Air chamber: 1 1/4" x 6" steel pipe

Main valve: 3/4" Quick exhaust valve

Pilot valve: Small solenoid valve

Barrels: 12 short lengths of 5/16" brake line

Operating pressure: 25-200 PSI.

Muzzle velocity: up to 450 fps (per barrel)


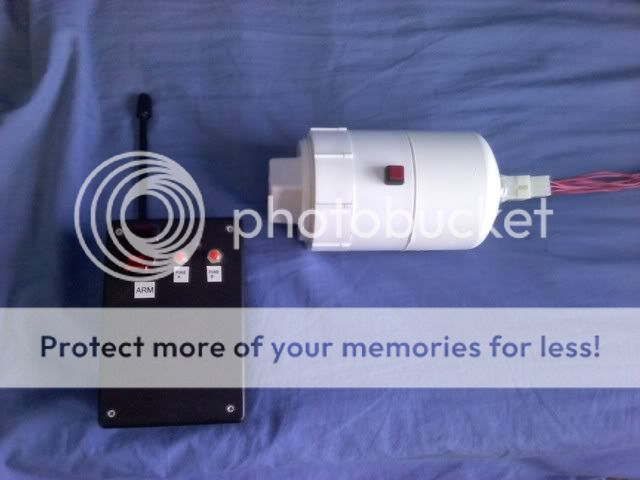

This is the remote control system

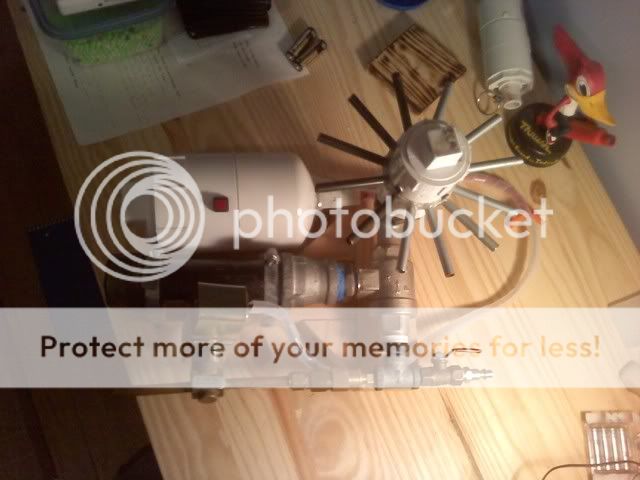

Here is the launcher

Here is a close up shot of the barrels

This is the launcher as well as the remote control
  • 0

It's hard to soar with eagles when you're working with turkeys.
User avatar
potatoflinger
Brigadier General
Brigadier General

Posts: 1136
Joined: Thu Nov 02, 2006 3:26 pm
Location: Maryland
Reputation: 1

Unread postAuthor: POLAND_SPUD » Sun Mar 06, 2011 5:11 pm

Heh.. that's great
  • 0

Children are the future

unless we stop them now
User avatar
POLAND_SPUD
Chief of Staff
Chief of Staff

Posts: 5405
Joined: Sat Oct 13, 2007 4:43 pm
Country: Israel (il)
Reputation: 10

Unread postAuthor: Gun Freak » Sun Mar 06, 2011 6:48 pm

Thats awsome! Nice job... do you camo it when you play?
  • 0

OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
Gun Freak
Lieutenant General
Lieutenant General

Posts: 4969
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Country: United States (us)
Reputation: 11

Unread postAuthor: Lockednloaded » Sun Mar 06, 2011 7:56 pm

Thats really cool, and innovative! Are your barrels slightly angled up?

EDIT:
Would This Unit work well for a similar system?
  • 0

User avatar
Lockednloaded
Major General
Major General

Posts: 1558
Joined: Thu Sep 03, 2009 9:38 pm
Location: Texas, USA
Reputation: 0

Unread postAuthor: potatoflinger » Sun Mar 06, 2011 9:00 pm

Gun Freak wrote:Thats awsome! Nice job... do you camo it when you play?

Yes, I have some camo netting that I cover it with as much as possible. It is somewhat effective, but I think the best thing to do is just hide it as well as possible to begin with and try not to rely on the camouflage too much.

@Lockednloaded,
Yes, the barrels are angled up slightly. I did that not only to improve the range, but to keep the bbs from rolling out of the barrel as well.

I am not sure if that unit would work, but from the description it sounds like it could.

I made a video of this thing in action, but it's still processing.
  • 0

It's hard to soar with eagles when you're working with turkeys.
User avatar
potatoflinger
Brigadier General
Brigadier General

Posts: 1136
Joined: Thu Nov 02, 2006 3:26 pm
Location: Maryland
Reputation: 1

Unread postAuthor: mark.f » Sun Mar 06, 2011 9:07 pm

Looks good! Certainly a little bulky but that's nothing you can't get around. :wink:
  • 0

User avatar
mark.f
Donating Member
Donating Member

Posts: 3464
Joined: Sat May 06, 2006 11:18 am
Country: United States (us)
Reputation: 21

Unread postAuthor: potatoflinger » Sun Mar 06, 2011 9:16 pm

mark.f wrote:Looks good! Certainly a little bulky but that's nothing you can't get around. :wink:

Yeah, the launcher itself could be drastically reduced in size, which is one of the things I will change when I go to make the final version of it. The only problem is that the PVC tube that houses all of the electronic components has to be that large in order to hold all of the batteries and switches and such.

Here's a video with a description of how it works, plus a couple of shots at the end. The video is boring, but it should give you an idea of what this thing does.
  • 0

It's hard to soar with eagles when you're working with turkeys.
User avatar
potatoflinger
Brigadier General
Brigadier General

Posts: 1136
Joined: Thu Nov 02, 2006 3:26 pm
Location: Maryland
Reputation: 1

Sponsored

Sponsor



Unread postAuthor: Gun Freak » Sun Mar 06, 2011 9:37 pm

Very nice video. That is a sick little creation you have there.
  • 0

OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
Gun Freak
Lieutenant General
Lieutenant General

Posts: 4969
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Country: United States (us)
Reputation: 11

Unread postAuthor: jackssmirkingrevenge » Sun Mar 06, 2011 11:37 pm

Very nice, I bet it's the cause of much blasphemy amongst your opponents :D
  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Unread postAuthor: Davidvaini » Sun Mar 06, 2011 11:48 pm

Lockednloaded wrote:Thats really cool, and innovative! Are your barrels slightly angled up?

EDIT:
Would This Unit work well for a similar system?



I have one of those units, there is also a cheaper less amperage unit that works well too..

range is pretty decent as far as open line of sight, but nothing crazy like the remote control for an airplane...
  • 0

User avatar
Davidvaini
Major General
Major General

Posts: 1315
Joined: Tue May 29, 2007 8:58 pm
Reputation: 0

Unread postAuthor: clemsonguy1125 » Mon Mar 07, 2011 6:16 pm

Is the the one you were talking about.
http://www.amazon.com/Logisys-RM01-Powe ... 696&sr=1-3
  • 0

User avatar
clemsonguy1125
Major General
Major General

Posts: 1485
Joined: Tue Jul 21, 2009 4:00 pm
Location: East Coast
Reputation: 1

Return to Pneumatic Cannon Database
