HPA triggered burst-disk gun

Built a pneumatic cannon? Then post it here! This section is for completed, finished cannons that you have built. Please include pictures and information.
Sponsored
  • Author
    Message

HPA triggered burst-disk gun

Unread postAuthor: Lockednloaded » Mon Aug 01, 2011 1:34 pm

I've had a pressure washer for a while, but I was just recently inspired by a thread on HPA launchers to build a gun to make use of all the pressure I have access to.

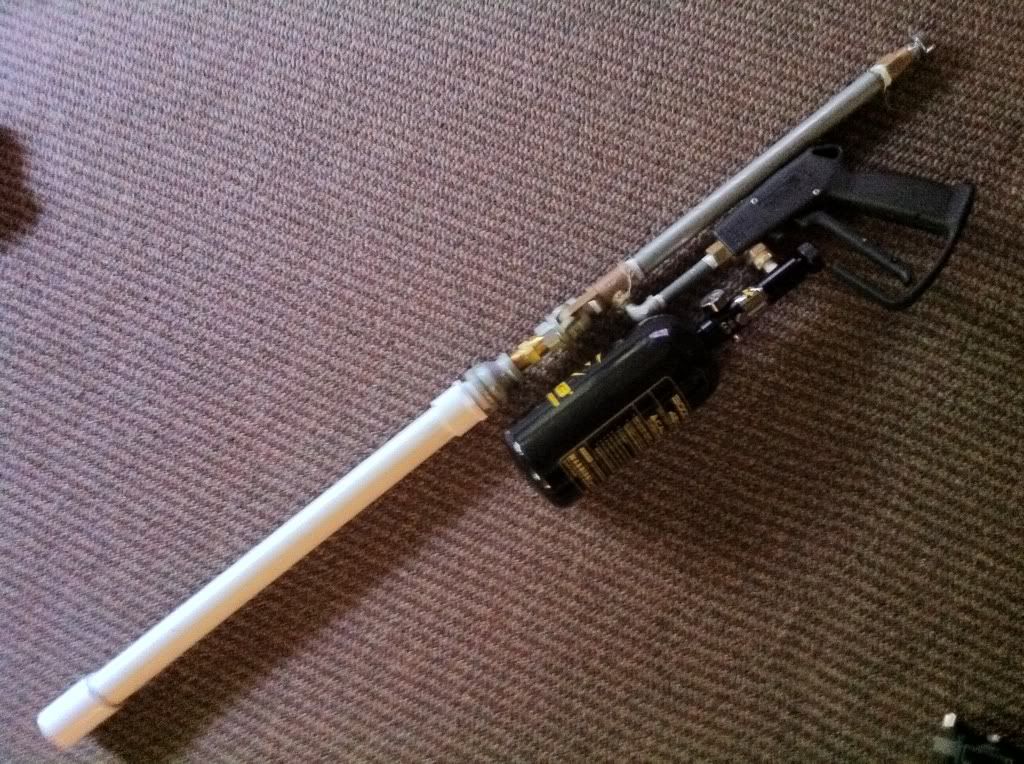

I first made a low pressure one with a FE firing tank, 1" cam-lock, and firing at about 40-60psi

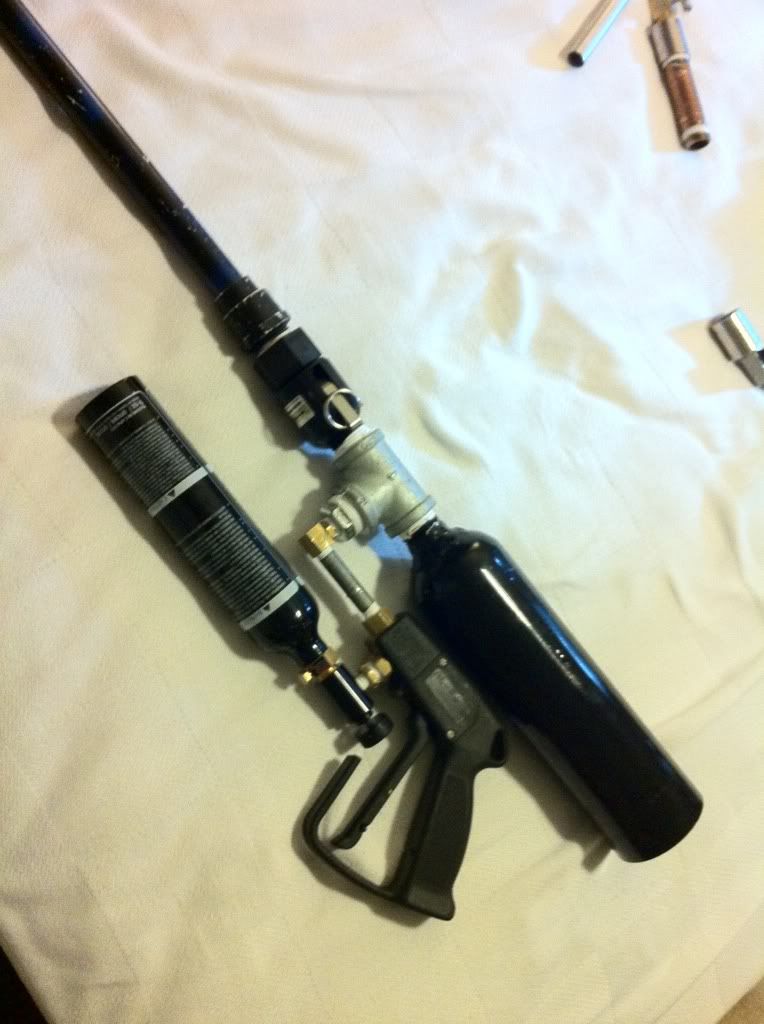

But I have enough low pressure launchers, so I decided to up the pressure and decrease the chamber and valve size.
What I got is one hell a a launcher for such a small package




I run at 800 psi and GGDT says (indirectly through saefroch) that I could put a Golfball 200m with only an 9" barrel

Hope ya like it, it's nothing new, but I think it's still cool
  • 0

I love lamp
User avatar
Lockednloaded
Major General
Major General

Posts: 1558
Joined: Thu Sep 03, 2009 9:38 pm
Location: Texas, USA
Reputation: 0

Unread postAuthor: wyz2285 » Mon Aug 01, 2011 2:40 pm

Really nice :thumbright:
I have thought something like this before too, but I didn´t enjoy the burst-disk, because you have to put a new one everytime you shot:x
So, have you though about using a air-tight detente to replace the disc? and you could also add a magazine, maybe you could have a very powerful semi-auto cannon :roll:
  • 0

User avatar
wyz2285
Major General
Major General

Posts: 2244
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Country: Portugal (pt)
Reputation: 12

Unread postAuthor: Gun Freak » Mon Aug 01, 2011 2:45 pm

Couldn't you just use your piston hybrid for this? I mean, fill the pilot of your hybrid to whatever pressure, then fill the chamber with your pressure washer. Wouldn't it work just the same as your hybrid? I'm not saying use the same gun, but a piston hybrid valve could work for the same purpose right?

Anyhow, I think this launcher is sick, very sleek and compact, powerful, I like it! Nice job! (as always :roll: :D )
  • 0

OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
Gun Freak
Lieutenant General
Lieutenant General

Posts: 4969
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Country: United States (us)
Reputation: 11

Unread postAuthor: Lockednloaded » Mon Aug 01, 2011 2:47 pm

Thanks wyz, I had a a detent system, but it gave me no range of ammo and I didn't like only being limited to 3/8" BBs. The burst-disk is easily replaced because I have multiple male ends that I can prepare to get some consecutive shots

EDIT, just saw gunfreak's post:
It would, an it'd be worth trying once my damned valve seals correctly. And if I'm charging that bulky thing, I might as well throw some fuel in to make it much more powerful as a true hybrid
  • 0

I love lamp
User avatar
Lockednloaded
Major General
Major General

Posts: 1558
Joined: Thu Sep 03, 2009 9:38 pm
Location: Texas, USA
Reputation: 0

Unread postAuthor: Gun Freak » Mon Aug 01, 2011 2:54 pm

I might give it a go, since I just got a fridge compressor... :twisted:
  • 0

OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
Gun Freak
Lieutenant General
Lieutenant General

Posts: 4969
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Country: United States (us)
Reputation: 11

Unread postAuthor: Lockednloaded » Mon Aug 01, 2011 2:58 pm

Burst disks are definitely worth playing with, just a tip if you want to have a trigger: there's usually a long delay with low flow, even at high pressure. So I "precharge" the chamber to about 600psi, so that it only takes a tap of the trigger to fire
  • 0

I love lamp
User avatar
Lockednloaded
Major General
Major General

Posts: 1558
Joined: Thu Sep 03, 2009 9:38 pm
Location: Texas, USA
Reputation: 0

Unread postAuthor: Gun Freak » Mon Aug 01, 2011 2:58 pm

Good idea, I was wondering how much air is wasted after each shot.
  • 0

OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
Gun Freak
Lieutenant General
Lieutenant General

Posts: 4969
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Country: United States (us)
Reputation: 11

Sponsored

Sponsor



Unread postAuthor: wyz2285 » Mon Aug 01, 2011 2:59 pm

Have you tired to make some air-tight detentes? you can make them to fit any smooth suffice ammo :roll:
Gun freak: a fridge compressor is not perfect, to charge a 0.5l tank to 1000 psi take a hell of time :evil: , and you have to let it cool down every 3-5 min
  • 0

User avatar
wyz2285
Major General
Major General

Posts: 2244
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Country: Portugal (pt)
Reputation: 12

Unread postAuthor: Lockednloaded » Mon Aug 01, 2011 9:42 pm

Detents end up being moretrouble for me, even if I could get a consistent 800psi detent, I still wouldn't be able to use all different types of ammo
  • 0

I love lamp
User avatar
Lockednloaded
Major General
Major General

Posts: 1558
Joined: Thu Sep 03, 2009 9:38 pm
Location: Texas, USA
Reputation: 0

Unread postAuthor: Crna Legija » Tue Aug 02, 2011 1:19 am

that looks so sick, love it!!.
  • 0

'' To alcohol... The cause of, and solution to, all of life's problems.”
--Homer Simpson

Add me on ps3: wannafuk, 8/11/11 cant wait
User avatar
Crna Legija
Major General
Major General

Posts: 2333
Joined: Sun Jul 20, 2008 5:14 am
Location: australia
Reputation: 0

Unread postAuthor: jackssmirkingrevenge » Tue Aug 02, 2011 1:34 am

Again, nicely done.

I had tried my 3/4" hybrid as a burst disk HPA pneumatic and was quite unimpressed with the power, but then again I was comparing it to a 10x mix so it's a little unfair - but for those who want a high performance pneumatic without having to worry about fuelling and ignition, this is definitely a cheap and easy way to go about it.
  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Unread postAuthor: Lockednloaded » Sat Aug 06, 2011 11:41 am

I could easily convert it to a hybrid, but I'd really rather keep it a pure pneumatic for the time being. It already launches 1" projectiles faster then I an see
