Remote-Fired Air Gun

Built a pneumatic cannon? Then post it here! This section is for completed, finished cannons that you have built. Please include pictures and information.
Sponsored
  • Author
    Message

Remote-Fired Air Gun

Unread postAuthor: Lockednloaded » Mon Jun 10, 2013 1:36 pm

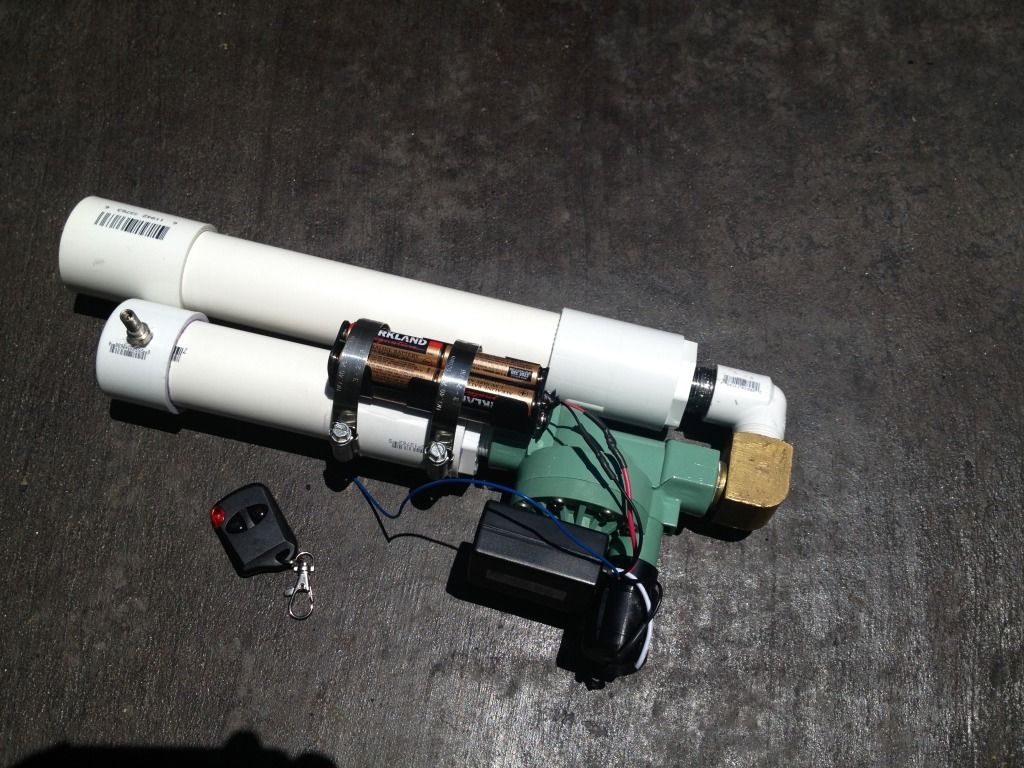

I ordered one of those cheap 12v remote circuits off of amazon a while ago (~12$ shipped IIRC) and just got around to trying it out.

These things are extremely simple to setup, and I will definitely buy another one for another more serious project in the near future

The cannon itself is pretty simple:
1-1/2" by about 8" chamber
1-1/2" by about 14" barrel
3/4" sprinkler valve
160 psi operating pressure

Right now I've got my valve running at 12v because that's what the RC unit is rated to, is this hurting performance much?
  • 0

I love lamp
User avatar
Lockednloaded
Major General
Major General

Posts: 1558
Joined: Thu Sep 03, 2009 9:38 pm
Location: Texas, USA
Reputation: 0

Unread postAuthor: jrrdw » Mon Jun 10, 2013 2:36 pm

Is it a 18 or 24 volt sprinkler valve? I can see it being a bit weak if it's a 18V, but at 24V I think it is deffenetly going to suffer preformance. As far as physical damage it's a electro magnet, I don't think they over heat from low voltage like motors do.
  • 0

When life gives you lemons...throw them back they suck!
User avatar
jrrdw
Donating Moderator
Donating Moderator

Posts: 6538
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Country: United States (us)
Reputation: 25

Unread postAuthor: jackssmirkingrevenge » Mon Jun 10, 2013 3:20 pm

Very nice!

Given the size of the sprinkler valve's pilot opening, I don't think voltage has a significant impact on performance when you're operating it as a solenoid valve.
  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Unread postAuthor: dart guy » Mon Jun 10, 2013 3:25 pm

i think that you should take a 3 intersection pipe and add a feeder tube and have it shoot multiple shots :)
  • 0

User avatar
dart guy
Major
Major

Posts: 397
Joined: Mon May 13, 2013 7:54 pm
Location: not telling you
Reputation: 5

Unread postAuthor: wyz2285 » Mon Jun 10, 2013 3:57 pm

I used the same type of remote for my hybrid ignition, however my command looks cooler than yours :lol:
  • 0

CpTn_lAw wrote::D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
wyz2285
Major General
Major General

Posts: 2244
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Country: Portugal (pt)
Reputation: 12

Unread postAuthor: Technician1002 » Mon Jun 10, 2013 6:31 pm

The magnetic field in the coil is directly related to current. Since current on 12V DC is higher than on 24VAC, it is not slower.

I found an old thread on the AC vs DC on sprinkler valves somewhere where the current was measured.
http://www.spudfiles.com/forums/questions-electric-sprinkler-valve-t18083.html
  • 0

User avatar
Technician1002
Chief of Staff
Chief of Staff

Posts: 5190
Joined: Sat Apr 04, 2009 11:10 am
Reputation: 14
