The [Insert safety concern here] Cannon.

Unread postAuthor: Intel Xeon » Sat Mar 17, 2007 10:02 pm

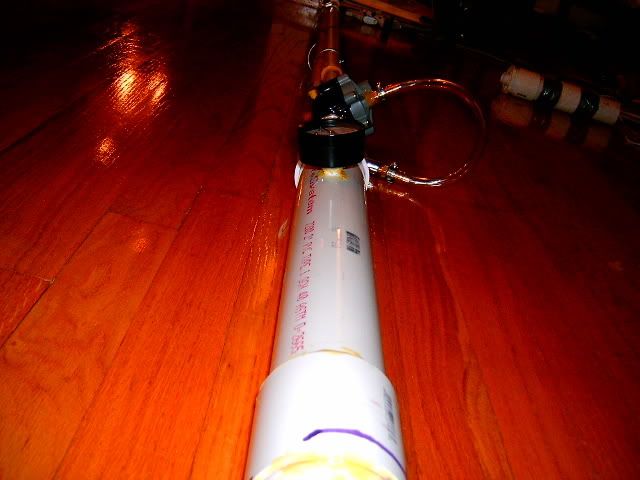

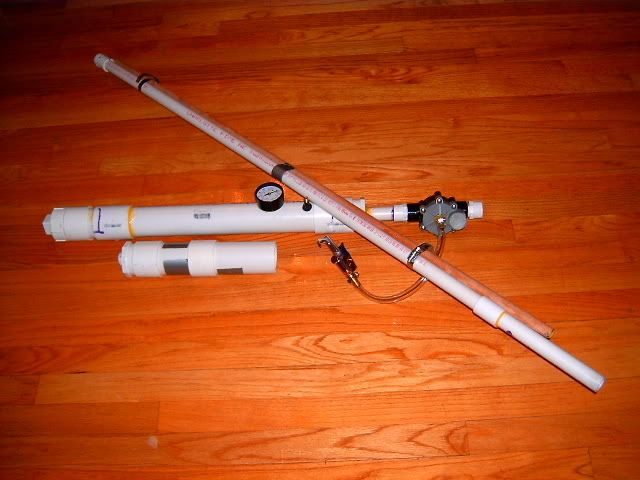

Ok, so this was my first cannon attempt and I say that the attempt kinda succeeded. Modded Rainbird Sprinkler Valve, 2"ID 25" sch40 chamber. Interchangeable 2"ID 10" long and 3/4"ID 4' long sch 40 barrels.

Working pressure of 75 psi with "t3h b!k3 pu^^p uv d00m"

Taht ish lyke teh nuubs kanon!

My cannon is a wannabe gangsta'








  • 0


Intel Xeon
Sergeant
Sergeant

Posts: 84
Joined: Sat Mar 17, 2007 9:43 pm
Location: Philly, PA. (home's in Worcester,MA)
Reputation: 0

Unread postAuthor: frankrede » Sun Mar 18, 2007 12:10 am

that gun has DWV fittings not made for pressure but it should be fine at under 75psi.
But from what I see you have potential in this hobby.
I can tell you did (some) of your homework.
  • 0

Current project: Afghanistan deployment
User avatar
frankrede
Lieutenant General
Lieutenant General

Posts: 3220
Joined: Thu Jul 20, 2006 9:47 pm
Reputation: 0

Unread postAuthor: schmanman » Sun Mar 18, 2007 7:58 am

nice job on your first. really short 2" barrel though, go longer.
  • 0

Persistence is a measure of faith in yourself
User avatar
schmanman
Major General
Major General

Posts: 1685
Joined: Sat Mar 25, 2006 12:28 pm
Location: Michigan,U.S.A
Country: United States (us)
Reputation: 0

Unread postAuthor: Intel Xeon » Sun Mar 18, 2007 8:05 am

everything is actually sch40 except for the 2" barrel couplings (which actually are just sleeved over the pipe,I removed the lip inside) and the coupling that attaches the cleanout. So, if anything fails, the only problem will be the cleanout shooting back, correct?
  • 0


Intel Xeon
Sergeant
Sergeant

Posts: 84
Joined: Sat Mar 17, 2007 9:43 pm
Location: Philly, PA. (home's in Worcester,MA)
Reputation: 0

Unread postAuthor: imablackskater » Sun Mar 18, 2007 9:01 am

nice first you should be alright at 75. by the way what do you shoot
  • 0

User avatar
imablackskater
Sergeant First Class
Sergeant First Class

Posts: 143
Joined: Sat Jan 13, 2007 5:52 pm
Reputation: 0

Unread postAuthor: mark.f » Sun Mar 18, 2007 1:43 pm

Nice "barrel flex-preventative system". 8)
  • 0

User avatar
mark.f
Donating Member
Donating Member

Posts: 3464
Joined: Sat May 06, 2006 11:18 am
Country: United States (us)
Reputation: 21

Unread postAuthor: Pete Zaria » Sun Mar 18, 2007 2:00 pm

Intel Xeon wrote:everything is actually sch40 except for the 2" barrel couplings (which actually are just sleeved over the pipe,I removed the lip inside) and the coupling that attaches the cleanout. So, if anything fails, the only problem will be the cleanout shooting back, correct?


Sch40 is a wall thickness measurement - NOT a pressure rating.
"NSF-PW (xxx PSI)" is a pressure rating.

Three different types of SCH40 pipe the exact same size can have 3 very different pressure ratings.

2" SCH40 DWV PVC (what you have) is made for Drain/Waste/Vent and is not made for pressure. Even worse, if it does fail, it has the potential to fail in a very violent manner, throwing lots of little pieces of PVC shrapnel around.
2" SCH40 NSF-PW PVC (what you really should use....) is made for pressure and has a rating stamped on the side of it. It's much safer. If you dropped it while it was pressurized, it could still shrapnel, but it's much less likely than with DWV pipe.
2" SCH40 DWV cellular-core ABS (perfect for combustions) is made of black ABS plastic, which is very "streachy" and "giving" compared to PVC. Smack a piece with a hammer and you'll see what I mean. If ABS fails, it "rips" open cleanly without sending shrapnel everywhere, making it a perfect choice for combustion guns - but a very bad choice for pneumatics (like yours) due to its lack of a pressure rating.
There are even more types of SCH40 pipe (CPVC, metals, etc....) but you get the idea.

Yes, if your gun fails, the most likely scenario is that the back cap would blast off. If you dropped it while it was pressurized, you'd probably be f**ked.
Keep it under 75 or 80psi, as frankrede said. I've tested ABS DWV pipe to 125psi (remotely) and it didn't fail, so odds are yours won't either - but you're playing odds. I would definitely keep the pressure relatively low. And be damn sure not to drop it while it's pressurized.

Other than the use of some DWV parts, great job. Nice design, nice craftsmanship, nice valve setup. I hope you stick around and post a few more guns.

Peace,
Pete Zaria.
