ghetto triggered burst disk

Unread postAuthor: lukemc » Fri Jun 22, 2007 8:17 am

well i final got bored with my ghetto burst disk and that was just about the time i found and old rusted union in my dads "gas ftngs" box. the union had no sealing faces and a bunch of rust inside so. with a little wd 40, oil and 2 pipe wrenches i was able to clean out the treads. next i added a circle of neopreme and an o ring and got a perfect seal.
but my troubles didnt end there. i couldnt get the middle section to seal off. i finaly figured out the blow gun was mounted backwards and this was a one way blow gun. so i was abut to give up because i didnt have the right size adapter for the other side and my dad suggested why dont i just press the shrader valve down to vent it. i tryed it and it worked perfectly. im going to re mount the blowgun once i get the right part. just for a more realistic feel
so enought of that pictures

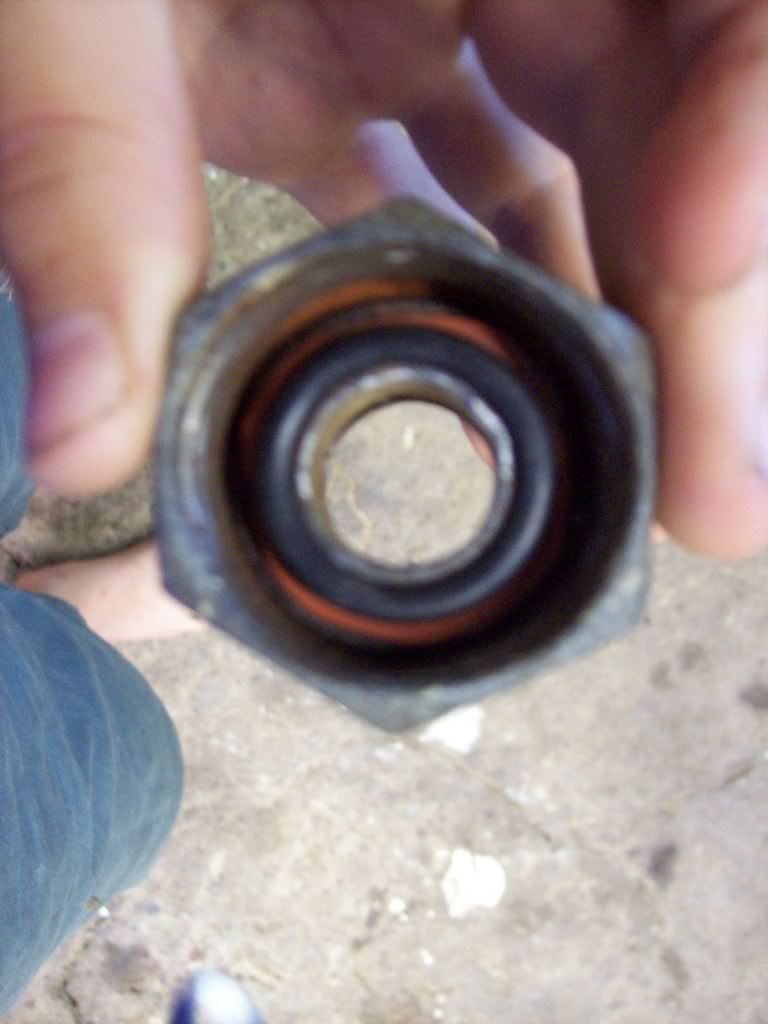

the union

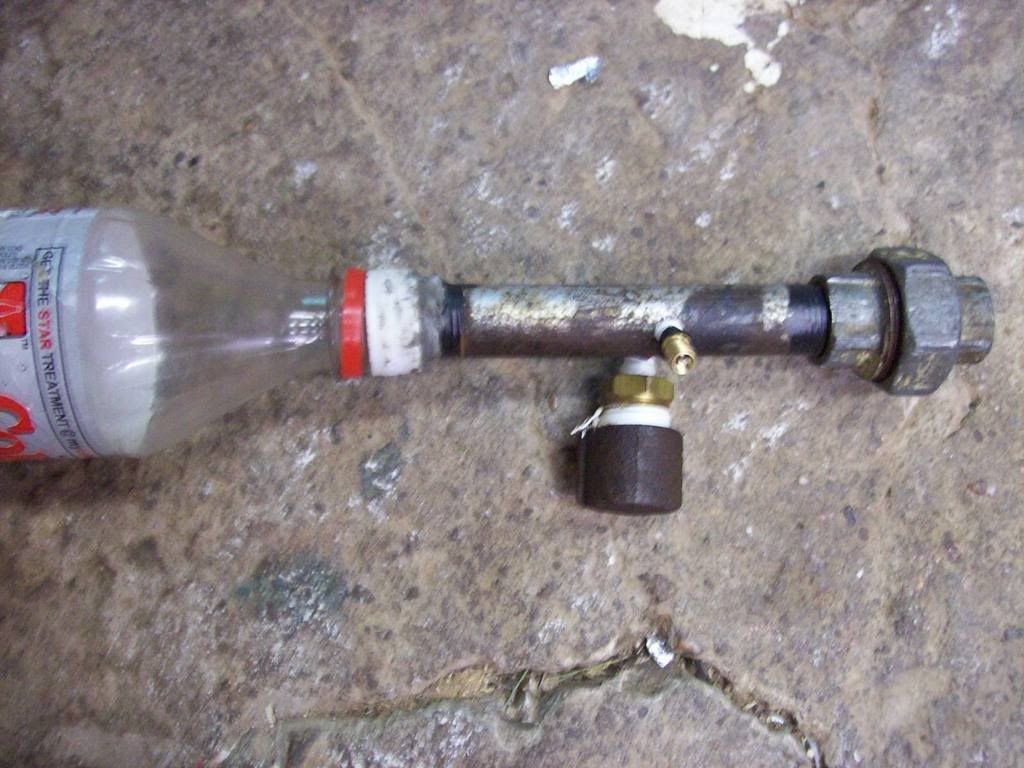

the second chamber. i had to temporalily seal off where the blow gun went untill i can get an adapter

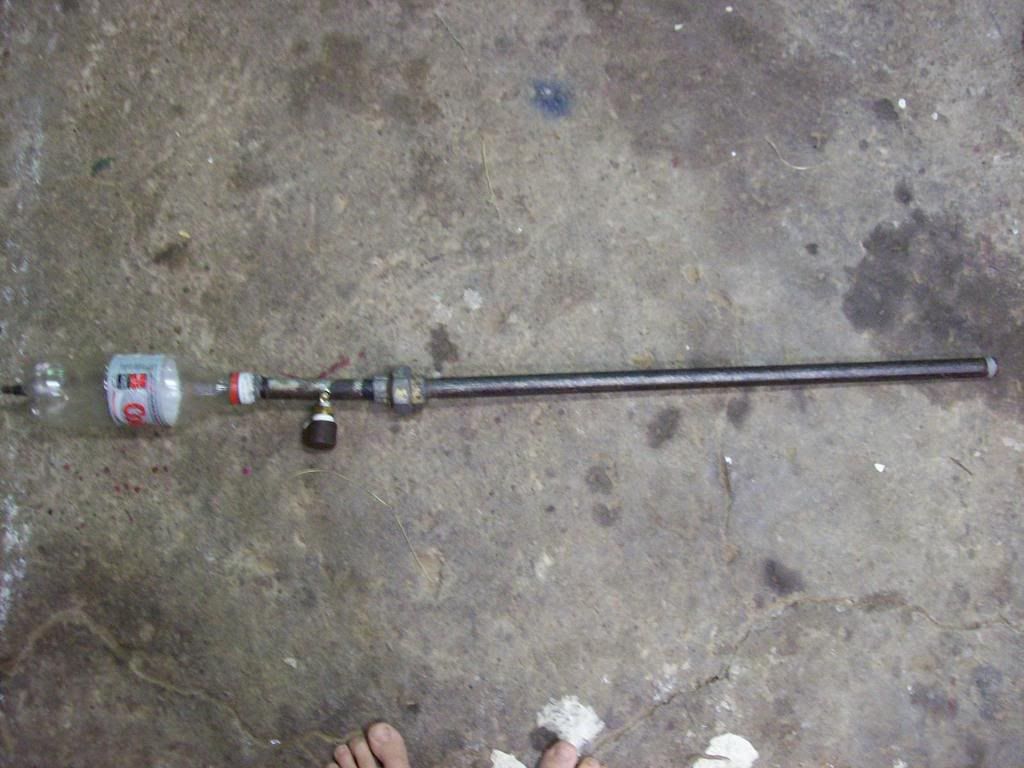

the whole thing

the ammo

ps if you dont know how a triggered burst disk works- http://www.spudfiles.com/spud_wiki/index.php?title=Triggered_burst_disk

PSS: i made this gun on a 0$ budget
