My new piston valve

Post questions and info about pneumatic (compressed gas) powered cannons here. This includes discussion about valves, pipe types, compressors, alternate gas setups, and anything else relevant.
Sponsored
  • Author
    Message

My new piston valve

Unread postAuthor: iPaintball » Wed Sep 19, 2007 8:09 pm

I just finished this piston valve. It's not my first, but It's the first one I could post.

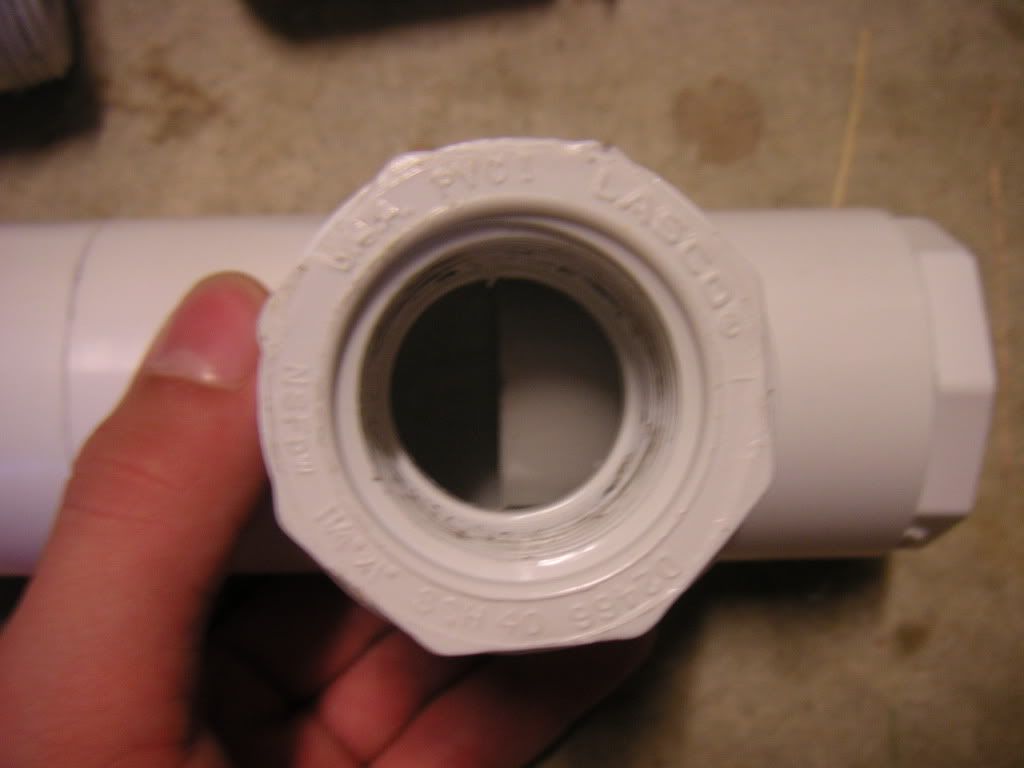

Here's the whole valve:

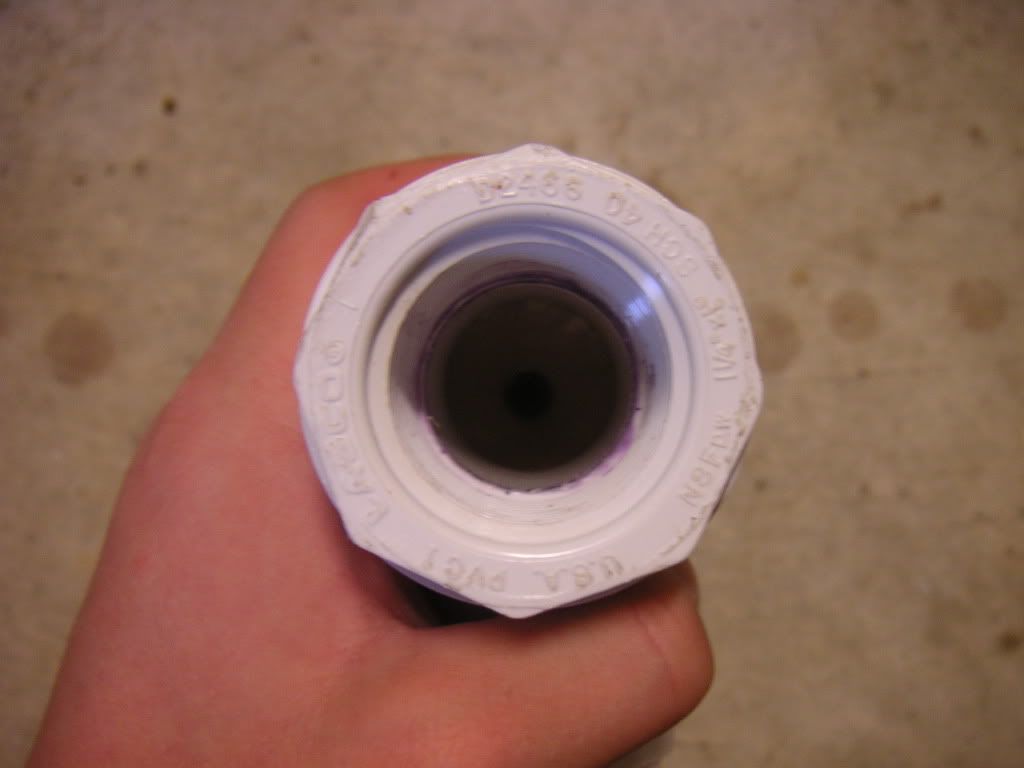

It has a 1" port:
The seat:

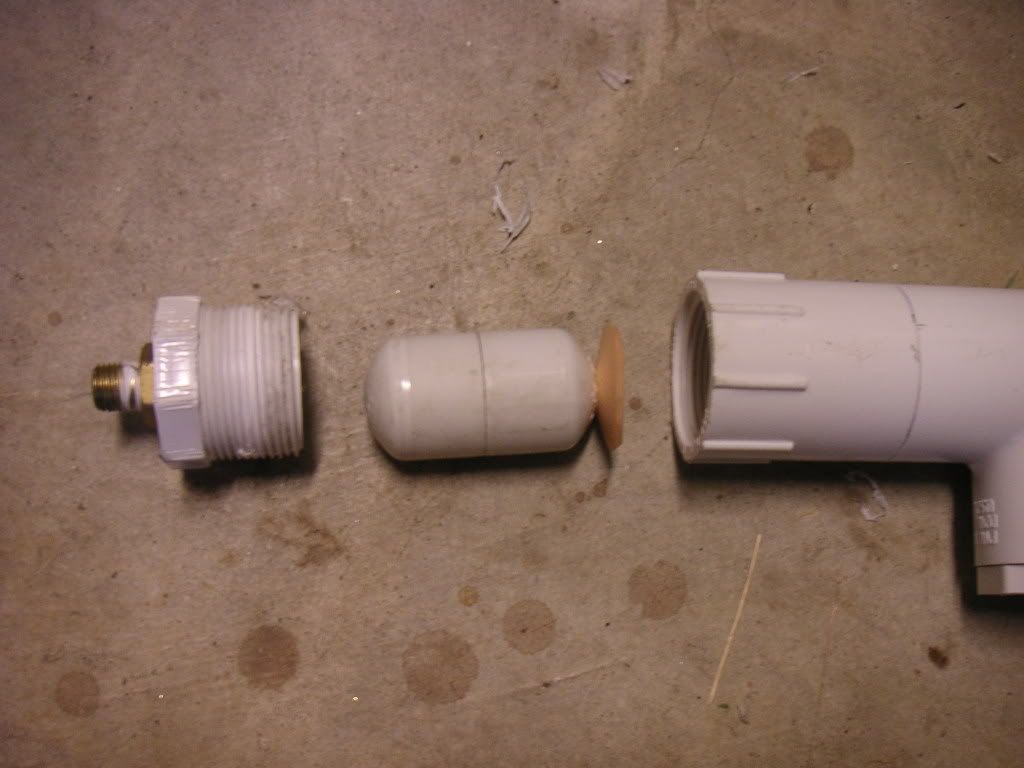

Dissasembled:
  • 0

Summer Projects:
CO2 tank hybrid: Gotta fix the meter :(
Cane gun: Needs a pilot/fill setup
1.5" piston valve gun: Almost done
User avatar
iPaintball
Colonel
Colonel

Posts: 695
Joined: Sun Mar 04, 2007 8:37 pm
Reputation: 0

Unread postAuthor: chartreusesnot » Wed Sep 19, 2007 8:35 pm

dood thats a really cool piston. Its kinda pill like, too bad the tee isn't transparent.
  • 0

_Fnord wrote:OMG you have broked teh universe!!!11exclamationpoint!1!

http://www.youtube.com/watch?v=UnKN7LXqizw
http://www.youtube.com/watch?v=oVm_3eEPEgM
http://www.youtube.com/watch?v=wLNjMSGxp00
^^^^CLICK^^^^
User avatar
chartreusesnot
Staff Sergeant
Staff Sergeant

Posts: 109
Joined: Tue Jun 05, 2007 11:52 pm
Reputation: 0

Unread postAuthor: MrCrowley » Wed Sep 19, 2007 8:37 pm

This section is for my designs and plans to a new theory, a piston valves operation is a theory, but it's an old one, this is more for like if you figure out how to make a semi-auto valve.
  • 0

User avatar
MrCrowley
Moderator
Moderator

Posts: 10207
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand
Country: New Zealand (nz)
Reputation: 4

Unread postAuthor: iPaintball » Wed Sep 19, 2007 8:39 pm

Oh, I just saw Accesories, so I posted it here.
  • 0

Summer Projects:
CO2 tank hybrid: Gotta fix the meter :(
Cane gun: Needs a pilot/fill setup
1.5" piston valve gun: Almost done
User avatar
iPaintball
Colonel
Colonel

Posts: 695
Joined: Sun Mar 04, 2007 8:37 pm
Reputation: 0

Unread postAuthor: CannonCreator » Wed Sep 19, 2007 11:31 pm

whats the sizes of Tee, and piston endcaps? did you sand out the middle of the Tee or did the endcaps for the piston just fit?
  • 0

Spudding Is dangerous, I learned the hard way:
http://www.spudfiles.com/forums/my-eye- ... 15301.html

Guns. As They may Claim lives, they are lives. Our lives.

When Life gives you lemons, through them at somone.

Live, Breathe, Eat, Paintball
User avatar
CannonCreator
Captain
Captain

Posts: 314
Joined: Sun Aug 12, 2007 12:59 pm
Location: Moorpark, CA
Reputation: 0

Unread postAuthor: iPaintball » Thu Sep 20, 2007 3:07 am

The tee is 1.25" and the endcaps are 3/4". The piston travels in a piece oh 1.25" pipe
  • 0

Summer Projects:
CO2 tank hybrid: Gotta fix the meter :(
Cane gun: Needs a pilot/fill setup
1.5" piston valve gun: Almost done
User avatar
iPaintball
Colonel
Colonel

Posts: 695
Joined: Sun Mar 04, 2007 8:37 pm
Reputation: 0

Unread postAuthor: noob of noobs » Fri Sep 21, 2007 8:18 pm

Wait a second, what's your pilot valve? I see a schrader on the back cap, but not a blowgun or ballvalve. Are you just opening the schrader manualy?!?
  • 0

User avatar
noob of noobs
Captain
Captain

Posts: 320
Joined: Tue Jun 12, 2007 8:04 pm
Location: Illinois, Skokie
Reputation: 0

Sponsored

Sponsor



Unread postAuthor: chaos » Fri Sep 21, 2007 8:37 pm

umm thats not a shrader...

looks to me like a nipple where he would then either attach a blowgun or ball valve.
  • 0

User avatar
chaos
Brigadier General
Brigadier General

Posts: 1205
Joined: Wed Jan 17, 2007 8:31 am
Reputation: 0

Unread postAuthor: iPaintball » Fri Sep 21, 2007 8:53 pm

I have a 1/4" QEV which threads onto the nipple on the back.
  • 0

Summer Projects:
CO2 tank hybrid: Gotta fix the meter :(
Cane gun: Needs a pilot/fill setup
1.5" piston valve gun: Almost done
User avatar
iPaintball
Colonel
Colonel

Posts: 695
Joined: Sun Mar 04, 2007 8:37 pm
Reputation: 0

Unread postAuthor: noob of noobs » Sat Sep 22, 2007 1:52 pm

Ah, I see. :oops:
Do you have a gun for that yet?
  • 0

User avatar
noob of noobs
Captain
Captain

Posts: 320
Joined: Tue Jun 12, 2007 8:04 pm
Location: Illinois, Skokie
Reputation: 0

Return to Pneumatic Cannon Discussion
