Need help EMERGANCY! (not to do with my valve either)

Post questions and info about pneumatic (compressed gas) powered cannons here. This includes discussion about valves, pipe types, compressors, alternate gas setups, and anything else relevant.
Sponsored
  • Author
    Message

Need help EMERGANCY! (not to do with my valve either)

Unread postAuthor: Thursto » Sun Oct 07, 2007 8:34 pm

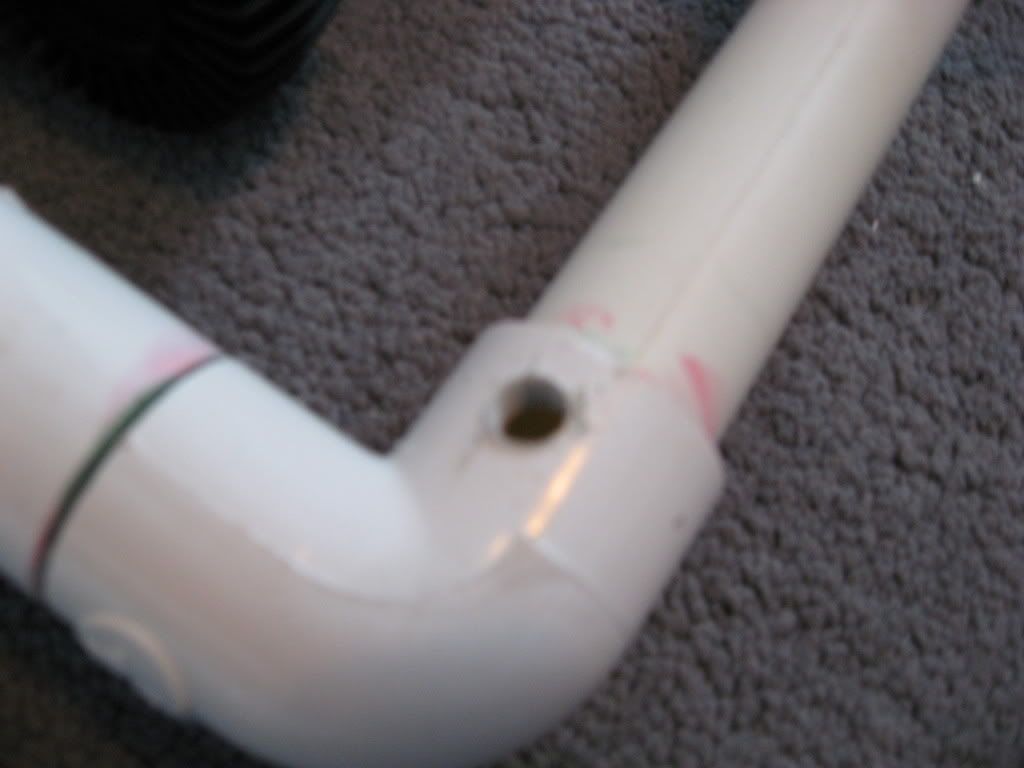

He all i need your help badly, i went to install my PSI gauge and didn't think about where my blowgun needs to go, unfortunately, i drilled the guage hole, screwed the guage in, and its in the wrong spot :( how can i fix this hole, what can i seal it with that will hold up to 120PSI??? i was thinking of putting a bolt threw it, doing that up very tight, aralditing it and then putting one of those rubber hose clamps on. But it would look rather unneat.

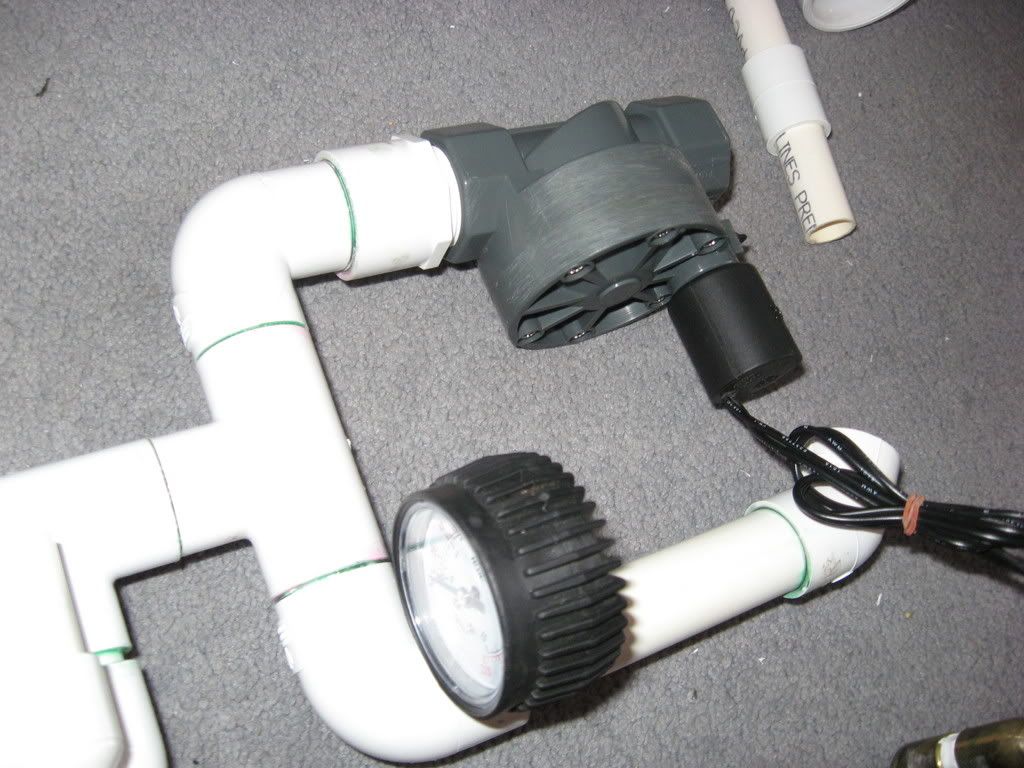

Heres some pictures:

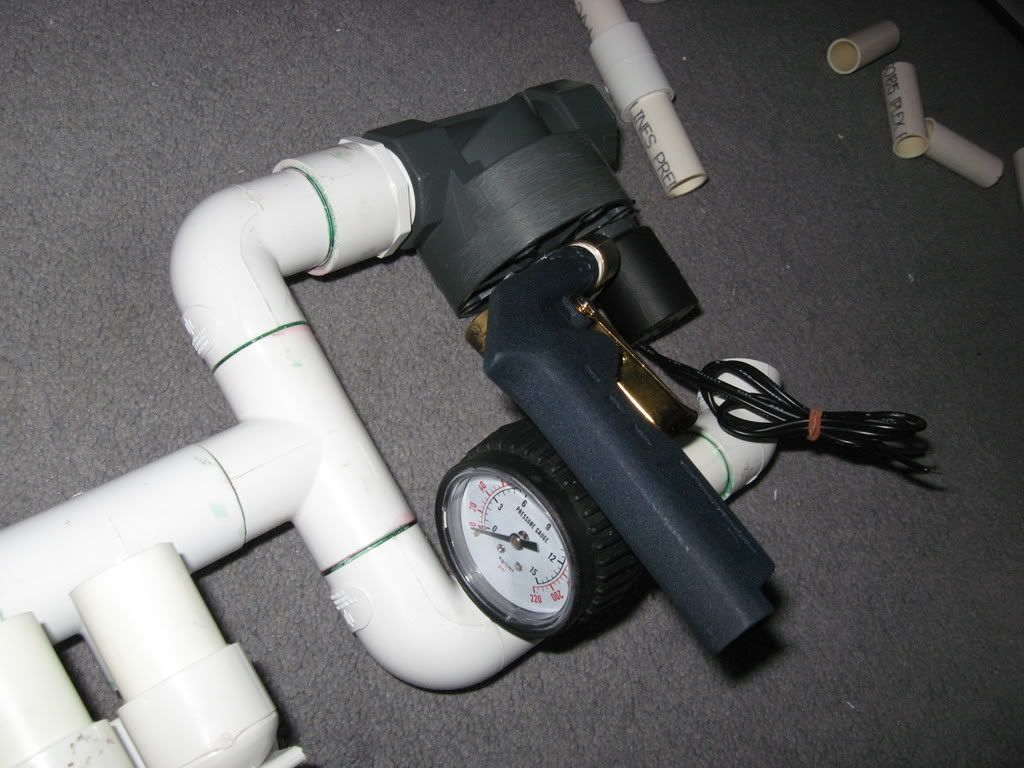

Where the gauge interferes with the blow gun (not re postioning the blowgun)



Anyways your ideas and suggestions are needed please, i'm so angry right now :evil:
  • 0

Last edited by Thursto on Sun Oct 07, 2007 8:43 pm, edited 1 time in total.
~ AUSSIE LAND ~
User avatar
Thursto
Major
Major

Posts: 389
Joined: Fri Mar 02, 2007 5:11 am
Location: Australia, SA, Adeliade, Para Hills
Reputation: 0

Unread postAuthor: DYI » Sun Oct 07, 2007 8:37 pm

Use a threaded brass plug the same size as the blowgun threads. You can hardly even see it after it's in.
  • 0

Spudfiles' resident expert on all things that sail through the air at improbable speeds, trailing an incandescent wake of ionized air, dissociated polymers and metal oxides.
User avatar
DYI
Lieutenant General
Lieutenant General

Posts: 2861
Joined: Sat Jul 07, 2007 8:18 pm
Location: The People's Republic of Canuckistan
Country: Turks and Caicos Islands (tc)
Reputation: 9

Unread postAuthor: HaiThar » Sun Oct 07, 2007 8:40 pm

Don't scare us like that! :P

Maybe just put in a nipple with a cap on it? It's not that big of a deal.
  • 0

User avatar
HaiThar
Donating Member
Donating Member

Posts: 227
Joined: Fri Sep 14, 2007 12:12 am
Reputation: 0

Unread postAuthor: hi » Sun Oct 07, 2007 8:42 pm

put a nipple in it, then a tee. that way you can put both the gauge and the blowgun in the same spot.

edit, now i see your problem.
  • 0

Last edited by hi on Sun Oct 07, 2007 8:51 pm, edited 1 time in total.
"physics, gravity, and law enforcement are the only things that prevent me from operating at my full potential" - not sure, but i like the quote

you know you are not an engineer if you have to remind yourself "left loosy righty tighty"
User avatar
hi
Major General
Major General

Posts: 1619
Joined: Thu Feb 01, 2007 9:28 pm
Reputation: 0

Unread postAuthor: Thursto » Sun Oct 07, 2007 8:49 pm

My blow gun attaches to the valve btw, noow im feeling happier :D cept im not sure ifmy local hardware store does threaded brass plugs and stuff like that, well not that small, owell ill have to figure something out when im there, thanks for the quick replys. HaiThar did i scare ya? lol sorry :P

Many thanks, thursto.
  • 0

~ AUSSIE LAND ~
User avatar
Thursto
Major
Major

Posts: 389
Joined: Fri Mar 02, 2007 5:11 am
Location: Australia, SA, Adeliade, Para Hills
Reputation: 0

Unread postAuthor: iPaintball » Sun Oct 07, 2007 8:51 pm

Just use a threaded hex plug and cover with JB Weld or other high strength epoxy if the threads aren't tapped. If they are, you don't need the epoxy. Nice looking gun BTW! (from what I can see...)
  • 0

Summer Projects:
CO2 tank hybrid: Gotta fix the meter :(
Cane gun: Needs a pilot/fill setup
1.5" piston valve gun: Almost done
User avatar
iPaintball
Colonel
Colonel

Posts: 695
Joined: Sun Mar 04, 2007 8:37 pm
Reputation: 0

Unread postAuthor: jackssmirkingrevenge » Sun Oct 07, 2007 11:00 pm

i was thinking of putting a bolt threw it, doing that up very tight, aralditing it


That should work, find a bolt slightly larger than the hole so it will tap itself in and put araldite on the threads.
  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Sponsored

Sponsor



Unread postAuthor: Thursto » Sun Oct 07, 2007 11:21 pm

Lol yeah my dad said that a bolt should work fine, we have one that is perfect size, just needa cut it down a bit, then put some tefol on the threads, and some araldite. Yeah it is a good looking gun, my first pneumatic, well not counting my BB Gun :P I will post it when its finished, just need a chamber, tire valve, and needa mod my sprinkler and im about done :P Cheers for the help everyone i feel much better now :P
  • 0

~ AUSSIE LAND ~
User avatar
Thursto
Major
Major

Posts: 389
Joined: Fri Mar 02, 2007 5:11 am
Location: Australia, SA, Adeliade, Para Hills
Reputation: 0

Unread postAuthor: pyrogeek » Mon Oct 08, 2007 12:27 am

Don't use a bolt, use a pipe fitting or plug, their threads are tapered and seal on their own since it gets tigther as it goes in.
  • 0

I'm weird, I know it, you don't need to tell me.

pyrogeek
Lieutenant Colonel
Lieutenant Colonel

Posts: 457
Joined: Sat May 13, 2006 7:43 pm
Location: moline Illinios
Reputation: 0

Unread postAuthor: hi » Mon Oct 08, 2007 12:29 am

why dont you turn the sprinkler valve 350 degrees or so? just twist it so its on the other side?

or maybe hack off that 45 and put the sprinkler valve on the same side as the gauge.
  • 0

"physics, gravity, and law enforcement are the only things that prevent me from operating at my full potential" - not sure, but i like the quote

you know you are not an engineer if you have to remind yourself "left loosy righty tighty"
User avatar
hi
Major General
Major General

Posts: 1619
Joined: Thu Feb 01, 2007 9:28 pm
Reputation: 0

Unread postAuthor: Marco321 » Mon Oct 08, 2007 2:24 am

I have an idea if you can asses the hole form behind, which it looks like you can. Ok here is what to do, get some string, put it through the hole and let it fall out an open side of the chamber. Get a piece of pvc sheet bigger than the hole, and put a hole through the middle of it. Tie the string through the hole, then pull the string back through the hole, pulling th sheet pvc into the back of the hole. This will secure the pvc sheet inside the chamber behind the hole. Add some epoxy to the sheet and let the sheet stick behind the hole. Then fill the hole with epoxy or epoxy putty, sand the epoxy down and it will be flush with the chamber.

This method will not break because the pressure is holding the hole closed and the epoxy is helping the sheet stay in place and keeping it airtight.
  • 0

Failure to plan is planning to fail.

The 7 P's - Proper Prior Preparation Prevents Piss Poor Performance
User avatar
Marco321
Colonel
Colonel

Posts: 540
Joined: Tue May 15, 2007 2:56 am
Location: Sydney, Australia
Reputation: 0

Unread postAuthor: Thursto » Mon Oct 08, 2007 4:25 am

Mmm fair enough i was thinking of bolting it from the other side, but i cant, because i cant reach it. I might just put a bolt threw it, some teflon and some aralidite and it should be all good :P
  • 0

~ AUSSIE LAND ~
User avatar
Thursto
Major
Major

Posts: 389
Joined: Fri Mar 02, 2007 5:11 am
Location: Australia, SA, Adeliade, Para Hills
Reputation: 0

Unread postAuthor: mark.f » Mon Oct 08, 2007 5:39 am

Look in the plumbing section of any hardware store. If they don't have a 1/4" threaded plug, kindly go to the counter and slap the owner. After he regains his composure, tell him to get his catalog out and order some threaded plugs. He should order a batch of them and then you can buy one.

(Alright, well maybe something like that. :wink: )
  • 0

User avatar
mark.f
Donating Member
Donating Member

Posts: 3464
Joined: Sat May 06, 2006 11:18 am
Country: United States (us)
Reputation: 21

Unread postAuthor: Thursto » Mon Oct 08, 2007 5:41 am

hahahaha lol rofl :P Not a bad idea, or take my cannon in with me, and say now you understand? well although it not ready it looks it :P
  • 0

~ AUSSIE LAND ~
User avatar
Thursto
Major
Major

Posts: 389
Joined: Fri Mar 02, 2007 5:11 am
Location: Australia, SA, Adeliade, Para Hills
Reputation: 0

Unread postAuthor: psycix » Mon Oct 08, 2007 8:12 am

leave the gauge, and place the blowgun somewhere else by the use of a hose.
  • 0

User avatar
psycix
Donating Member
Donating Member

Posts: 3684
Joined: Mon Jun 25, 2007 7:12 am
Location: The Netherlands
Reputation: 0
