simple semi auto bolt

Unread postAuthor: homedepotpro » Tue Nov 27, 2007 12:21 am

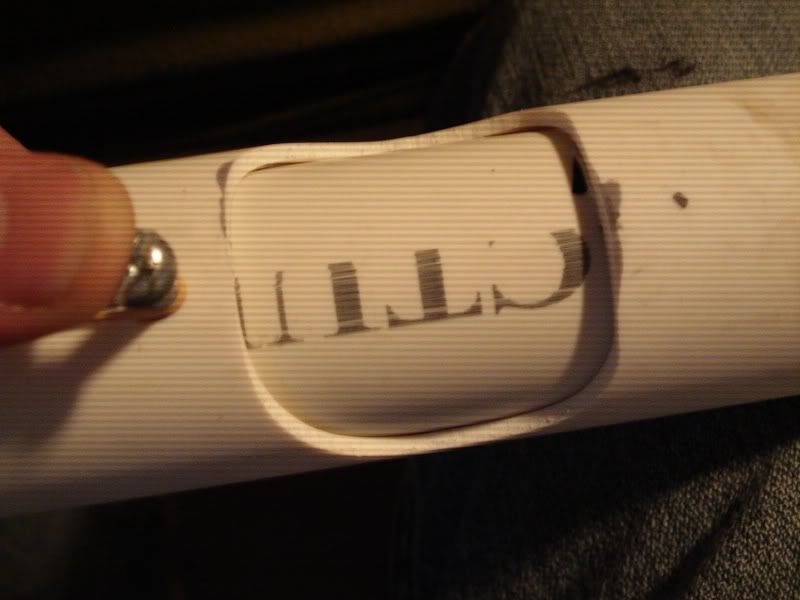

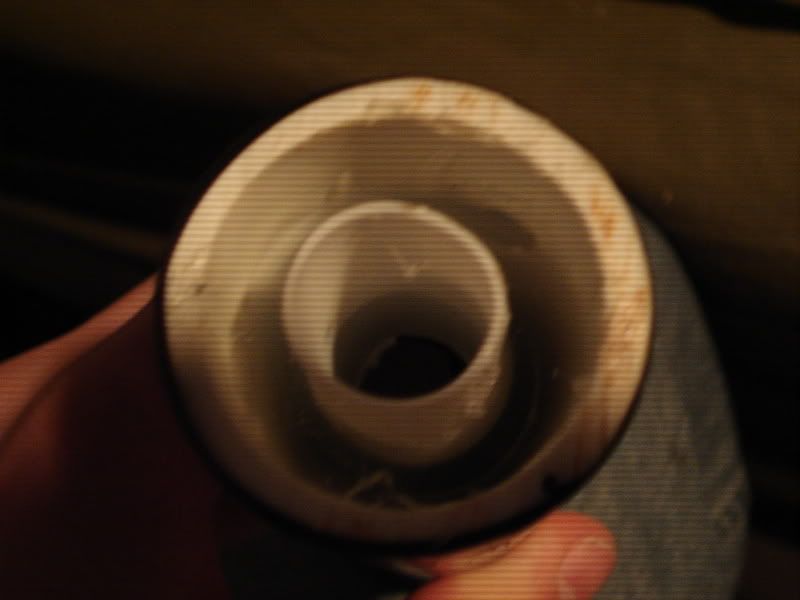

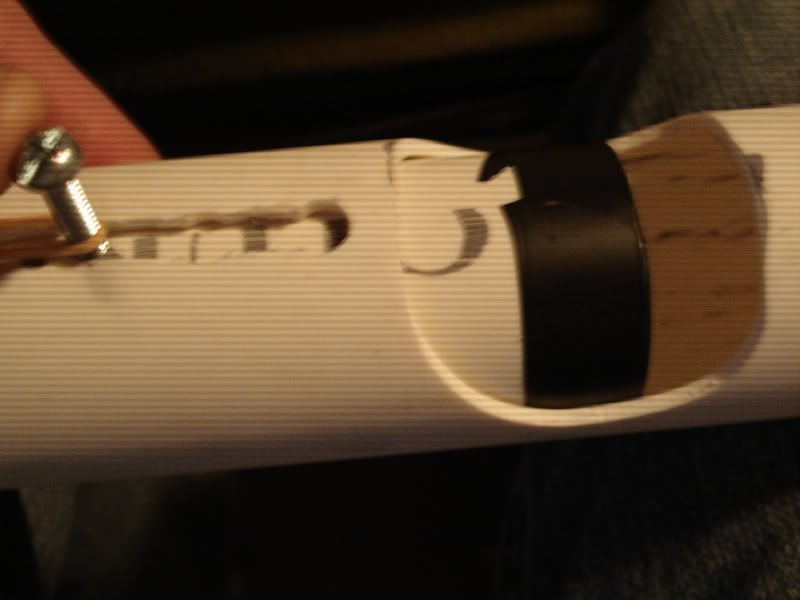

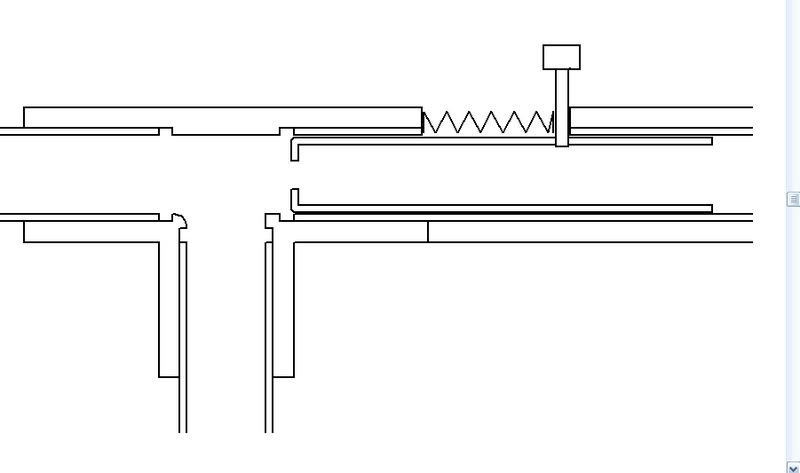

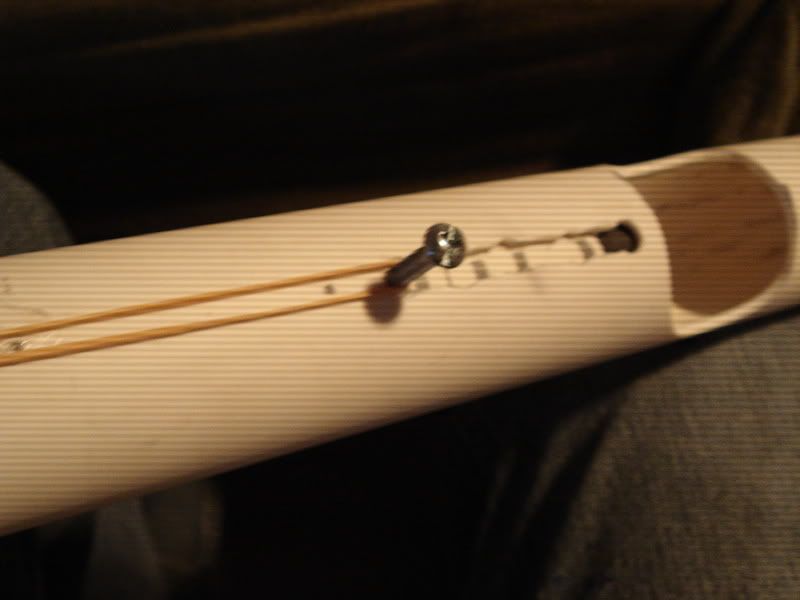

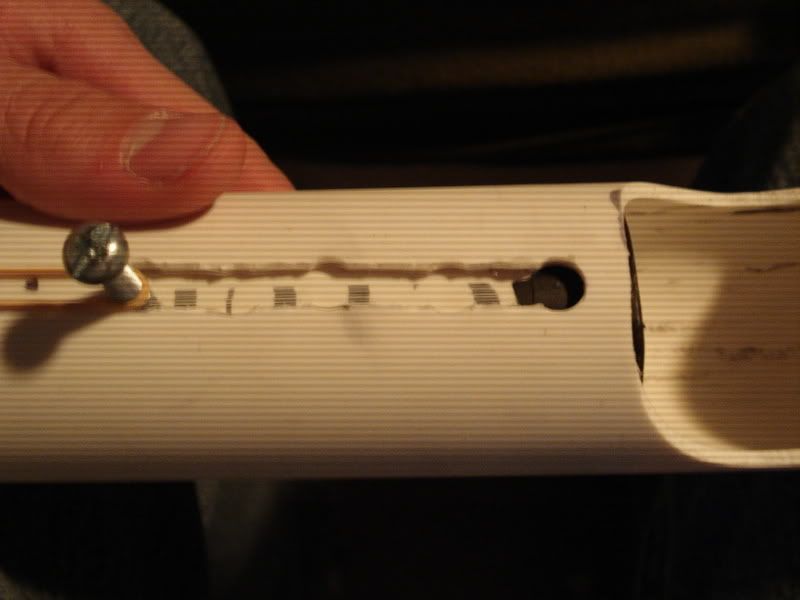

this is a prototype for a design i just been thinking about lately. I was originally designed for paint balls but i had this pipe laying around so i decided to go for it. Basically the piston restricts the flow and is forced forward, this seats a gb/pb and closes the breech. when the air stops the rubber band returns the bolt to the back position.


and a vid
  • 0

User avatar
homedepotpro
Lieutenant Colonel
Lieutenant Colonel

Posts: 443
Joined: Sun Nov 26, 2006 1:00 am
Reputation: 0

Unread postAuthor: jackssmirkingrevenge » Tue Nov 27, 2007 12:28 am

Nice. it's a variation of the blow forward bolt that works, but perhaps not as well in terms of performance and efficiency because of the flow restriction.
  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Unread postAuthor: LikimysCrotchus5 » Tue Nov 27, 2007 3:39 pm

Im sorry but im not sure if i understand it. The forward action of the bolt pushes the projectile out right? If so, then i understand.
  • 0

4SPC, My 4" piston 3" porting cannon
Memo:
Fix up copper cannon
Fix up 4SPC
Start Stirrup pump
Start Toolies piston bazooka
User avatar
LikimysCrotchus5
Brigadier General
Brigadier General

Posts: 1100
Joined: Tue Sep 04, 2007 10:16 pm
Reputation: 0

Unread postAuthor: jackssmirkingrevenge » Tue Nov 27, 2007 4:05 pm

The pressure coming into the breech is entering faster than it can escape though the small hole in the bolt, so the pressure difference means the bolt is pushed forward, sealing the barrel and closing off the magazine. The projectile is then propelled out by the air leaking through the hole in the bolt.
  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Unread postAuthor: potatoflinger » Tue Nov 27, 2007 5:54 pm

That's awesome! It may be better suited for airsoft pellets or bb's, but it is still an amazing job. I can't wait to see it in a completed cannon.
  • 0

It's hard to soar with eagles when you're working with turkeys.
User avatar
potatoflinger
Brigadier General
Brigadier General

Posts: 1136
Joined: Thu Nov 02, 2006 3:26 pm
Location: Maryland
Reputation: 1

Unread postAuthor: BigGrib » Tue Nov 27, 2007 6:20 pm

i still dont understand why you would want to have a blow forward bolt i mean the reason machine guns use it is to help cool the barrel between shots as the air can flow through the barrel instead of just outside the barrel, with the restriction you have in the bolt what kind of fps are you getting out of your projectile, it just seems to be a waste of air to me, there should be a much more efficent way
  • 0

Yea, that's definitely going to get you at least a tazer.

<a href="http://www.youtube.com/watch?v=AkMkGOpAF4s">DONT TAZE ME BRO.. DONT TAZE ME... AHHHH</a>
facebook.com/biggrib
User avatar
BigGrib
Colonel
Colonel

Posts: 652
Joined: Mon Oct 01, 2007 11:43 pm
Location: TriCities, WA
Reputation: 0

Unread postAuthor: bob-a-lu » Tue Nov 27, 2007 6:55 pm

hey homedepotpro will you make a how to for that please or just pm me on how to do it be cause i want to use this with my new gun.plz? :D :shock:
  • 0

User avatar
bob-a-lu
Sergeant First Class
Sergeant First Class

Posts: 138
Joined: Fri Jul 06, 2007 12:24 pm
Location: alabama
Reputation: 0

Sponsored

Sponsor



Unread postAuthor: Hailfire753 » Tue Nov 27, 2007 7:43 pm

Nice, simple design. I like the electrical-tape o-ring! :lol:
To me this seems more suited for people who don't have the knowledge or capability to make the original blow foward.


What I want to learn in how to make a bolt that is normally closed, but opens right before pressure is applied, and closes again on pressure. This is the kind found in most high-quality paintball guns, as far as I know.

For your bolt, to increase performance you should increase the restrictor hole size as much as possible while making sure it still works.
  • 0

UPDATED MARCH '08
field-legal paintball semi
User avatar
Hailfire753
Captain
Captain

Posts: 348
Joined: Thu Jun 28, 2007 11:50 pm
Location: Near Philadelphia, PA
Reputation: 0

Unread postAuthor: Hubb » Tue Nov 27, 2007 7:51 pm

Hailfire753 wrote:...For your bolt, to increase performance you should increase the restrictor hole size as much as possible while making sure it still works.


Maybe doing away with restrictor hole completely and adding a homemade check valve to the front, making the tension on the check valve just enough so that it opens when the bolt is fully closed.
  • 0

User avatar
Hubb
Major General
Major General

Posts: 2390
Joined: Mon May 28, 2007 8:39 am
Location: South Georgia
Reputation: 2

Unread postAuthor: Hawkeye » Tue Nov 27, 2007 8:00 pm

I would think it would be beneficial to work the optimum flow restriction into a homemade paintball repeater if it means conserving air and limiting velocity. The goal probably isn't to have insanely high velocity paintballs.
I am currently assembling a paintball repeater in which I am going to reduce the barrel diameter where the piston seals to conserve air. With this set-up I am hoping for a gun that shoots 5-10 good shots.
It will have my piston/hammer valve theory put to the test. A long chamber under the barrel will hold the shooting air and the stock will be a chamber for resetting the piston.
It will just have a manually operated bolt though. I don't like the idea of the ball sitting in an unsealed area when the air hits it. Quite a bit must go into the magazine before the bolt fully seals it.
  • 0


Hawkeye
Lieutenant Colonel
Lieutenant Colonel

Posts: 462
Joined: Sun Jan 21, 2007 7:12 pm
Reputation: 0
