GB mortar burst disk

Unread postAuthor: Carlman » Wed Mar 19, 2008 7:29 am

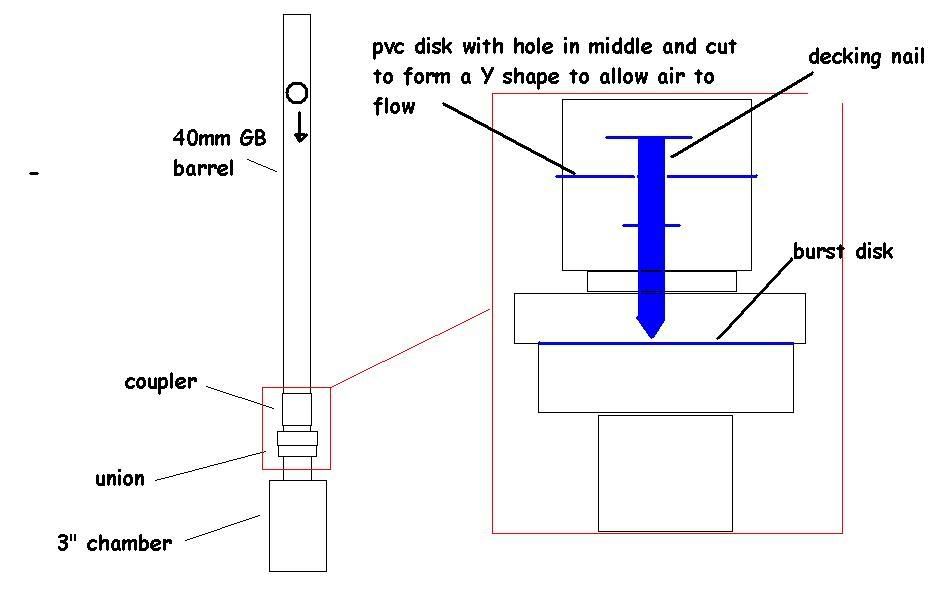

heres one for ya, basically a triggered burst disk but with the 'puncturer' getting hit by the projectile thus bursting disk and firing projectile.
  • 0

Aussie spudders unite!!
User avatar
Carlman
Major General
Major General

Posts: 1618
Joined: Sat Nov 24, 2007 1:18 am
Location: Western Australia
Reputation: 0

Unread postAuthor: bigbob12345 » Wed Mar 19, 2008 8:01 am

Good idea but it has been done before in a similar way.
Another problem I can see is the golf ball not having enough energy or weight to push the nail down hard enough.
you would need heavy, loose ammo so it can hit it with enough force.
  • 0

User avatar
bigbob12345
Major General
Major General

Posts: 1516
Joined: Sat Dec 01, 2007 9:13 am
Location: Mercer Island,Washington
Reputation: 0

Unread postAuthor: psycix » Wed Mar 19, 2008 8:32 am

I think the GB can surely bang it hard enough but I can imagine that nail and piece of pvc flying out the barrel at high speed...

Its also all a bit flow restrictive isnt it?
  • 0

Till the day I'm dieing, I'll keep them spuddies flying, 'cause I can!

Spudfiles steam group, join!
User avatar
psycix
Donating Member
Donating Member

Posts: 3684
Joined: Mon Jun 25, 2007 7:12 am
Location: The Netherlands
Reputation: 0

Unread postAuthor: Carlman » Wed Mar 19, 2008 8:38 am

the nail will not fly out because it will have a stopper on below the disk to stop it going out and the head of the nail wil stop it from falling into chamber.

the golf ball should hit it hard enough.

it wont be flow restrictive that much at all. the disk will be like the nuclear symbol. (Y) <---- no thats not an ass, its the nuclear symbol lol
  • 0

Aussie spudders unite!!
User avatar
Carlman
Major General
Major General

Posts: 1618
Joined: Sat Nov 24, 2007 1:18 am
Location: Western Australia
Reputation: 0

Unread postAuthor: STHORNE » Wed Mar 19, 2008 9:04 am

bigbob12345 wrote:Good idea but it has been done before in a similar way.
Another problem I can see is the golf ball not having enough energy or weight to push the nail down hard enough.
you would need heavy, loose ammo so it can hit it with enough force.


Depends on what size barrel you're using for the golf ball. if you are using a 1.5" barrel, then most likely the ball won't be loose enough to let air from the barrel pass by the ball when dropped to allow a faster, harder hit. But if you are using a 2" barrel, you should be fine because that gives the air space to quickly escape around the ball when you drop it (make the ball fall faster).
  • 0

Forum Rules - follow them or else!
“Happiness is the meaning and the purpose of life, the whole aim and end of human existence”
User avatar
STHORNE
Donating Member
Donating Member

Posts: 1208
Joined: Wed Feb 14, 2007 7:50 pm
Location: Kewaunee, Wisconsin
Reputation: 0

Unread postAuthor: Carlman » Wed Mar 19, 2008 9:28 am

yea but a 2" barrel will also drop muzzle velocity of my chosen golf ball ammo, a small hole in the bottom of the barrel will work fine
  • 0

Aussie spudders unite!!
User avatar
Carlman
Major General
Major General

Posts: 1618
Joined: Sat Nov 24, 2007 1:18 am
Location: Western Australia
Reputation: 0

Unread postAuthor: psycix » Wed Mar 19, 2008 6:16 pm

Isnt the loss of air due to the 2"barrel about the same as the loss of air due to your hole in the bottom?
  • 0

Till the day I'm dieing, I'll keep them spuddies flying, 'cause I can!

Spudfiles steam group, join!
User avatar
psycix
Donating Member
Donating Member

Posts: 3684
Joined: Mon Jun 25, 2007 7:12 am
Location: The Netherlands
Reputation: 0

Sponsored

Sponsor



Unread postAuthor: SpudFarm » Wed Mar 19, 2008 7:16 pm

no the hole in the barrel would not even be noticed... and he can hold a finger there..

(Y)(Y)(Y)(Y)(Y)(Y)(Y)(Y)(Y)(Y)(Y)
^thats the way aha aha i like it^
  • 0

"Made in France"
- A spud gun insurance.
User avatar
SpudFarm
Donating Member
Donating Member

Posts: 2563
Joined: Sat Nov 04, 2006 9:39 am
Location: Norway Trondheim area
Reputation: 0

Unread postAuthor: elitesniper » Wed Mar 19, 2008 7:21 pm

I think the flow will be terrible, because when you puncture it the whole disk will not burst, basically your just popping a hole in the burst material and air will come rushing out of that one hole. :wink:
  • 0

User avatar
elitesniper
Brigadier General
Brigadier General

Posts: 1090
Joined: Sat Oct 13, 2007 8:40 pm
Reputation: 0

Unread postAuthor: SpudFarm » Wed Mar 19, 2008 7:24 pm

have you seen the QCTBDC?
  • 0

"Made in France"
- A spud gun insurance.
User avatar
SpudFarm
Donating Member
Donating Member

Posts: 2563
Joined: Sat Nov 04, 2006 9:39 am
Location: Norway Trondheim area
Reputation: 0

Unread postAuthor: bigbob12345 » Wed Mar 19, 2008 7:26 pm

Elitesniper is right
although an easy solution to the problem is to put mulitple nails
  • 0

User avatar
bigbob12345
Major General
Major General

Posts: 1516
Joined: Sat Dec 01, 2007 9:13 am
Location: Mercer Island,Washington
Reputation: 0

Unread postAuthor: elitesniper » Wed Mar 19, 2008 7:27 pm

yep, but thats from the inside, and he is using a broad head and aluminum from a soda bottle, broad heads are not just one point like a nail, once it punctures its more of a tear that keeps getting bigger until its the disk is gone.
  • 0

User avatar
elitesniper
Brigadier General
Brigadier General

Posts: 1090
Joined: Sat Oct 13, 2007 8:40 pm
Reputation: 0

Unread postAuthor: SpudFarm » Wed Mar 19, 2008 7:30 pm

i would say that is gonna work! load up a burst disk cannon to 100psi and push a nail through the disk then...
  • 0

"Made in France"
- A spud gun insurance.
User avatar
SpudFarm
Donating Member
Donating Member

Posts: 2563
Joined: Sat Nov 04, 2006 9:39 am
Location: Norway Trondheim area
Reputation: 0

Unread postAuthor: bigbob12345 » Wed Mar 19, 2008 7:31 pm

ill go test that right now and see what happens
  • 0

User avatar
bigbob12345
Major General
Major General

Posts: 1516
Joined: Sat Dec 01, 2007 9:13 am
Location: Mercer Island,Washington
Reputation: 0

Unread postAuthor: elitesniper » Wed Mar 19, 2008 7:33 pm

Well, I have tested that with a screw driver and its just puntered the disk, but lets just patiently wait for bigbob's results :)
  • 0

User avatar
elitesniper
Brigadier General
Brigadier General

Posts: 1090
Joined: Sat Oct 13, 2007 8:40 pm
