Potential pneumatic - question

Unread postAuthor: Coodude26 » Tue Jun 17, 2008 9:03 pm

I have already made 2 pneumatics with success and now I'd like to try a pneumatic.

I'm somewhat new to these forums so I might not know all the terms that well.

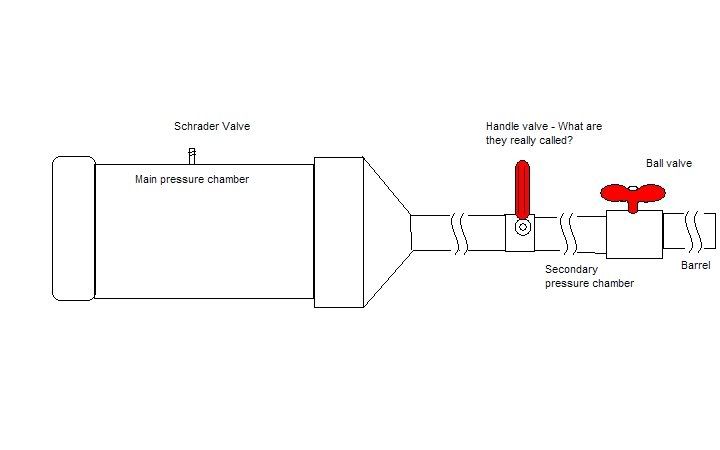

I want to make a pneumatic, reload action, as shown in this diagram:
(I spent a lot of time on the diagram - hopefully it makes sense) P.S. It doesn't load right in the thumbnail, you have to click it. Sorry about that.


If you don't know what I mean by reload action, go down and read "Reload action"

I am worried that I might not have the same pressure every shot. How can I avoid this, hopefully using this same basic design?

Thanks for all your help.

RELOAD ACTION

Phase 0 - Ball valve, handle valve are closed, projectile in barrel.
phase 1 - Handle valve opened, releasing pressure from main pressure chamber into secondary pressure chamber.
Phase 2 - Handle valve closes.
Phase 3 - Ball valve opened, letting pressure out behind projectile shooting it.
  • 0

User avatar
Coodude26
Master Sergeant
Master Sergeant

Posts: 167
Joined: Sun Apr 20, 2008 1:03 pm
Reputation: 0

Unread postAuthor: TurboSuper » Tue Jun 17, 2008 9:26 pm

Uhh...a "handle valve" is just a different form of ball valve, and ball valves are pretty suck for pneumatics. You may want to consider using a sprinkler valve or QEV instead.

What's the purpose of two pressure chambers? Safety?
  • 0

Last edited by TurboSuper on Tue Jun 17, 2008 9:29 pm, edited 1 time in total.
"If at first you dont succeed, then skydiving is not for you" - Darwin Awards

TurboSuper
Brigadier General
Brigadier General

Posts: 986
Joined: Thu Jun 16, 2005 1:44 pm
Reputation: 0

Unread postAuthor: Coodude26 » Tue Jun 17, 2008 9:28 pm

No, the point is that I could get more than one shot from a fully-loaded primary pressure chamber. Fill the secondary, close the first valve, open the second to shoot, close the second, open the first to refill, open second to shoot again.
  • 0

User avatar
Coodude26
Master Sergeant
Master Sergeant

Posts: 167
Joined: Sun Apr 20, 2008 1:03 pm
Reputation: 0

Unread postAuthor: sandman » Tue Jun 17, 2008 9:31 pm

so then use a sprinkler as the valve connected to the barrel and you can still achieve this
  • 0


sandman
Colonel
Colonel

Posts: 672
Joined: Thu Mar 15, 2007 6:59 pm
Reputation: 0

Unread postAuthor: TurboSuper » Tue Jun 17, 2008 9:33 pm

Interesting. The only problem I can see is that your pressure will decrease each shot since the volume is increasing. The workaround would be to charge the main chamber to a high pressure, and use a pressure regulator to step it down.
  • 0

Last edited by TurboSuper on Tue Jun 17, 2008 9:39 pm, edited 2 times in total.
"If at first you dont succeed, then skydiving is not for you" - Darwin Awards

TurboSuper
Brigadier General
Brigadier General

Posts: 986
Joined: Thu Jun 16, 2005 1:44 pm
Reputation: 0

Unread postAuthor: Coodude26 » Tue Jun 17, 2008 9:33 pm

But with each repressurization of the secondary pressure chamber it won't have equal pressure each shot?
  • 0

User avatar
Coodude26
Master Sergeant
Master Sergeant

Posts: 167
Joined: Sun Apr 20, 2008 1:03 pm
Reputation: 0

Unread postAuthor: Coodude26 » Tue Jun 17, 2008 9:34 pm

Thanks turbosuper. Damn same time posts!
  • 0

User avatar
Coodude26
Master Sergeant
Master Sergeant

Posts: 167
Joined: Sun Apr 20, 2008 1:03 pm
Reputation: 0

Sponsored

Sponsor



Unread postAuthor: TurboSuper » Tue Jun 17, 2008 9:36 pm

You're welcome...damn not refreshing enough :D
  • 0

"If at first you dont succeed, then skydiving is not for you" - Darwin Awards

TurboSuper
Brigadier General
Brigadier General

Posts: 986
Joined: Thu Jun 16, 2005 1:44 pm
Reputation: 0

Unread postAuthor: Pilgrimman » Tue Jun 17, 2008 9:53 pm

If you really want multiple shots, and you aren't willing to use an air compressor or HPA, etc. I would suggest a backpack with as big an air reservoir as you can fit. This gun must be small caliber, or it will simply use too much air. I would think .50 would be the biggest practical bore, as the chamber must be relatively small for many shots. *looks at what he wrote* Man, that's confusing, huh? :D
  • 0

Yeah, we wouldn't want to anger the bees, now would we??

I HATE YOU BEES! I HATE YOU BEES! I HATE YOU BEES!

LMAO Classic!!!! I love Family Guy!
User avatar
Pilgrimman
Lieutenant Colonel
Lieutenant Colonel

Posts: 481
Joined: Thu Jun 28, 2007 1:10 pm
Location: Grants Pass, OR
Reputation: 0

Unread postAuthor: psycix » Wed Jun 18, 2008 8:54 am

The pressure WILL drop each shot. But there are ways for not having that.

You can use an high-pressure tank (way higher pressure then your gun will operate at) and a regulator to get the same power each shot.
This would proably call for a metal primairy chamber.
Or, just use a CO2 tank.

The handle valve IS a ball valve. It just has a different handle. :D

But do not use ball valves as valve, rather use a modded sprinkler. An easy way to get such a sprinkler, is to order one from http://www.bcarms.com
  • 0

Till the day I'm dieing, I'll keep them spuddies flying, 'cause I can!

Spudfiles steam group, join!
User avatar
psycix
Donating Member
Donating Member

Posts: 3684
Joined: Mon Jun 25, 2007 7:12 am
Location: The Netherlands
Reputation: 0

Unread postAuthor: Coodude26 » Wed Jun 18, 2008 1:16 pm

psycix wrote:The pressure WILL drop each shot. But there are ways for not having that.

You can use an high-pressure tank (way higher pressure then your gun will operate at) and a regulator to get the same power each shot.
This would proably call for a metal primairy chamber.
Or, just use a CO2 tank.

The handle valve IS a ball valve. It just has a different handle. :D

But do not use ball valves as valve, rather use a modded sprinkler. An easy way to get such a sprinkler, is to order one from http://www.bcarms.com


That has been already established, thanks. Almost word-for-word.

TurboSuper wrote:Interesting. The only problem I can see is that your pressure will decrease each shot since the volume is increasing. The workaround would be to charge the main chamber to a high pressure, and use a pressure regulator to step it down.


sandman wrote:so then use a sprinkler as the valve connected to the barrel and you can still achieve this
  • 0

User avatar
Coodude26
Master Sergeant
Master Sergeant

Posts: 167
Joined: Sun Apr 20, 2008 1:03 pm
Reputation: 0
