Easy hammer valve with GREAT results

Post questions and info about pneumatic (compressed gas) powered cannons here. This includes discussion about valves, pipe types, compressors, alternate gas setups, and anything else relevant.
Sponsored
  • Author
    Message

Unread postAuthor: sputnick » Tue Feb 10, 2009 7:58 pm

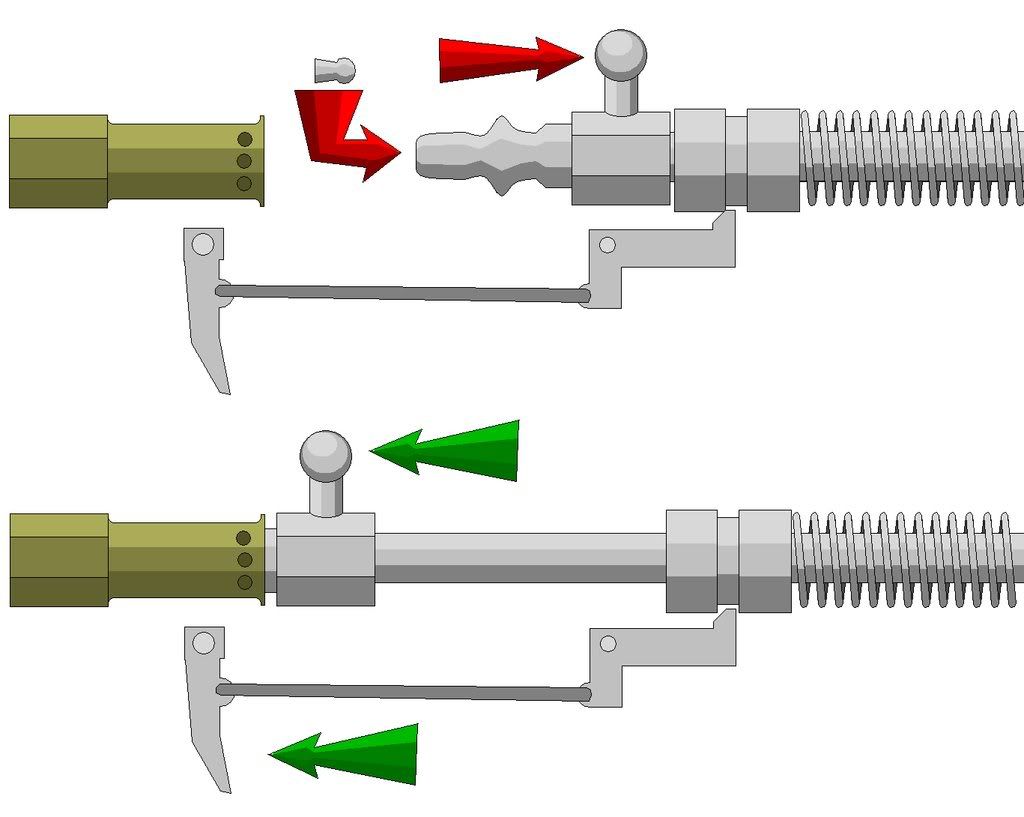

Hey dave ever since our conversation about hammer valves I have actually come up with a design for use with the quick connect method...

It is essentially the CONDOR valve, only the entire barrel moves to cock the weight and slides completely back

It is way overdone, but since getting a severe virus and having to reformat my hard drive and internet was not working, all I had was paint... so I spent it all that time on making this drawing


It is pretty much self explanatory, I think it would work rather well, assuming you could find a way to fit it all in a proper enclosure.
  • 0



Add me on MSN to chat about whatever!
User avatar
sputnick
Lieutenant Colonel
Lieutenant Colonel

Posts: 498
Joined: Sun Dec 14, 2008 3:53 pm
Location: Ontario Canada
Reputation: 0

Unread postAuthor: Dave_424 » Thu Feb 12, 2009 4:05 pm

WOAH, I thought that was a commercial diagram. respect

That looks really simple, easy to build and very powerful (Due to the design)

Sadly I didn't put my gun back together because most of my time has been into converting a co2 air gun to run on HPA and have also been doing lots of tweaks to the gun

Dave
  • 0


Dave_424
2nd Lieutenant
2nd Lieutenant

Posts: 220
Joined: Thu Aug 02, 2007 7:45 am
Reputation: 0

Unread postAuthor: Hawkeye » Thu Feb 12, 2009 8:14 pm

You would probably want to scale it up and use pressure washer QC's.
  • 0


Hawkeye
Lieutenant Colonel
Lieutenant Colonel

Posts: 462
Joined: Sun Jan 21, 2007 7:12 pm
Reputation: 0
