quick question

Unread postAuthor: colty-bear » Sun Apr 19, 2009 6:37 pm

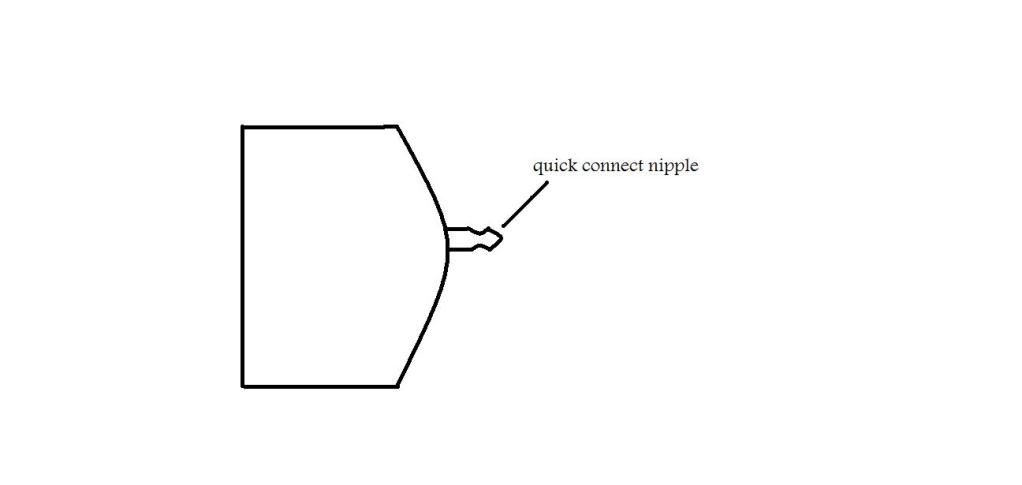

how do you hook a quick connect nipple to a 3 in end cap like this

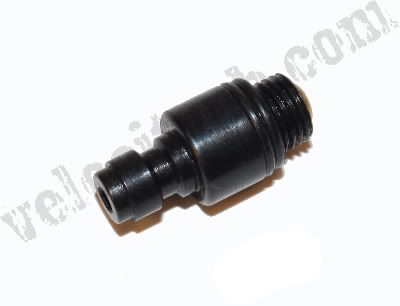

this is what nipple looks like


it has to hold 150 psi without leaking and so it will hook up directly to the cap for constant air flow
  • 0

User avatar
colty-bear
1st Lieutenant
1st Lieutenant

Posts: 250
Joined: Tue Feb 24, 2009 10:24 pm
Reputation: 0

Unread postAuthor: jmeyer1022 » Sun Apr 19, 2009 6:43 pm

Drill a hole, Get a 1/4 tap and do the hole. Teflon tape the threads then screw it in. Epoxy around the seem for a better seal.
  • 0


jmeyer1022
2nd Lieutenant
2nd Lieutenant

Posts: 200
Joined: Sun Nov 09, 2008 4:50 pm
Reputation: 0

Unread postAuthor: colty-bear » Sun Apr 19, 2009 6:47 pm

thanx i really needed to know for my semi
  • 0

User avatar
colty-bear
1st Lieutenant
1st Lieutenant

Posts: 250
Joined: Tue Feb 24, 2009 10:24 pm
Reputation: 0

Unread postAuthor: c11man » Sun Apr 19, 2009 6:47 pm

first of all, drilling holes into a endcap is a bad idea especaly at 150psi and 3inch fittings

so instead of hooking it up to the endcap attatch it to where the cap glues onto the pipe and it is 2 layers thick.

secondly we need to know what size threads are on the quick connect.
normaly they are 1/4inch so if it is metal (not plastic like in the pic) you just need to drill a 7/16 and thread the quick connect into it.

if it is plastic then you will need a 1/4inch tap or a metal fitting that is 1/4inch threads.

good luck!

c11man

EDIT: wow i type slow...
  • 0

Last edited by c11man on Sun Apr 19, 2009 6:48 pm, edited 1 time in total.
User avatar
c11man
Brigadier General
Brigadier General

Posts: 783
Joined: Fri Feb 06, 2009 4:37 pm
Location: Wisconsin, USA
Country: United States (us)
Reputation: 0

Unread postAuthor: SubsonicSpud » Sun Apr 19, 2009 6:48 pm

Make sure you place it through a double section in the end cap after the cap is in the pipe. If you want to be able to remove it, drill out a hole that tightly fits the thread of the fitting, then use a half nut that fits the thread on the inside. You may or may not have enought thread protruding to do that.

If you want a more permanent fixing, skip using the nut and use epoxy glue around the thread, slide the fitting in and place more epoxy around the thread protruding inside, then let it cure for 24hours

SubsonicSpud
  • 0

User avatar
SubsonicSpud
2nd Lieutenant
2nd Lieutenant

Posts: 202
Joined: Sat Jan 03, 2009 8:55 am
Location: Australia
Reputation: 0
