look at my new toy!

Post questions and info about pneumatic (compressed gas) powered cannons here. This includes discussion about valves, pipe types, compressors, alternate gas setups, and anything else relevant.
Sponsored
  • Author
    Message

look at my new toy!

Unread postAuthor: geardog32 » Mon Aug 24, 2009 7:48 pm

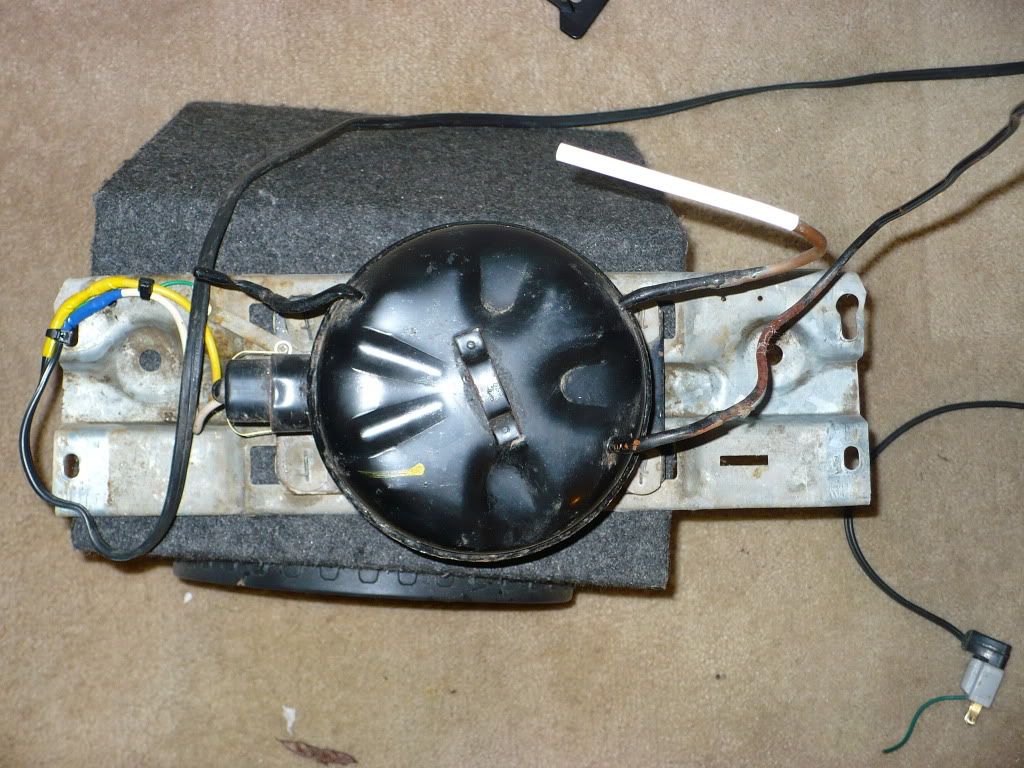

i got this from my sister a while ago cause she was going to throw it away. I used it for a little while but the thermostat went bad so now i have a new pump. i was surpised at just how easy it was to do. i want to credit POLAND_SPUD for his how to. the only problem now is im gunna have to build a high pressure copper gun to prove it works well :D


  • 0

(\ /)
(0.o)
(><) Copy the bunny to your sig and help him achieve world domination.
User avatar
geardog32
Master Sergeant
Master Sergeant

Posts: 173
Joined: Mon Jun 22, 2009 9:20 pm
Reputation: 0

Unread postAuthor: theBOOM » Mon Aug 24, 2009 7:54 pm

Hahahha good job man how hard are they to take out from the fridge what else would I need other than pipe cutters, a safety mask and maybe some rubber gloves?
  • 0

User avatar
theBOOM
Major
Major

Posts: 374
Joined: Wed Jun 03, 2009 10:49 pm
Location: San Antonio, TX
Reputation: 0

Unread postAuthor: geardog32 » Mon Aug 24, 2009 8:01 pm

all i used was a screwdriver, pipe cutter and socket wrench. i probably should have used a safety mask but i was outside and stood away from it. when you have all that you just cut the pipe in the two places and unscrew all the hardware and make sure not to mix up all the wires. then for an air filter i just used a pen tube with some cotton stuffed in it.
  • 0

(\ /)
(0.o)
(><) Copy the bunny to your sig and help him achieve world domination.
User avatar
geardog32
Master Sergeant
Master Sergeant

Posts: 173
Joined: Mon Jun 22, 2009 9:20 pm
Reputation: 0

Unread postAuthor: STHORNE » Mon Aug 24, 2009 9:15 pm

Man that's a perty "Throw-away".

GOOD PICKIN'S RIGHT THERE!
  • 0

Forum Rules - follow them or else!
“Happiness is the meaning and the purpose of life, the whole aim and end of human existence”
User avatar
STHORNE
Donating Member
Donating Member

Posts: 1208
Joined: Wed Feb 14, 2007 7:50 pm
Location: Kewaunee, Wisconsin
Reputation: 0

Unread postAuthor: POLAND_SPUD » Tue Aug 25, 2009 6:01 am

yeah these things are cool because you can build them so fast...

now you have to find a way join the compressor and several fitting toghether so that you could add a manometer, female quick connect fitting and ballvalve for venting... I used malleable iron fittings as they offer modularity so you can add more stuff later if you want to (for example an air tank or oil seperator)

firstr you need something that can join the tube with the rest of fittings..
for the first few months I had been using clamps for this but soon I learned that it wasn't the best idea... since then I've been using a home-made compression fitting built from two 1/2" male-female adapters with one or two steel and rubber washers sandwiched in between... it's really simple and it works pretty good

if you use both a compression fitting and threaded fittings your setup will be modular that is you can modify it and replace any part when needed... mind you that doing it this way isn't more difficult than soldering, in fact I think it's easier this way and yet it has advantages that I mentioned earlier
  • 0

Attachments
Children are the future

unless we stop them now
User avatar
POLAND_SPUD
Chief of Staff
Chief of Staff

Posts: 5405
Joined: Sat Oct 13, 2007 4:43 pm
Country: Israel (il)
Reputation: 10

Unread postAuthor: inonickname » Tue Aug 25, 2009 6:44 am

Question: Are they a standardized size? I have seen copper pipe roughly that size, and have compression fittings especially for them..
  • 0

PimpAssasinG wrote:no im strong but you are a fat gay mother sucker that gets raped by black man for fun
User avatar
inonickname
Lieutenant General
Lieutenant General

Posts: 2606
Joined: Sun Dec 07, 2008 3:27 am
Reputation: 0

Unread postAuthor: POLAND_SPUD » Tue Aug 25, 2009 9:52 am

IIRC they are 5 - 6mm... I would have used used off-the-shelf compression fittings but It seems that they are almost impossible to get here...
  • 0

Children are the future

unless we stop them now
User avatar
POLAND_SPUD
Chief of Staff
Chief of Staff

Posts: 5405
Joined: Sat Oct 13, 2007 4:43 pm
Country: Israel (il)
Reputation: 10
