This piston

Post questions and info about pneumatic (compressed gas) powered cannons here. This includes discussion about valves, pipe types, compressors, alternate gas setups, and anything else relevant.
Sponsored
  • Author
    Message

This piston

Unread postAuthor: Gun Freak » Tue Apr 20, 2010 5:15 pm

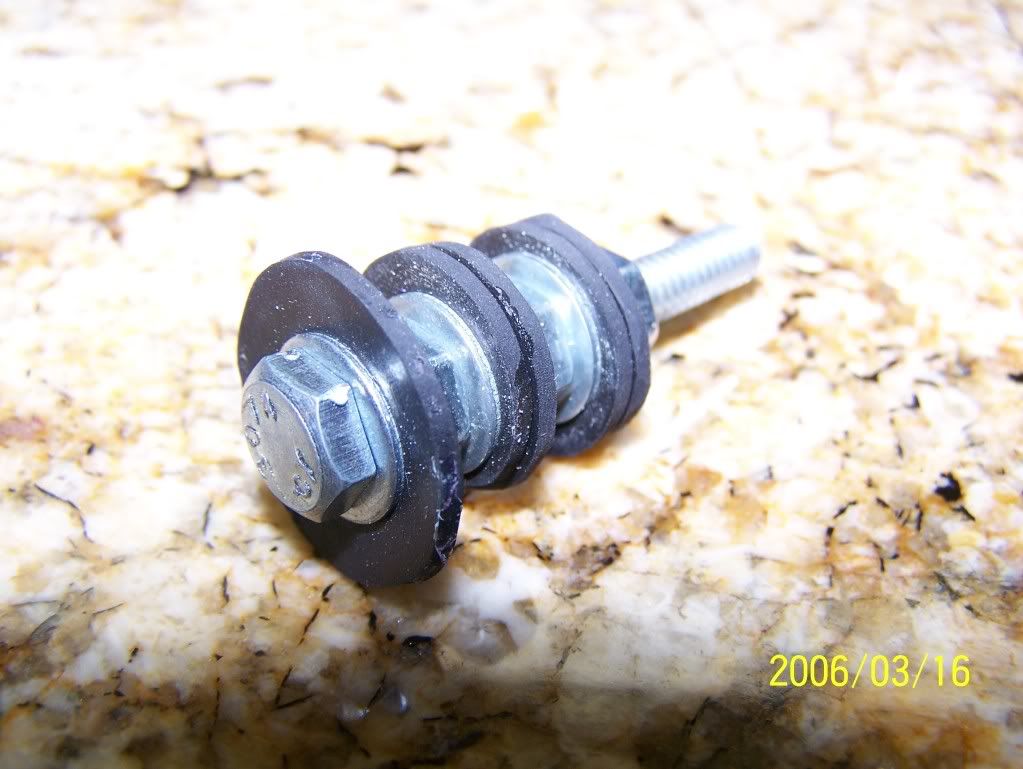

Is this piston's sizes the right way around or should the back be bigger than the front? I'm thinking this could have been the reason for my piston valve fail.
  • 0

OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
Gun Freak
Lieutenant General
Lieutenant General

Posts: 4969
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Country: United States (us)
Reputation: 11

Unread postAuthor: Marffy » Tue Apr 20, 2010 5:32 pm

looks good to me but you do need to have something that will hold the sealing face and some pictures of where the piston is going would be great.


:D FIRST POST!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! :D
  • 0

"Hard work has a future pay-off. Laziness pays off now."
User avatar
Marffy
1st Lieutenant
1st Lieutenant

Posts: 258
Joined: Mon Jul 27, 2009 2:03 pm
Location: earth
Reputation: 0

Unread postAuthor: MrCrowley » Tue Apr 20, 2010 5:57 pm

Generally a piston is the same diameter all the way around. I think I know what you're doing though but i'm not sure what the point is. Even if you increase the area of the sealing face, like you have done, the force would still be the same as the pressure can also act on the back of the sealing face (assuming the smaller diameter of your piston rides in a pipe, so when the pilot is exhaust, only (well mostly) the air behind the back of the piston is exhausted).

edit: Depending on the size of the seat, you might need a bigger washer and i'm pretty sure you're going to have to epoxy the front bolt and washer so it doesn't leak.
  • 0

User avatar
MrCrowley
Moderator
Moderator

Posts: 10207
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand
Country: New Zealand (nz)
Reputation: 4

Unread postAuthor: Gun Freak » Tue Apr 20, 2010 6:13 pm

Marffy wrote:looks good to me but you do need to have something that will hold the sealing face and some pictures of where the piston is going would be great.


:D FIRST POST!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! :D


The sealing face is on it :)

Depending on the size of the seat, you might need a bigger washer and i'm pretty sure you're going to have to epoxy the front bolt and washer so it doesn't leak.


Yeah I already know that, I just need to get some next time I got to the hardware store or home depot, I will need some for my 2" Piston valve 1.5" porting.
  • 0

OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
Gun Freak
Lieutenant General
Lieutenant General

Posts: 4969
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Country: United States (us)
Reputation: 11

Unread postAuthor: Technician1002 » Tue Apr 20, 2010 6:28 pm

The piston will need to seal against the walls of the cylinder it rides inside. The rubber in the photo looks to lack a precise round shape. If large amounts of air can blow past the piston, it is unlikely to be pushed open when an attempt is made to fire the cannon.

If you have a drill press, the bolt could be placed in the chuck and the rubber then be gently worn down to the correct shape and size so the fit is very close to airtight.

The larger the piston, the more important a good fit becomes simply because the area that can leak is much larger, gaps can be wider, etc so the area of the leak can become huge quickly.

Either a really large pilot valve needs to be used or another method of providing a good seal is required such as o rings on larger pistons.
  • 0

User avatar
Technician1002
Chief of Staff
Chief of Staff

Posts: 5190
Joined: Sat Apr 04, 2009 11:10 am
Reputation: 14

Unread postAuthor: Gun Freak » Tue Apr 20, 2010 6:44 pm

Technician1002 wrote:The piston will need to seal against the walls of the cylinder it rides inside. The rubber in the photo looks to lack a precise round shape. If large amounts of air can blow past the piston, it is unlikely to be pushed open when an attempt is made to fire the cannon.

If you have a drill press, the bolt could be placed in the chuck and the rubber then be gently worn down to the correct shape and size so the fit is very close to airtight.

The larger the piston, the more important a good fit becomes simply because the area that can leak is much larger, gaps can be wider, etc so the area of the leak can become huge quickly.

Either a really large pilot valve needs to be used or another method of providing a good seal is required such as o rings on larger pistons.


I used a bench grinder to wear down the outside of the washers because they didn't have the next size down.

I may end up rebuilding it.

If I ever get around to finishing my little sniper.
  • 0

OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
Gun Freak
Lieutenant General
Lieutenant General

Posts: 4969
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Country: United States (us)
Reputation: 11

Unread postAuthor: Marffy » Tue Apr 20, 2010 9:29 pm

Gun Freak wrote:
The sealing face is on it :)


Yes but i meant like a washer or something to hold it in a flat position :)
  • 0

"Hard work has a future pay-off. Laziness pays off now."
User avatar
Marffy
1st Lieutenant
1st Lieutenant

Posts: 258
Joined: Mon Jul 27, 2009 2:03 pm
Location: earth
Reputation: 0

Sponsored

Sponsor



Unread postAuthor: psycix » Wed Apr 21, 2010 1:20 pm

The back has to be a larger diameter than the diameter of the porting it seals on.

This causes a net force backwards when the pilot volume is vented, opening the valve.
What people here mean, is that you will probably need a metal washer behind the rubber washer (sealing face).
  • 0

Till the day I'm dieing, I'll keep them spuddies flying, 'cause I can!

Spudfiles steam group, join!
User avatar
psycix
Donating Member
Donating Member

Posts: 3684
Joined: Mon Jun 25, 2007 7:12 am
Location: The Netherlands
Reputation: 0

Unread postAuthor: Gun Freak » Wed Apr 21, 2010 3:32 pm

There is a metal washer behind the sealing face already :D
  • 0

OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
Gun Freak
Lieutenant General
Lieutenant General

Posts: 4969
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Country: United States (us)
Reputation: 11

Unread postAuthor: dewey-1 » Wed Apr 21, 2010 3:39 pm

Gun Freak wrote:There is a metal washer behind the sealing face already :D


Maybe if you took a picture from back side, would help clarify things.
Add the picture to your original posting.

The concern is to know the backing washer size.
  • 0

User avatar
dewey-1
Major General
Major General

Posts: 1298
Joined: Wed Mar 28, 2007 10:24 am
Location: NE Wisconsin USA
Reputation: 0

Unread postAuthor: Mr.Sandman » Wed Apr 21, 2010 3:41 pm

Perhaps you should try an epoxy piston because it seems like you have done quite a few things wrong here on this piston, Maybe you need new washers and need to cut them more circular.
  • 0

Yeah, it's that important.
User avatar
Mr.Sandman
Donating Member
Donating Member

Posts: 762
Joined: Fri Mar 28, 2008 9:10 am
Country: Antarctica (aq)
Reputation: 0

Unread postAuthor: Gun Freak » Wed Apr 21, 2010 3:45 pm

I was actually thinking of using an epoxy or hot glue piston next. Bolt is heavy and I don't like it.
  • 0

OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
Gun Freak
Lieutenant General
Lieutenant General

Posts: 4969
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Country: United States (us)
Reputation: 11

Unread postAuthor: Marffy » Wed Apr 21, 2010 5:54 pm

Gun Freak wrote:There is a metal washer behind the sealing face already :D


oh, oops, didn't see it. oh well, then it looks good but maybe another angle of the piston would be nice :)
  • 0

"Hard work has a future pay-off. Laziness pays off now."
User avatar
Marffy
1st Lieutenant
1st Lieutenant

Posts: 258
Joined: Mon Jul 27, 2009 2:03 pm
Location: earth
Reputation: 0

Unread postAuthor: psycix » Thu Apr 22, 2010 3:13 pm

Gun Freak wrote:There is a metal washer behind the sealing face already :D

Is it large enough? Larger than the porting, so that the rubber doesn't flap.

And then the back of the piston should still be larger than the porting.
  • 0

Till the day I'm dieing, I'll keep them spuddies flying, 'cause I can!

Spudfiles steam group, join!
User avatar
psycix
Donating Member
Donating Member

Posts: 3684
Joined: Mon Jun 25, 2007 7:12 am
Location: The Netherlands
Reputation: 0

Unread postAuthor: Gun Freak » Thu Apr 22, 2010 6:43 pm

Yes the washer is pretty big. Almost as big as the neoprene.
  • 0

OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
Gun Freak
Lieutenant General
Lieutenant General

Posts: 4969
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Country: United States (us)
Reputation: 11
