Piston Valve problems 4" tee with 3"barrel.

Post questions and info about pneumatic (compressed gas) powered cannons here. This includes discussion about valves, pipe types, compressors, alternate gas setups, and anything else relevant.
Sponsored
  • Author
    Message

Piston Valve problems 4" tee with 3"barrel.

Unread postAuthor: AJAX » Thu May 06, 2010 12:10 am

After the Completion of my first piston valve launcher i seemed to have hit a snag. everything seals and air is held correctly with no leaks. However when i release the air from the pilot valve the piston does not move. All air just gets let out through my sprinkler valve. I have attached pictures to illustrate the launcher. Any help from you experts is appreciated since all i learned has been from you guys. since it is a small ration i know things are tricky.

Thanks for everyones help.

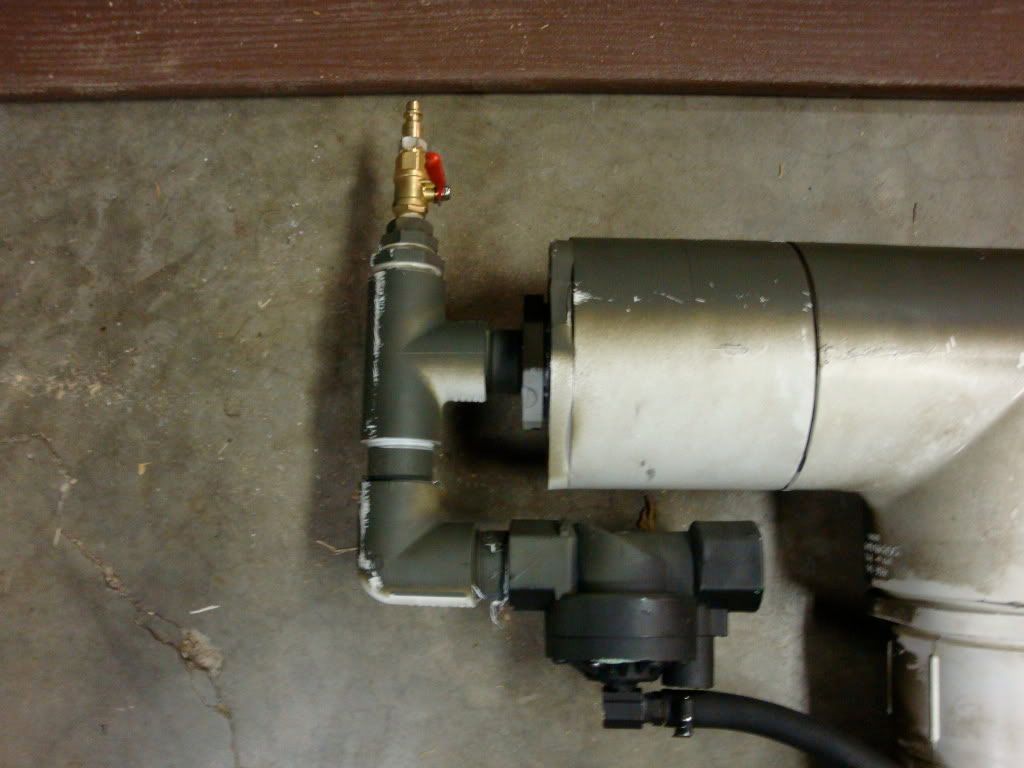

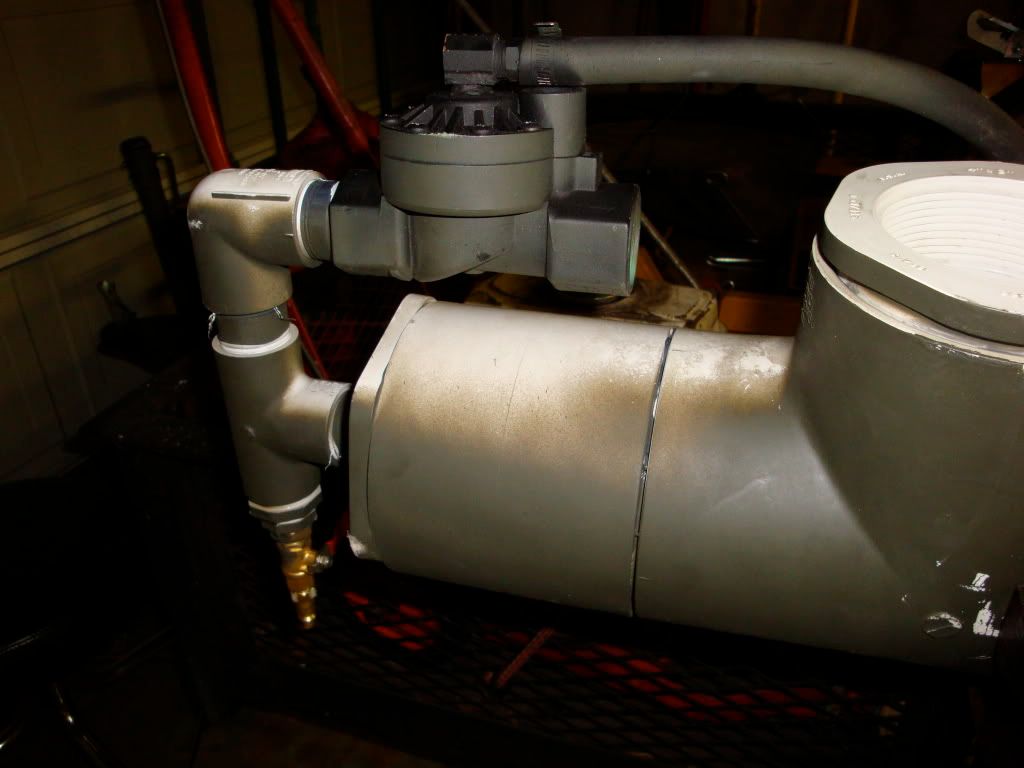

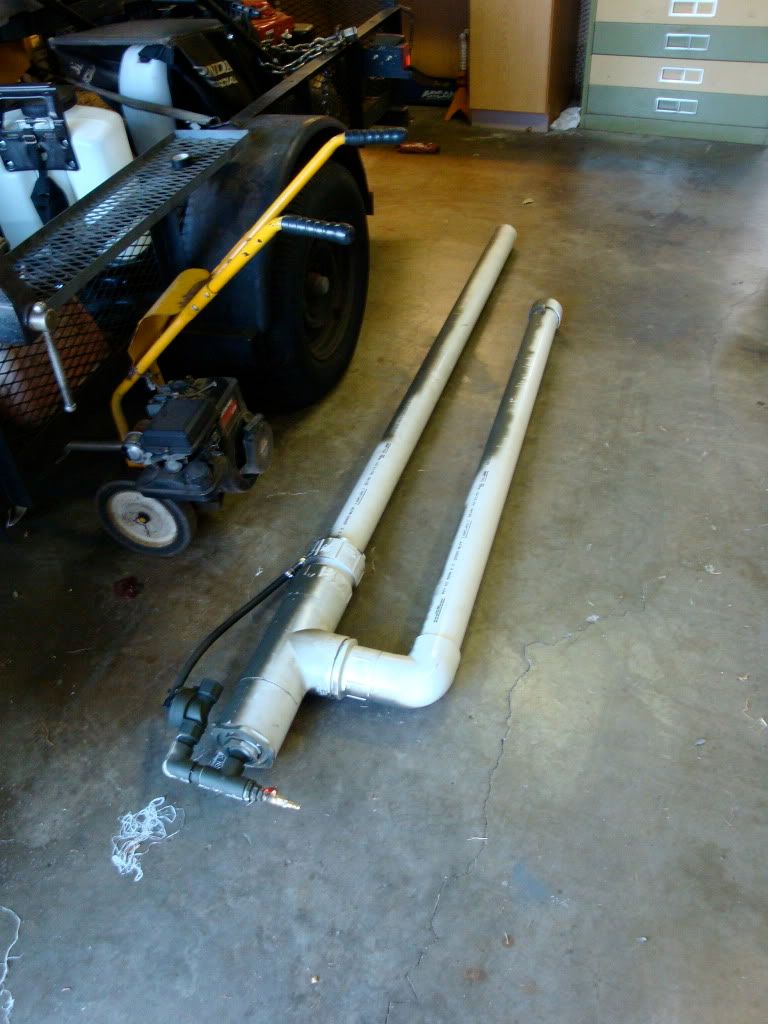

Parts and Assembly pics

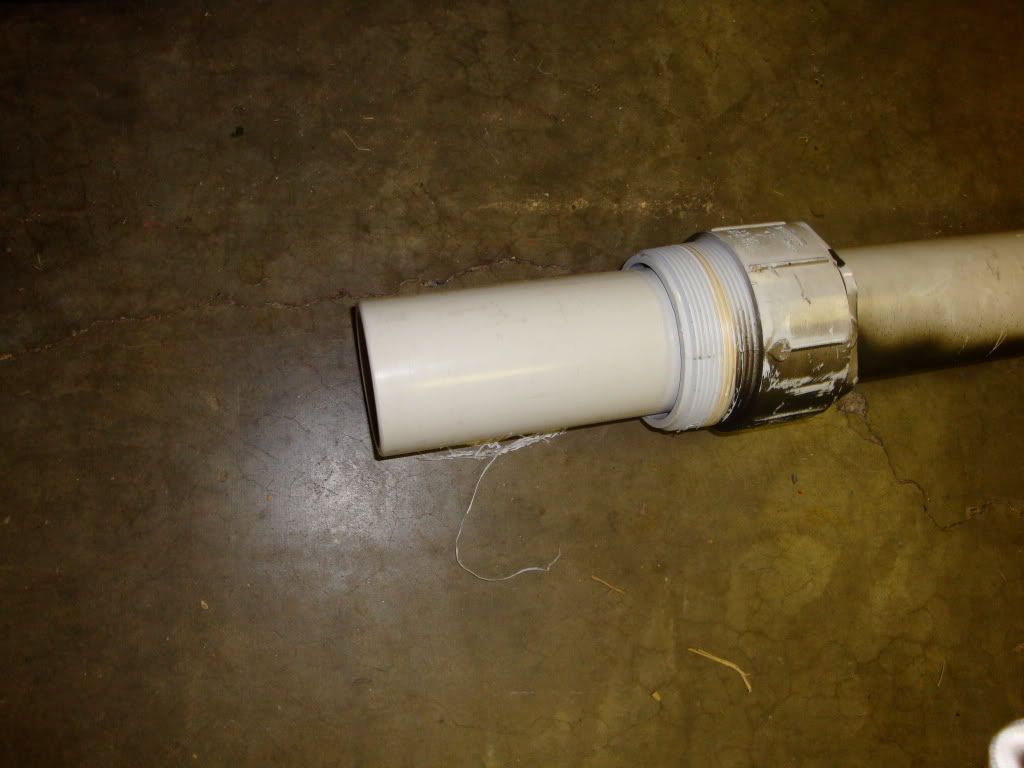

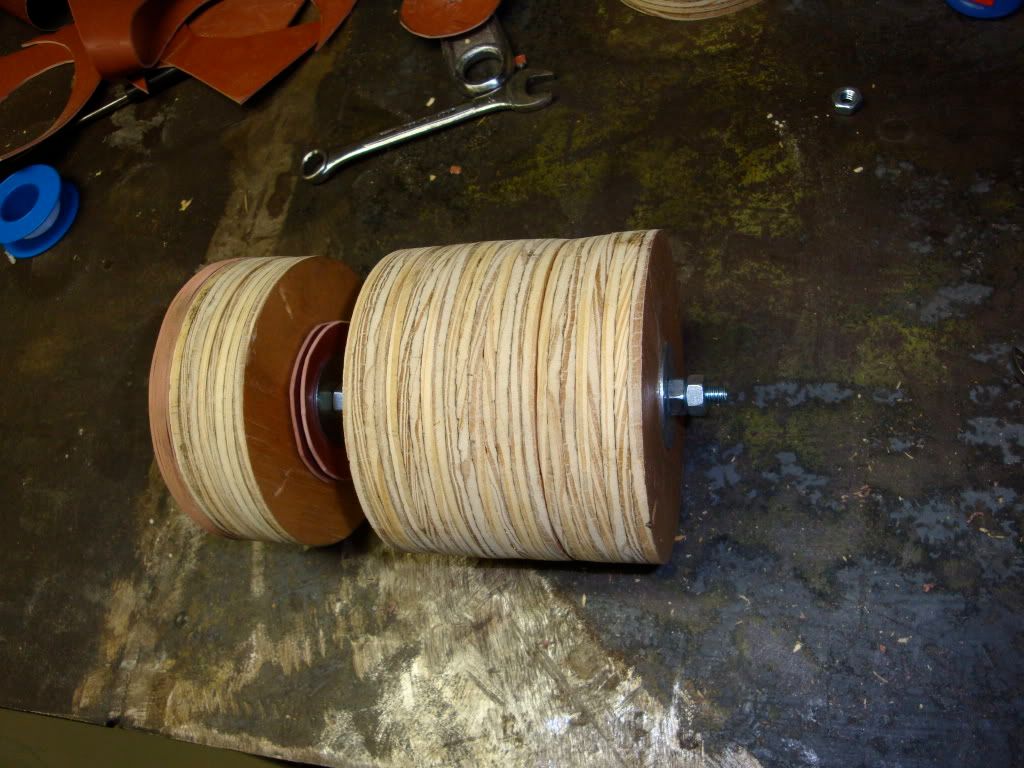

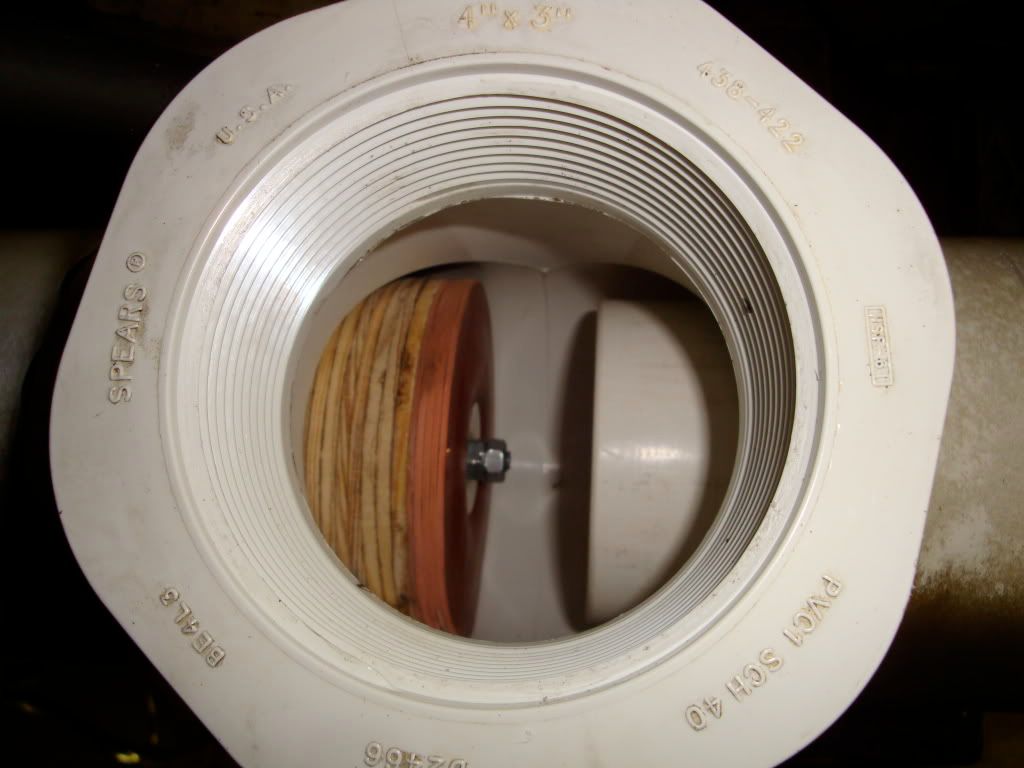

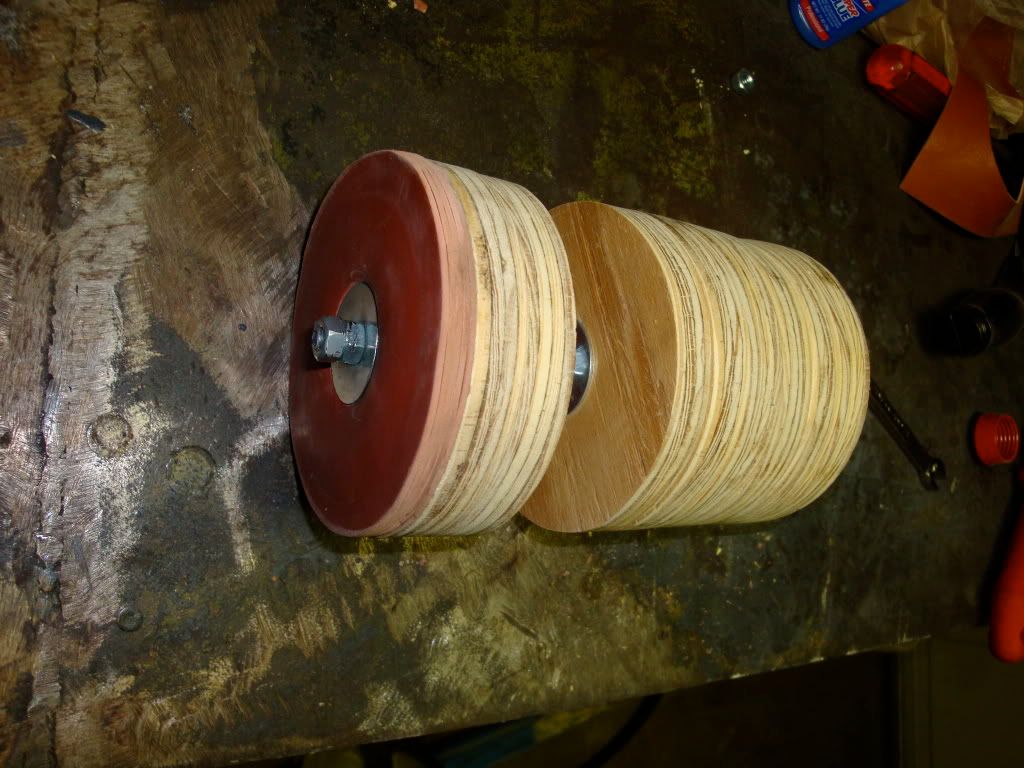

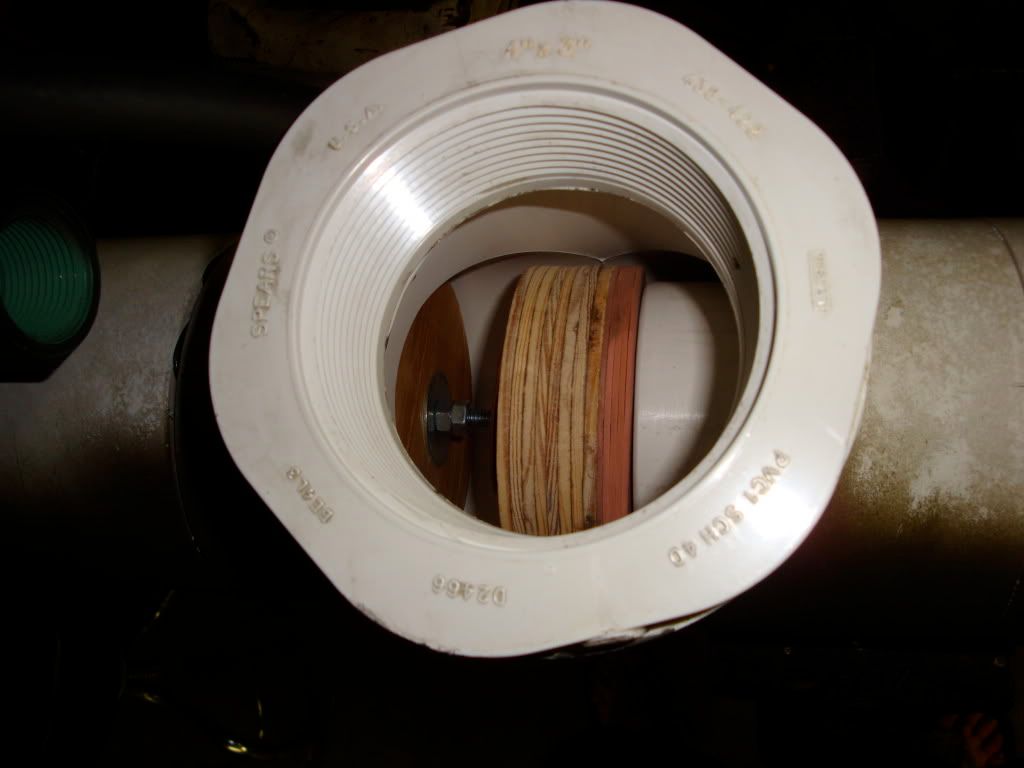

3" Barrel, 4" Tee, 1" pilot valve, 4" Piston

  • 0


AJAX
Private
Private

Posts: 2
Joined: Wed May 05, 2010 11:38 pm
Reputation: 0

Unread postAuthor: Technician1002 » Thu May 06, 2010 12:24 am

Too much air is leaking past the piston from the chamber to the pilot area or the piston is sticking. Due to the design I doubt the piston is stuck. The leakage is high enough to keep the pilot area pressure high enough to hold the valve closed. The addition of a layer of felt (craft shop square) glued down with Elmer's glue will fill the space and greatly reduce the blow by. The fuzzy surface provides a huge drag on the air trying to blow by. This will fix many wooden piston problems without resorting to o rings.

After the glue is completely dry and the felt is fully bonded, it can be saturated with grease for even better performance. Several soup can piston designs use a wrap of felt with good success.

Be sure the bumper is up to snuff. The wood mallet pounding on the back can break things.
  • 0

Last edited by Technician1002 on Thu May 06, 2010 12:30 am, edited 2 times in total.
User avatar
Technician1002
Chief of Staff
Chief of Staff

Posts: 5190
Joined: Sat Apr 04, 2009 11:10 am
Reputation: 14

Unread postAuthor: jackssmirkingrevenge » Thu May 06, 2010 12:26 am

Welcome to spudfiles :)

It seems that you have 2 problems:

1) your piston is far too heavy (and I hope you have a decent bumper in place because if it does work, it´s going to have a lot of momentum!)

2) your piston is not tight enough in the chamber it's travelling in.

Problem 2) is a common issue, the outer diameter of the piston should be as close as possible to the inner diameter of the tee, can you measure these dimensions?
  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Unread postAuthor: AJAX » Thu May 06, 2010 12:37 am

Thanks for the Speedy Responses. Both of your conclusions i feel are very reasonable and i had some anticipation that those might have been the problem. I will Try the Felt First as a quick fix. However in the long run. i am fortunate enough to have 3D printer at School that i can use to print out a much lighter and Tighter tolerance piston. as the Printer will make the piston out of a Bee hive structure. My other Question would be should the piston i would print out be solid? or can it be ribbed or have cut aways? the more plastic i use the more expensive it is. not saying it will make a huge difference in cost.

Also any clue of how tight the piston should be? we are talking .001?
  • 0


AJAX
Private
Private

Posts: 2
Joined: Wed May 05, 2010 11:38 pm
Reputation: 0

Unread postAuthor: jackssmirkingrevenge » Thu May 06, 2010 1:02 am

AJAX wrote:Thanks for the Speedy Responses. Both of your conclusions i feel are very reasonable and i had some anticipation that those might have been the problem. I will Try the Felt First as a quick fix. However in the long run. i am fortunate enough to have 3D printer at School that i can use to print out a much lighter and Tighter tolerance piston. as the Printer will make the piston out of a Bee hive structure. My other Question would be should the piston i would print out be solid? or can it be ribbed or have cut aways? the more plastic i use the more expensive it is. not saying it will make a huge difference in cost.


For starters, you can replace the second disk from right here with a spacer, it's just adding extra weight and friction. I would personally go for just 3 thin disks, one for the sealing face and another two forming a spool, have a look at this threadfor inspiration (and a preview of what might happen without a good bumper) ;)

Also any clue of how tight the piston should be? we are talking .001?


Imagine you have a 3.999 inch piston in a 4.000 inch tee. This means that there is an effective area of 0.006 in<sup>2</sup> through which air can flow past the piston from the chamber. Let's imagine your 1" pilot valve has true 1" porting, this means that the air can flow out of an area of 0.7855 in<sup>2</sup> - so the pilot chamber is emptying at a much faster rate than it can be refilled from the chamber, and the piston should actuate. Imagine your piston were to be 3.900 inches diameter, the blowby area would be 0.6205 in<sup>2</sup> - very close to your pilot valve porting and the piston would likely never move.

Instead of felt, as a temporary measure you could try building up the diameter of the piston with duct tape.
  • 0

Last edited by jackssmirkingrevenge on Thu May 06, 2010 1:33 am, edited 1 time in total.
User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Unread postAuthor: Technician1002 » Thu May 06, 2010 1:04 am

Take any material you are considering for a piston and hit it a few times with a hammer. Durable and high impact resistance is important. Soft and bendy is bad. Hard and brittle is bad. Light and tough is good. Making a piston slightly large and sanding it to size works well on a belt sander, or simply building up a slightly undersized piston with wood glue and felt or paper works too. If you are skilled, adding an o ring is the ultimate.
  • 0

User avatar
Technician1002
Chief of Staff
Chief of Staff

Posts: 5190
Joined: Sat Apr 04, 2009 11:10 am
Reputation: 14
