Calling on the geniouses of valveless...

Unread postAuthor: Gun Freak » Mon Sep 20, 2010 4:11 pm

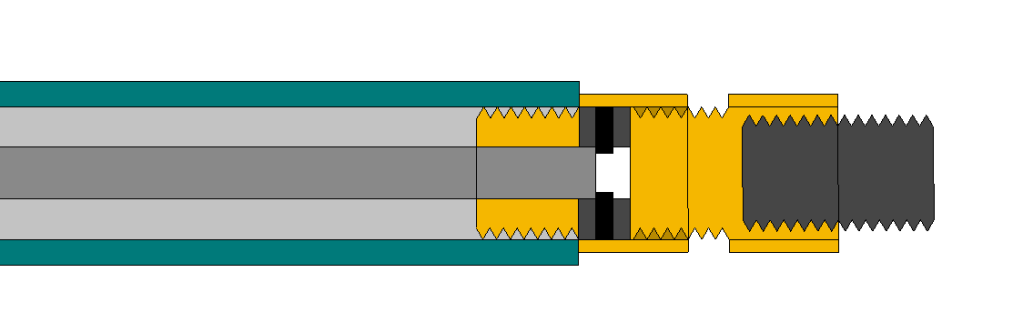

How does this look for a valveless gun, it will be blowgun fed from the back with about a foot of 3/4" pvc for the chamber which will be filled with bb's. Blue is 1/2" pvc sleeved over an airsoft barrel. The yellow is brass male x female adapters in 3/8". The nipple in the back is 3/8" close and goes to the chamber. What should I improve or is it the right idea?
  • 0

OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
Gun Freak
Lieutenant General
Lieutenant General

Posts: 4969
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Country: United States (us)
Reputation: 11

Unread postAuthor: POLAND_SPUD » Mon Sep 20, 2010 5:56 pm

Make sure that the bbs won't clog up just behind the detent. I suspect that 99% of feeding problems I had on mine were casued by that

Either use smaller fittings (with ID as close to 6mm as possible) or larger ones.
  • 0

Children are the future

unless we stop them now
User avatar
POLAND_SPUD
Chief of Staff
Chief of Staff

Posts: 5405
Joined: Sat Oct 13, 2007 4:43 pm
Country: Israel (il)
Reputation: 10

Unread postAuthor: Gun Freak » Tue Sep 21, 2010 5:40 pm

POLAND_SPUD wrote:Make sure that the bbs won't clog up just behind the detent. I suspect that 99% of feeding problems I had on mine were casued by that

Either use smaller fittings (with ID as close to 6mm as possible) or larger ones.

Hmm... I went up to 3/8" because I figured that they would have about the right diameter for the right washer with a big enough hole. It might be possible with 1/4" though. I have to see. 2 bb's can't fit through a 1/4" galvanized nipple side by side, but I think they can in 3/8".
  • 0

OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
Gun Freak
Lieutenant General
Lieutenant General

Posts: 4969
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Country: United States (us)
Reputation: 11

Unread postAuthor: lozz08 » Tue Sep 21, 2010 7:21 pm

My mag fed valveless used 1/4 inch and the washer ID was 6mm exactly before compression. I suggest 1/4 because there is a good chance that the washer will be too large.

If it's going to be cloud style with a chamber full of bbs then it will jam unless the transition from the 3/4" pvc to the fitting is gradual. I suggest getting some epoxy putty and using it to make the end of the brass fitting that goes into the chamber flared.

There are a bunch of ways you could do it but just make sure theres no sudden edges for bbs to jam into. In fact i would say 3/8 inch fittings could cause jams because the ID of the fittings is so much larger than the bbs.
  • 0

User avatar
lozz08
2nd Lieutenant
2nd Lieutenant

Posts: 239
Joined: Wed Jul 01, 2009 7:33 am
Reputation: 0

Unread postAuthor: Gun Freak » Tue Sep 21, 2010 7:32 pm

Cool, making a funnel in the chamber should be pretty simple. I'll go with 1/4", if I can find the right washers. The chamber won't be completely full of bb's. I want room for them to fly around so they don't jam and also to make more chamber volume. Thanks for the help.
  • 0

OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
Gun Freak
Lieutenant General
Lieutenant General

Posts: 4969
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Country: United States (us)
Reputation: 11

Unread postAuthor: POLAND_SPUD » Tue Sep 21, 2010 7:40 pm

ohh I was thinking about this yesterday but I forgot to post here. yeah 3/8" might be a bit too large. It might not be such a big deal if you used a 3/8" pipe nipple to keep the washer in place but it seems that what lozz08 has said makes sense
  • 0

Children are the future

unless we stop them now
User avatar
POLAND_SPUD
Chief of Staff
Chief of Staff

Posts: 5405
Joined: Sat Oct 13, 2007 4:43 pm
Country: Israel (il)
Reputation: 10
