pneumatic timed aerosol grenade

Unread postAuthor: Solar » Sat Apr 09, 2011 6:03 am

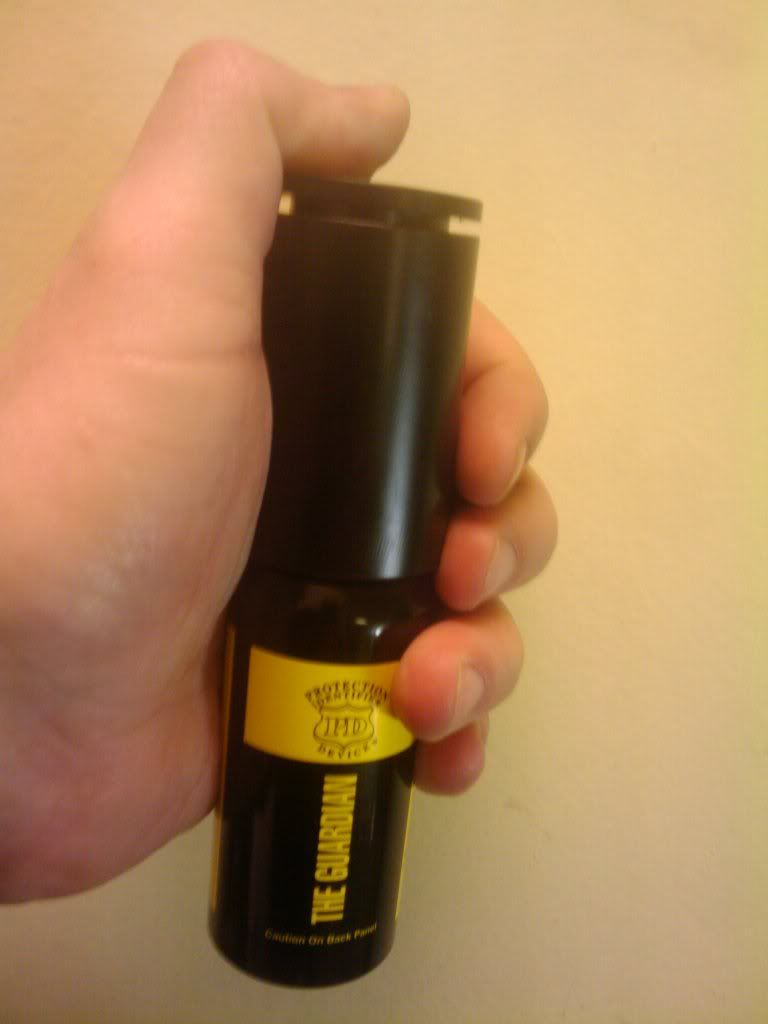

These fit in 37 and 40mm or can be thrown by hand. They are using pepper spray in this one, but can have a nosecone attached and use the compressed air for other uses controlled with the timer.

  • 0

User avatar
Solar
Colonel
Colonel

Posts: 512
Joined: Tue May 17, 2005 11:53 pm
Country: United States (us)
Reputation: 11

Unread postAuthor: jrrdw » Sat Apr 09, 2011 1:46 pm

How do these work?
  • 0

When life gives you lemons...throw them back they suck!
User avatar
jrrdw
Donating Moderator
Donating Moderator

Posts: 6540
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Country: United States (us)
Reputation: 25

Unread postAuthor: Solar » Thu Apr 14, 2011 2:57 am

The button on top pushes a hollow shaft down through the center that activates the can's valve. Pressure flows into a cavity on one side of a piston, and bleeds into another cavity that pressurizes the opposite side of the piston which has a greater surface area. The size of the second cavity and bleed hole determine the delay. No burst valve. Can be made reusable with screw on cans or one shot wonders.

Simple concept, but a lot went into making these a reality. These are designed to replace/supplement the current Army issue aerosol units that have no timing system.

I will have a video this week. PM me if you are interested in more details.
