Detent proof of concept

Post questions and info about pneumatic (compressed gas) powered cannons here. This includes discussion about valves, pipe types, compressors, alternate gas setups, and anything else relevant.
Sponsored
  • Author
    Message

Detent proof of concept

Unread postAuthor: Lockednloaded » Wed Sep 28, 2011 5:40 pm

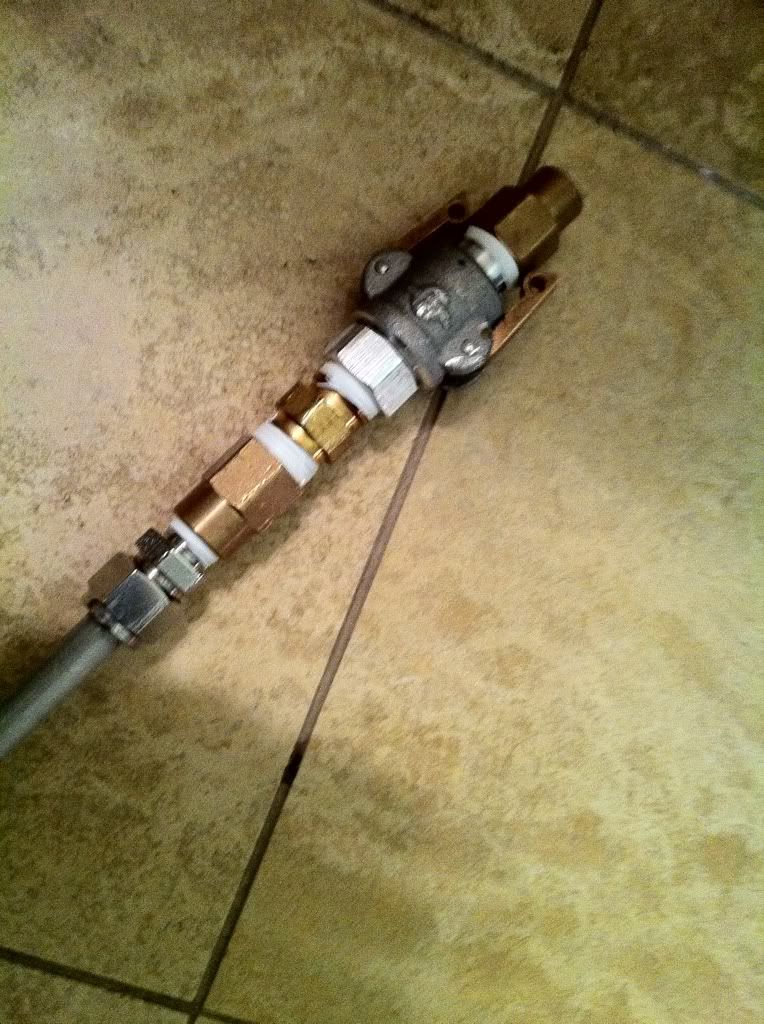

The detent concept is an extremely useful one ITWOST, and with pistons, hybrid, and even piston hybrids becoming common place, they may be the new big thing. Their only problem is that they're pretty finicky to get working correctly. I've been toying with one for a while and made a little PBMG that hooks up to my pressure washer, well more of a burst fire gun. it's really just a mini cloud chamber with a detet, but it works.

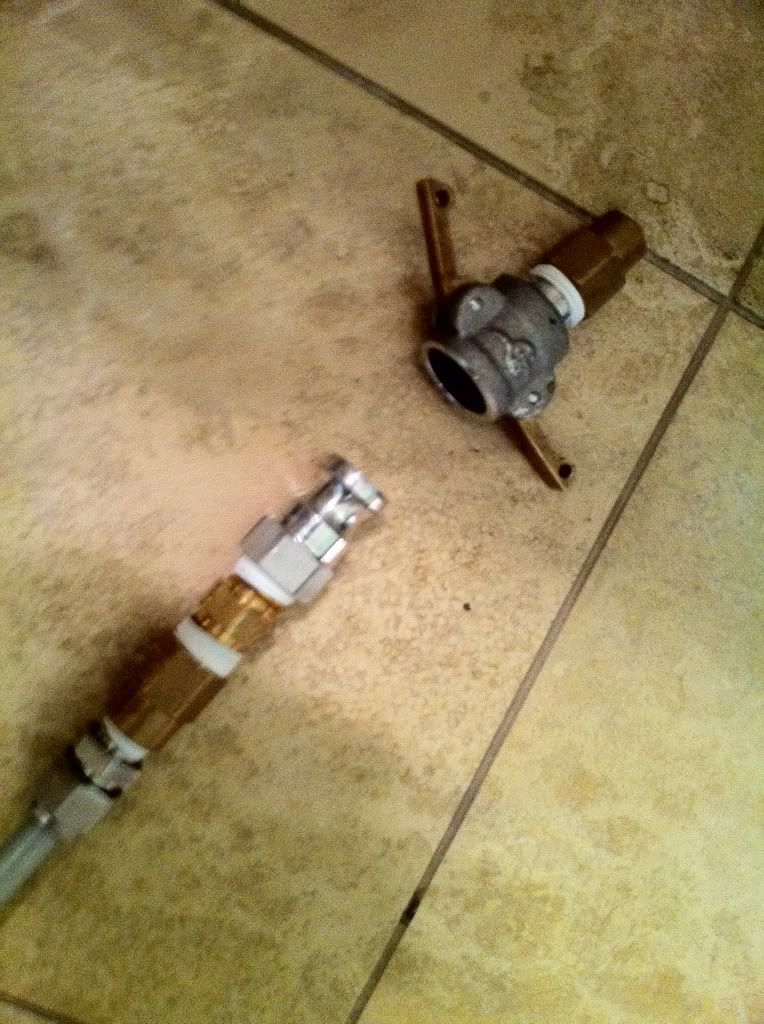

I have to use a cam-lock to load in order to keep it air tight, so it's kind of bulky, but remember, it's just a concept
  • 0

I love lamp
User avatar
Lockednloaded
Major General
Major General

Posts: 1558
Joined: Thu Sep 03, 2009 9:38 pm
Location: Texas, USA
Reputation: 0

Unread postAuthor: clemsonguy1125 » Wed Sep 28, 2011 6:19 pm

Looks interesting, any chance of a video.
  • 0

That is all.
User avatar
clemsonguy1125
Major General
Major General

Posts: 1485
Joined: Tue Jul 21, 2009 4:00 pm
Location: East Coast
Reputation: 1

Unread postAuthor: Gun Freak » Wed Sep 28, 2011 8:39 pm

So, what's the detent??
  • 0

OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
Gun Freak
Lieutenant General
Lieutenant General

Posts: 4969
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Country: United States (us)
Reputation: 11

Unread postAuthor: Lockednloaded » Wed Sep 28, 2011 9:46 pm

There's an oring sandwiched in the compression fitting. This gun may not last long, I just posted it to stir some discussion, but it may be a hybrid pretty soon. I just need an ignitor
  • 0

I love lamp
User avatar
Lockednloaded
Major General
Major General

Posts: 1558
Joined: Thu Sep 03, 2009 9:38 pm
Location: Texas, USA
Reputation: 0

Unread postAuthor: jackssmirkingrevenge » Thu Sep 29, 2011 1:04 am

Lockednloaded wrote:I just need an ignitor


A simple piezo cigarette lighter and you're good for 15x at least, go for it ;)
  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Unread postAuthor: POLAND_SPUD » Thu Sep 29, 2011 1:17 am

This thing works with PBs and 3/8" steel BBs... Though what seems interesting most is turning this into a hybrid
  • 0

Children are the future

unless we stop them now
User avatar
POLAND_SPUD
Chief of Staff
Chief of Staff

Posts: 5405
Joined: Sat Oct 13, 2007 4:43 pm
Country: Israel (il)
Reputation: 10

Unread postAuthor: Lockednloaded » Thu Sep 29, 2011 12:33 pm

POLAND_SPUD wrote:This thing works with PBs and 3/8" steel BBs... Though what seems interesting most is turning this into a hybrid


I have drawn up some plans to allow manometric fueling, I can get some pictures up after school today

@jsr, do you think it could arc a standard sparkplug gap? I have a 1/8" NPT one that I've been itching to use
  • 0

I love lamp
User avatar
Lockednloaded
Major General
Major General

Posts: 1558
Joined: Thu Sep 03, 2009 9:38 pm
Location: Texas, USA
Reputation: 0

Sponsored

Sponsor



Unread postAuthor: jackssmirkingrevenge » Thu Sep 29, 2011 12:50 pm

What's the spark gap?

Hint: you can adjust it with a hammer ;)
  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66
