HPA Burst-Disk Cartridge Tennisball gun

Post questions and info about pneumatic (compressed gas) powered cannons here. This includes discussion about valves, pipe types, compressors, alternate gas setups, and anything else relevant.
Sponsored
  • Author
    Message

HPA Burst-Disk Cartridge Tennisball gun

Unread postAuthor: Lockednloaded » Sun May 19, 2013 10:45 pm

I know the burst-disk cartridge has been around for a while now, but as I was planning my next large-bore summer build, I thought I'd make a slight modification to to concept to fit my needs.

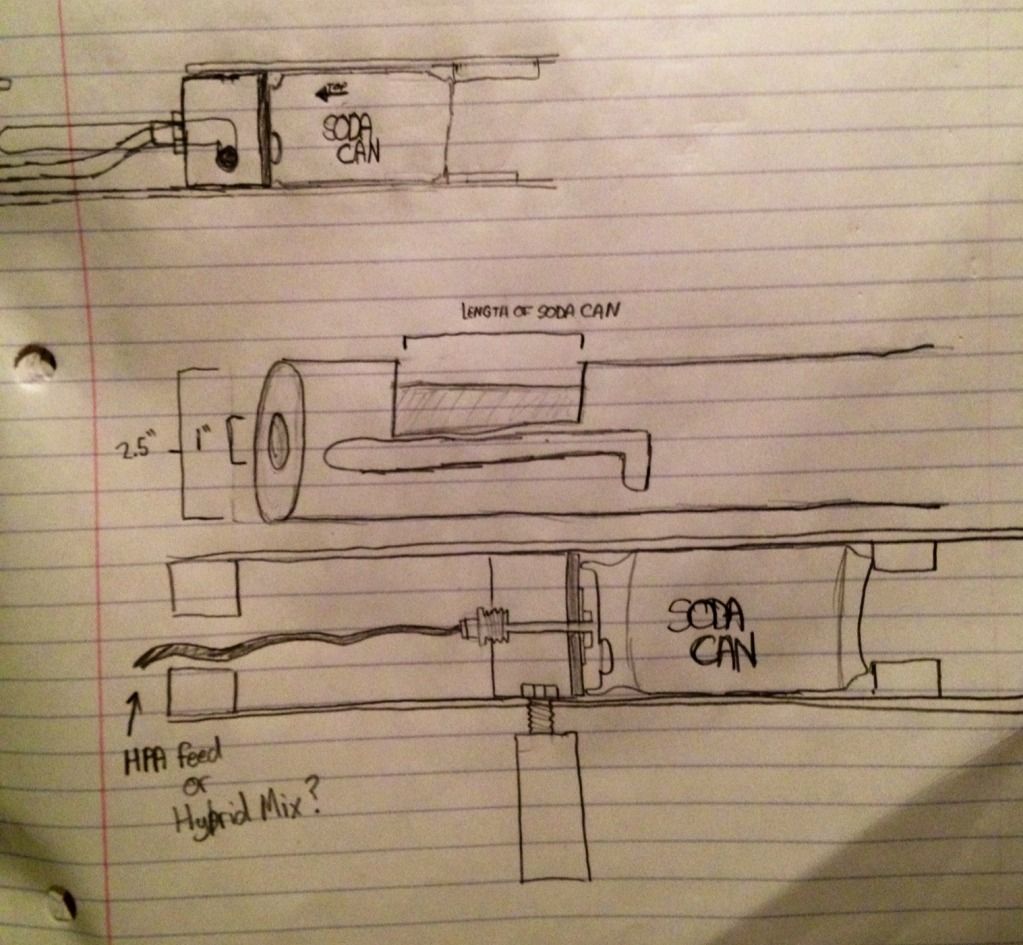

Here's the proposed design, everything should be pretty self-explanatory


I'd love some input and design critiques before I make this thing, so tell me what you think
  • 0

I love lamp
User avatar
Lockednloaded
Major General
Major General

Posts: 1558
Joined: Thu Sep 03, 2009 9:38 pm
Location: Texas, USA
Reputation: 0

Unread postAuthor: jackssmirkingrevenge » Mon May 20, 2013 12:54 am

If I understood correctly, the bolt injects a pressure into the can a bit like I had proposed here?


Challenging enough as a pneumatic, let alone a hybrid... but still achievable :)
  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Unread postAuthor: Lockednloaded » Mon May 20, 2013 4:50 pm

That's the basic idea, but mine is manually cycled and manually loaded, so way less complicated I suppose
  • 0

I love lamp
User avatar
Lockednloaded
Major General
Major General

Posts: 1558
Joined: Thu Sep 03, 2009 9:38 pm
Location: Texas, USA
Reputation: 0

reply

Unread postAuthor: dart guy » Mon May 20, 2013 6:56 pm

i think that you should use thick pvc intesad of a soda can and use an adapter for the actual end of the compreson tube (pardn the spelling :D
  • 0

User avatar
dart guy
Major
Major

Posts: 397
Joined: Mon May 13, 2013 7:54 pm
Location: not telling you
Reputation: 5

Unread postAuthor: jackssmirkingrevenge » Mon May 20, 2013 11:25 pm

Lockednloaded wrote:That's the basic idea, but mine is manually cycled and manually loaded, so way less complicated I suppose


b-b-b-b-but cartridges are meant for ejecting :cry:
  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Unread postAuthor: Lockednloaded » Tue May 21, 2013 2:39 pm

This one's less made for ejection and reuse, but rather, it's intended to be destroyed then recycled
  • 0

I love lamp
User avatar
Lockednloaded
Major General
Major General

Posts: 1558
Joined: Thu Sep 03, 2009 9:38 pm
Location: Texas, USA
Reputation: 0
