Aluminum cylinder for Eclipse

Post questions and info about pneumatic (compressed gas) powered cannons here. This includes discussion about valves, pipe types, compressors, alternate gas setups, and anything else relevant.
Sponsored
  • Author
    Message

Aluminum cylinder for Eclipse

Unread postAuthor: Solar » Sat Oct 12, 2013 10:25 pm

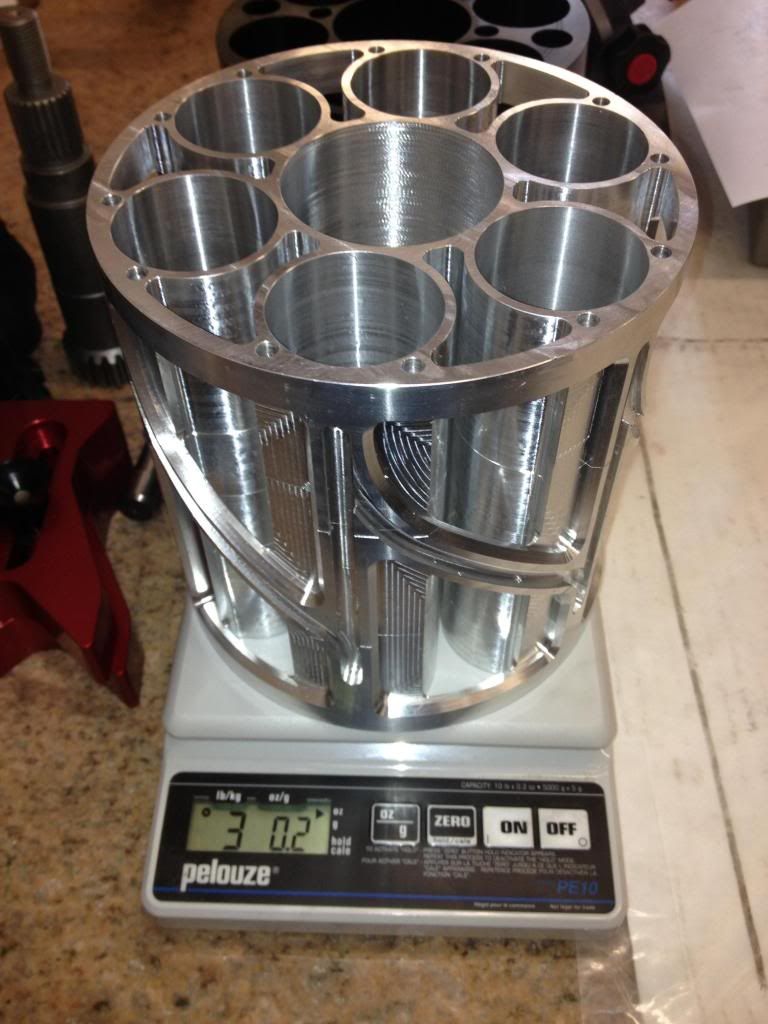

Finally got a metal solution for the cylinder in the Eclipse. This weighs two ounces less than the acetal one with lightening holes. It was made on a mill in three pieces then bolted together and finished on the fourth axis to cut the cam.


  • 0

User avatar
Solar
Colonel
Colonel

Posts: 512
Joined: Tue May 17, 2005 11:53 pm
Country: United States (us)
Reputation: 11

Re: Aluminum cylinder for Eclipse

Unread postAuthor: jackssmirkingrevenge » Sun Oct 13, 2013 4:44 am

*fap fap fap*

That is one nice bit of CNC!

Can I ask how much the whole thing cost to make?
  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Re: Aluminum cylinder for Eclipse

Unread postAuthor: Solar » Sun Oct 13, 2013 8:43 pm

Lol. Don't exactly have an answer for you Jack. Should only be a few hundred each in production. It solves the thermal issues and will increase the operating pressures.
  • 0

User avatar
Solar
Colonel
Colonel

Posts: 512
Joined: Tue May 17, 2005 11:53 pm
Country: United States (us)
Reputation: 11
