piston bumper problems

Post questions and info about pneumatic (compressed gas) powered cannons here. This includes discussion about valves, pipe types, compressors, alternate gas setups, and anything else relevant.
Sponsored
  • Author
    Message

piston bumper problems

Unread postAuthor: lukemc » Sat Apr 21, 2007 9:24 am

i made a 2" coaxail piston valve and have final come across a problem. my bumper.

this was my original plan with the bumper behind the ball valve. the threaded part is so i can have access to the piston if it dosent work but i just realzed that the ID of 2" male threaded adapter is smaller than the ID of 2" pipe

this a picture of the male adaptor inside the female adapter. you can see it is consiterably smaller

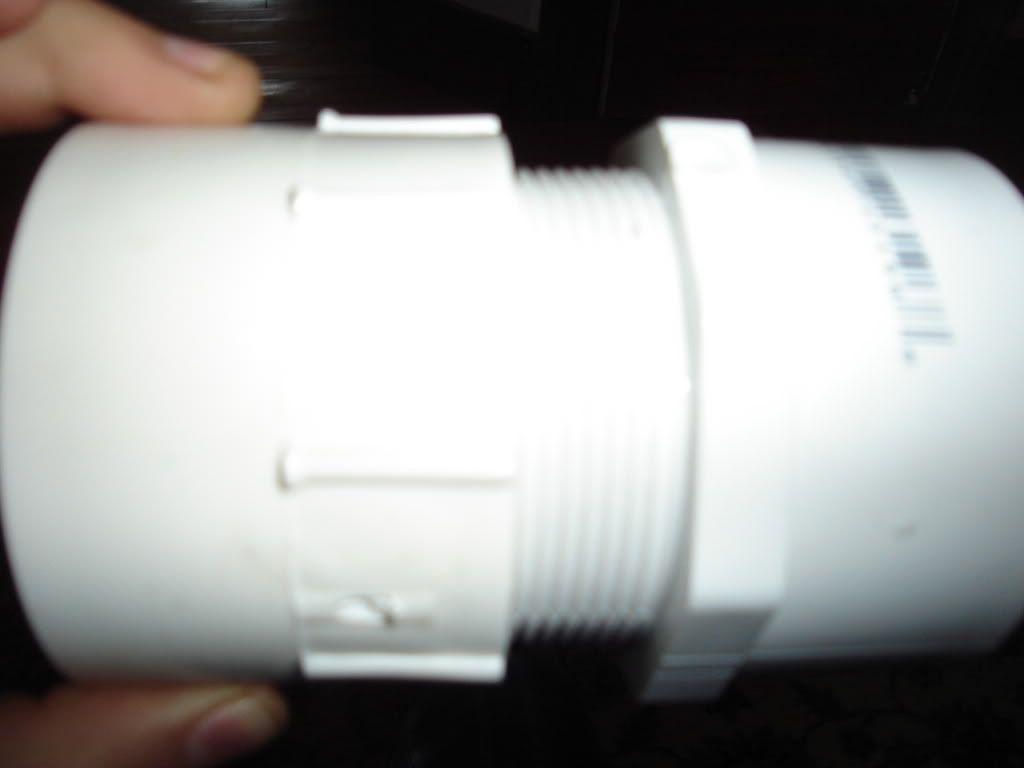

the peices inside each other form the side

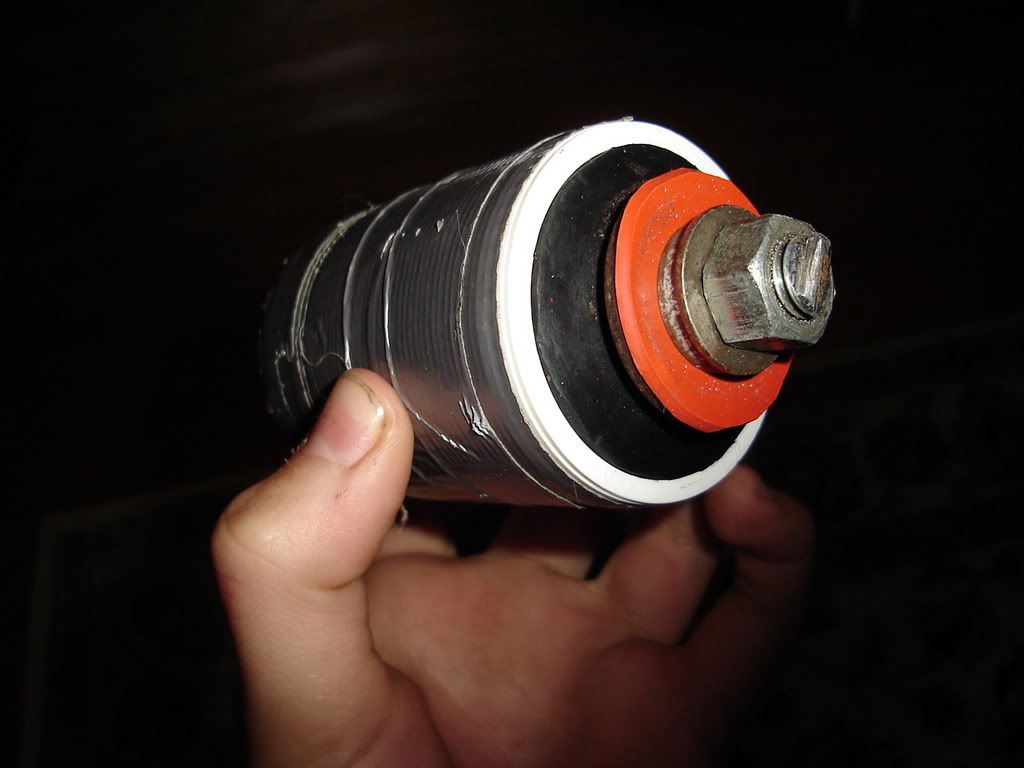

and my piston

the only thing i can think of it to just have the bumper inbetween the fittings but i cant close it off how would i go about doing this? help would realy...well help :D
  • 0

"Those who are different change the world. Those who are the same keep it that way"
User avatar
lukemc
Colonel
Colonel

Posts: 565
Joined: Sun Feb 25, 2007 8:48 am
Location: NY
Reputation: 0

Unread postAuthor: spudthug » Sat Apr 21, 2007 10:17 am

put some sort of hose around a fitting like u said...air hose...bike tube...anything works...expandable foam works the best but it has to be glue some how
  • 0

4" piston valved cannon-half done..( i spilt my cement...)

Hybrid- 75% done. need to build propane holder and drill/tap sparkplug hole..
User avatar
spudthug
Brigadier General
Brigadier General

Posts: 936
Joined: Mon Feb 26, 2007 9:02 pm
Location: johnsonburg, Pa USA
Reputation: 0
