M203 Launcher for paintball/airsoft

Post questions and info about pneumatic (compressed gas) powered cannons here. This includes discussion about valves, pipe types, compressors, alternate gas setups, and anything else relevant.
Sponsored
  • Author
    Message

Unread postAuthor: NoXi » Thu Jun 21, 2007 7:43 pm

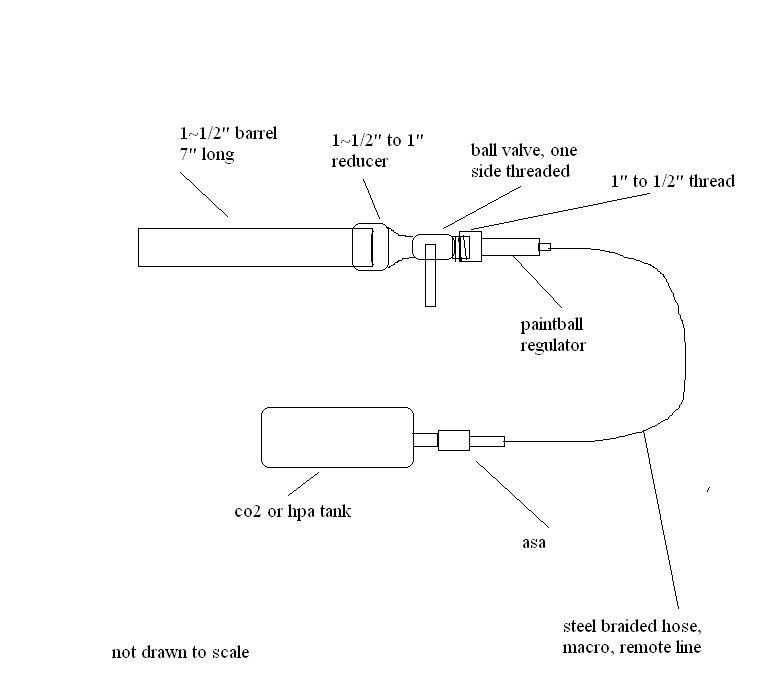

Ok everyone, i got a new design. I wanted to know if it would work or not.

  • 0


NoXi
Sergeant First Class
Sergeant First Class

Posts: 130
Joined: Sun Dec 10, 2006 1:23 pm
Reputation: 0

Unread postAuthor: goathunter » Thu Jun 21, 2007 7:50 pm

Just do a basic launcher design.Buy all pressure rated steel parts and hook a co2 tank direct.I for one can tell you they will launch a paintnade over 200 ft.
You can try with the regulator direct no harm in trying.But I believe the pressure won't be sufficient with a short barrel to get it to go very far.And I would recommend a 2" barrel,they work great for rockets and grenades. 1 1/2" is the best for shotgun loads.Unless you use scepter sized grenades.But they don't do much.
  • 0

Last edited by goathunter on Thu Jun 21, 2007 8:03 pm, edited 1 time in total.

goathunter
Colonel
Colonel

Posts: 676
Joined: Thu Feb 15, 2007 9:20 pm
Reputation: 0

Unread postAuthor: Spuddin » Thu Jun 21, 2007 7:58 pm

looks like a good design but why the hose, why not just connect it all together straight. would be real sweet if u could use a piston valve instead of the ball. but if thats all u got to work with (like me, limited parts) then it should be a doozy.
_______________________
www.freewebs.com/spuddin
  • 0

User avatar
Spuddin
Donating Member
Donating Member

Posts: 262
Joined: Wed May 16, 2007 1:28 pm
Location: Oklahoma
Country: United States (us)
Reputation: 0

Unread postAuthor: NoXi » Thu Jun 21, 2007 8:14 pm

well since im going to mount it under a gun, where would the tank go? Im jus going to put it behind me or something so itll be lighter. and ill think about putting a 2" barrel.

goathunter wrote: Just do a basic launcher design.Buy all pressure rated steel parts and hook a co2 tank direct.I for one can tell you they will launch a paintnade over 200 ft.
You can try with the regulator direct no harm in trying.But I believe the pressure won't be sufficient with a short barrel to get it to go very far.And I would recommend a 2" barrel,they work great for rockets and grenades. 1 1/2" is the best for shotgun loads.Unless you use scepter sized grenades.But they don't do much.


well, on the regulator, i can adjust the pressure so i can make it however much pressure i want to launch it further or not
  • 0


NoXi
Sergeant First Class
Sergeant First Class

Posts: 130
Joined: Sun Dec 10, 2006 1:23 pm
Reputation: 0

Unread postAuthor: VH_man » Thu Jun 21, 2007 8:39 pm

just run a line off of the main tank of your gun................

someone has done this somewhere, i swear............ he painted it up all camo and stuff
  • 0

User avatar
VH_man
Major General
Major General

Posts: 1827
Joined: Sat Dec 09, 2006 6:00 pm
Location: New Hampshire
Reputation: 1

Unread postAuthor: NoXi » Thu Jun 21, 2007 10:31 pm

ya i know what your talking about. But then i would only get one shot off a whole tank wouldnt I? unless i close the valve real quick

Also wondering, could i use abs for the barrel?
  • 0


NoXi
Sergeant First Class
Sergeant First Class

Posts: 130
Joined: Sun Dec 10, 2006 1:23 pm
Reputation: 0

Unread postAuthor: spud yeti » Fri Jun 22, 2007 5:22 am

This has got me thinking! I am starting to design/build a copper marble gun, that can be adapted for your use and could be very cool. I think I will just put the plans up on a new topic and you can see them there! Hopefully they will work! 8)
  • 0

User avatar
spud yeti
Brigadier General
Brigadier General

Posts: 1030
Joined: Tue May 08, 2007 1:41 pm
Location: Cape town south africa
Reputation: 0

Sponsored

Sponsor



Unread postAuthor: NoXi » Fri Jun 22, 2007 9:48 am

ok cool. Hopefully they will
  • 0


NoXi
Sergeant First Class
Sergeant First Class

Posts: 130
Joined: Sun Dec 10, 2006 1:23 pm
Reputation: 0

Unread postAuthor: spud yeti » Sat Jun 23, 2007 11:07 am

I was just looking at your diagram and realized you have a co2 AND want a ball valve... this wont work because a ball valve doesnt close again quickly and you wouldnt get a constant flow if you did it manually. Go look at valves on spudthugs website because its a really good website :D
Link: http://www.freewebs.com/spudthug/
  • 0

User avatar
spud yeti
Brigadier General
Brigadier General

Posts: 1030
Joined: Tue May 08, 2007 1:41 pm
Location: Cape town south africa
Reputation: 0

Unread postAuthor: NoXi » Sat Jun 23, 2007 11:27 am

ya thats what i noticed that if i used a ball valve, i would have to use all the air unless i use like a 12 gram.

what would be a good valve to use that can open and close quickly?

edit:: also, i got you and spud thug mixed up in his guestbook. lol
  • 0


NoXi
Sergeant First Class
Sergeant First Class

Posts: 130
Joined: Sun Dec 10, 2006 1:23 pm
Reputation: 0

Unread postAuthor: spud yeti » Mon Jun 25, 2007 1:09 am

Lol, oh well, im sure he'll understand! I also nearly did the same, I thought it was MrCrowleys site at first for some unknown reason.
You see, I got tired of boring sprinkler valves etc etc all the time and your questions got me thinking so at the moment Im constructing a new type of valve that will hopefully work well...And its for semi auto!!
I'll PM you my plans and maybe you can give me some feedback. Once Ive made it Ill put it up on the forums with a gun.... but until then I'll just show you, so I can first finish it before releasing it to the world! :D
  • 0

User avatar
spud yeti
Brigadier General
Brigadier General

Posts: 1030
Joined: Tue May 08, 2007 1:41 pm
Location: Cape town south africa
Reputation: 0

Unread postAuthor: NoXi » Mon Jun 25, 2007 12:29 pm

o, ok. Thats tight. Thanks
  • 0


NoXi
Sergeant First Class
Sergeant First Class

Posts: 130
Joined: Sun Dec 10, 2006 1:23 pm
Reputation: 0

Unread postAuthor: spud yeti » Mon Jun 25, 2007 1:09 pm

Ok, I started building today and its about halfway. My plans look really bad so I'll just send you photos because I cant even understand the plans sometimes!!!
I have already built another valve that you might be a able to use. It is on my semi auto paintball gun. That gun just needs to be welded then its finished... Woohoo! :lol:
  • 0

User avatar
spud yeti
Brigadier General
Brigadier General

Posts: 1030
Joined: Tue May 08, 2007 1:41 pm
Location: Cape town south africa
Reputation: 0

Unread postAuthor: NoXi » Mon Jun 25, 2007 2:12 pm

oh..thats cool, but the thing is, i dont have a welder.. :evil:
  • 0


NoXi
Sergeant First Class
Sergeant First Class

Posts: 130
Joined: Sun Dec 10, 2006 1:23 pm
Reputation: 0

Unread postAuthor: spud yeti » Tue Jun 26, 2007 1:42 am

Nah, neither do I! I have a friend whose dad has one! But you dont need a welder for the valve at all. I only need one because Im making my gun out of metal and need the joints welded. I have made it look just like a paintball gun. If you want, I can post on a photo of it.
  • 0

User avatar
spud yeti
Brigadier General
Brigadier General

Posts: 1030
Joined: Tue May 08, 2007 1:41 pm
Location: Cape town south africa
Reputation: 0

PreviousNext
