M203 Launcher for paintball/airsoft

Post questions and info about pneumatic (compressed gas) powered cannons here. This includes discussion about valves, pipe types, compressors, alternate gas setups, and anything else relevant.
Sponsored
  • Author
    Message

M203 Launcher for paintball/airsoft

Unread postAuthor: NoXi » Wed Jun 20, 2007 12:23 am

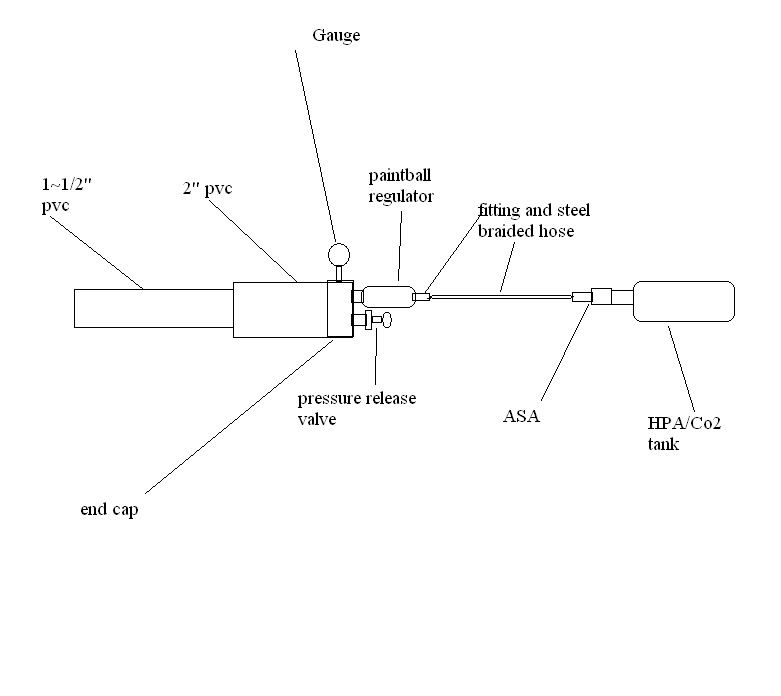

Hey everyone, I was thinking about making an m203 launcher for airsoft or paintball since it is very expensive to buy one. I made a diagram of what I think will work. If you do not think it will work, please tell me what I should change to make it work better.



Thanks

edit::Instead of the pressure release valve thing, im jus going to put a ball valve
  • 0

Last edited by NoXi on Wed Jun 20, 2007 10:50 am, edited 1 time in total.

NoXi
Sergeant First Class
Sergeant First Class

Posts: 130
Joined: Sun Dec 10, 2006 1:23 pm
Reputation: 0

Unread postAuthor: ammosmoke » Wed Jun 20, 2007 12:59 am

I am unclear here as to what your valve setup is.... Do you have a piston valve? Is it a barrel sealer? Other than that, I think it looks great.
  • 0

<img>http://www.speedtest.net/result/309559995.png</img>
User avatar
ammosmoke
Brigadier General
Brigadier General

Posts: 1011
Joined: Wed Sep 27, 2006 10:57 am
Reputation: 0

Unread postAuthor: NoXi » Wed Jun 20, 2007 1:03 am

what you mean valve?
  • 0


NoXi
Sergeant First Class
Sergeant First Class

Posts: 130
Joined: Sun Dec 10, 2006 1:23 pm
Reputation: 0

Unread postAuthor: FreakyShotGlass » Wed Jun 20, 2007 1:15 am

Look around at some of the pneumatics on this site. You need a chamber, where a pressurized gas is stored a barrel and a valve to release the air from the chamber to the barrel.
  • 0

User avatar
FreakyShotGlass
Staff Sergeant
Staff Sergeant

Posts: 114
Joined: Fri Dec 02, 2005 6:34 pm
Reputation: 0

Unread postAuthor: NoXi » Wed Jun 20, 2007 2:00 am

o okay, i get it. Instead, ill probably use a ball valve. I was going to use a pressure release valve and i was going to kind of work like this. http://putfile.com/pic.php?pic=main/7/19212412038.jpg&s=f10

http://www.spudfiles.com/forums/mini-paintball-airsoft-m203-t2684.html

well i already have a chamber, a barrel, and now, im prob gonna use a ball valve.
  • 0

Last edited by NoXi on Wed Jun 20, 2007 9:55 am, edited 1 time in total.

NoXi
Sergeant First Class
Sergeant First Class

Posts: 130
Joined: Sun Dec 10, 2006 1:23 pm
Reputation: 0

Unread postAuthor: TwitchTheAussie » Wed Jun 20, 2007 3:02 am

Pics arent workin mate but I'd say go with a grenade designed and built on this site just on a bigger scale.
  • 0

Raise your horns if you love metal.
spudgunning is like sex, once you've tasted, you can't wait til next time.
-
CpTn_lAw
User avatar
TwitchTheAussie
Brigadier General
Brigadier General

Posts: 980
Joined: Tue Feb 06, 2007 3:23 am
Reputation: 0

Unread postAuthor: NoXi » Wed Jun 20, 2007 9:54 am

for the grenade, im j us gonna get a toilet roll and make it smaller. Put the bb's or paintball in. Then put saran wrap or w/e on top of the toilet roll. Sorry about the links, its been fixed.
  • 0


NoXi
Sergeant First Class
Sergeant First Class

Posts: 130
Joined: Sun Dec 10, 2006 1:23 pm
Reputation: 0

Sponsored

Sponsor



Unread postAuthor: spudthug » Wed Jun 20, 2007 10:02 am

u wont be able to aim that good with a ball valve... plus it may cost u just as much if not more than a sprinkler valve.. buy a 1 inch sprinkler from any local irrigation store or home depot/lowes...

modify the valve for pneumatic actuation..
  • 0

4" piston valved cannon-half done..( i spilt my cement...)

Hybrid- 75% done. need to build propane holder and drill/tap sparkplug hole..
User avatar
spudthug
Brigadier General
Brigadier General

Posts: 936
Joined: Mon Feb 26, 2007 9:02 pm
Location: johnsonburg, Pa USA
Reputation: 0

Unread postAuthor: spud yeti » Wed Jun 20, 2007 10:10 am

as everyone preaches, ball valves arent great and are quite slow, and theres a reason they do it... They arent great! How about a sprinkler valve or you could mod a blow gun and get creative :lol: :lol:
But otherwise just use a ball valve and have fun!!
Peace
  • 0

User avatar
spud yeti
Brigadier General
Brigadier General

Posts: 1030
Joined: Tue May 08, 2007 1:41 pm
Location: Cape town south africa
Reputation: 0

Unread postAuthor: NoXi » Wed Jun 20, 2007 10:22 am

if i want to put a sprinkler valve, itd make it to big to put under a gun.
  • 0


NoXi
Sergeant First Class
Sergeant First Class

Posts: 130
Joined: Sun Dec 10, 2006 1:23 pm
Reputation: 0

Unread postAuthor: spud yeti » Wed Jun 20, 2007 10:47 am

Thats true, I guess you could move it about with the use of some flexible pipe, but as you say, its not ideal. Ive seen some modded blow guns here, maybe that could help?? Im making my own valve at the moment because I enjoy making things. I think its similar to a piston valve, but Im not sure about that!! :lol:
  • 0

User avatar
spud yeti
Brigadier General
Brigadier General

Posts: 1030
Joined: Tue May 08, 2007 1:41 pm
Location: Cape town south africa
Reputation: 0

Unread postAuthor: NoXi » Wed Jun 20, 2007 10:49 am

oh...Thats cool! i might jus use a ball valve but later, i might jus swith to a blowgun or something. Thanks

Any more suggestions?
  • 0


NoXi
Sergeant First Class
Sergeant First Class

Posts: 130
Joined: Sun Dec 10, 2006 1:23 pm
Reputation: 0

Unread postAuthor: spud yeti » Wed Jun 20, 2007 11:21 am

You have said you want to use a C02 tank and regulator, but you can just use the CO2 tank as a chamber, which is less risky and saves the regulator cost. What you do is MAKE SURE IT IS EMPTY!, then unscrew the front and fit it to the pipe with fittings and a bike valve before your "air release valve" to pump air into the tank. It works just fine and is cheap and not too expensive and safe! Look on other sites for more info or just ask because I havent tried it yet!
  • 0

User avatar
spud yeti
Brigadier General
Brigadier General

Posts: 1030
Joined: Tue May 08, 2007 1:41 pm
Location: Cape town south africa
Reputation: 0

Unread postAuthor: spud yeti » Wed Jun 20, 2007 11:23 am

Sorry for the double post, but just remembered now, what are you using for a loading mechanism, is it going to be a semi-auto gun?
  • 0

User avatar
spud yeti
Brigadier General
Brigadier General

Posts: 1030
Joined: Tue May 08, 2007 1:41 pm
Location: Cape town south africa
Reputation: 0

Unread postAuthor: singularity » Wed Jun 20, 2007 11:33 am

if you plan on making this thing compact your going to need to use a coaxial setup, but that would mean it could not be loaded like a normal m203 (sliding barrel). if you plan on mounting this thing under the barrel of a gun you would probably want to go with something similar to <a href="http://home.comcast.net/~irwinner/mini_can.html">this</a> i made it a while ago, it uses a diaphragm valve and is very powerful for its size. relocate the trigger (which is connected to the pressure release to behind it and replace the schrader with your co2 line and a small ball valve.
  • 0

Last edited by singularity on Wed Jun 20, 2007 1:39 pm, edited 1 time in total.
be sure to check out my <a href="http://www.spudfiles.com/forums/ak-style-airsoft-vortex-gun-t10959.html">AK Styled Vortex Gun</a> and my <a href="http://www.spudfiles.com/forums/at-4-t9627.html">AT-4 Rocket</a>

upcoming projects... finalized clip fed BBMG and ball point pen sniper
User avatar
singularity
Brigadier General
Brigadier General

Posts: 982
Joined: Mon Jun 26, 2006 10:53 pm
Location: someplace
Reputation: 0
