something i found

A place to ask general spud cannon related questions.
Sponsored
  • Author
    Message

something i found

Unread postAuthor: marpat » Sat Jul 26, 2008 7:00 pm

so i was at the civilian surplus store today and i found something that appeared to be an already made piston valve for a pnuematic

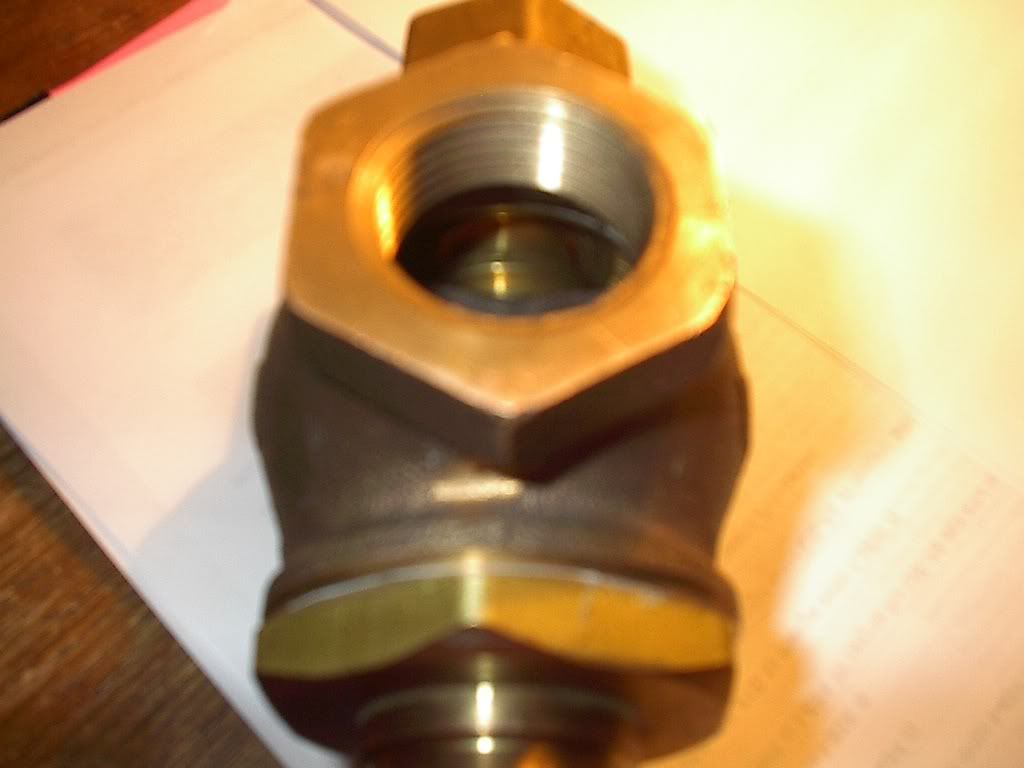

this is the inside when looking througth the "front"

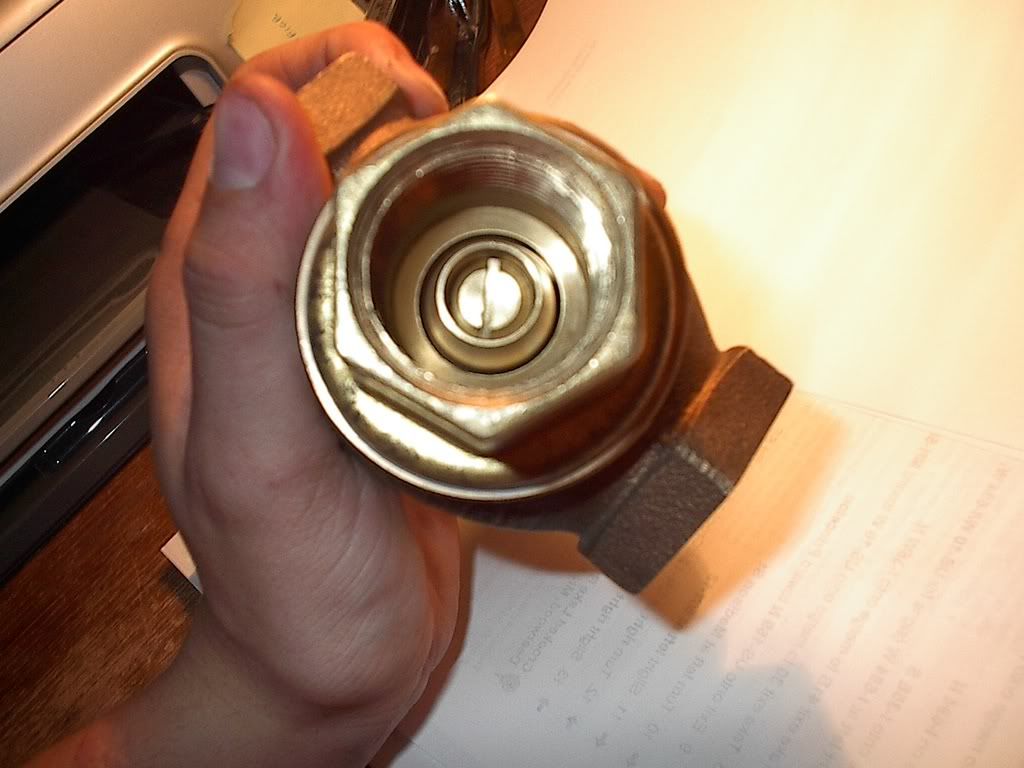

this is the inside when looking throught the top





and finally the thingy you pull on to open the valve





so would this work as a piston then?
  • 0

User avatar
marpat
Corporal
Corporal

Posts: 75
Joined: Thu Jun 05, 2008 9:31 pm
Reputation: 0

Unread postAuthor: newbmatic » Sat Jul 26, 2008 7:22 pm

it does look like it works as a piston, but when you said you have to pull that thing to open, it kinda sounds like a pull valve
  • 0


newbmatic
Private First Class
Private First Class

Posts: 34
Joined: Sun Jul 13, 2008 5:17 pm
Reputation: 0

Unread postAuthor: marpat » Sat Jul 26, 2008 7:24 pm

it pulls pretty easy though and there 3 ports soo?.......
  • 0

User avatar
marpat
Corporal
Corporal

Posts: 75
Joined: Thu Jun 05, 2008 9:31 pm
Reputation: 0

Unread postAuthor: jrrdw » Sat Jul 26, 2008 7:27 pm

Very interesting, can you get the "piston" out?

Looks like 2 in 1 out, a mixing valve???
  • 0

When life gives you lemons...throw them back they suck!
User avatar
jrrdw
Donating Moderator
Donating Moderator

Posts: 6538
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Country: United States (us)
Reputation: 25

Unread postAuthor: marpat » Sat Jul 26, 2008 8:21 pm

im going to disassemble it tomorrow
to see if i can i do not think it is a mixing valve though because all ports stay open and unrestricted when i pull on the stem that opens the front port
  • 0

User avatar
marpat
Corporal
Corporal

Posts: 75
Joined: Thu Jun 05, 2008 9:31 pm
Reputation: 0

Unread postAuthor: POLAND_SPUD » Sun Jul 27, 2008 3:09 am

add a chamber and see if it works
  • 0

Children are the future

unless we stop them now
User avatar
POLAND_SPUD
Chief of Staff
Chief of Staff

Posts: 5405
Joined: Sat Oct 13, 2007 4:43 pm
Country: Israel (il)
Reputation: 10

Unread postAuthor: SpudFarm » Sun Jul 27, 2008 3:15 am

add a barrel also and you see how well it works :P
  • 0

"Made in France"
- A spud gun insurance.
User avatar
SpudFarm
Donating Member
Donating Member

Posts: 2563
Joined: Sat Nov 04, 2006 9:39 am
Location: Norway Trondheim area
Reputation: 0

Sponsored

Sponsor



Unread postAuthor: jrrdw » Sun Jul 27, 2008 5:22 am

SpudFarm wrote:add a barrel also and you see how well it works :P


Don't forget the ammo!

Could be from/for a blending pump, like at a gas station. 2 grades of gas go into 1 to make a mid grade octane.
  • 0

When life gives you lemons...throw them back they suck!
User avatar
jrrdw
Donating Moderator
Donating Moderator

Posts: 6538
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Country: United States (us)
Reputation: 25

Unread postAuthor: marpat » Sun Jul 27, 2008 11:47 am

im thinking one inch ball valve to pilot this thing

what chamber pressures would be required to open this rather hefty valve

i disassembled it and it has o-rings in it yea :!:
im thinking 2 inch barrel but would that would require using a 2 in to 1 in bushing and im not sure how well that would work
because my goal is to shoot caulking tubes out of the thing that are filled with various mixtures of my choosing
  • 0

User avatar
marpat
Corporal
Corporal

Posts: 75
Joined: Thu Jun 05, 2008 9:31 pm
Reputation: 0
