PCP design (start)

Unread postAuthor: maverik94 » Mon May 18, 2009 9:34 pm

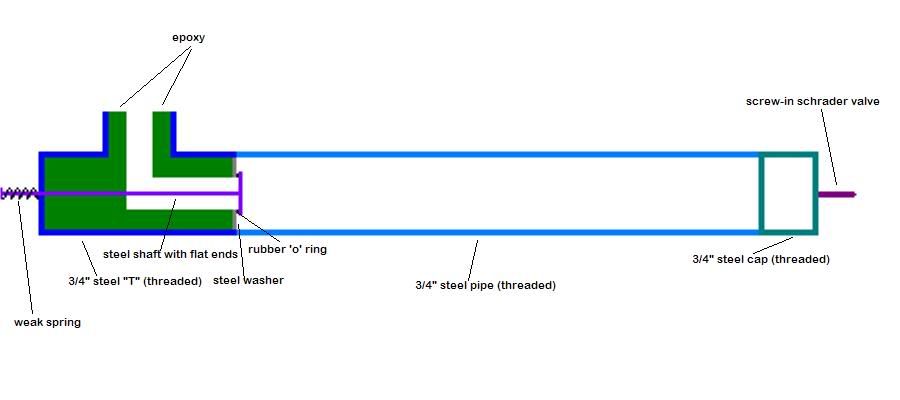

Ok, as I am finishing up my current project, i'm looking to build a pcp pistol next. Here is the design for the chamber and valve setup. Do you think it will work? Any ideas? Also, I will post pictures of the trigger mech and barrel etc later, I already have them drawn on paper, but I still have to draw them on my computer. Thanks!
  • 0

"You can't be friends with anyone if you aren't friends with yourself."
"I'd rather be hated for who I am, than loved for who I'm not." -André Gide
Give me a lever long enough, and a fulcrum on which to place it and I shall move the world.
–Archimedes
Defeat is always momentary.
–Carl Denham

Current Project: None, I'm in Spudremission.
User avatar
maverik94
Colonel
Colonel

Posts: 558
Joined: Wed Jan 21, 2009 4:48 pm
Reputation: 0

Unread postAuthor: Gippeto » Mon May 18, 2009 9:58 pm

No major problems.

A couple things you might wish to change though;

You will likely realize some benefit by moving the valve face in, closer to the branch of the tee. This will reduce dead space, and improve flow.

The valve stem o-ring WILL depart with the first shot. I promise you. Use a flat washer, and retain it in position.

Or secure the flat washer to the steel washer, and leave the valve stem without a "mounted" seal.

Radius the bend in the tee, this will improve flow and power.
  • 0

"It could be that the purpose of your life is to serve as a warning to others" – unknown

Liberalism is a mental disorder, reality is it's cure.
User avatar
Gippeto
Donating Member
Donating Member

Posts: 2393
Joined: Sat Jan 19, 2008 10:14 am
Location: The Great White North...Canada eh!
Reputation: 11

Unread postAuthor: maverik94 » Tue May 19, 2009 4:20 pm

ok, thanks for the feedback, I will make those changes!
  • 0

"You can't be friends with anyone if you aren't friends with yourself."
"I'd rather be hated for who I am, than loved for who I'm not." -André Gide
Give me a lever long enough, and a fulcrum on which to place it and I shall move the world.
–Archimedes
Defeat is always momentary.
–Carl Denham

Current Project: None, I'm in Spudremission.
User avatar
maverik94
Colonel
Colonel

Posts: 558
Joined: Wed Jan 21, 2009 4:48 pm
Reputation: 0

Unread postAuthor: jackssmirkingrevenge » Tue May 19, 2009 4:39 pm

What pressure will you be using? Don't forget that commercial PCPs get their power and multi-shot capacity from using either CO<sub>2</sub> at 850 or so psi or HPA at around 3000 psi.
  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Unread postAuthor: POLAND_SPUD » Tue May 19, 2009 4:54 pm

all in all, I think you should buy an airgun... that's gonna be easier and you won't be disappointed with the results...

it's not a big problem to build a homemade high power gun but it's quite difficult to build something really small
  • 0

Children are the future

unless we stop them now
User avatar
POLAND_SPUD
Chief of Staff
Chief of Staff

Posts: 5405
Joined: Sat Oct 13, 2007 4:43 pm
Country: Israel (il)
Reputation: 10

Unread postAuthor: mark.f » Tue May 19, 2009 5:56 pm

Have you taken a look at a few of the commercial designs for CO<sub>2</sub> or HPA hammer valves? Crosman has been using this basic design for decades...

You could also take a look at the Girandoni air rifles here, which are PCP by design, and 200 years old to boot. If you'll look towards the bottom of the page, a bicycle shop owner built a version of a PCP air rifle during WWII. Pretty damn neat.
  • 0

Attachments
Little confusing, but this is the valve for a multi-pump pneumatic. The other valves are usually nearly identical, but I could be wrong.
User avatar
mark.f
Donating Member
Donating Member

Posts: 3464
Joined: Sat May 06, 2006 11:18 am
Country: United States (us)
Reputation: 21

Unread postAuthor: maverik94 » Tue May 19, 2009 9:31 pm

well, I am planning on using 300-400 psi on this. However, I will be happy if I get 10 somewhat powerfull shots out of it. Do you think that's possible?
@POLAND_SPUD well yeah, I could buy an airgun, but I wouldn't have the feeling of satisfaction I would if I built one myself. I would like to give this a try, and if it ends up sucking, so be it, I'll have learned. Thanks for the feedback yall, anyone else?
  • 0

"You can't be friends with anyone if you aren't friends with yourself."
"I'd rather be hated for who I am, than loved for who I'm not." -André Gide
Give me a lever long enough, and a fulcrum on which to place it and I shall move the world.
–Archimedes
Defeat is always momentary.
–Carl Denham

Current Project: None, I'm in Spudremission.
User avatar
maverik94
Colonel
Colonel

Posts: 558
Joined: Wed Jan 21, 2009 4:48 pm
Reputation: 0

Sponsored

Sponsor



Unread postAuthor: jackssmirkingrevenge » Wed May 20, 2009 1:55 am

Don't forget that a blowgun is a ready made hammer valve that just needs a hammer, and stuff like a toy cap gun or an automatic staplercan be adapted as ready made hammers.


  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Unread postAuthor: maverik94 » Wed May 20, 2009 3:36 pm

yeah i know, but I would prefer to make something completely homemade. Thanks. Anyone else?
  • 0

"You can't be friends with anyone if you aren't friends with yourself."
"I'd rather be hated for who I am, than loved for who I'm not." -André Gide
Give me a lever long enough, and a fulcrum on which to place it and I shall move the world.
–Archimedes
Defeat is always momentary.
–Carl Denham

Current Project: None, I'm in Spudremission.
User avatar
maverik94
Colonel
Colonel

Posts: 558
Joined: Wed Jan 21, 2009 4:48 pm
Reputation: 0

Unread postAuthor: CpTn_lAw » Wed May 20, 2009 4:22 pm

Why not invent something new yourself?
  • 0

"J'mets mes pieds où j'veux, et c'est souvent dans la gueule."
User avatar
CpTn_lAw
Brigadier General
Brigadier General

Posts: 987
Joined: Sun Sep 11, 2005 9:10 am
Location: France
Reputation: 0

Unread postAuthor: Brian the brain » Wed May 20, 2009 4:45 pm

Using epoxy will likely give you problems.
You can build a hammer valve like that from small brass fittings without those problems.

Like said before, the oring won;t work.Use a flat rubber washer and superglue it in place.

You will have to go small caliber on this one, just because of the countering force behind the hammer valve at 400 psi.
This means you;ll have to use a small diameter valve, wich limits your barrel size.

I'm very confident it will work based on my previous builds.
You will have to weigh power over number of shots, and you are limited in caliber by using a hammer valve.But a 6 mm 6 shooter is very cool if you do it right!

Homemade all the way baby!!
  • 0

Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
User avatar
Brian the brain
Moderator
Moderator

Posts: 3494
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Country: Netherlands (nl)
Reputation: 29

Unread postAuthor: jackssmirkingrevenge » Thu May 21, 2009 12:39 am

maverik94 wrote:I would prefer to make something completely homemade.


Why not cast your own chamber then :roll: :wink:

I think there's enough effort involved putting pre-existing components not designed for the purpose you're going to use them for together to give enough merit as a homemade project, plus it gives you a much more realistic chance of actually completing your project.
  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Unread postAuthor: maverik94 » Thu May 21, 2009 2:32 pm

yeah, I'm thinking 5/16" barrel, ok, would using steel and rubber washers instead of epoxy for the back wall of the valve and epoxy for the size reduction work?
  • 0

"You can't be friends with anyone if you aren't friends with yourself."
"I'd rather be hated for who I am, than loved for who I'm not." -André Gide
Give me a lever long enough, and a fulcrum on which to place it and I shall move the world.
–Archimedes
Defeat is always momentary.
–Carl Denham

Current Project: None, I'm in Spudremission.
User avatar
maverik94
Colonel
Colonel

Posts: 558
Joined: Wed Jan 21, 2009 4:48 pm
Reputation: 0

Unread postAuthor: jackssmirkingrevenge » Thu May 21, 2009 3:00 pm

Epoxy based construction is only as good as your ability to apply it to the design at hand, that's up to you to figure out ;)
  • 0

User avatar
jackssmirkingrevenge
Donating Member
Donating Member

Posts: 24225
Joined: Thu Mar 15, 2007 11:28 pm
Country: Holy See (Vatican City State) (va)
Reputation: 66

Unread postAuthor: maverik94 » Thu May 21, 2009 8:37 pm

i have ideas....hehe. I will upload the pics for the rest of the construction soon. As for the construction, I plan to start as soon as the school year is over (next week)
