It's winter time here so it's time to build a new cannon.
I will use something that I never used before, a sprinkler valve.
Offcourse it will be modified for pneumatic piloting.
A found a sprinkler valve in the Netherlands (online shop).
Some little specs:
Chamber: 20cm 2 1/2" steel pipe (with fittings its a bit longer)
Valve: 1" sprinkler valve rainbird
Barrel: probably 50mm pvc pipe (pressure rated 16 bar, PN16) perfect fit for golfballs
Piloting: european style blowgun
![Razz :P](./images/smilies/icon_razz.png)
Here some pics.
sprinkler valve taked apart, covered some tiny holes with epoxy, there where 3 of them, solenoid hole, vent hole en bleed hole
![Image](http://i44.photobucket.com/albums/f22/airpress/IMG_1584_zps175ce28e.jpg~original)

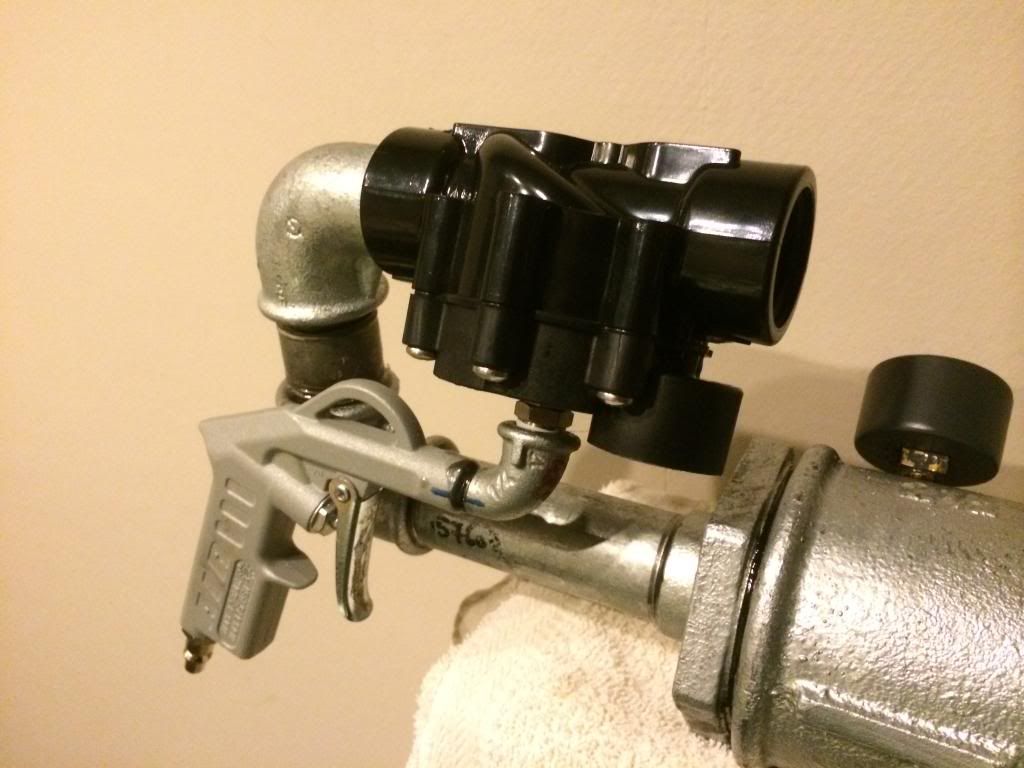

blowgun mounted on the valve
![Image](http://i44.photobucket.com/albums/f22/airpress/IMG_1593_zps4c6f59cd.jpg~original)
![Image](http://i44.photobucket.com/albums/f22/airpress/IMG_1592_zpseb0970fb.jpg~original)
![Image](http://i44.photobucket.com/albums/f22/airpress/IMG_1591_zps8b00e75f.jpg~original)

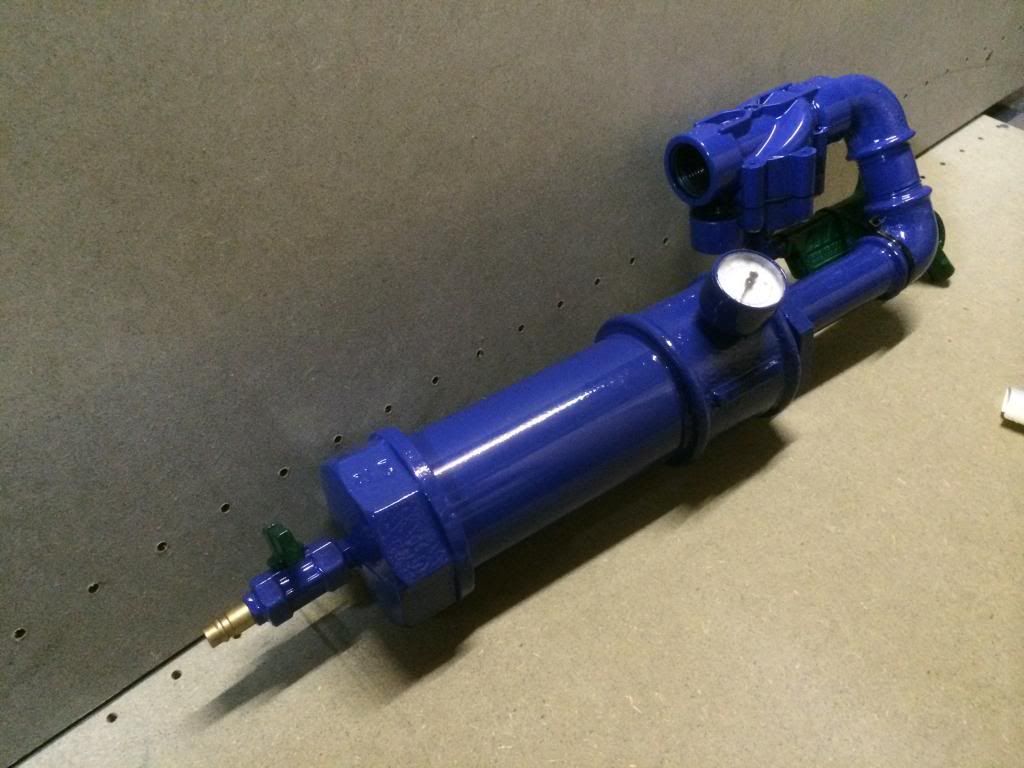

filling valve on the left side
![Image](http://i44.photobucket.com/albums/f22/airpress/IMG_1588_zps650597ed.jpg~original)
More coming soon!
Greetz Airpress
