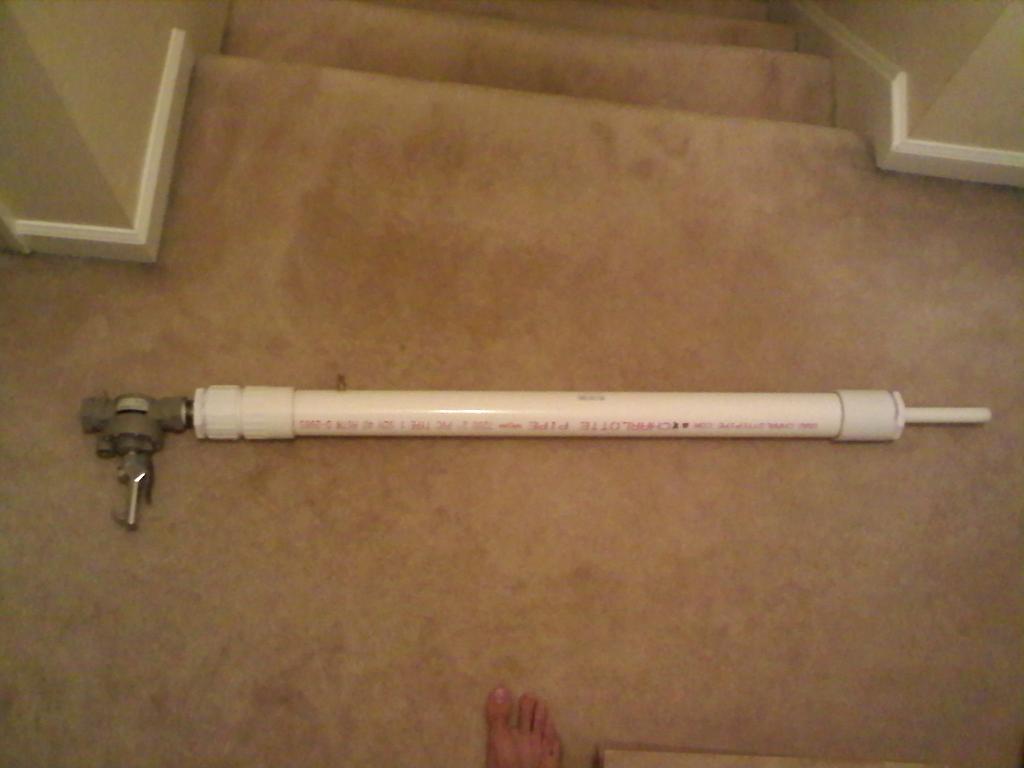

This is my second cannon actually submitted to the site, however it is one of many that I have built. It is a coaxial piston cannon with a 2'' chamber and 1/2'' barrel and seals like a dream using a 1.5'' end cap and a spring. I will soon post pictures of the inside because I machined the barrel stabilizer and I am proud of it lol. The pilot valve is a 1'' sprinkler valve thats modded and I will soon be putting two handles on it made out of 2'' tees and dropping a hose down from the sprinkler valve so i can put the blowgun on one of the handles. I would eventually love to get some regulated co2 onboard this baby but dont have enough money . I have only taken it up to 80 psi and it does not leak one bit and I have only shot AA batteries because I cant think or find any other ammo right now. Let me know what you think and please please make any suggestions. And the video is also pretty cool. Questions welcome!
[youtube][/youtube]
New Coaxial Piston Cannon
- Gippeto
- First Sergeant 3
- Posts: 2503
- Joined: Sat Jan 19, 2008 10:14 am
- Location: Soon to be socialist shit hole.
- Has thanked: 2 times
- Been thanked: 17 times
I like the co-ax!
Lot's of differential to open the piston quickly, and lots of pilot valve flow to avoid recompression.
Personally, I'd ditch the spring, you don't need it.
But hey, it seems to work well, and if you're happy with it, why would you care what I think?
Good job!
Lot's of differential to open the piston quickly, and lots of pilot valve flow to avoid recompression.
Personally, I'd ditch the spring, you don't need it.
But hey, it seems to work well, and if you're happy with it, why would you care what I think?
Good job!
"It could be that the purpose of your life is to serve as a warning to others" – unknown
Liberalism is a mental disorder, reality is it's cure.
Liberalism is a mental disorder, reality is it's cure.
Nice clean cannon, I haven't seen a coaxial thats filled from the chamber side before. So what's with the video anyways, 1:10 of you lighting something on fire, then 2 minutes of slow motion burning......what did you even shoot at?
"There isn't a problem in the world that can't be solved by the proper application of explosives"
- jackssmirkingrevenge
- Five Star General
- Posts: 26179
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 543 times
- Been thanked: 321 times
It's written in the video, a jar full of gasoline. Though I agree, half naked youngsters in slow motion are of considerably less interest to the majority of this forum than explosions, I would have edited the first bit out personally.Atlantis wrote:So what's with the video anyways, 1:10 of you lighting something on fire, then 2 minutes of slow motion burning......what did you even shoot at?
As to the cannon, good job, and more damage!
hectmarr wrote:You have to make many weapons, because this field is long and short life
Ah didn't notice it in the corner in tiny front combined with red/green colorblindness, way to look out for the viewer. Try cutting open a can of Sterno, lighting that and shooting it, I wonder if you'll get a more "jet" like flame following the projectile. You should add a scope and use it for Nerf darts, just don'y hurt anyone.
P.S. Clothes are great protection against burns.
P.S. Clothes are great protection against burns.
"There isn't a problem in the world that can't be solved by the proper application of explosives"
Nice cannon I'm not usually a fan of co ax's. How about a better damage video. Shooting a glass jar doesn't show much. It's like demonstrating the force of a missile by shooting through paper. Perhaps some plywood.
BTW
Whats up with the whole video in slo mo. you should just get the shot next time.
BTW
Whats up with the whole video in slo mo. you should just get the shot next time.
Watch the video it explains everything...Atlantis wrote:Nice clean cannon, I haven't seen a coaxial thats filled from the chamber side before. So what's with the video anyways, 1:10 of you lighting something on fire, then 2 minutes of slow motion burning......what did you even shoot at?
okay okay okay sorry everyone about the video... I just got a new cell phone that records at 120 frames per second so i decided to test it out. And yes that is me with my shirt off who cares lol.... ever been to a pool in your lives? Haha anyways thanks for the positives...
- Mr.Sandman
- Corporal 3
- Posts: 762
- Joined: Fri Mar 28, 2008 9:10 am
- Contact:
im starting to see more people use a sprinkler valve as a pilot. i think the first one i saw was that mini piston gun v2
