" Old Shatterhand" 5 shot mag now cycling on vid.
- Brian the brain
- Moderator
- Posts: 3496
- Joined: Mon Dec 05, 2005 2:06 am
- Location: Holland
- Been thanked: 3 times
Well...here's a proof of concept gun from your friendly forum BTB...
I had to do something to show Psy is not the only Dutchman on top...
A QEV gun, 1" reservoir, hammervalve actuated so it's repeating.
http://eurospudguns.forumsdot.com/downl ... .php?id=49

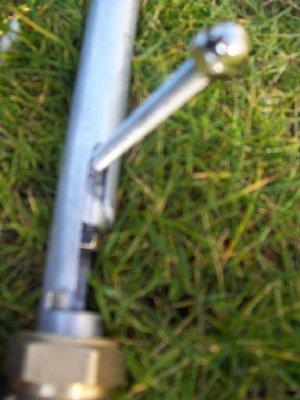

The bolt action is a little different, because it feeds through a T, wich enables me to use a solid bolt, the same diameter as the ammo.
Just one opening to seal...
http://eurospudguns.forumsdot.com/downl ... .php?id=50
A magazine will be fitted later, wich will feed ammo to the bolt.

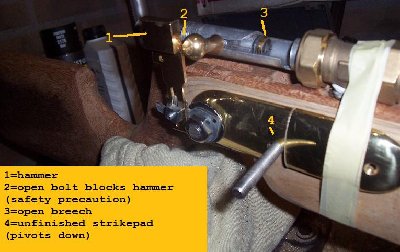

A hammer will also be fitted, wich wil be cocked by pulling back the bolt.
The bolt is solid as I mentioned, so itenabled me to tap a handle into it, not just for looks, but because this construction is stronger.
An O-rong seals it.
I get 5-6 shots out of the reservoir at 20 bar.
I mean to fill it to 45 though, so a heavy hammer will be needed.
The backpart of the bolt makes it easy to attach a hardwood handcarved stock later...
All of you can use this design, just be sure the bolt , when closed, is strong enough to take the blow.It;s gonna be next to your face.
I had to do something to show Psy is not the only Dutchman on top...
A QEV gun, 1" reservoir, hammervalve actuated so it's repeating.
http://eurospudguns.forumsdot.com/downl ... .php?id=49
The bolt action is a little different, because it feeds through a T, wich enables me to use a solid bolt, the same diameter as the ammo.
Just one opening to seal...
http://eurospudguns.forumsdot.com/downl ... .php?id=50
A magazine will be fitted later, wich will feed ammo to the bolt.
A hammer will also be fitted, wich wil be cocked by pulling back the bolt.
The bolt is solid as I mentioned, so itenabled me to tap a handle into it, not just for looks, but because this construction is stronger.
An O-rong seals it.
I get 5-6 shots out of the reservoir at 20 bar.
I mean to fill it to 45 though, so a heavy hammer will be needed.
The backpart of the bolt makes it easy to attach a hardwood handcarved stock later...
All of you can use this design, just be sure the bolt , when closed, is strong enough to take the blow.It;s gonna be next to your face.
- Attachments
Last edited by Brian the brain on Fri Nov 13, 2009 5:46 pm, edited 17 times in total.
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
-
- Corporal 3
- Posts: 734
- Joined: Mon Jun 23, 2008 3:20 pm
- Location: Texas
Piccy no worky.
Completed projects:
CA1 SMSS Basic Inline
CA3 PDAB Airburst Cannon
Current Project: Bolt action rifle (25x140mm + 1in shot)
CA1 SMSS Basic Inline
CA3 PDAB Airburst Cannon
Current Project: Bolt action rifle (25x140mm + 1in shot)
- Brian the brain
- Moderator
- Posts: 3496
- Joined: Mon Dec 05, 2005 2:06 am
- Location: Holland
- Been thanked: 3 times
I am somehow unable to include more than one picture...so I tried to embed it, but that also failed...
strange...
strange...
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Gahh! Just you wait till I get that BFWB done!
Can't wait to put my (currently being shipped) chrony in front of it!
Pics are weird, it seems like they don't want to be embedded. They dont have a .jpg extension.
Can't wait to put my (currently being shipped) chrony in front of it!
Pics are weird, it seems like they don't want to be embedded. They dont have a .jpg extension.
- Brian the brain
- Moderator
- Posts: 3496
- Joined: Mon Dec 05, 2005 2:06 am
- Location: Holland
- Been thanked: 3 times
I'm contemplating on changing this into leveraction.
I might do a pump action also.
It's all relatively simple now..
I might do a pump action also.
It's all relatively simple now..
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
very nice... I had thought about something similar to this before but was too lazy to build it
question... I'm assuming the barrel goes back into the tee a bit...but how does air get into the barrel if the o-ring seals the bolt and it is solid...
I'm kinda tired now so I'm not really thinking straight... thanks for being patient
EDIT: Does the air flow around the smaller diameter nut on the front of the bolt? I'm assuming thats what it is
question... I'm assuming the barrel goes back into the tee a bit...but how does air get into the barrel if the o-ring seals the bolt and it is solid...
I'm kinda tired now so I'm not really thinking straight... thanks for being patient
EDIT: Does the air flow around the smaller diameter nut on the front of the bolt? I'm assuming thats what it is
- Lentamentalisk
- Sergeant 3
- Posts: 1202
- Joined: Tue Aug 07, 2007 5:27 pm
- Location: Berkeley C.A.
The ammo is loaded from the back, pushed in by the bolt. The bold doesn't go into the barrel, it merely pushes the ammo into the barrel.
Do not look back, and grieve over the past, for it is gone;
Do not be troubled about the future, for it has not yet come;
Live life in the present, and make it so beautiful that it will be worth remembering.
Do not be troubled about the future, for it has not yet come;
Live life in the present, and make it so beautiful that it will be worth remembering.
- Brian the brain
- Moderator
- Posts: 3496
- Joined: Mon Dec 05, 2005 2:06 am
- Location: Holland
- Been thanked: 3 times
The bolt is plugged with a 1/4" plug.
It pushes the marble until it sits on top of the valveport.
The barrel and bolthousing are one piece.
It pushes the marble until it sits on top of the valveport.
The barrel and bolthousing are one piece.
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
- ALIHISGREAT
- Staff Sergeant 3
- Posts: 1778
- Joined: Sat Aug 25, 2007 6:47 pm
- Location: UK
what bore is it? because i would have thought the ammo might slip down toward the valve?
(and have you got a full length pic?)
(and have you got a full length pic?)
<a href="http://www.bungie.net/stats/halo3/defau ... player=ALI H IS GREAT"><img src="http://www.bungie.net/card/halo3/ALI H IS GREAT.ashx"></a>
- Brian the brain
- Moderator
- Posts: 3496
- Joined: Mon Dec 05, 2005 2:06 am
- Location: Holland
- Been thanked: 3 times
As the ( edit: original) topic title suggests, it's marble caliber, 16mm.
In the original post you'll find 2 links to pictures I can;t seem to embed.
Click 'em.One is a full length picture.
Edit:
Woopsy...No it's not
Here is the link now
http://eurospudguns.forumsdot.com/downl ... .php?id=48
In the original post you'll find 2 links to pictures I can;t seem to embed.
Click 'em.One is a full length picture.
Edit:
Woopsy...No it's not
Here is the link now
http://eurospudguns.forumsdot.com/downl ... .php?id=48
Last edited by Brian the brain on Thu Apr 16, 2009 4:46 pm, edited 1 time in total.
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
- ALIHISGREAT
- Staff Sergeant 3
- Posts: 1778
- Joined: Sat Aug 25, 2007 6:47 pm
- Location: UK
Ahh nice! it just looked a bit out of proportion in the first link.
can't wait to see it finished.
can't wait to see it finished.
<a href="http://www.bungie.net/stats/halo3/defau ... player=ALI H IS GREAT"><img src="http://www.bungie.net/card/halo3/ALI H IS GREAT.ashx"></a>
- jackssmirkingrevenge
- Five Star General
- Posts: 26183
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 547 times
- Been thanked: 326 times
Looks very promising, looking forward to seeing it complete
- Brian the brain
- Moderator
- Posts: 3496
- Joined: Mon Dec 05, 2005 2:06 am
- Location: Holland
- Been thanked: 3 times
Jack, you were a bit slow to respond this time...
Too busy trying to outdo Psycix huh?
I'll take it slow this time.
My wife complains I spend too much time on the hobby allready, with the business and all.
I also want o outdo all those new stock-rifles
Too busy trying to outdo Psycix huh?
I'll take it slow this time.
My wife complains I spend too much time on the hobby allready, with the business and all.
I also want o outdo all those new stock-rifles
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
- jackssmirkingrevenge
- Five Star General
- Posts: 26183
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 547 times
- Been thanked: 326 times
You got me there he's playing with over three times the pressure so I doubt I can outdo him in terms of power, but let's see if I can come up with something that works this timeBrian the brain wrote:Too busy trying to outdo Psycix huh?
