My Tennis Ball Pneumatic

Juicey · Wed Apr 25, 2007 1:40 pm

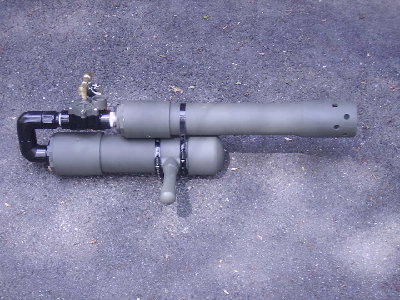

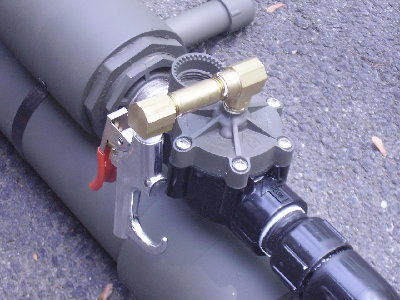

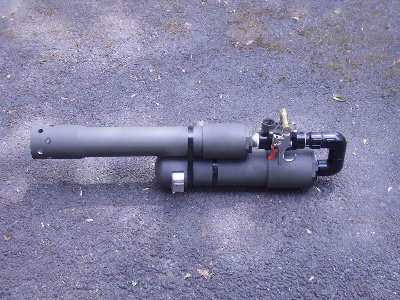

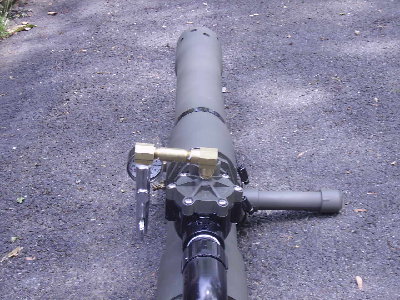

Well I finally crossed over to the dark side of pneumatic launchers. I have built a few combustions but didn't even know about air cannons until finding this site. I decided to make a tennis ball launcher in an over-under config. The chamber consists of 12" of 3" Pipe. The barrel is 18"s of 2.5" Sch40. Due to the barrel and chamber being so close I had to use a couple elbows and nipples to get the blowgun where I wanted it.

locksmith · Wed Apr 25, 2007 1:51 pm

Nice i like it alot very clean

paaiyan · Wed Apr 25, 2007 1:58 pm

Did you paint it that flat grey or did the pipe come that way?

Juicey · Wed Apr 25, 2007 2:24 pm

I painted everything myself. Still need to go back and paint the the brass parts to black and paint the exposed nipples as well. Then I think it will pretty much the way I want it.

paaiyan · Wed Apr 25, 2007 2:33 pm

That's nice, I like that flat grey. You should stensil-spray some random numbers, letters and dashes on it like a serial number. But that's just my opinion.

Juicey · Wed Apr 25, 2007 2:54 pm

Well actually I have a design im planning on using atm. Printed it out, laminated the paper, and using an arts and craft scapel, im cutting away all that I want to show. I'm just gonna wrap it around the chamber and tape it on the back then spray the design on, then remove the lamination. Hope it will work out the way I want it to.

paaiyan · Wed Apr 25, 2007 3:02 pm

Sounds like it ought to work. All these monster cannons lately, I need to set up an account (cookie jar) just to put money in to build a beast someday.

super spuder · Wed Apr 25, 2007 3:28 pm

i wish i could build a tennis ball cannon

but i don't think 2.5 inch pipe is avable in my area

. nice gun thou, how far does that thing shoot?

Juicey · Wed Apr 25, 2007 3:43 pm

Yeah I got lucky, I have a HUGE plumbing supply store right across from my house. So that makes this hobby rather convenient. I've only tested it up 40PSI so far. (Just finished it last night so I don't want to put to0 much strain on the new solvent welding) But in the test it fired between 50 and 70 yards. Was VERY quiet suprisingly. Im so use to combustion cannons leaving ringing in your ears, I was quite suprised by this one. Hope to get higher psi test fires tomorrow.

paaiyan · Wed Apr 25, 2007 3:49 pm

Quiet, that could be very useful for me. I called the people at the lake I tested my combustion at before I did it, and they didn't seem too thrilled about it, like it might be against the rules or something, haha. But I did it anyway. The first shot was about equivalent in volume to a 12-guage. I finished off the bag of potatoes and high-tailed it out oif there.

iknowmy3tables · Wed Apr 25, 2007 4:06 pm

awesome canon, the blow gun is pretty cool its sturdier than a tubing, I can also see you shoot left handed

AmYisroelChai · Wed Apr 25, 2007 4:37 pm

I like the use of the brass but just a suggestion ot help you...

Run a hose from the Sprinkler valve to the handle and attach the Bluwgun to the handle. It may things more one handed and less awkward. You will need a short peive of high pressure hose. Maybe that Plumbing Supply store.

homeflake210 · Wed Apr 25, 2007 4:57 pm

Nice, very low profile clean launcher.

rna_duelers · Wed Apr 25, 2007 5:30 pm

I must agree very nice!Love that off set blow gun and were the handle is placed,I'm guessing its used like some type of LAW or RPG shooting style.

Small guns with large bored a very fun.

Thursto · Wed Apr 25, 2007 7:15 pm

Wow thats a nice tenis ball cannon, i love the muzzle end, it makes it look sick as, espicially with the bell end type bi on your barrel, nice and clean, its noy just plain white, which i like, overall nice job man!
