Im looking to build a black iron cannon next, but i have some questions and there is very little answers in the forums. First of all, is there a difference between black iron and malleable black iron, and would either be acceptable? Also the pipe and fittings just screw together, right, so all i would need is some teflon tape? This cannon will have a 3/4" QEV from McMaster as a valve, and i am planning to attach a 1/4" tee off the pilot area with a blowgun on one side, and a mini ball valve with a schrader on the other. Will this work for me? Thank you for anyone's help!
User avatar
noname
First Sergeant 4
First Sergeant 4
Posts: 2698
Joined: Mon Apr 10, 2006 9:19 pm
Location: Bay Area, CA

Tue Jul 10, 2007 11:21 am

Both types of pipe will work, and your setup should work also. Yes, you need teflon tape, but I'd advise getting 3 or 4 rolls of it. I use about 8 inches of it for each 1/4" joint, and a bunch more for others. Do I get leaks in anything? No way.

Also, a good way to wrap the tape:
Hold the fitting so that the male threads are pointing to the left. Get a length of teflon tape, put the end of the strip on the threads, and then wrap it in the downwards direction.
This is the only way I can ever wrap teflon tape correctly; if you wrap it the wrong way (clockwise), it will get taken off when you screw the fitting in and will leak.

Edit: Another sure fire way of keeping threads sealed is globbing silicone sealant all over them, then screwing them together. I use sealant on all joints over 1" because they waste too much teflon tape. The silicone sealant holds upwards over 350 psi, but with a vice and some elbow grease you can get them apart later.
Last edited by noname on Tue Jul 10, 2007 11:33 am, edited 1 time in total.
User avatar
potatoflinger
Sergeant 2
Sergeant 2
Posts: 1136
Joined: Thu Nov 02, 2006 3:26 pm
Location: Maryland

Tue Jul 10, 2007 11:25 am

I don't know the difference between black iron and malleable black iron, but I have made two cannons out of black iron (not sure which type, but it said it was rated to 150 psi), and they work beautifully. And yes, if the pipe is threaded, the only thing you will need is teflon tape.
User avatar
pvcmaster
Specialist
Specialist
Posts: 109
Joined: Mon May 07, 2007 6:41 pm
Location: Perkasie, Pennsylvania

Tue Jul 10, 2007 11:34 am

OK, thanks for both of your help.
User avatar
Flying_Salt
Corporal 3
Corporal 3
Posts: 779
Joined: Mon Oct 09, 2006 4:57 pm
Location: Texas

Tue Jul 10, 2007 11:42 am

Here is a small black iron qev cannon. It pretty much answers your questions...
sgort87 wrote: I hereby present Flying_Salt with The one and only <a href="http://www.geocities.com/sgort87/ghetto">Ghetto Award!</a>
User avatar
pvcmaster
Specialist
Specialist
Posts: 109
Joined: Mon May 07, 2007 6:41 pm
Location: Perkasie, Pennsylvania

Tue Jul 10, 2007 11:47 am

Yes, i did look at that cannon, but i fail to see the ball valve underneath the quick connect.

anyway, i noticed some people mentioning that these types of cannons are used in the winter. Is there something wrong with pvc in the cold weather?
User avatar
noname
First Sergeant 4
First Sergeant 4
Posts: 2698
Joined: Mon Apr 10, 2006 9:19 pm
Location: Bay Area, CA

Tue Jul 10, 2007 11:53 am

PVC gets even more brittle in cold weather, thus raising the chance of pipe failure.
acoop101
Private 2
Private 2
Posts: 26
Joined: Tue Feb 06, 2007 8:03 pm

Thu Jul 12, 2007 6:51 pm

cast iron pipe fittings are only rated up to 125 psi, while I am sure that there is a large difference between the max working load and the destruction pressure I would never ever want to go over the working load.
acoop101
Private 2
Private 2
Posts: 26
Joined: Tue Feb 06, 2007 8:03 pm

Thu Jul 12, 2007 7:00 pm

if you are going to order form McMaster check out the presure ratings, they do have them on all of there black pipe fittings. The foraged steel fittings are rated up to 3000 p.s.i. but they do cost about three times as much.
Safety first
User avatar
pvcmaster
Specialist
Specialist
Posts: 109
Joined: Mon May 07, 2007 6:41 pm
Location: Perkasie, Pennsylvania

Tue Jul 17, 2007 7:33 pm

I am assembling the cannon now, and I am having some trouble tightening the endcap and elbow onto the main chamber nipple. Underwater they leak like crazy, and i dont have anything to grab on to to tighten them. Anyone have any suggestions?
User avatar
frankrede
Sergeant Major 2
Sergeant Major 2
Posts: 3220
Joined: Thu Jul 20, 2006 9:47 pm
Has thanked: 1 time
Been thanked: 1 time

Tue Jul 17, 2007 7:55 pm

Try using teflon paste, it is about a dollar and it comes ina white tube, always seals my leaky threads.
Current project: Afghanistan deployment
SpudBlaster15
First Sergeant 3
First Sergeant 3
Seychelles
Posts: 2400
Joined: Wed Oct 18, 2006 11:12 pm
Has thanked: 2 times
Been thanked: 10 times

Tue Jul 17, 2007 8:13 pm

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras nec placerat erat. Vivamus dapibus egestas nunc, at eleifend neque. Suspendisse potenti. Sed dictum lacus eu nisl pretium vehicula. Ut faucibus hendrerit nisi. Integer ultricies orci eu ultrices malesuada. Fusce id mauris risus. Suspendisse finibus ligula et nisl rutrum efficitur. Vestibulum posuere erat pellentesque ornare venenatis. Integer commodo fermentum tortor in pharetra. Proin scelerisque consectetur posuere. Vestibulum molestie augue ac nibh feugiat scelerisque. Sed aliquet a nunc in mattis.
Last edited by SpudBlaster15 on Wed Jul 14, 2021 4:49 pm, edited 1 time in total.
User avatar
potatoflinger
Sergeant 2
Sergeant 2
Posts: 1136
Joined: Thu Nov 02, 2006 3:26 pm
Location: Maryland

Tue Jul 17, 2007 8:30 pm

pvcmaster wrote:I am assembling the cannon now, and I am having some trouble tightening the endcap and elbow onto the main chamber nipple. Underwater they leak like crazy, and i dont have anything to grab on to to tighten them. Anyone have any suggestions?

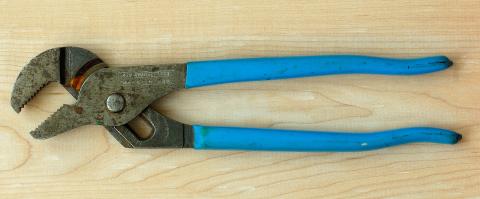

Try using an adjustable wrench like this one:
Attachments
User avatar
DYI
First Sergeant 5
First Sergeant 5
Antigua & Barbuda
Posts: 2862
Joined: Sat Jul 07, 2007 8:18 pm
Location: Here and there

Tue Jul 17, 2007 8:36 pm

Or you could just use a proper pipe wrench.
SB15: But have you calculated the bursting pressure of the fittings? I am almost sure that they would fail long before the pipe would, unless they actually are the 3000 or 6000 PSI rated fittings from McMaster.
