Larda's Coaxial Piston Valve (injector!) pneumatic.

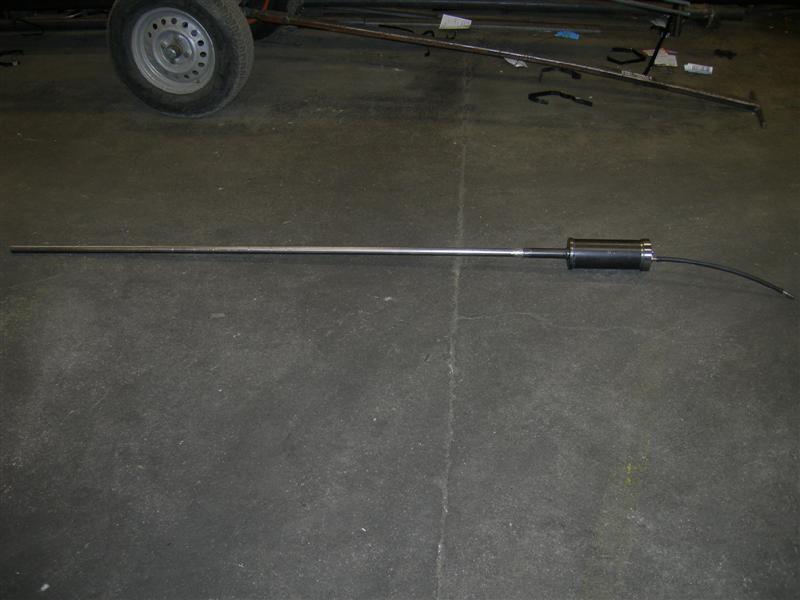

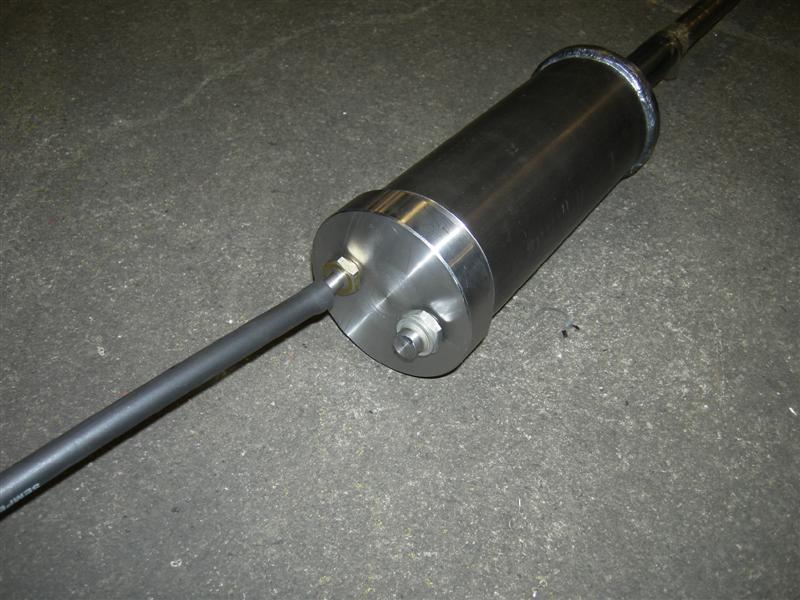

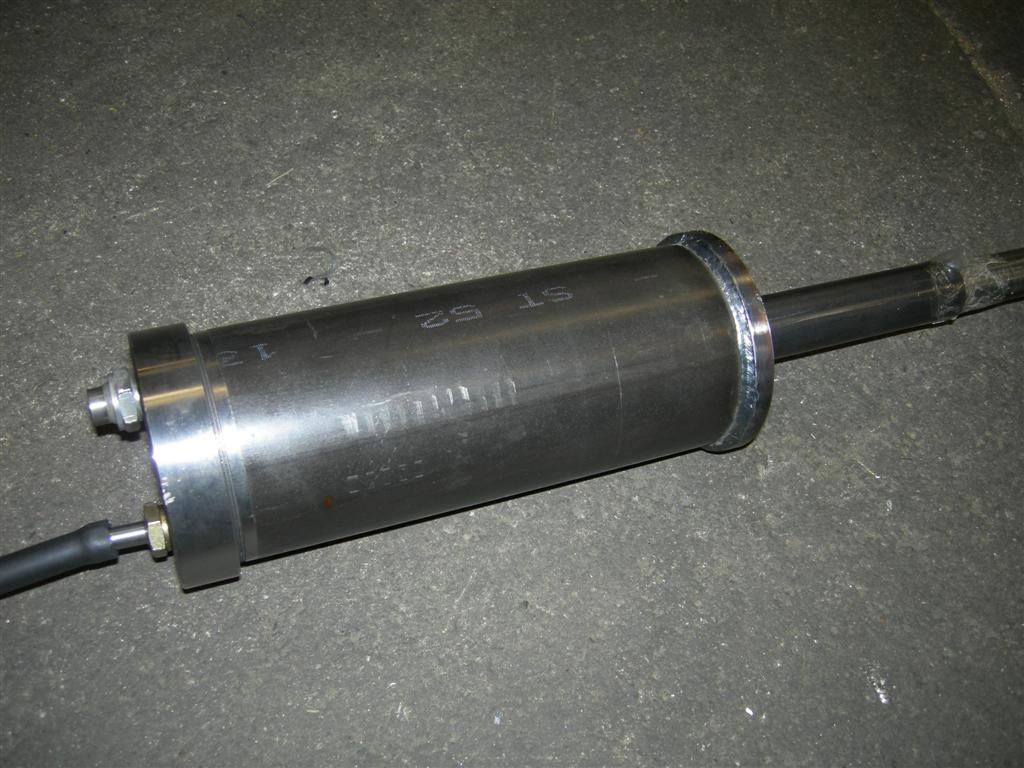

This is a Coaxial Piston Valve pneumatic made by my friend Larda.
It is a Injector made for his upcomming railgun projcet (!) but that doesn't stop him from taking the gun out for a spin.
it uses the method explained at http://www.spudfiles.com/forums/piston- ... t8157.html

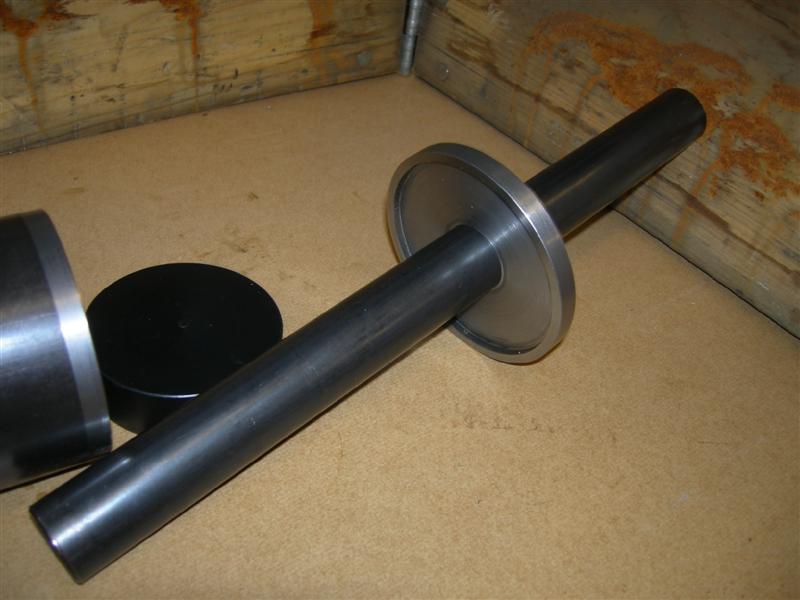

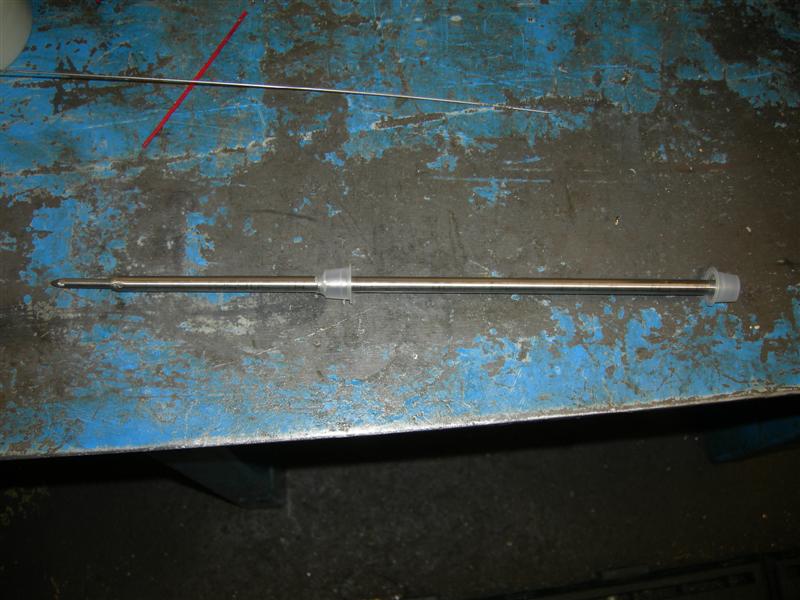

well, I let the pictures speak for them self.
It is a Injector made for his upcomming railgun projcet (!) but that doesn't stop him from taking the gun out for a spin.
it uses the method explained at http://www.spudfiles.com/forums/piston- ... t8157.html
well, I let the pictures speak for them self.
- jackssmirkingrevenge
- Five Star General
- Posts: 26179
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 543 times
- Been thanked: 321 times
beautifully built and impressive penetration, what's the thickness of that plate?
The railgun idea makes supersonic velocities well within reach if he's got enough power to spare, looking forward to see the final product
edit: what pressures is he using? for that barrel length it looks like the chamber is a little small if using conventional compressor pressures (100-150 psi)
The railgun idea makes supersonic velocities well within reach if he's got enough power to spare, looking forward to see the final product
edit: what pressures is he using? for that barrel length it looks like the chamber is a little small if using conventional compressor pressures (100-150 psi)
Last edited by jackssmirkingrevenge on Wed Jul 18, 2007 8:14 am, edited 2 times in total.
hectmarr wrote:You have to make many weapons, because this field is long and short life
- spudthug
- Corporal 5
- Posts: 936
- Joined: Mon Feb 26, 2007 9:02 pm
- Location: johnsonburg, Pa USA
- Contact:
that coax is awesome! could u give us some specs? and what that piston is?
4" piston valved cannon-half done..( i spilt my cement...)
Hybrid- 75% done. need to build propane holder and drill/tap sparkplug hole..
Hybrid- 75% done. need to build propane holder and drill/tap sparkplug hole..
- jackssmirkingrevenge
- Five Star General
- Posts: 26179
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 543 times
- Been thanked: 321 times
looks like your friend has his work cut out - I'm surprised at the short barrel length of the aforementioned project, as the builder states ideally the "injection" velocity should be as fast as possible, and with 500 psi of nitrogen on tap, a QEV and much longer barrel would potentially offer near-supersonic velocities to begin with.
hectmarr wrote:You have to make many weapons, because this field is long and short life
- dauphinoise potato
- Specialist
- Posts: 105
- Joined: Sun Jul 15, 2007 8:36 am
That is a really nice cannon do you know what diameter barrel that is?
- iPaintball
- Corporal 2
- Posts: 695
- Joined: Sun Mar 04, 2007 8:37 pm
Wow. Did you machine all of the parts? They look so perfect. Your barrel looks a bit long though.
Summer Projects:
CO2 tank hybrid: Gotta fix the meter
Cane gun: Needs a pilot/fill setup
1.5" piston valve gun: Almost done
CO2 tank hybrid: Gotta fix the meter
Cane gun: Needs a pilot/fill setup
1.5" piston valve gun: Almost done

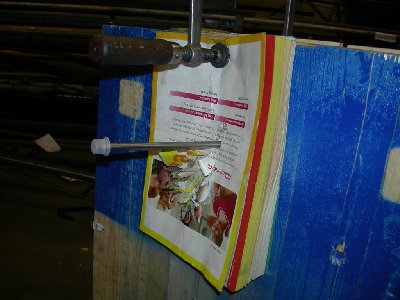

The wood is 1inch thick and i think the steel is 2mm (0.079 Inch).jackssmirkingrevenge wrote:beautifully built and impressive penetration, what's the thickness of that plate?
The rail-gun idea makes supersonic velocities well within reach if he's got enough power to spare, looking forward to see the final product
edit: what pressures is he using? for that barrel length it looks like the chamber is a little small if using conventional compressor pressures (100-150 psi)
Right now i using 7bar (100psi) but its good for much more.
The barrel gives a nice fit with 20mm ballberings, the reason the barrel is so long is that this only was a quick test and i didn't want to destroy the pipe.

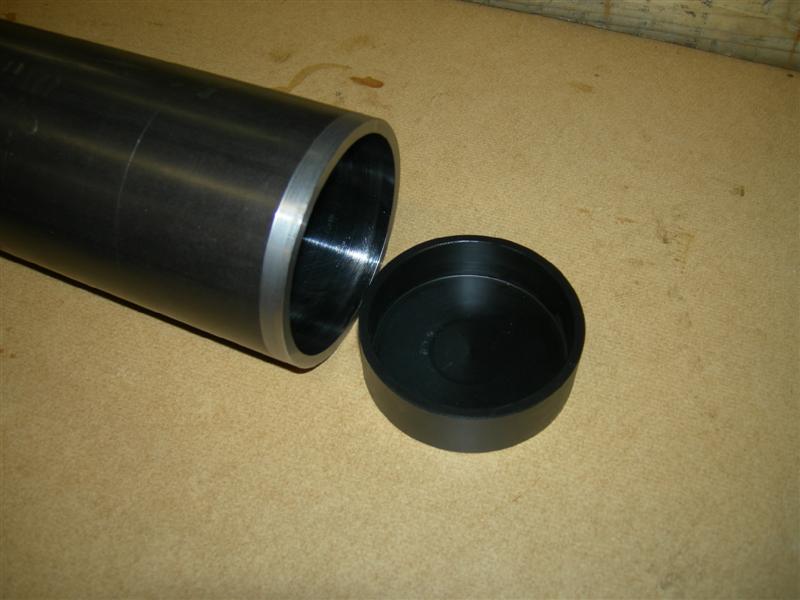

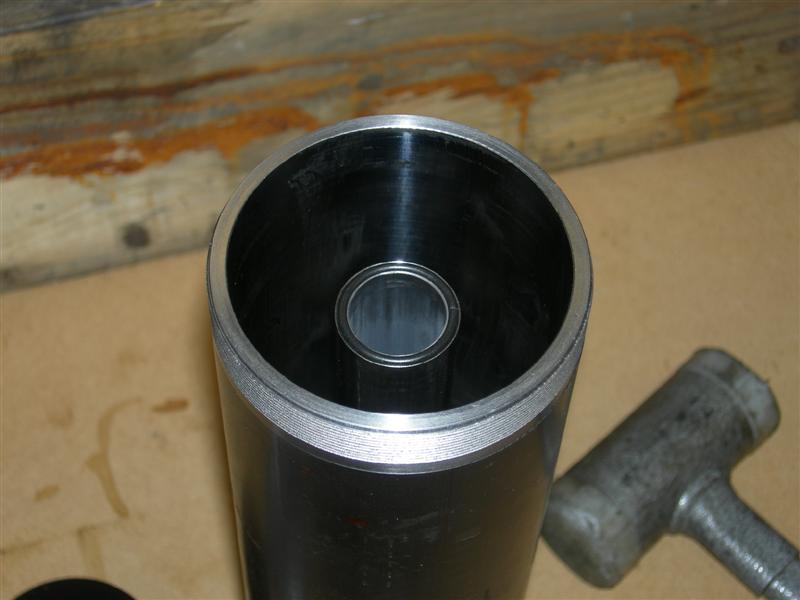

The chamber is 90mmID and the length is about 250mm (i don't have the exact numbers i my head) and is made of Hydraulic Cylinder Tubing , the piston is machined of Acetal POM plastic.
With the rail-gun i aiming for supersonic and i think i have enough power.
The capacitor bank will consist of 24, 15000uF 400V capacitors with a total energy of 28,8Kj.

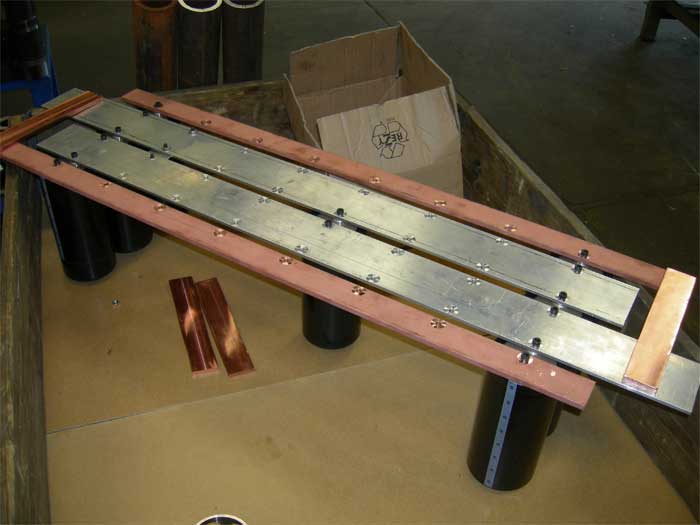

Her is a some videos of a few test shoot and a picture of the almost finished Capacitor Bank.
http://www.hv4all.com/aircanon/skott1.wmv 2.2Mb
http://www.hv4all.com/aircanon/skott2.wmv 2.1Mb
http://www.hv4all.com/aircanon/skott3.wmv 1.8Mb
http://www.hv4all.com/aircanon/skott4.wmv 6.1Mb
http://www.hv4all.com/aircanon/skott5.wmv 5.7Mb
- Attachments
-
- bank_provmont.jpg (29.05 KiB) Viewed 6730 times
Last edited by Larda on Wed Jul 18, 2007 4:38 pm, edited 1 time in total.
-
- Staff Sergeant
- Posts: 1596
- Joined: Fri Dec 15, 2006 3:57 pm
- Location: maryland
- Has thanked: 3 times
- Been thanked: 9 times
- Fnord
- First Sergeant 2
- Posts: 2239
- Joined: Tue Feb 13, 2007 9:20 pm
- Location: Pripyat
- Been thanked: 1 time
- Contact:
Can you post a picture of the railgun too? I'd like to see it.(I'm a dialup loser and can't watch the videos)
Do round projectiles really work? I would think the contact area would be to small for the current to be dumped effectively.
Oh, and nice coax/injector:)
Do round projectiles really work? I would think the contact area would be to small for the current to be dumped effectively.
Oh, and nice coax/injector:)
Thanks,
In the railgun i wont be using round projectiles, as you said you want maximum contact area between the projectile and the rails.
The railgun isn't finished yet so i don't have any picture.
Before i continue with the construction of the railgun itself i must finish my cnc mill.

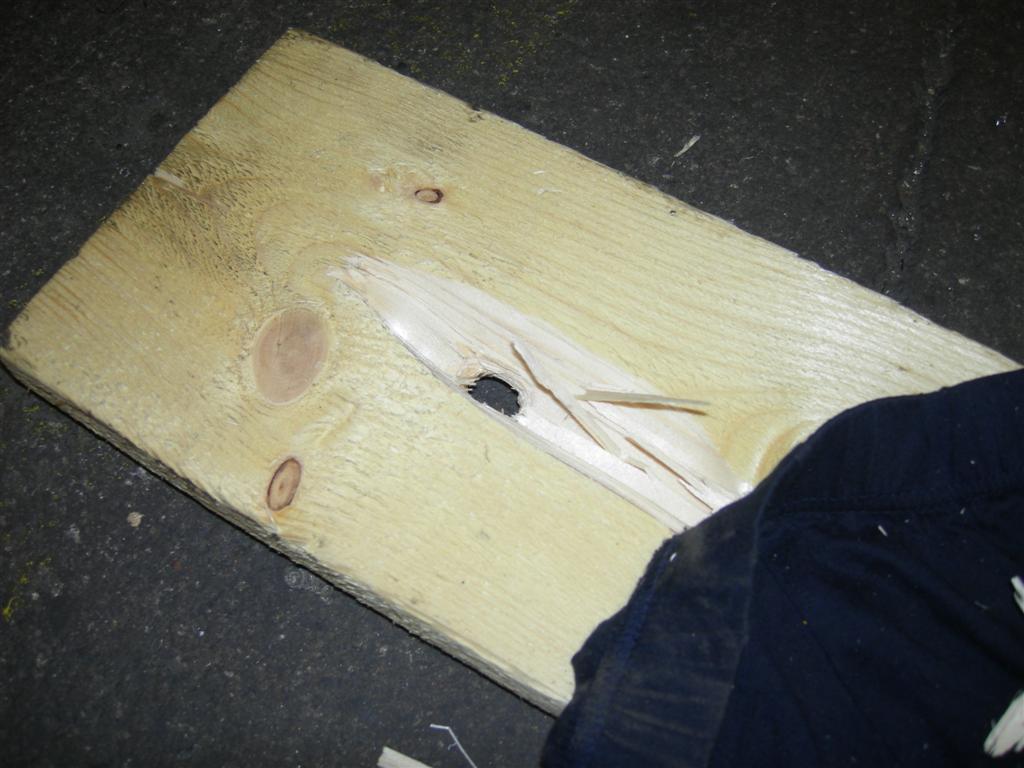

Here is some more Damage Pict's if you want.
In the railgun i wont be using round projectiles, as you said you want maximum contact area between the projectile and the rails.
The railgun isn't finished yet so i don't have any picture.
Before i continue with the construction of the railgun itself i must finish my cnc mill.
Here is some more Damage Pict's if you want.
