What I've been working on

Harness the power of precision mixtures of pressurized flammable vapor. Safety first! These are advanced potato guns - not for the beginner.
User avatar
Fnord
First Sergeant 2
First Sergeant 2
Posts: 2239
Joined: Tue Feb 13, 2007 9:20 pm
Location: Pripyat
Been thanked: 1 time
Contact:

Mon Jun 23, 2008 5:51 pm

Seeing as I haven't posted anything interesting in a while, I guess I'll slip a little.

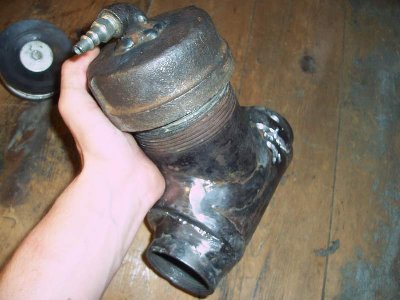

This is a 2" porting, steel inline piston valve I made in my spare time at my new job. It still needs some grinding and a finished piston, but it seems to be functioning very well even though the piston isn't even sealed/epoxied yet.

I may coat the outside in bondo and sand it down to make a nice smooth surface. I don't like the uneven look of freshly ground welds.

Feel free to spam/speculate away!
Attachments

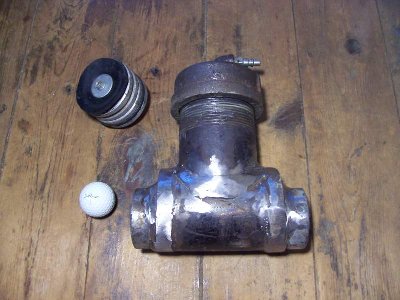

The piston uses a floating oring, meaning it will seal perfectly when the pressure in the back is lower than the front, but not the other way around.
The piston uses a floating oring, meaning it will seal perfectly when the pressure in the back is lower than the front, but not the other way around.

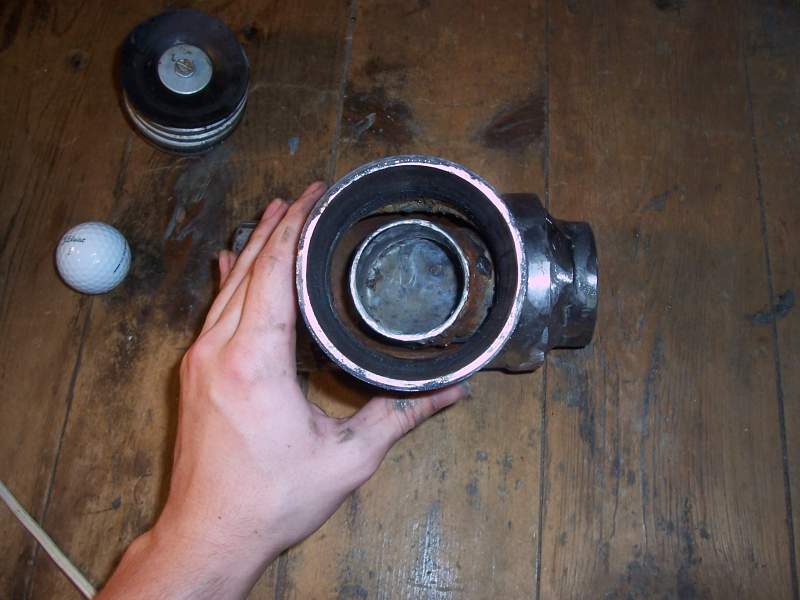

Seat hasn't been smoothed yet, but it seals fine the way it is.
Seat hasn't been smoothed yet, but it seals fine the way it is.
e1337
Specialist
Specialist
Posts: 110
Joined: Mon May 28, 2007 8:00 pm
Location: Florida

Mon Jun 23, 2008 5:59 pm

Damn, thats amazing. What mix do you plan on using? Can't wait to see this thing in action. I look forward to see the bondo finish.

e1337
Super Sonic Helium-Powered Coaxial Coming-Up...
User avatar
FishBoy
Corporal
Corporal
Posts: 575
Joined: Tue May 27, 2008 5:51 am

Mon Jun 23, 2008 6:23 pm

i like it, what are you planning on using it for?
User avatar
mark.f
Sergeant Major 4
Sergeant Major 4
Eritrea
Posts: 3628
Joined: Sat May 06, 2006 11:18 am
Location: The Big Steezy
Has thanked: 52 times
Been thanked: 53 times
Contact:

Donating Members

Mon Jun 23, 2008 8:23 pm

So it's similar to a sprinkler valve in operation (with the ports switched around to be "barrel sealing")?

I haven't posted in a while either, but I can't say I've been doing anything meaningful in my absence. :wink:
sandman
Corporal 2
Corporal 2
Posts: 672
Joined: Thu Mar 15, 2007 6:59 pm

Mon Jun 23, 2008 8:25 pm

well, 6 more posts and you dont have to do anything meaningful cause ul be 1337 :wink:
THUNDERLORD
Sergeant 3
Sergeant 3
Posts: 1264
Joined: Fri Mar 28, 2008 1:42 pm

Mon Jun 23, 2008 8:52 pm

Hope it's a piston hybrid.
More pics/completed!!! (Please)
I've enjoyed all your builds! :wink: 8)
-----SPEED,STRENGTH, AND ACCURACY.-----
"Procrastination" is five syllables for "Sloth".
Theopia 8)
Born To Be Alive!
User avatar
SpudFarm
First Sergeant 3
First Sergeant 3
Posts: 2571
Joined: Sat Nov 04, 2006 9:39 am
Location: Norway Trondheim area

Donating Members

Tue Jun 24, 2008 2:21 pm

that is freaking HUGE!

what do you plan on using it for? (scale?)
"Made in France"
- A spud gun insurance.
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

Tue Jun 24, 2008 2:45 pm

LOL that's awesome... please tell me it's not going to be a handheld launcher
Last edited by POLAND_SPUD on Tue Jun 24, 2008 3:03 pm, edited 1 time in total.
Children are the future

unless we stop them now
User avatar
SpudFarm
First Sergeant 3
First Sergeant 3
Posts: 2571
Joined: Sat Nov 04, 2006 9:39 am
Location: Norway Trondheim area

Donating Members

Tue Jun 24, 2008 2:54 pm

if it was handheld it would be a plane because of the recoil :P
"Made in France"
- A spud gun insurance.
User avatar
Fnord
First Sergeant 2
First Sergeant 2
Posts: 2239
Joined: Tue Feb 13, 2007 9:20 pm
Location: Pripyat
Been thanked: 1 time
Contact:

Tue Jun 24, 2008 6:19 pm

i like it, what are you planning on using it for?
My next big project obviously, which being in the hybrid section would make it my next big hybrid project :)
So it's similar to a sprinkler valve in operation (with the ports switched around to be "barrel sealing")?
To my knowledge, yes. I thought most sprinklers were barrel sealers though (?). I've never seen one in person, actually.
what do you plan on using it for? (scale?)
freaking HUGE!
(I think I gave you a rough idea in a pm once. It's not crazy huge, but easily considered "full-size".)

-----------
LOL that's awesome... please tell me it's not going to be a handheld launcher
OK, I won't tell you.
User avatar
Ragnarok
Captain
Captain
Posts: 5401
Joined: Tue Dec 19, 2006 8:23 am
Location: The UK

Tue Jun 24, 2008 6:25 pm

_Fnord wrote:
LOL that's awesome... please tell me it's not going to be a handheld launcher
OK, I won't tell you.
...Umm, you are joking... right?

Or do you like entering orbit every time you fire?
Does that thing kinda look like a big cat to you?
User avatar
SpudFarm
First Sergeant 3
First Sergeant 3
Posts: 2571
Joined: Sat Nov 04, 2006 9:39 am
Location: Norway Trondheim area

Donating Members

Tue Jun 24, 2008 6:29 pm

oh.. that hybrid :D
"Made in France"
- A spud gun insurance.
User avatar
Fnord
First Sergeant 2
First Sergeant 2
Posts: 2239
Joined: Tue Feb 13, 2007 9:20 pm
Location: Pripyat
Been thanked: 1 time
Contact:

Tue Jun 24, 2008 6:39 pm

...Umm, you are joking... right?

Or do you like entering orbit every time you fire?
Keep in mind the power will be limited by the how heavy it can be (the valve weighs around 10 lbs by itself).
The weight will also help with recoil; I have a combustion launcher of comparable weight and power which still has considerable recoil, but based on my observations so far, it should be survivable* with a heavily padded stock.
It might end up being the most powerful handheld out there though. For a while at least.

Edit: though if I had access to titanium, I'd be using the recoil to jump between rooftops in some bizarre combination of spudding/parkour/quake3.

*Fun
