Harness the power of precision mixtures of pressurized flammable vapor. Safety first! These are advanced potato guns - not for the beginner.
-
pat123
- Corporal
![Corporal Corporal](./images/ranks/10_corporal.png)
- Posts: 514
- Joined: Sat Dec 23, 2006 10:08 pm
- Location: S.C.
-
Contact:
Sat Apr 19, 2008 10:15 pm

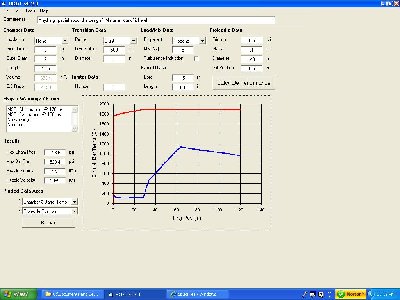

look at the chamber temperature is that right? over 3500 degrees fahrenheit
and what is chamber burnout?
-
Attachments
-
![big hybrid hgdt.JPG (99.99 KiB) Viewed 2378 times big hybrid hgdt.JPG](./download/file.php?id=9851&t=1&sid=f037d359ccf0d6ad8b42b9e5ff8021a7)
-
D_Hall
- Staff Sergeant 5
![Staff Sergeant 5 Staff Sergeant 5](./images/ranks/24_staffsergeant5.png)
![United States of America United States of America](./ext/rmcgirr83/nationalflags/flags/us.png)
- Posts: 1914
- Joined: Thu Feb 07, 2008 7:37 pm
- Location: SoCal
- Has thanked: 7 times
- Been thanked: 41 times
Sat Apr 19, 2008 10:40 pm
Yeah, propane burns hot, ya know.
Chamber burnout = The point at which all fuel/air in the chamber have burned. Note that this is NOT the same thing as all fuel/air in the entire system.... When the disc bursts, unburned fuel/air is pushed into the barrel. This fuel/air is NOT burned at the time of chamber burnout.
Now, I'll give you three guesses as to what the meaning of Bar Burnout is.
![Wink ;)](./images/smilies/icon_e_wink.png)
-
bigbob12345
- Staff Sergeant
![Staff Sergeant Staff Sergeant](./images/ranks/20_staffsergeant.png)
- Posts: 1516
- Joined: Sat Dec 01, 2007 9:13 am
- Location: Mercer Island,Washington
Sat Apr 19, 2008 10:55 pm
Well what does everybody use to make hybrids?
And do they have problems with the heat?
The high temp happens so shortly that even pvc chambers wont be affected at all(other than the fact it may burst from the extreme pressure generated
![Rolling Eyes :roll:](./images/smilies/icon_rolleyes.png)
)
-
SpudFarm
- First Sergeant 3
![First Sergeant 3 First Sergeant 3](./images/ranks/27_firstsergeant3.png)
- Posts: 2571
- Joined: Sat Nov 04, 2006 9:39 am
- Location: Norway Trondheim area
Sun Apr 20, 2008 6:33 am
steel can handle the temp..
it is in a very few ms.
"Made in France"
- A spud gun insurance.
-
VH_man
- Staff Sergeant 4
![Staff Sergeant 4 Staff Sergeant 4](./images/ranks/23_staffsergeant4.png)
- Posts: 1827
- Joined: Sat Dec 09, 2006 6:00 pm
- Location: New Hampshire
- Been thanked: 1 time
Sun Apr 20, 2008 6:57 am
whats with the "insulation" part? my FPS increases significantly when i insulate my chamber........... wich kind of baffles me.
-
DYI
- First Sergeant 5
![First Sergeant 5 First Sergeant 5](./images/ranks/29_firstsergeant5.png)
![Antigua & Barbuda Antigua & Barbuda](./ext/rmcgirr83/nationalflags/flags/ag.png)
- Posts: 2862
- Joined: Sat Jul 07, 2007 8:18 pm
- Location: Here and there
Sun Apr 20, 2008 9:19 am
whats with the "insulation" part? my FPS increases significantly when i insulate my chamber........... wich kind of baffles me.
Insulation decreases heat loss, all pressure in chamber is heat, etc...
And I'll bet that the reason the burnout messages came up is because your chamber is so ridiculously oversized in comparison to your barrel. Something to do with the fact that the gases haven't fully burned until quite a while after the projectile leaves the barrel.
Spudfiles' resident expert on all things that sail through the air at improbable speeds, trailing an incandescent wake of ionized air, dissociated polymers and metal oxides.
-
pat123
- Corporal
![Corporal Corporal](./images/ranks/10_corporal.png)
- Posts: 514
- Joined: Sat Dec 23, 2006 10:08 pm
- Location: S.C.
-
Contact:
Sun Apr 20, 2008 10:14 am
And I'll bet that the reason the burnout messages came up is because your chamber is so ridiculously oversized in comparison to your barrel.
probably 28.5:1 c:b ratio
-
boilingleadbath
- Staff Sergeant 2
![Staff Sergeant 2 Staff Sergeant 2](./images/ranks/21_staffsergeant2.png)
- Posts: 1635
- Joined: Sat Mar 12, 2005 10:35 pm
- Location: Pennsylvania, USA
Sun Apr 20, 2008 10:19 am
The wall never gets very hot, because the gases don't transfer heat to the wall very fast, at least compared to the rate of heat conduction inside the wall. This holds true even in plastics.
-
jimmy101
- Sergeant Major
![Sergeant Major Sergeant Major](./images/ranks/30_sergeantmajor.png)
![United States of America United States of America](./ext/rmcgirr83/nationalflags/flags/us.png)
- Posts: 3197
- Joined: Wed Mar 28, 2007 9:48 am
- Location: Greenwood, Indiana
- Has thanked: 5 times
- Been thanked: 15 times
-
Contact:
Sun Apr 20, 2008 11:01 am
Not only do the gases transfer heat relatively slowly, but more importantly, there just isn't that much energy in the gases. Doesn't really matter how hot the gases are, the mass of the gases is so small compared to the mass of the gun that the temperature rise of the gun is minimal.
Even in a closed chamber plastic has no problem handling the heat in the combustion gases. A moderate sized PVC chamber buring 1x propane in air only heats up couple degrees C. The thin layer of PVC in actual contact with the gases gets hotter, but it still isn't hot enough to affect the plastic.
-
JDP12
- Staff Sergeant 5
![Staff Sergeant 5 Staff Sergeant 5](./images/ranks/24_staffsergeant5.png)
- Posts: 1943
- Joined: Fri Mar 30, 2007 8:34 pm
Sun Apr 20, 2008 7:12 pm
2 things: 1) what is ignition number? number of spark gaps?
2) why is there a blue line as well? Whenever i run it i only get a red line
"Some say his pet elephant is pink, and that he has no understanding of "PG rated forum". All we know is, he's called JSR. "
