Shear discs?
- D_Hall
- Staff Sergeant 5
- Posts: 1914
- Joined: Thu Feb 07, 2008 7:37 pm
- Location: SoCal
- Has thanked: 7 times
- Been thanked: 41 times
I'm thinking that for a large bore gun burst discs can be problematic. It occurs to me however, that a solution may be a shear disc instead. More to the point... A disc with a thin permitter and thicker middle that forms the aft end of the projectile. The disc is held firmly at the breech end much as a burst disc would be.
When the gun comes up to pressure, instead of bursting a disc, this disc simply shears around the perimeter.
Make sense?
Anybody else ever try this?
Thoughts?
When the gun comes up to pressure, instead of bursting a disc, this disc simply shears around the perimeter.
Make sense?
Anybody else ever try this?
Thoughts?
- Technician1002
- Captain
- Posts: 5189
- Joined: Sat Apr 04, 2009 11:10 am
It is used commercially in disposable tanks. They call them rupture disks.D_Hall wrote:I'm thinking that for a large bore gun burst discs can be problematic. It occurs to me however, that a solution may be a shear disc instead. More to the point... A disc with a thin permitter and thicker middle that forms the aft end of the projectile. The disc is held firmly at the breech end much as a burst disc would be.
When the gun comes up to pressure, instead of bursting a disc, this disc simply shears around the perimeter.
Make sense?
Anybody else ever try this?
Thoughts?

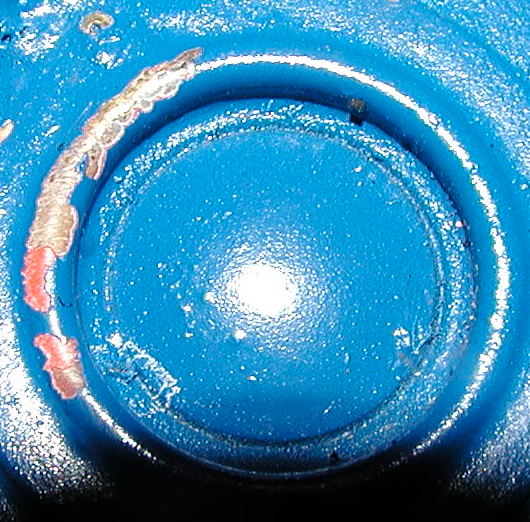

Here is one on one of my cannons.
- Gippeto
- First Sergeant 3
- Posts: 2503
- Joined: Sat Jan 19, 2008 10:14 am
- Location: Soon to be socialist shit hole.
- Has thanked: 2 times
- Been thanked: 17 times
A very interesting idea Dave. The fail pressure should be much more predictable, especially on a "hobby" level of fabrication.
Are you leaning toward a one piece disc? I'm thinking that fabrication would be an issue.
Two piece discs might be made more easily. ie. epoxy a steel (near) bore sized disc to an aluminum disc. The aluminum should suffer a shear type failure.
Just some thoughts.
Are you leaning toward a one piece disc? I'm thinking that fabrication would be an issue.
Two piece discs might be made more easily. ie. epoxy a steel (near) bore sized disc to an aluminum disc. The aluminum should suffer a shear type failure.
Just some thoughts.
"It could be that the purpose of your life is to serve as a warning to others" – unknown
Liberalism is a mental disorder, reality is it's cure.
Liberalism is a mental disorder, reality is it's cure.
- Moonbogg
- Staff Sergeant 3
- Posts: 1731
- Joined: Mon Oct 13, 2008 10:20 pm
- Location: SoCal
- Has thanked: 153 times
- Been thanked: 100 times
You saw that patent to? Yeah it looks like it was designed by a spudder. I was actually thinking of the same thing recently. It would be great to eliminate burst discs and even piston valves by having the round do everytyhing. It would totally work IMO. The only thing is coming up with a good round. Maybe a pellet shaped round with the back end of the skirt oversized would work.D_Hall wrote:I'm thinking that for a large bore gun burst discs can be problematic. It occurs to me however, that a solution may be a shear disc instead. More to the point... A disc with a thin permitter and thicker middle that forms the aft end of the projectile. The disc is held firmly at the breech end much as a burst disc would be.
When the gun comes up to pressure, instead of bursting a disc, this disc simply shears around the perimeter.
Make sense?
Anybody else ever try this?
Thoughts?
- Gippeto
- First Sergeant 3
- Posts: 2503
- Joined: Sat Jan 19, 2008 10:14 am
- Location: Soon to be socialist shit hole.
- Has thanked: 2 times
- Been thanked: 17 times
Patent??? What patent??
Link please.
Link please.
"It could be that the purpose of your life is to serve as a warning to others" – unknown
Liberalism is a mental disorder, reality is it's cure.
Liberalism is a mental disorder, reality is it's cure.
-
- Sergeant Major
- Posts: 3197
- Joined: Wed Mar 28, 2007 9:48 am
- Location: Greenwood, Indiana
- Has thanked: 5 times
- Been thanked: 15 times
- Contact:
So the "burst disk" is part of the round, that what you are going for?D_Hall wrote:I'm thinking that for a large bore gun burst discs can be problematic. It occurs to me however, that a solution may be a shear disc instead. More to the point... A disc with a thin permitter and thicker middle that forms the aft end of the projectile.
So, glue (weld, ...) a ring to the base of the round? Instead of thin perimeter and thicker middle (which would be hard to fabricate) the ring (held in the gun like a standard burst disk) is part of the round. When the pressure is high enough the joint between the ring and the round is broken.
Perhaps something along the lines of the knockouts in household wiring electrical boxes?
(image stolen from http://www.wikihow.com/Remove-a-%22Knoc ... trical-Box )
Overall, kind of going for a high static friction, but low dynamic friction, on the ammo. And, simplifying the burst disk useage by including it as part of the round in a breach loader?

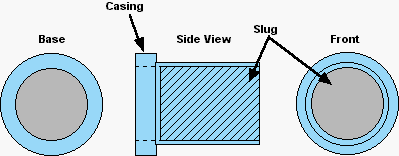

How about the basic shape of a bullet cartridge but with a big hole in base of the casing (where the cap would be). The slug is press fit into the casing. The friction between the casing and the slug is the "burst disk". Once the pressure is high enough the slug exits the casing and proceeds down the barrel against a much lower friction force. The casing would be reuseable just like a rifle casing and the casing rim would be what holds it stationary in the breach.
- Attachments
-
- slug.gif (4 KiB) Viewed 3827 times
- Technician1002
- Captain
- Posts: 5189
- Joined: Sat Apr 04, 2009 11:10 am

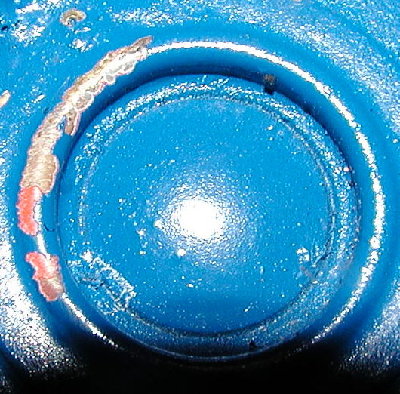

I grabbed a camera to show the stamped metal breakaway thin rim on the QDV Cannon. Sorry I didn't get any inside the tank photos of the orifice.
- Attachments
- D_Hall
- Staff Sergeant 5
- Posts: 1914
- Joined: Thu Feb 07, 2008 7:37 pm
- Location: SoCal
- Has thanked: 7 times
- Been thanked: 41 times
Precisely my thoughts. Especially if one annealed the rim.Gippeto wrote:A very interesting idea Dave. The fail pressure should be much more predictable, especially on a "hobby" level of fabrication.
Fabrication should be completely trivial.Are you leaning toward a one piece disc? I'm thinking that fabrication would be an issue.
- Start with an aluminum disc; we'll say 1/4" thick.
- Put disc on a rotary table.
- Put rotary table on a mill.
- Use mill to start a groove at the appropriate radius and the appropriate depth.
- Spin rotary table.
Voila, a 1/4" thick plate with a groove cut leaving (say) 1/64" of material around the periphery where you desire it to shear off.
As for the "patent" comment earlier.... No, I've not seen any such patent. And if push comes to shove, I recall having this conversation on this site (or spudtech) a couple years ago but I was too lazy to go searching for it and figured some conversation might be fun.
Last edited by D_Hall on Thu Jun 11, 2009 11:41 pm, edited 1 time in total.
-
- Sergeant 3
- Posts: 1264
- Joined: Fri Mar 28, 2008 1:42 pm
I had a similar (smaller) idea before,
to buy all pull tab opening soup and canned stuff.
Then open the opposite end with a traditional can opener.
A piece of plywood could be cut to fit ID (maybe there's a hole saw for a drill that would work(?))
Then maybe drill a hole in the wood centered for a shrader.
Screws could go through the can into the wood and some glue to seal it.
No Idea what pressure they will pop open at though (Yet).
Also was wondering before about the top of 12 oz. soda cans too. 8)
to buy all pull tab opening soup and canned stuff.
Then open the opposite end with a traditional can opener.
A piece of plywood could be cut to fit ID (maybe there's a hole saw for a drill that would work(?))
Then maybe drill a hole in the wood centered for a shrader.
Screws could go through the can into the wood and some glue to seal it.
No Idea what pressure they will pop open at though (Yet).
Also was wondering before about the top of 12 oz. soda cans too. 8)
-----SPEED,STRENGTH, AND ACCURACY.-----
"Procrastination" is five syllables for "Sloth".
Theopia 8)
Born To Be Alive!
"Procrastination" is five syllables for "Sloth".
Theopia 8)
Born To Be Alive!
- Technician1002
- Captain
- Posts: 5189
- Joined: Sat Apr 04, 2009 11:10 am
As far as I can tell the burst disk is about as thick as the tank with a weakness stamped into the rim much like the pull tab on a pop can so it bursts first. Behind it the orifice is there I presume to keep the tank from becoming a missile when it lets go. It's my best guess. If I ever cut into one of these tanks again, I'll be sure to grab photos.D_Hall wrote:Tech,
OK, that is interesting. They're just controlling the energy via an oriface. I'd never seen the backside of one of those so I always just figured they designed 'em a bit thicker than that.
@ THUNDERBIRD

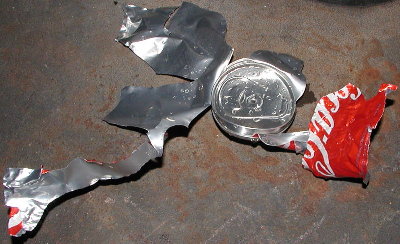

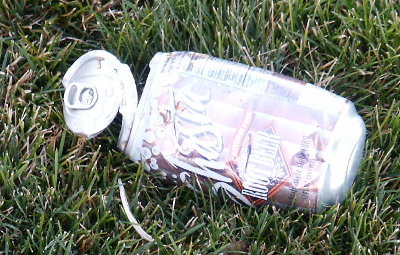

There is a good possibility the entire top of the can may come off. It's just crimped into place. Attached is a photo of a can that hit a tree at high speed. The tab is intact, but the can separated from the top. The other photo is a can that was launched 300 yards onto a football field. It landed sideways and blew off the top. Again the tab is intact.Also was wondering before about the top of 12 oz. soda cans too. Cool
-
- Sergeant 3
- Posts: 1264
- Joined: Fri Mar 28, 2008 1:42 pm
Wow, 300 yd.s soda can! Wonder what launcher that was shot from?...There is a good possibility the entire top of the can may come off. It's just crimped into place. Attached is a photo of a can that hit a tree at high speed. ...
Yeah, with the soup/ other can tops, I was thinking of the entire can being part of a cartridge.
But with the soda cans I was thinking for smaller diameter, and cut the tab out with aviation snips, then sandwich it between barrel and chamber is all.
Seems like too much work, but they do appear pretty hefty from the looks of those damage pics! 8)
EDIT: Another "one time at band camp story"...But when i was a kid at summer camp, we used to put canned stuff on the hot coals for a practical joke and leave...a few times it really was an UNpractical joke though.(dangerous)
-----SPEED,STRENGTH, AND ACCURACY.-----
"Procrastination" is five syllables for "Sloth".
Theopia 8)
Born To Be Alive!
"Procrastination" is five syllables for "Sloth".
Theopia 8)
Born To Be Alive!
- D_Hall
- Staff Sergeant 5
- Posts: 1914
- Joined: Thu Feb 07, 2008 7:37 pm
- Location: SoCal
- Has thanked: 7 times
- Been thanked: 41 times
It is.benstern wrote:Please tell me this is relation to your project at china lake!
As of yesterday, my lead welder is guessing 3 more weeks until primary structures are completed. Of course, there's still a LOT of plumbing and such remaining....You have not given any info about it for a long time. Just tell me our hope for a huge hybrid are not gone with the wind.
I will say, however, that for fun I crawled through the length of the combustion chamber. Very odd sensation to realize WHERE you are.
