wyz2285 wrote:JSR will suggest you to make a pengun.
It's a good place to start :) LeMaudit relaly made an excellent tutorial.

http://www.spudfiles.com/forums/machine ... 22856.html
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:

Tue Sep 24, 2013 8:13 am

How can you make such small threads :?
Tap and die?
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26183
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 547 times
Been thanked: 326 times

Donating Members

Tue Sep 24, 2013 8:36 am

Yup, it's all in the tutorial :)
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
jmez1996
Private 4
Private 4
Posts: 93
Joined: Tue Nov 30, 2010 7:27 am

Wed Sep 25, 2013 9:42 am

Cheers that looks like a great project

@Wyz2285
No don't have the mill attachment. I've seen its possible to do some milling by mounting a vice with vertical travel to the cross slide then putting the milling cutters into the lathe chuck?

anyone got advice on that?
User avatar
Gippeto
First Sergeant 3
First Sergeant 3
Venezuela
Posts: 2503
Joined: Sat Jan 19, 2008 10:14 am
Location: Soon to be socialist shit hole.
Has thanked: 2 times
Been thanked: 17 times

Donating Members

Wed Sep 25, 2013 11:23 am

Milling vice attachements for lathes do work...they do have limitations as well. Mostly related to travel and rigidity.

A decent compromise to meet budget and space constraints while adding capability.

If you follow airgun forums at all, you may know rsterne? Bob has built some pretty amazing stuff with a small lathe and milling attachement.
"It could be that the purpose of your life is to serve as a warning to others" – unknown

Liberalism is a mental disorder, reality is it's cure.
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:

Wed Sep 25, 2013 11:59 am

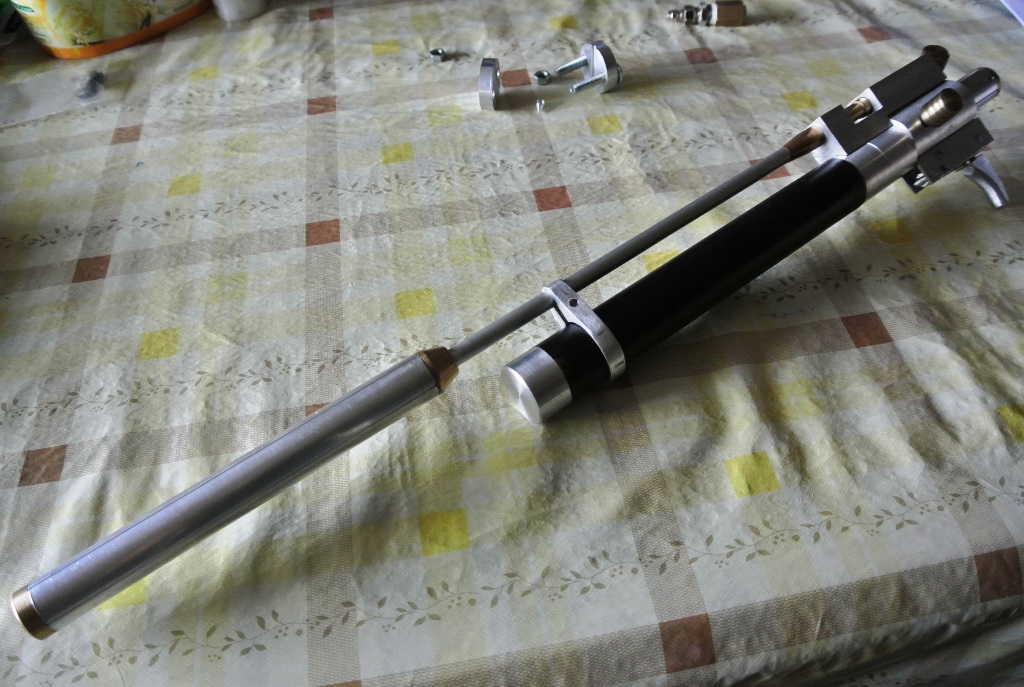

Finished trigger and filling plug :D also functional
Attachments
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Goats spudz
Specialist 4
Specialist 4
Posts: 458
Joined: Tue Aug 02, 2011 12:31 pm
Contact:

Thu Sep 26, 2013 3:06 pm

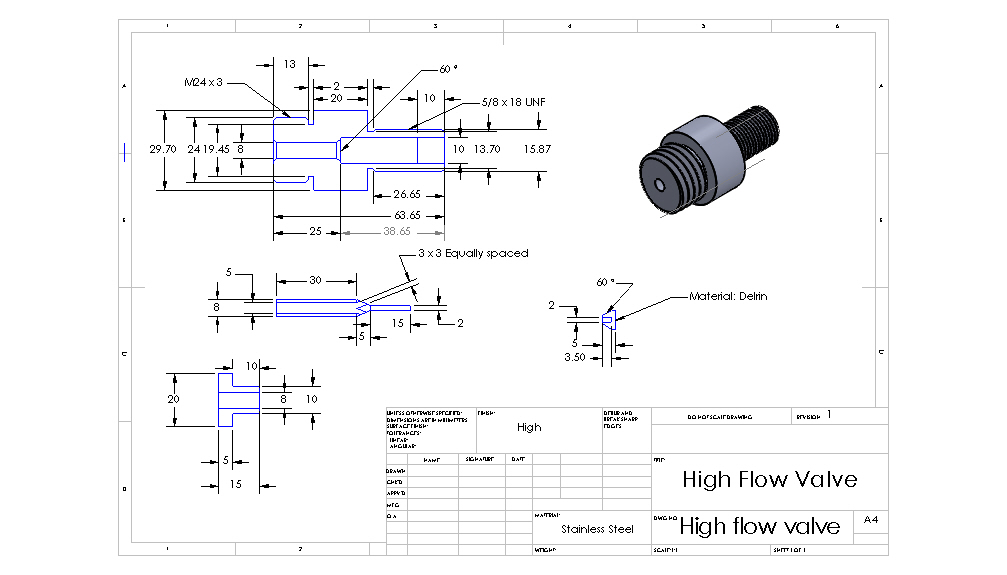

Do the sizes I have chosen for this part look about right for propelling a .22 +800 FPS, also do you guys think this will be able to withstand 3000 PSI?
Attachments
Valve
Valve
Where's my Chuck key?
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26183
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 547 times
Been thanked: 326 times

Donating Members

Fri Sep 27, 2013 11:38 am

wyz2285 wrote:Finished trigger and filling plug :D also functional
ou est le video huh?

:D
Do the sizes I have chosen for this part look about right for propelling a .22 +800 FPS, also do you guys think this will be able to withstand 3000 PSI?
The Gunpower Stealth - AirForce Talon uses a very similar design, I'm guessing that's what you based it on ( http://www.stealthresource.org/home.htm ) so you should be good for that pressure and performance, assuming it's built from the right materials.
hectmarr wrote:You have to make many weapons, because this field is long and short life
Goats spudz
Specialist 4
Specialist 4
Posts: 458
Joined: Tue Aug 02, 2011 12:31 pm
Contact:

Fri Sep 27, 2013 5:13 pm

Yeh I Based it on the Air force condor, It will be made from 316 Stainless, I just wanted to know if it would perform as well because I Don't have the measurements of the stock valve so I had to guess.
Where's my Chuck key?
User avatar
Gippeto
First Sergeant 3
First Sergeant 3
Venezuela
Posts: 2503
Joined: Sat Jan 19, 2008 10:14 am
Location: Soon to be socialist shit hole.
Has thanked: 2 times
Been thanked: 17 times

Donating Members

Fri Sep 27, 2013 9:12 pm

Old style valve and no return spring? Vaguely reminiscent of a "Blod" valve.

Know a guy with a home built condor who runs without a return spring in the valve, but have no idea how he tunes it to avoid tank dumps.

Porting is plenty big enough. Transfer port in my homebuilt "Disco" is .100"...15.9grain pellets peak @ 920fps on 2700psi fill.

These might help a little. :)
Attachments
"It could be that the purpose of your life is to serve as a warning to others" – unknown

Liberalism is a mental disorder, reality is it's cure.
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:

Sat Sep 28, 2013 4:56 am

Another question: a year ago I made some plans for a PCP rifle. I did the strength simulation of the chamber. The program only has stainless steel, without any number to define what type. Back then I remember 1.5mm wall thickness would give a safety factor of 3 approximately at 200bar. However the simulation was done with seamless stainless steel tubeR recently I bought a stainless steel tube and it has 1.5mm wall thickness but from the inside I cab see the welding mark, the welding is very good though and can not be seen on the outside. Any advise if I could use it as chamber for a pcp?
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
Gippeto
First Sergeant 3
First Sergeant 3
Venezuela
Posts: 2503
Joined: Sat Jan 19, 2008 10:14 am
Location: Soon to be socialist shit hole.
Has thanked: 2 times
Been thanked: 17 times

Donating Members

Sat Sep 28, 2013 10:52 am

I would recommend seamless tubing only.

Not overly fond of using a program to "run numbers" if you can't enter factual data into it.

Garbage in = Garbage out. When your safety is at risk, this is NOT acceptable.
"It could be that the purpose of your life is to serve as a warning to others" – unknown

Liberalism is a mental disorder, reality is it's cure.
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:

Sat Sep 28, 2013 1:13 pm

Hydro-testings can be done using water as compressing fluid?
Then I'm thinking about build a manual hydraulic pump, something like 3mm piston diameter, 5mm wall thickness pump body and a long lever to push the piston. Will a paintball pressure gauge work with water though? I have a 6000 psi one and don't have any use for it.
Fill the testing chamber and pump with water then push the lever to raise the pressure.
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Goats spudz
Specialist 4
Specialist 4
Posts: 458
Joined: Tue Aug 02, 2011 12:31 pm
Contact:

Sat Sep 28, 2013 2:30 pm

Gippeto wrote:Old style valve and no return spring?
There is A return spring it just isn't on the drawing, I thought my porting was way too small looking at that drawing Im satisfied :wink:
Where's my Chuck key?
User avatar
Gippeto
First Sergeant 3
First Sergeant 3
Venezuela
Posts: 2503
Joined: Sat Jan 19, 2008 10:14 am
Location: Soon to be socialist shit hole.
Has thanked: 2 times
Been thanked: 17 times

Donating Members

Sun Sep 29, 2013 12:29 am

Too large porting can dramatically lower efficiency and shot count for little gain in velocity.

wyz....hydro = water....yes you can use water for hydro testing. Would suggest filling with water or oil and using a grease gun to pressurize...a nice off the shelf solution. :)
"It could be that the purpose of your life is to serve as a warning to others" – unknown

Liberalism is a mental disorder, reality is it's cure.
Post Reply
