Flat plates on a pressure vessel
I'm planning a pressure vessel for an upcoming design after I recently recovered some 4" ID seamless steel tube with 1/4" thick walls, and I had two questions.
1. What would be the approximate bursting pressure of this tube, assuming it is made of relatively low grade steel?
2. Would 1.5" steel plate welded on the ends by a good welder be relatively safe if the maximum working pressure was 500 psi? 1000 psi?
Please don't post useless comments, or respond saying you don't know either answer. Thank you.
1. What would be the approximate bursting pressure of this tube, assuming it is made of relatively low grade steel?
2. Would 1.5" steel plate welded on the ends by a good welder be relatively safe if the maximum working pressure was 500 psi? 1000 psi?
Please don't post useless comments, or respond saying you don't know either answer. Thank you.
Spudfiles' resident expert on all things that sail through the air at improbable speeds, trailing an incandescent wake of ionized air, dissociated polymers and metal oxides.
-
- Staff Sergeant 2
- Posts: 1603
- Joined: Sat Aug 11, 2007 6:59 pm
- Been thanked: 1 time
The flat plates won't be a problem *if you trust the boily that welds them*.
If my memory serves me correct, in the past i learned that the burst and or working pressure of 304 stainless at the same dimentions you plan on using is 2200psi, i cant tell you if normal steel is stronger or not, i would think it would be about the same.
A better option would be to have the ends of vessel threaded as the plates,
That way you can continue to check the inside condition of this potential bomb
If my memory serves me correct, in the past i learned that the burst and or working pressure of 304 stainless at the same dimentions you plan on using is 2200psi, i cant tell you if normal steel is stronger or not, i would think it would be about the same.
A better option would be to have the ends of vessel threaded as the plates,
That way you can continue to check the inside condition of this potential bomb
America, the greatest gangster of all time. With 200 million odd foot soldiers at it's whim and call.
When you fill your car with refined oil remember that it has been paid for with blood and guts, some from your own countrymen, most not.
When you fill your car with refined oil remember that it has been paid for with blood and guts, some from your own countrymen, most not.
googel barlows formula.
or use this online calc. page
http://www.dixiepipe.com/barlows.html
http://www.engineeringtoolbox.com/barlow-d_1003.html
a bunch on this one
http://www.engineeringtoolbox.com/pipes ... -t_40.html
it's been used for a while and is proven
it'l give you a safe working pressure for most any pipe .
your wall thickness should be .237 not .25 though
and ,,um threading cut's it pressure rating in halve.
and thats if you can find someone that has the special threader for 4"pipe(for grins call around)
proper weld fittings don't make much difference in pressure ratings.
or use this online calc. page
http://www.dixiepipe.com/barlows.html
http://www.engineeringtoolbox.com/barlow-d_1003.html
a bunch on this one
http://www.engineeringtoolbox.com/pipes ... -t_40.html
it's been used for a while and is proven
it'l give you a safe working pressure for most any pipe .
your wall thickness should be .237 not .25 though
and ,,um threading cut's it pressure rating in halve.
and thats if you can find someone that has the special threader for 4"pipe(for grins call around)
proper weld fittings don't make much difference in pressure ratings.
Last edited by cdheller on Fri Nov 16, 2007 7:41 pm, edited 2 times in total.
It will be a hybrid chamber, so the welds won't be under constant strain. I also don't plan on being particularly close to this thing when it fires, for the simple reason that I have had an endcap blowout before on a hybrid, and it managed to hit me. An ABS cap is one thing, but a 9 pound chunk of sharp steel plate is quite another, so I'll have some shielding between me and it. Probably a partial box made of 1/4" steel plate that I can place over it for firing. That, and I'll run nice long wires on the stungun.
Threading the ends would be nice if I had the threaded caps, but unfortunately I don't, so welding seemed like a good option. I will have a 2" plug threaded into one of the end plates to check the internal condition of my bomb errr *hybrid*.
Threading the ends would be nice if I had the threaded caps, but unfortunately I don't, so welding seemed like a good option. I will have a 2" plug threaded into one of the end plates to check the internal condition of my bomb errr *hybrid*.
Spudfiles' resident expert on all things that sail through the air at improbable speeds, trailing an incandescent wake of ionized air, dissociated polymers and metal oxides.
- frankrede
- Sergeant Major 2
- Posts: 3220
- Joined: Thu Jul 20, 2006 9:47 pm
- Has thanked: 1 time
- Been thanked: 1 time
What size plate would you be using?( I would recommend 3/8") but 1/4" would be fine.
Who will be welding it? How good are they?
What are they going to be welding it with?
Who will be welding it? How good are they?
What are they going to be welding it with?
Current project: Afghanistan deployment
I have some 1.5" plate hanging around in just the right size, but if I can't find the rest of it, I'll probably just order some thinner stuff (i.e. 3/8" to 3/4") from the welding shop. I have no intent of connecting it with threaded fittings, mostly for the reasons that cdheller mentioned.
The person I'm thinking of to weld it runs a welding shop, and has worked there for decades. He is a real expert. If he doesn't feel confident doing this, he'll probably know someone who will.
The person I'm thinking of to weld it runs a welding shop, and has worked there for decades. He is a real expert. If he doesn't feel confident doing this, he'll probably know someone who will.
Spudfiles' resident expert on all things that sail through the air at improbable speeds, trailing an incandescent wake of ionized air, dissociated polymers and metal oxides.
I used a 3/4" steel plate on the end of Fear which I welded myself and I have gone to 6x mixes with no problems. The front end was a 1/2" plate as well, so I think a 1.5" plate would be a tad overkill and could increase weight significantly. A 1/4" or 1/2" thick steel plate should be fine.
Also the pressure rating of your pipe is roughly 400 psi with a safety factor of ten, and a 1000 psi with a safety factor of 4 (your choice as to what you want.) This is with a a 35000psi yield strength by the way.
Hope this helps and good luck.
Also the pressure rating of your pipe is roughly 400 psi with a safety factor of ten, and a 1000 psi with a safety factor of 4 (your choice as to what you want.) This is with a a 35000psi yield strength by the way.
Hope this helps and good luck.
Stanford Class of 2012
"In the end our society will be defined not only by what we create, but what we refuse to destroy"- John Sawhill
"In the end our society will be defined not only by what we create, but what we refuse to destroy"- John Sawhill
IIRC, the flat end of a pipe needs to be a smiggen thicker than the wall thickness of the pipe for a perfect balance of bursting strength.
deforms differently.
If your pipe is 4"sch 40 or4" standard weight pipe its .237,
if you can get 3/8 plate cheap . it fits the bill.
my chamber is 8"standard weight with .322 wall thickness .
I went with 1/2 " plate .
like your project it'll never get close enough to bursting strength to matter.
I can not remember where ,what or who but there is a formula for this somewhere.
deforms differently.
If your pipe is 4"sch 40 or4" standard weight pipe its .237,
if you can get 3/8 plate cheap . it fits the bill.

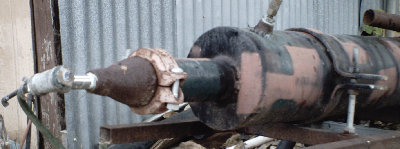

my chamber is 8"standard weight with .322 wall thickness .
I went with 1/2 " plate .
like your project it'll never get close enough to bursting strength to matter.
I can not remember where ,what or who but there is a formula for this somewhere.
- boilingleadbath
- Staff Sergeant 2
- Posts: 1635
- Joined: Sat Mar 12, 2005 10:35 pm
- Location: Pennsylvania, USA
Flat plates are weak in pressure-bearing applications; overkill isn't a bad idea.
Plus, in the event of a failure, a heavy endcap will be endowed with less kinetic energy.
Plus, in the event of a failure, a heavy endcap will be endowed with less kinetic energy.
Exactly my point. Unfortunately, I seem to have permanently misplaced the second plate, so I'll be using 1.5" for the front (to tap the 2" threads into), and 3/4" for the back (to tap ignition, fuel, vent, etc...). Anyone see any problems with that setup? If not, welding will likely commence in the coming week.Flat plates are weak in pressure-bearing applications; overkill isn't a bad idea.
Plus, in the event of a failure, a heavy endcap will be endowed with less kinetic energy.
Spudfiles' resident expert on all things that sail through the air at improbable speeds, trailing an incandescent wake of ionized air, dissociated polymers and metal oxides.
-
- Staff Sergeant 2
- Posts: 1603
- Joined: Sat Aug 11, 2007 6:59 pm
- Been thanked: 1 time
Thread cutting tool in a lathe i would imaginefrankrede wrote:You have a 2" tap?
How are you going to make the threads?
America, the greatest gangster of all time. With 200 million odd foot soldiers at it's whim and call.
When you fill your car with refined oil remember that it has been paid for with blood and guts, some from your own countrymen, most not.
When you fill your car with refined oil remember that it has been paid for with blood and guts, some from your own countrymen, most not.
You raise a good point. I could get the threads machined, or, more cheaply, I could simply cut off the threaded end of some 2" pipe, and get it welded on the outside of the plate.You have a 2" tap?
How are you going to make the threads?
Spudfiles' resident expert on all things that sail through the air at improbable speeds, trailing an incandescent wake of ionized air, dissociated polymers and metal oxides.
-
- Staff Sergeant 2
- Posts: 1603
- Joined: Sat Aug 11, 2007 6:59 pm
- Been thanked: 1 time
I would recommend boring or drilling a hole in the plate and welding the inner and outer of the fitting, just leave a bit inside so you don't screw* the thread when you weld it.
*ruin
*ruin
