H2 Reactor (auto-production of H2, a powerful fuel)

Meaningful discussion outside of the potato gun realm. Projects, theories, current events. Non-productive discussion will be locked.
Post Reply
User avatar
RJB INDUSTRIES
Specialist
Specialist
Posts: 144
Joined: Fri Sep 09, 2011 5:49 pm

Thu Apr 19, 2012 1:05 pm

I have done some tests and the reactor produces 35 Litres of H2 in less time than 10 seconds....


RJB INDUSTRIES
Last edited by RJB INDUSTRIES on Fri Apr 20, 2012 2:04 pm, edited 1 time in total.
Top
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:
Contact wyz2285

Thu Apr 19, 2012 5:45 pm

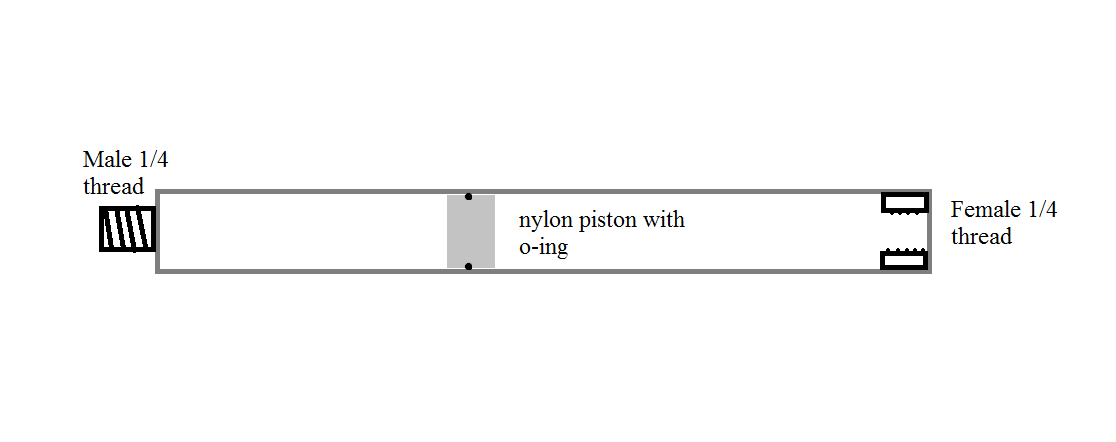

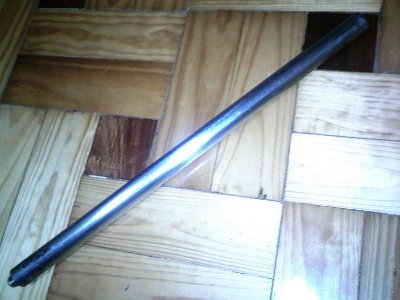

Prototype-PHC
22mm ID, stanless steel, tested to 50 bar, but stay below 40 bar.
1/4 NPT threads.
Attachments

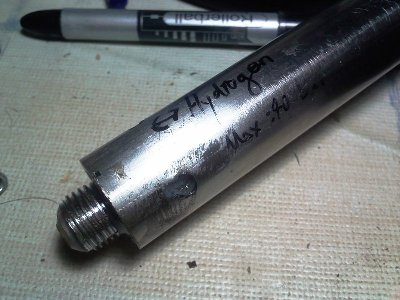

Hydrogen output
Hydrogen output

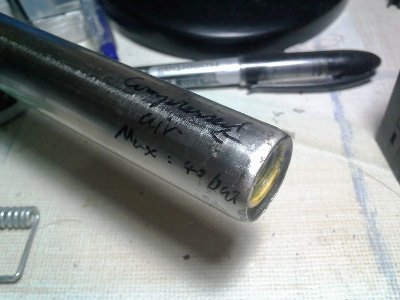

Compressed air input.
Compressed air input.
Sem Título.png
Sem Título.png (13.17 KiB) Viewed 2899 times
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Top
User avatar
RJB INDUSTRIES
Specialist
Specialist
Posts: 144
Joined: Fri Sep 09, 2011 5:49 pm

Fri Apr 20, 2012 1:55 pm

The PHC is the Pressurized H2 Chamber, this is a prototype, the main PHC will be bigger and reach more than 90 Bar.
After I can install this PHC(Pressurized H2 Chamber) with a regulator inside the body of my cannon


RJB INDUSTRIES
Attachments
An application of PHC
An application of PHC
Top
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:
Contact wyz2285

Sun Apr 22, 2012 10:27 am

That bullet it´s too heave compare to hydrogen´s burn rate.
What type of regulator are you going to use?
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Top
User avatar
RJB INDUSTRIES
Specialist
Specialist
Posts: 144
Joined: Fri Sep 09, 2011 5:49 pm

Sun Apr 22, 2012 1:13 pm

Is made of Inox at front and Plastic at back side. Is not so heavy, 200g

The regulator is the one on the picture.


RJB INDUSTRIES
Attachments
It is installed inside the body
It is installed inside the body
RJB regulator.jpg (6.22 KiB) Viewed 2812 times
Top
User avatar
Alster370
Specialist 2
Specialist 2
Posts: 243
Joined: Mon Feb 21, 2011 9:34 am

Sun Apr 22, 2012 1:56 pm

Is not so heavy, 200g
Thats still fairly heavy, and with a bullet that looks about an inch in diameter, I think you will find the performance quite disappointing, due to such a dense bullet and the use of a very fast burning gas. Although I would think that a normal combustion would have some trouble propelling that at a decent speed :?
Top
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:
Contact wyz2285

Sun Apr 22, 2012 1:57 pm

where are you going to get the regulator? I need one too.
Although I would think that a normal combustion would have some trouble propelling that at a decent speed
go hybrid
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Top
User avatar
RJB INDUSTRIES
Specialist
Specialist
Posts: 144
Joined: Fri Sep 09, 2011 5:49 pm

Sun Apr 22, 2012 2:15 pm

I have fire that bullet with butane as fuel and a HD Sony video cam didn´t cought it as WYZ saw when at my Place....
I am going to use 12mm bullets in the Steel cannon, not in this.
Pneumax.com for regulator.
The PHC get easily 15/20 mix of H2


RJB INDUSTRIES
Last edited by RJB INDUSTRIES on Sun Apr 22, 2012 4:39 pm, edited 1 time in total.
Top
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:
Contact wyz2285

Sun Apr 22, 2012 4:32 pm

Well that´s one hell of a bullet indeed :lol: almost penetrated the concrete wall...
How about a link to that regulator?
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Top
User avatar
RJB INDUSTRIES
Specialist
Specialist
Posts: 144
Joined: Fri Sep 09, 2011 5:49 pm

Sun Apr 22, 2012 4:38 pm

www.pneumax.com there´s a lot of regulators models indeed...

RJB INDUSTRIES
Top
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:
Contact wyz2285

Mon Apr 23, 2012 3:38 pm

The regulator you posted is a paintball regulator, their output is 800 psi normally and the input is 3000 or 4500 psi, not suitable for you, you will need a additional palmer regulator to get it down to +-200 psi.
But a paintball regulator can also be pre-set to a lower output...
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Top
User avatar
RJB INDUSTRIES
Specialist
Specialist
Posts: 144
Joined: Fri Sep 09, 2011 5:49 pm

Mon Apr 23, 2012 4:23 pm

Like this for example?
Attachments
Regulator RJB.jpg
Regulator RJB.jpg (7.38 KiB) Viewed 2712 times
Top
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:
Contact wyz2285

Mon Apr 23, 2012 5:03 pm

Yes, that's a typical paintball regulator. You can buy one from ebay for 17€ or from a site I found, they sells directly to Portugal and accept bank transfer, expensive through, 37€+-
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Top
User avatar
RJB INDUSTRIES
Specialist
Specialist
Posts: 144
Joined: Fri Sep 09, 2011 5:49 pm

Mon Apr 23, 2012 5:12 pm

Ok thanks for the search....


RJB INDUSTRIES
Top
User avatar
RJB INDUSTRIES
Specialist
Specialist
Posts: 144
Joined: Fri Sep 09, 2011 5:49 pm

Sun May 06, 2012 3:40 am

It spends 25g of Al or 95g of Zn if I use 89ml of HCL, and this is to produce 16 L of H2 in 12 seconds.


RJB INDUSTRIES
