First HP Sitrup pump

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
User avatar
elitesniper
Sergeant
Sergeant
Posts: 1090
Joined: Sat Oct 13, 2007 8:40 pm

Tue Jan 19, 2010 11:39 pm

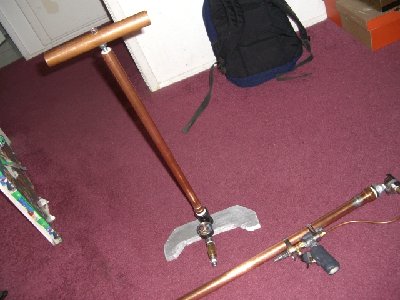

Finally got around to making a pump

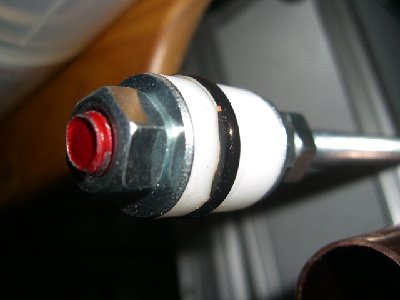

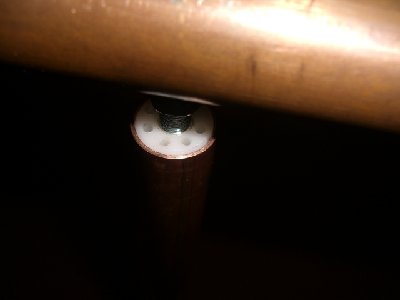

Machined the piston head and shaft stablizer from nylon

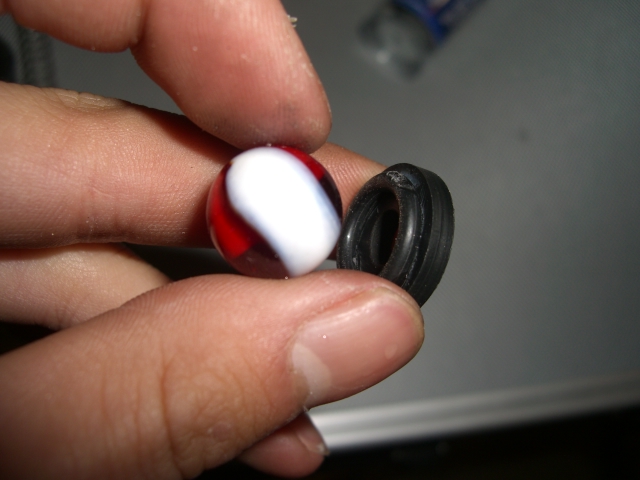

check valve is a marble sealing a against a washer/rubber washer and a spring
tube is 3/4 copper m
sand made from wood painted silver
handle 1'' copper
Attachments
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26183
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 547 times
Been thanked: 326 times

Donating Members

Wed Jan 20, 2010 1:23 am

Nicely made, you failed to mention what pressures you're getting though ;)
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
psycix
Sergeant Major 4
Sergeant Major 4
Posts: 3684
Joined: Mon Jun 25, 2007 7:12 am
Location: The Netherlands

Donating Members

Wed Jan 20, 2010 7:29 am

Nice indeed. Does it work properly, does everything seal?
Beware of the checkvalve, if it leaks your pump will become a ram.

Now go exercise! :D
Till the day I'm dieing, I'll keep them spuddies flying, 'cause I can!

Spudfiles steam group, join!
User avatar
Gippeto
First Sergeant 3
First Sergeant 3
Venezuela
Posts: 2503
Joined: Sat Jan 19, 2008 10:14 am
Location: Soon to be socialist shit hole.
Has thanked: 2 times
Been thanked: 17 times

Donating Members

Wed Jan 20, 2010 10:34 am

jackssmirkingrevenge wrote:Nicely made, you failed to mention what pressures you're getting though ;)
X2...inquiring minds you know. :)
"It could be that the purpose of your life is to serve as a warning to others" – unknown

Liberalism is a mental disorder, reality is it's cure.
User avatar
far_cry
Specialist 3
Specialist 3
Posts: 317
Joined: Wed Aug 20, 2008 3:59 pm

Donating Members

Wed Jan 20, 2010 6:12 pm

Gippeto wrote:
jackssmirkingrevenge wrote:Nicely made, you failed to mention what pressures you're getting though ;)
X2...inquiring minds you know. :)
X3
me to

but you have a big dead volume between the O ring and the check valve so you will get to the point you compress the air in the cylinder and cant pass he cant pass the check valve

see mine
http://www.spudfiles.com/forums/my-seco ... 18650.html



and very nice job
Last edited by far_cry on Wed Jan 20, 2010 6:16 pm, edited 1 time in total.
User avatar
clemsonguy1125
Sergeant 5
Sergeant 5
Posts: 1485
Joined: Tue Jul 21, 2009 4:00 pm
Location: East Coast

Wed Jan 20, 2010 6:16 pm

Nice job, what size washers did you use.
User avatar
elitesniper
Sergeant
Sergeant
Posts: 1090
Joined: Sat Oct 13, 2007 8:40 pm

Thu Jan 21, 2010 12:13 am

Ive gotten it up to 400 psi for now :) washers idk just foudn em hehe
