This is one of my favorites, just for the sheer joy of doing something different I came up with the KingPin.
It's built around a home made diaphragm and utilizes a normal sprinkler solenoid to actuate it. I went with a sprinkler solenoid because the KingPin was designed to be trip wire activated.
The vent tube was way too small, it fired with an insanely loud honk! We must have laughed about that for a good half hour.
KingPin was retired after the solenoid holder cracked under the pressure. Here's some previously unreleased photos of it's construction.
Provided By FoxxLord - <a href="http://www.geocities.com/cain333_2000/" ... /</a></div>
King Pin
-
PCGUY
- Owner
- Posts: 1436
- Joined: Wed Aug 18, 2004 10:54 pm
- Location: Illinois
- Has thanked: 2 times
- Been thanked: 26 times
- Contact:
- Attachments
-

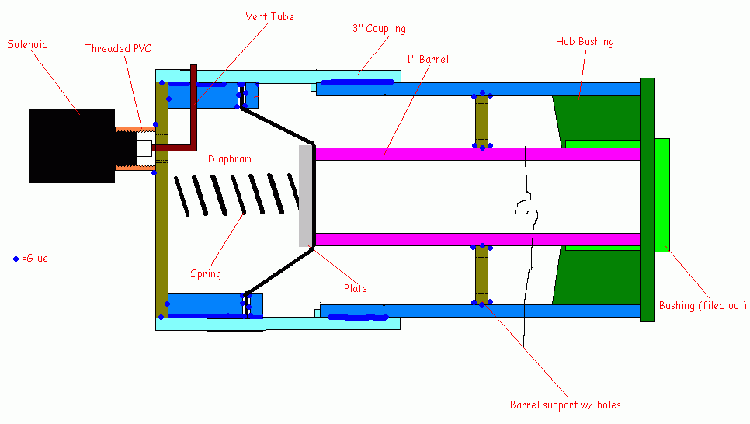

- This is the old diagram I used to build the KingPin.
- KingPin.gif (9.44 KiB) Viewed 7321 times
-

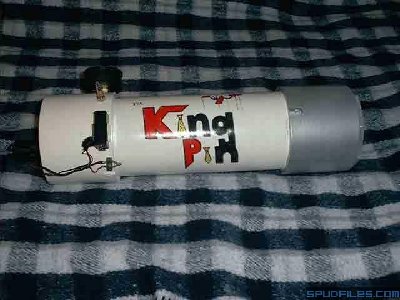

- Side view of KingPin and all her accessories. From top to bottom you can see the pressure gauge, Schrader valve, battery, and contacts. I made the contacts myself, two pieces of metal that were normally closed until a thin piece of plastic was slid between them. The plastic was tied to the trip wire so when the wire was tripped the plastic would pull out and complete the circuit.
-

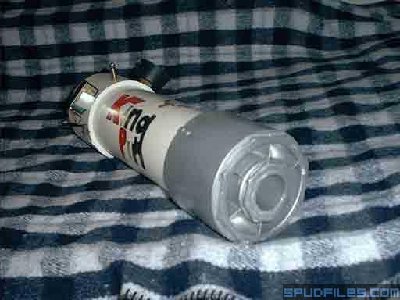

- Nothing special here, front view of KingPin, 1.5" barrel.
-

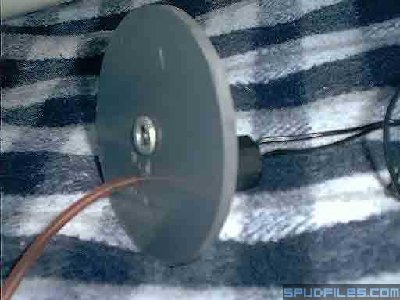

- Picture of the back plate as seen from the inside. The washer glued in the middle is to hold the spring in place. That's the pink vent tube going into the solenoid housing with two hole (above and below the vent tube) to equalize the solenoid housing.
-

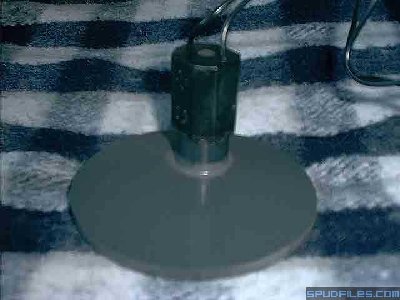

- Here's the other side of the back plate. Kind of cheap construction now that I think about it, but the solenoid housing was a piece of 3/4" such 80 I think, it was held onto the back plate by 4 metal pins and some JB Weld. What was I thinking!
-

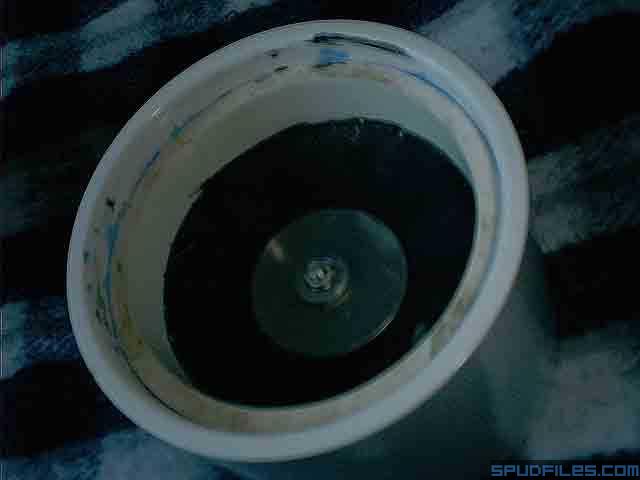

- Now this is old school. 4" homemade diaphragm! It's nothing very complicated, just a real pain in the ass building! The back plate rests on that inner piece of 4" pipe.
- KPdiaphram.jpg (15.98 KiB) Viewed 7321 times
-

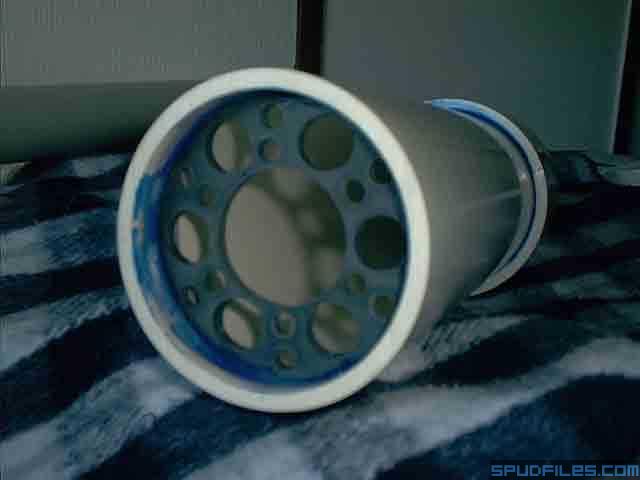

- The barrel support inside the 4" chamber.
- KPsupport.jpg (18.58 KiB) Viewed 7321 times
-

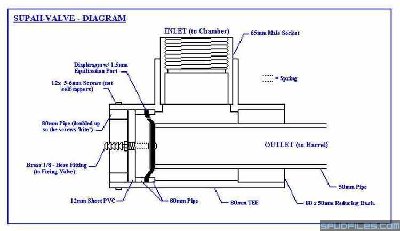

- I wish I could give credit to the designer of the home made diaphragm but I can't remember his name or his web site. But here it is if you ever feel like making one. You can always shoot me an email too, I've made 3 of these quite successfully.
That's all I have for now. Thanks for checking out an old relic!
Last edited by PCGUY on Fri May 12, 2006 9:58 am, edited 2 times in total.
Yes, I am the guy that owns & operates SpudFiles (along with our extremely helpful moderators).
real nice construction, how big is it?
Nice paint job and name
Nice paint job and name
<img src="http://www.spudfiles.com/uploader/uploa ... 980630.gif">
My website www.freewebs.com/potato_cannon/
My website www.freewebs.com/potato_cannon/
-
syco kilaa
- Private 4
- Posts: 66
- Joined: Wed Dec 29, 2004 11:01 am
- Location: Raleigh, NC
- Contact:
yea, I like the whole thing except for the solenoid actuation, I'm still confused by it, explain
NEGATIVE
-
bubblebathman
- Private 3
- Posts: 50
- Joined: Thu Sep 22, 2005 12:45 pm
- Location: USA
sweet name and cannon
-
Flying_Salt
- Corporal 3
- Posts: 779
- Joined: Mon Oct 09, 2006 4:57 pm
- Location: Texas
Very nice, I would've liked to hear the honk!
-
FreakyShotGlass
- Specialist
- Posts: 114
- Joined: Fri Dec 02, 2005 6:34 pm
Check the dates before you post, the last post was LAST YEAR.
