Hi Spudders,

first of all i want to show myself to you all.

I'm 17 year's old from Germany (Mainz)

So pls don't hunt me for my baaaaaaad primaryschoolenglish :D



Soooooo and now what youre all waiting for.... My Airgun :-)


Parts i used are:

Airchamber: 3/4" steel parts
Piston: Pullback-Piston
Barrel: 15mm OD rifled copperbarrel housed in a 1/2" steelpipe
Rail and mounts: Stolen from my MP-7 / 4x30 sportscope

Operating pressure is around 11 bars when i have my new pump it will raise to 50 bars *i will get the wohle world muhahahaha*


So and now a few pics of the whole gun and the parts.....
Attachments

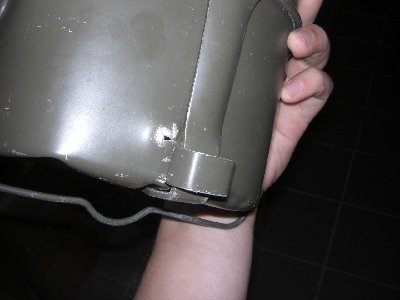

front-demage after 50m fligtht against rifled steel plate... :-)
front-demage after 50m fligtht against rifled steel plate... :-)

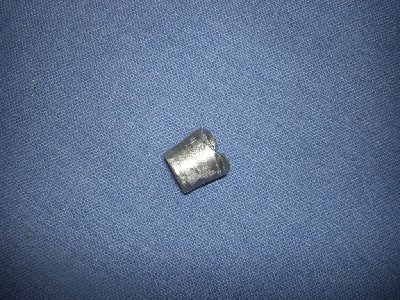

14mm "Flintenlaufgeschoss"
14mm "Flintenlaufgeschoss"

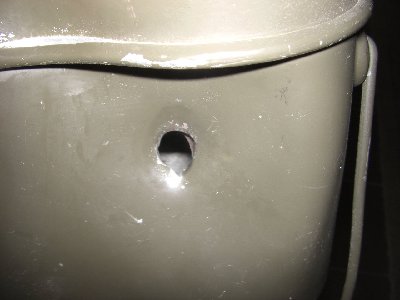

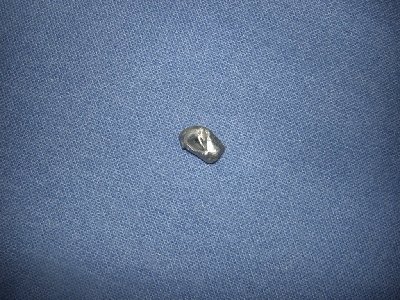

demage to 7.62 "specialbullet" after firing at a steelcan
demage to 7.62 "specialbullet" after firing at a steelcan
nothing to say....
nothing to say....
without any words.......
without any words.......

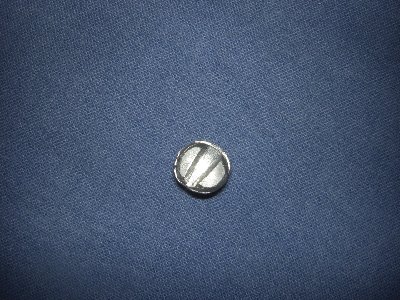

Try to Photograph my rifling :D
Try to Photograph my rifling :D

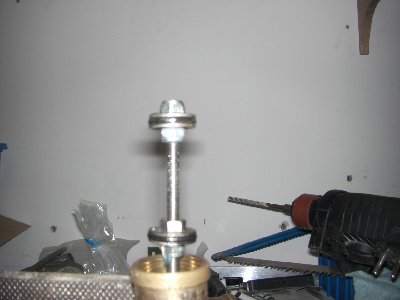

Piston... :-)
Piston... :-)

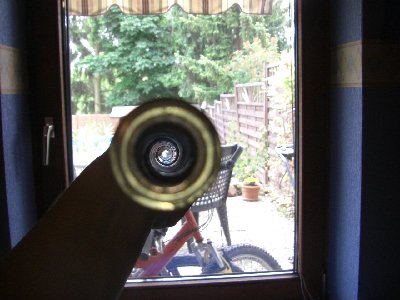

view down the barrel
view down the barrel
Pistonhousing
Pistonhousing

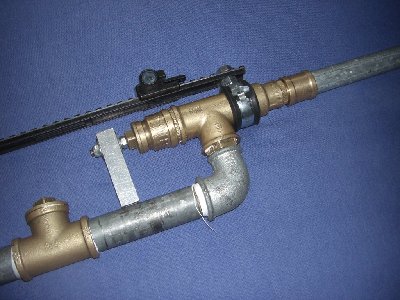

Airchamber and Pistonhousing...
Airchamber and Pistonhousing...

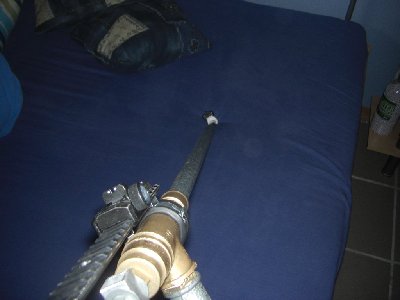

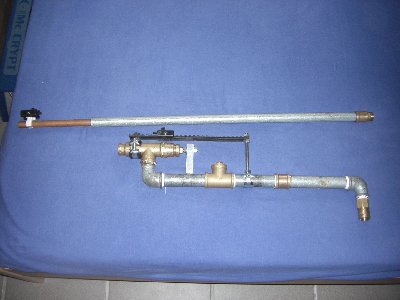

The whole Gun
The whole Gun
Top
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6572
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 39 times
Been thanked: 22 times
Contact:
Contact jrrdw

Donating Members

Sun May 22, 2011 6:24 am

Nicely done. How are you sealing the trigger assembly in the valve? A o-ring?

Welcome to Spudfiles. :D
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26187
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 551 times
Been thanked: 328 times

Donating Members

Sun May 22, 2011 7:29 am

Very nice, you will be happy with the power difference when you take it up to higher pressure, though it will be loud! Some pictures of the piston assembly would be welcome, as I imagine it is made of standard parts and of interest to anyone who might want to replicate the design :)

How did you rifle the barrel and is it effective? Copper isn't too hard a material, even compared to lead.
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
FreaK_with_GuN
Private
Private
Posts: 12
Joined: Sun May 22, 2011 5:23 am

Sun May 22, 2011 7:37 am

Hi


I'll take a picture when my dad is back from soapboxderby.... He tooks my tools whit :D


The barrel is rifled with a normal riflingtool anyone is using in this forum and its verry effective compared to a normal barrel...

To the loudnes.... Its VERY loud at 11 bars i should wear ear protection at higher pressure... :D


Edit: found a pipewrench and took photos :-)
Attachments

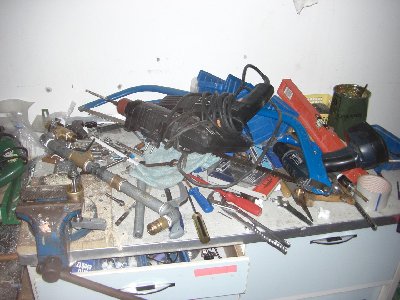

my workbench after 2 weeks of building airgun :D
my workbench after 2 weeks of building airgun :D
the holyest part of the airgun..... the piston
the holyest part of the airgun..... the piston

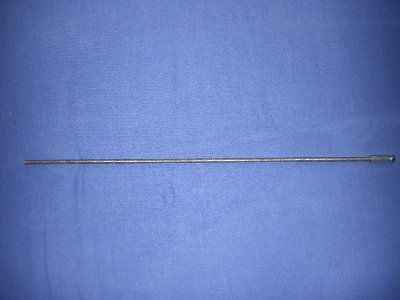

riflingtool in all its glory :-)
riflingtool in all its glory :-)

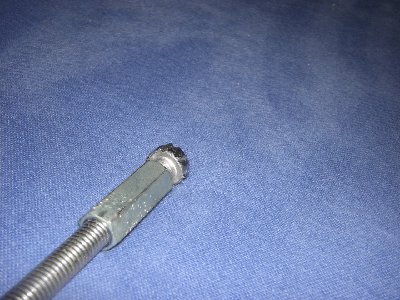

Head of the riflingtool
Head of the riflingtool
MEINE EHRE HEIßT TREUE SO WIE BEI DEN JUNGS DER SCHWARZEN DIVISION
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26187
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 551 times
Been thanked: 328 times

Donating Members

Sun May 22, 2011 8:08 am

Lovely, good to see people are making QDVs using over-the-shelf parts :)
FreaK_with_GuN wrote:Its VERY loud at 11 bars i should wear ear protection at higher pressure... :D

Schalldämpfer :)

Last edited by jackssmirkingrevenge on Sun May 22, 2011 8:10 am, edited 1 time in total.
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
FreaK_with_GuN
Private
Private
Posts: 12
Joined: Sun May 22, 2011 5:23 am

Sun May 22, 2011 8:10 am

Hehe

i had that idea too a few minutes ago :D

Im going to take a 0.5 liter mezzomix thickwalled bottle that fits perfect on my barrel :D
MEINE EHRE HEIßT TREUE SO WIE BEI DEN JUNGS DER SCHWARZEN DIVISION
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26187
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 551 times
Been thanked: 328 times

Donating Members

Sun May 22, 2011 8:11 am

FreaK_with_GuN wrote:Im going to take a 0.5 liter mezzomix thickwalled bottle that fits perfect on my barrel :D
2 or 3 litre bottle would be better, remember suppressors are like engines - there is no substitute for cubic capacity ;)
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
FreaK_with_GuN
Private
Private
Posts: 12
Joined: Sun May 22, 2011 5:23 am

Sun May 22, 2011 8:14 am

Hmmmmmmmm we have no 2 lite bottles in germany so ill try a 1.5..... testing goes over studdying :D
MEINE EHRE HEIßT TREUE SO WIE BEI DEN JUNGS DER SCHWARZEN DIVISION
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26187
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 551 times
Been thanked: 328 times

Donating Members

Sun May 22, 2011 8:19 am

Here's another option, port the end of the barrel and fit a sleeve along the whole length of it:


Separating the sleeve into chambers but adding baffles will make it more effective.

Last edited by jackssmirkingrevenge on Sun May 22, 2011 8:23 am, edited 1 time in total.
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
FreaK_with_GuN
Private
Private
Posts: 12
Joined: Sun May 22, 2011 5:23 am

Sun May 22, 2011 8:22 am

An idea is growing up in my head....... taking 1" parts and so on...... :-)
MEINE EHRE HEIßT TREUE SO WIE BEI DEN JUNGS DER SCHWARZEN DIVISION
Top
FreaK_with_GuN
Private
Private
Posts: 12
Joined: Sun May 22, 2011 5:23 am

Tue Jun 21, 2011 2:47 pm

Hi


my friends and me have build the airgun new with new barrel, silencer and piston.... :-)


Gun complete
http://www.abload.de/image.php?img=dsc_0717agtm.jpg
Piston with spring
http://www.abload.de/image.php?img=dsc_07189ijh.jpg
MEINE EHRE HEIßT TREUE SO WIE BEI DEN JUNGS DER SCHWARZEN DIVISION
Top
