Simple high flow regulator - will it work?

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
User avatar
dongfang
Specialist 4
Specialist 4
Posts: 448
Joined: Sun Aug 27, 2006 8:02 am
Location: Switzerland

Mon Sep 24, 2007 10:01 am

Hi,

I am working on a cannon that needs a regulator from, say, 10 bar to 1-2 bar. It will recharge a firing chamber from a tank, and it should be fast and reasonably precise (but not more than just reasonably, +/- 1/3 bar or so....)

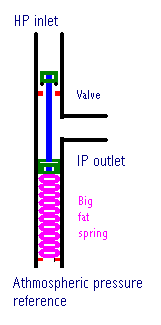

I have come up with the attached design. Has anybody tried something like it, and could not get it to work, pse tell me about it.. :lol:

PS: I know that its output pressure will vary somewhat with the HP (high pressure = tank pressure). Maybe there is an idea for a not too complicated regulator, where the pressure sense / spring part does not directly control the valve, but rather controls a ram (servo) that controls the valve? Or, does someone have an idea for a zero-force valve that still can close to a complete seal?

Regards
Soren
Attachments
