I finally finished the new version of Lauren. This time around I used all pressure rated parts, and a piston valve (which will be piloted later by a sprinkler valve). I haven't got a chance just yet to fire it because of sealing problems with the piston. But, it has a 4' by 1 1/2' chamber, 2" piston valve porting to 1.5", with a 3"x3 1/2' barrel. BTW, I aired up Lauren V1 to 35 PSI, and got a golf ball about 200 or 300 yards. Hope you like!
(could someone tell me how to get my text centered? The tag won't work when I type it)

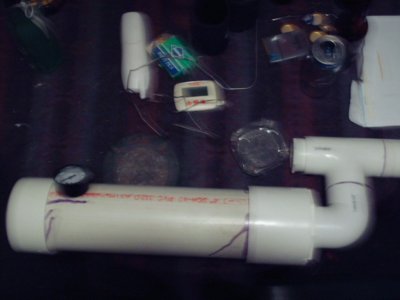

Lauren (revised) V2
- Attachments
-

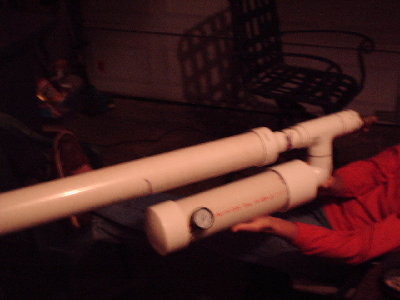

- I had to have by dad hold it, it is one heavy bitch!
-
- I'm so happy! Big guns are a joy! The red on my neck was from a Halloween party the night before. A guy dressed up like the devil had red paint was smearing it all over everyone.
-

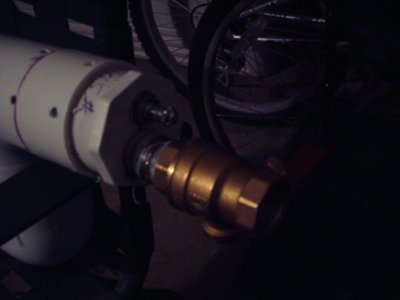

- 3/4" ball valve and fill valve
-

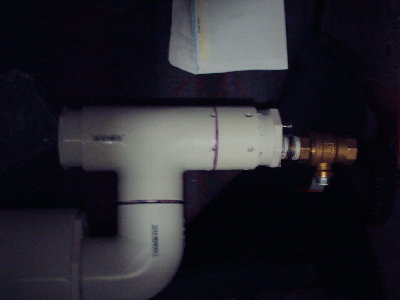

- Piston Valve
-
Current Project: 4" Tee Piston Valve
-
PVC Arsenal 17
- Staff Sergeant 3
- Posts: 1762
- Joined: Mon Mar 27, 2006 4:18 pm
- Location: United States
Nice pneumatic. (wrong section)
lol @ redneck
lol @ redneck
damnit! I was looking at the combustion guns and decided to post my gun up and click new topic. Shit, can someone move this for me! Sorry!
Current Project: 4" Tee Piston Valve
-
MisterSteve124
- Corporal 3
- Posts: 702
- Joined: Sat Feb 11, 2006 10:11 pm
- Location: West Chester, PA
- Contact:
Sorry to dissapoint you but it's not all pressure rated parts. That reducer that goes to the barrel is dwv
i know that, but that really won't matter much because it isn't being pressurized.
Current Project: 4" Tee Piston Valve
-
PVC Arsenal 17
- Staff Sergeant 3
- Posts: 1762
- Joined: Mon Mar 27, 2006 4:18 pm
- Location: United States
Oh it is... trust me. Even more so when your ammo is a tight fit.dapallox1 wrote:i know that, but that really won't matter much because it isn't being pressurized.
Just be careful.
I wouldnt worry about. thats a very nice gun. what exactly do you shoot with it?PVC Arsenal 17 wrote:Oh it is... trust me. Even more so when your ammo is a tight fit.dapallox1 wrote:i know that, but that really won't matter much because it isn't being pressurized.
Just be careful.
"physics, gravity, and law enforcement are the only things that prevent me from operating at my full potential" - not sure, but i like the quote
you know you are not an engineer if you have to remind yourself "left loosy righty tighty"
you know you are not an engineer if you have to remind yourself "left loosy righty tighty"
Yeah, I thought about that. But it won't be pressurized very long plus I'll mainly be shooting my dad's beer cans with a wad of rag behind it. And I'm going to get a coupling for a 2" barrel soon too.
Current Project: 4" Tee Piston Valve
-
Lentamentalisk
- Sergeant 3
- Posts: 1202
- Joined: Tue Aug 07, 2007 5:27 pm
- Location: Berkeley C.A.
The 1.5" piston porting is on the very small size for a 3" barrel. Lemi do da math...
The piston has about 1/4 the flow of the barrel. It should work fairly nicely for a 2" though
The piston has about 1/4 the flow of the barrel. It should work fairly nicely for a 2" though
Do not look back, and grieve over the past, for it is gone;
Do not be troubled about the future, for it has not yet come;
Live life in the present, and make it so beautiful that it will be worth remembering.
Do not be troubled about the future, for it has not yet come;
Live life in the present, and make it so beautiful that it will be worth remembering.
-
spudgunnerwryyyyy
- Specialist 2
- Posts: 261
- Joined: Thu Jul 12, 2007 10:54 pm
Nice what are you using for a piston,
why doesn't it seal,
post some pics of the piston so we can help you debug and get this thing up to 125 psi
w00t
why doesn't it seal,
post some pics of the piston so we can help you debug and get this thing up to 125 psi
w00t
The Doors are awesome, Led Zeppelin is amazing, and Motley Crue kicks @$$.
Go Orange Box
RAP SUCKS
Go Orange Box
RAP SUCKS
I only wanted the 3" barrel for small toilet rolls for Halloween!Lentamentalisk wrote:The 1.5" piston porting is on the very small size for a 3" barrel. Lemi do da math...
The piston has about 1/4 the flow of the barrel. It should work fairly nicely for a 2" though
spudgunnerwryyyyy: I'll post pics of it as soon as possible.
Current Project: 4" Tee Piston Valve
-
jackssmirkingrevenge
- Five Star General
- Posts: 26179
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 543 times
- Been thanked: 321 times
where do you plug in the amplifier?
hectmarr wrote:You have to make many weapons, because this field is long and short life
-
ALIHISGREAT
- Staff Sergeant 3
- Posts: 1778
- Joined: Sat Aug 25, 2007 6:47 pm
- Location: UK
very nice gun, any chance of damage pics?
Yes, agreeing. Now Lauren looks stupendous. This is something you should be proud of. But, again, tell us why it won't seal and see if we can help.
